◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-42 - AUTO TRANS OIL PAN AND OIL CONTROL ▶
2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#166584) — 14 parça

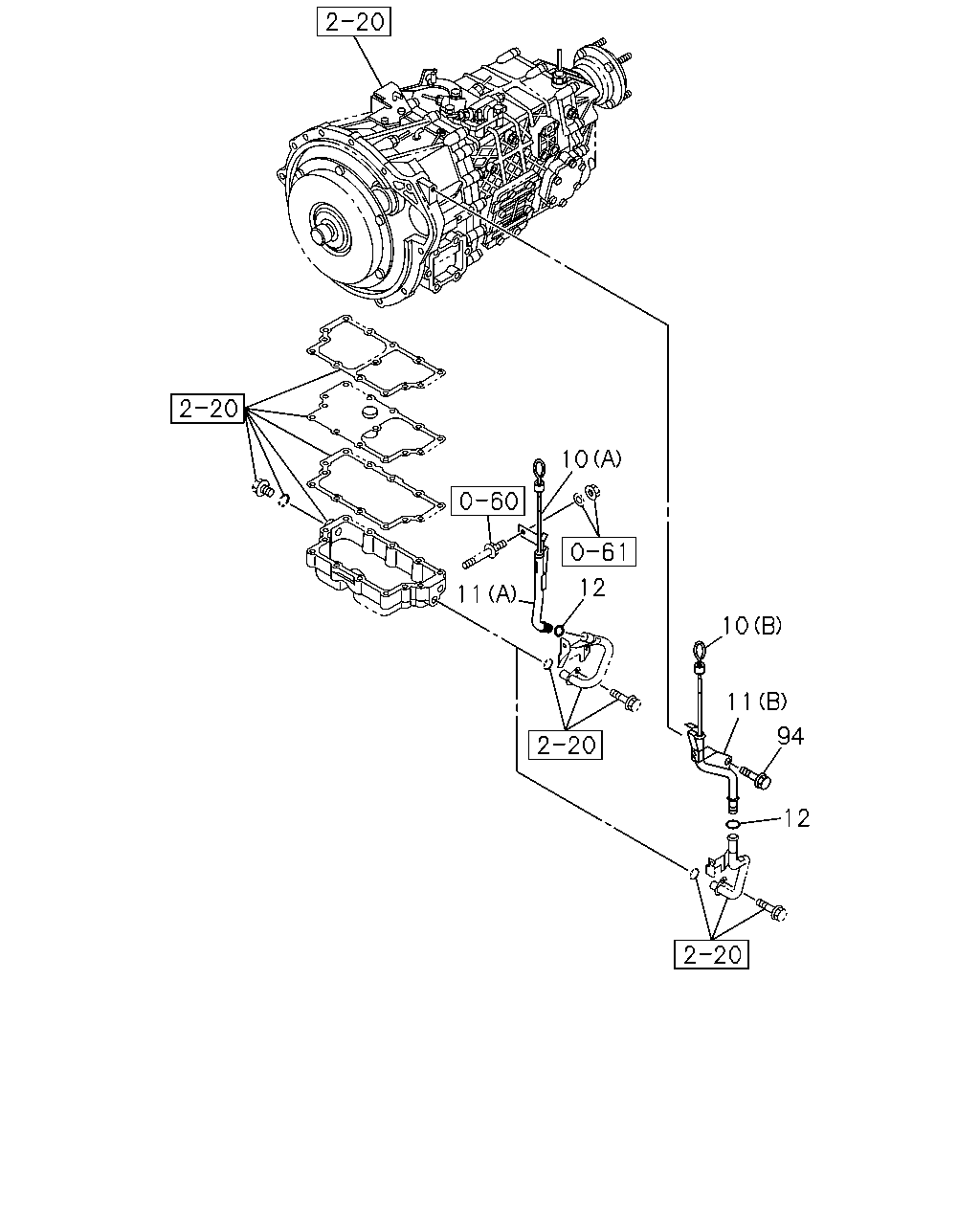

çizim 493330
11 12 10 11 94 12 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 04.197 GAUGE; OIL LEVEL
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97325-010-1 01 1 1509-1511 ●
10 04.197 GAUGE; OIL LEVEL
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97325-010-1 01 1 1512- ●
10 04.197 GAUGE; OIL LEVEL
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97325-010-1 01 1 1512- ●
10 04.197 GAUGE; OIL LEVEL
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-446-0 01 1 1509- ●
10 04.197 GAUGE; OIL LEVEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-446-0 01 1 1509- ● ●
11 04.197 TUBE; OIL FILLER
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98147-074-0 01 1 1512- ●
11 04.197 TUBE; OIL FILLER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98050-297-0 01 1 1509- ●
11 04.197 TUBE; OIL FILLER
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98060-185-0 01 1 1509- ●
11 04.197 TUBE; OIL FILLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98060-185-0 01 1 1509- ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.3 		8-97313-558-0 01 1 1509-1511 ● ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) ID=12.3 		8-97313-558-0 01 1 1512- ● ● ● ●
94 04.197 BOLT; OIL FILLER TUBE
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M10X12 FLANGE 		0-28151-012-0 01 1 1509-1511 ●
94 04.197 BOLT; OIL FILLER TUBE
SMOOTHER-EX(TYPE2)(8NS) 02.343 M10X12 FLANGE 		0-28151-012-0 01 1 1512- ●
94 04.197 BOLT; OIL FILLER TUBE
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M10X12 FLANGE 		0-28151-012-0 01 1 1512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
