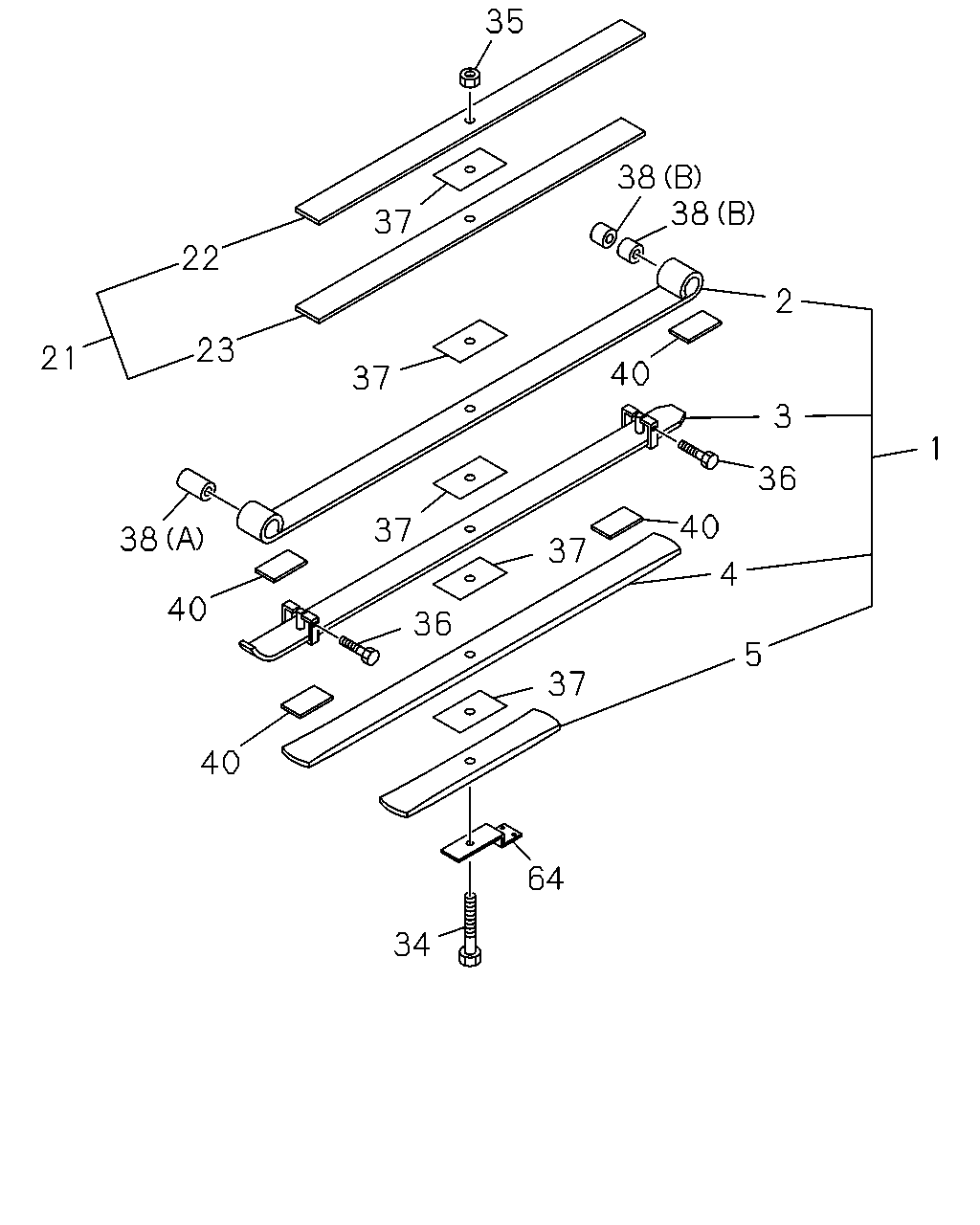

4-65D — REAR LEAF SPRING (#166581) — 17 parça

35 38 38 2 3 1 36 5 4 40 40 37 22 23 21 38 40 40 34 64 37 37 36 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98273-764-0, 98273764	8-98282-557-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98273-764-0, 98273764	8-98282-558-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98273-764-0, 98273764	8-98282-559-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98273-764-0, 98273764	8-98282-560-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98273-764-0, 98273764	8-98282-561-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98273-764-0, 98273764	8-98282-562-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98273-764-0, 98273764	8-98284-846-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98273-764-0, 98273764	8-98284-847-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=110 ASM PART: A = 8-98273-764-0, 98273764	8-98040-312-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98273-764-0, 98273764	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: A = 8-98273-764-0, 98273764	8-98040-332-0	02	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98273-764-0, 98273764	8-97084-102-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-98273-764-0, 98273764	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (B) ASM PART: A = 8-98273-764-0, 98273764	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: A = 8-98273-764-0, 98273764	8-97074-826-0	01	1	-
40	07.506 LINER; LEAF SPR,RR 07.436 ASM PART: A = 8-98273-764-0, 98273764	8-97084-848-0	04	1	-
64	07.513 SUPPORT; RR SPR ASM PART: A = 8-98273-764-0, 98273764	8-97044-353-2	01	1	-
