4-65C — REAR LEAF SPRING (#166580) — 63 parça

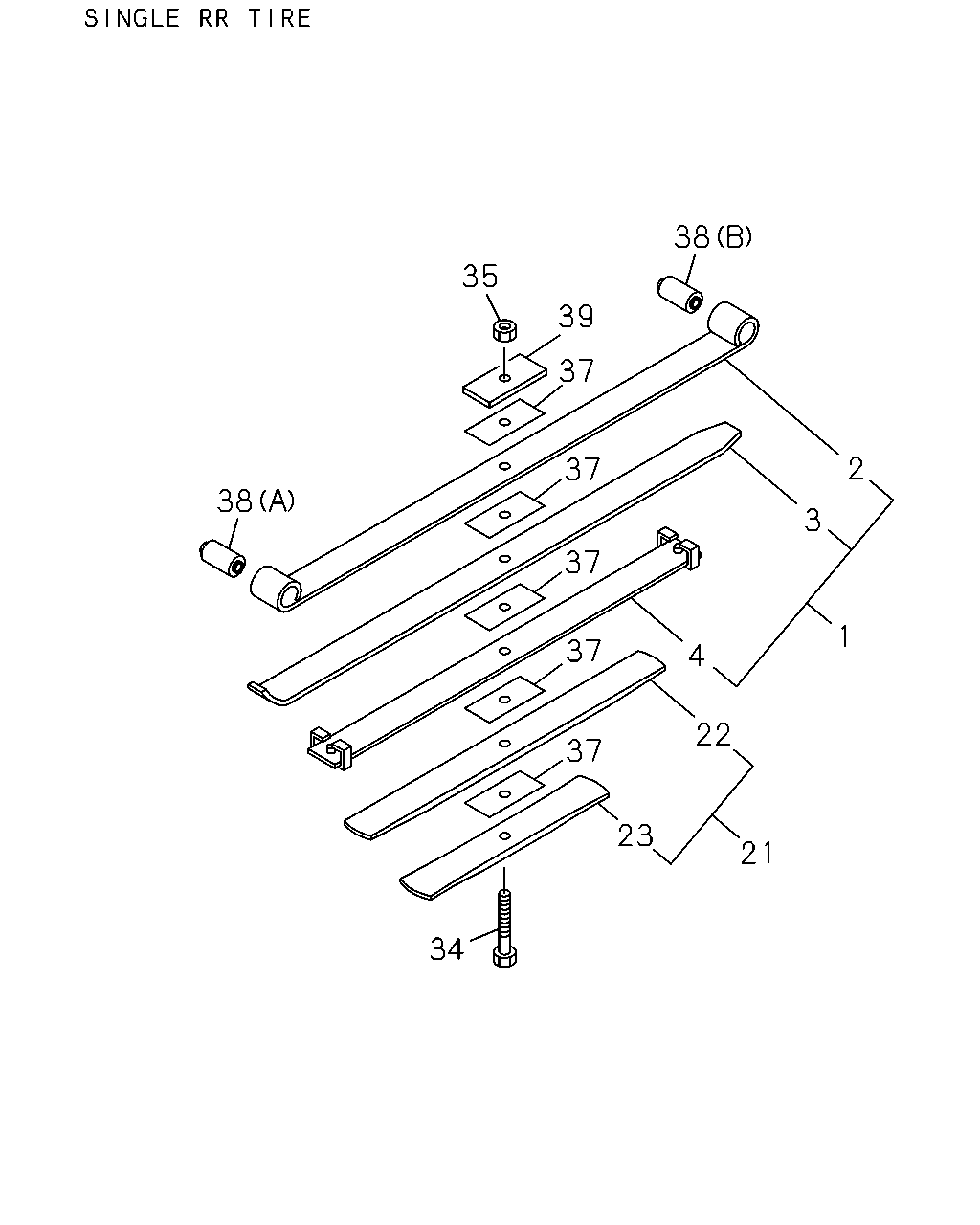

38 2 3 1 21 22 4 35 39 37 37 37 37 37 23 34 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-98001-564-0, 98001564	8-98037-688-0	01	1	-
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98001-551-1, 98001551	8-98040-838-0	01	1	-
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: C = 8-98048-271-0, 98048271	8-98055-510-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98001-564-0, 98001564	8-98037-689-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98001-551-1, 98001551	8-98040-839-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-98048-271-0, 98048271	8-98055-511-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-98001-564-0, 98001564	8-98037-690-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98001-551-1, 98001551	8-98040-840-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-98048-271-0, 98048271	8-98055-512-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-98001-564-0, 98001564	8-98037-691-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98001-551-1, 98001551	8-98040-841-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-98048-271-0, 98048271	8-98055-513-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: B = 8-98001-564-0, 98001564	8-98037-692-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98001-551-1, 98001551	8-98040-842-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: C = 8-98048-271-0, 98048271	8-98055-514-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-98001-564-0, 98001564	8-98037-693-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98001-551-1, 98001551	8-98040-843-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-98048-271-0, 98048271	8-98055-515-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-98001-564-0, 98001564	8-98037-694-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98001-551-1, 98001551	8-98040-844-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-98048-271-0, 98048271	8-98055-516-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=100 ASM PART: A = 8-98001-551-1, 98001551	8-98037-586-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=85 ASM PART: B = 8-98001-564-0, 98001564, C = 8-98048-271-0, 98048271	8-98037-590-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98001-551-1, 98001551, B = 8-98001-564-0, 98001564, C = 8-98048-271-0, 98048271	9-99110-512-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98001-551-1, 98001551	8-94448-734-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-98001-551-1, 98001551	5-87610-162-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: B = 8-98001-564-0, 98001564, C = 8-98048-271-0, 98048271	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.105, (A) ASM PART: A = 8-98001-551-1, 98001551	8-94130-354-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=85.2 ASM PART: A = 8-98001-551-1, 98001551	8-97034-380-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: B = 8-98001-564-0, 98001564, C = 8-98048-271-0, 98048271	8-97074-826-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=40 L=41 ASM PART: B = 8-98001-564-0, 98001564, C = 8-98048-271-0, 98048271	8-97374-410-0	02	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN T=12 ASM PART: A = 8-98001-551-1, 98001551	8-94407-146-0	01	1	-

38 38 2 3 1 36 4 21 22 23 35 36 38 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-98001-564-0, 98001564	8-98037-688-0	01	1	-
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98001-551-1, 98001551	8-98040-838-0	01	1	-
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: C = 8-98048-271-0, 98048271	8-98055-510-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98001-564-0, 98001564	8-98037-689-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98001-551-1, 98001551	8-98040-839-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-98048-271-0, 98048271	8-98055-511-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-98001-564-0, 98001564	8-98037-690-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98001-551-1, 98001551	8-98040-840-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-98048-271-0, 98048271	8-98055-512-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-98001-564-0, 98001564	8-98037-691-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98001-551-1, 98001551	8-98040-841-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-98048-271-0, 98048271	8-98055-513-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: B = 8-98001-564-0, 98001564	8-98037-692-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98001-551-1, 98001551	8-98040-842-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: C = 8-98048-271-0, 98048271	8-98055-514-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-98001-564-0, 98001564	8-98037-693-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98001-551-1, 98001551	8-98040-843-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-98048-271-0, 98048271	8-98055-515-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-98001-564-0, 98001564	8-98037-694-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98001-551-1, 98001551	8-98040-844-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-98048-271-0, 98048271	8-98055-516-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=100 ASM PART: A = 8-98001-551-1, 98001551	8-98037-586-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=85 ASM PART: B = 8-98001-564-0, 98001564, C = 8-98048-271-0, 98048271	8-98037-590-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98001-551-1, 98001551, B = 8-98001-564-0, 98001564, C = 8-98048-271-0, 98048271	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X91 ASM PART: B = 8-98001-564-0, 98001564, C = 8-98048-271-0, 98048271	8-98040-331-0	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-98001-551-1, 98001551	5-87610-162-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: B = 8-98001-564-0, 98001564, C = 8-98048-271-0, 98048271	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.105, (A) ASM PART: A = 8-98001-551-1, 98001551	8-94130-354-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=85.2 ASM PART: A = 8-98001-551-1, 98001551	8-97034-380-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: B = 8-98001-564-0, 98001564, C = 8-98048-271-0, 98048271	8-97074-826-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=40 L=41 ASM PART: B = 8-98001-564-0, 98001564, C = 8-98048-271-0, 98048271	8-97374-410-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
