Isuzu WW
▶
TRUCKS
▶
NKR
▶
50814 - NKR(THAILAND)
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#16658) — 33 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
◀
[311A] DUAL RR TIRE&MIDDLE (8 parça)
[311A] SGL TIRE&SHORT,DUAL RR TIRE&SHORT (8 parça)
[311A] ALL MODEL (17 parça)
▶
225
91
236
324
224
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
91
CLIP; PARKING BRK CABLE
(B) ID=13 L=50
9-09525-286-0
01
1
0009-
●
●
91
CLIP; PARKING BRK CABLE
(A) ID=13 L=20
1-09701-138-1
01
1
0009-
●
224
BOLT; CABLE CLIP
M8X25 FLANGE
0-28680-825-0
01
1
0009-
●
●
224
BOLT; CABLE CLIP
M10X25 FLANGE
0-28681-025-0
01
1
0009-
●
225
NUT; CABLE CLIP
M8 FLANGE
0-91150-108-0
01
1
0009-
●
●
225
NUT; CABLE CLIP
M10 FLANGE
0-91150-110-0
01
1
0009-
●
236
BOLT; BRKT TO FRAME
M8X25 FLANGE
0-28680-825-0
02
1
0009-
●
324
BRACKET
8-97140-998-2
01
1
0009-
●
225
89
224
91
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
89
BRACKET; CLIP
8-97113-984-1
01
1
0009-
●
●
91
CLIP; PARKING BRK CABLE
(B) ID=13 L=50
9-09525-286-0
01
1
0009-
●
●
91
CLIP; PARKING BRK CABLE
(A) ID=13 L=20
1-09701-138-1
01
1
0009-
●
181
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
01
1
0009-
●
●
224
BOLT; CABLE CLIP
M8X25 FLANGE
0-28680-825-0
01
1
0009-
●
●
224
BOLT; CABLE CLIP
M10X25 FLANGE
0-28681-025-0
01
1
0009-
●
225
NUT; CABLE CLIP
M8 FLANGE
0-91150-108-0
01
1
0009-
●
●
225
NUT; CABLE CLIP
M10 FLANGE
0-91150-110-0
01
1
0009-
●

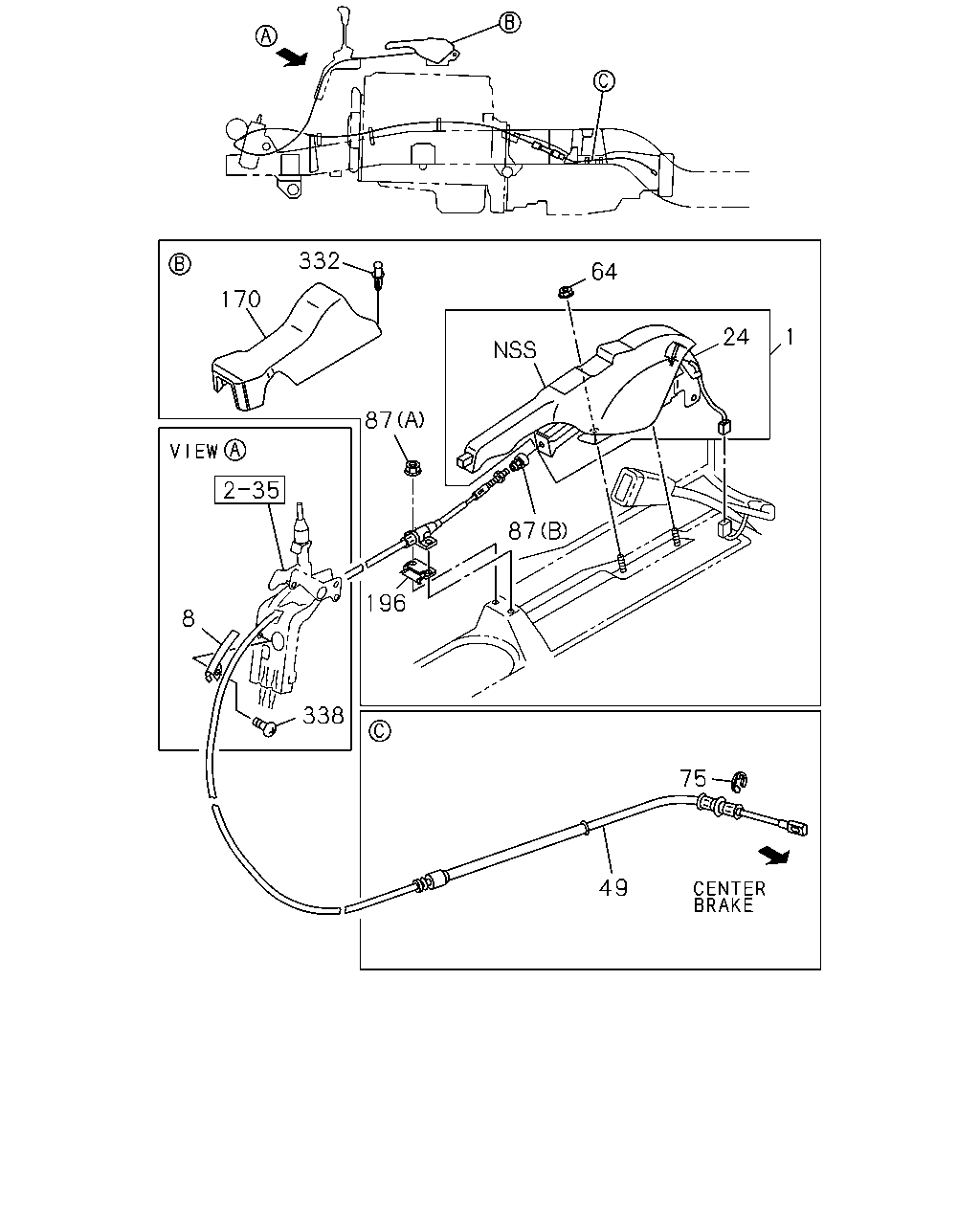

332
64
170
24
1
87
87
196
8
338
75
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
STEM ASM; PARKING BRK
DARK GRAY
8-97890-438-1
01
1
0009-0108
●
●
●
1
STEM ASM; PARKING BRK
DARK GRAY
8-97995-846-0
01
1
0109-0110
●
●
●
1
STEM ASM; PARKING BRK
DARK GRAY
8-97996-542-1
01
1
0111-
●
●
●
8
GUIDE; PARKING BRK
8-97190-672-0
01
1
0009-
●
●
●
24
SWITCH ASM; PARK BRK
8-97890-859-0
01
1
0009-0108
●
●
●
24
SWITCH ASM; PARK BRK
8-97995-828-1
01
1
0109-
●
●
●
49
CABLE; PARKING BRK
THA
8-97940-537-0
01
1
0009-
●
●
49
CABLE; PARKING BRK
THA
8-97940-296-1
01
1
0009-
●
64
NUT; PARKING BRK
M8 W/LK WASHER
8-94327-073-0
02
1
0009-
●
●
●
75
RING; SNAP,HAND BRK CABLE
ID=12
9-09185-412-0
01
1
0009-
●
●
●
87
NUT
(A) M8 FLANGE
0-91150-108-0
02
1
0009-
●
●
●
87
NUT
(B)
8-97088-730-1
01
1
0009-0308
●
●
●
87
NUT
M6
1-71996-312-0
01
1
0309-
●
●
●
170
COVER; PARKING BRK LEVER
DARK GRAY
8-97155-172-0
01
1
0009-
●
●
●
196
SPACER; CABLE TO LEVER
8-97066-277-2
01
1
0009-
●
●
●
332
CLIP; COVER
D6X12.5
8-94146-425-0
01
1
0009-
●
●
●
338
SCREW; GUIDE
M6X10
9-03497-610-0
01
1
0009-
●
●
●
