◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#166573) — 240 parça

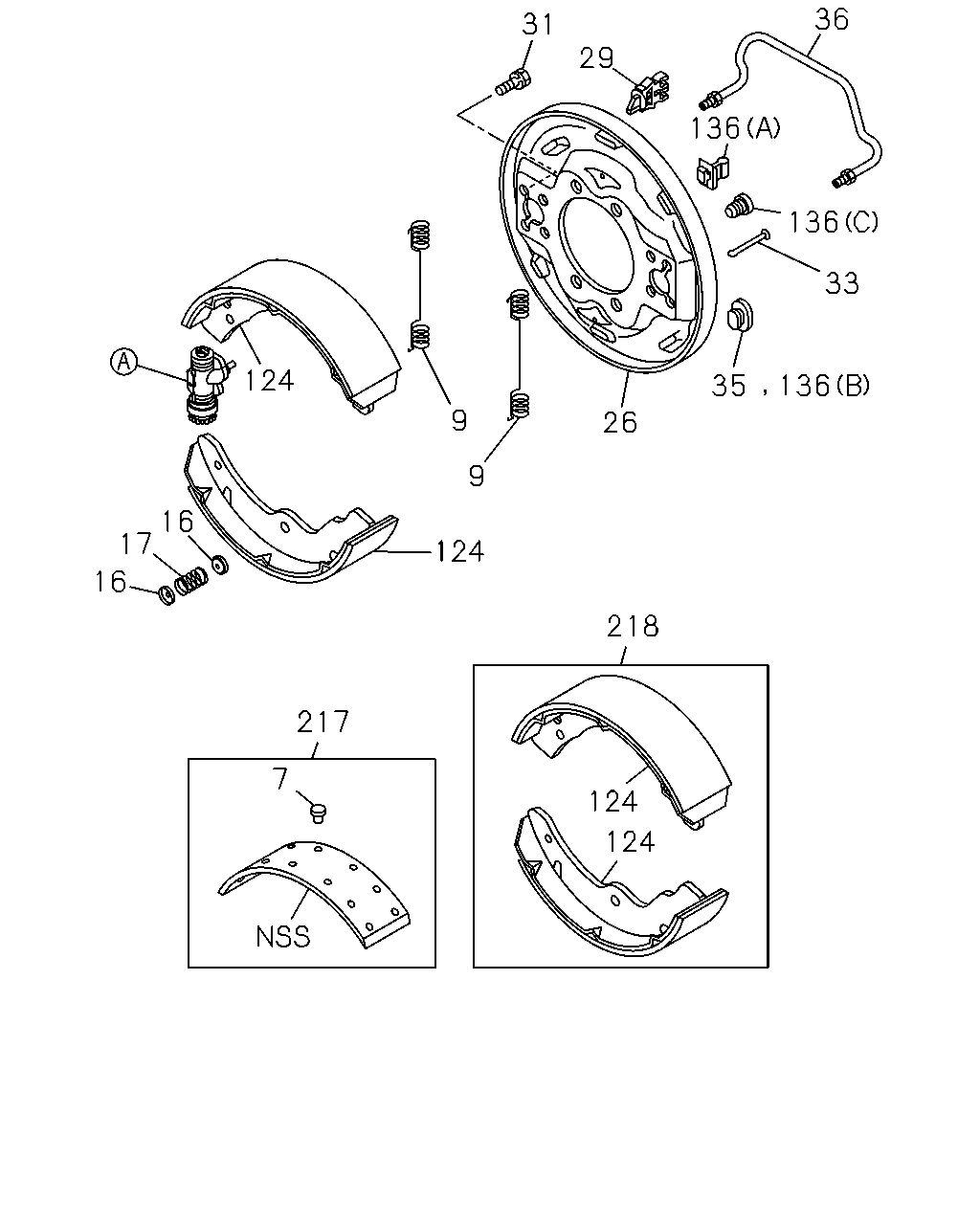

çizim 492432
16 17 16 124 124 217 7 218 124 124 9 9 26 35 136 33 136 136 29 36 31
BalonParca AdiParca NoAdetTipApplied Date A B
7 05.019 RIVET; LINING,RR BRK
G.V.W. 3.0-3.5TON(RPP) 		1-09732-029-0 40 1 1509- ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		1-09732-029-0 40 1 1509- ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		1-09732-029-0 48 1 1509- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-707-0 04 1 1509- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-707-0 04 1 1509- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 3.0-3.5TON(RPP) 		5-09583-118-0 04 1 1509- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		5-09583-118-0 04 1 1509- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97078-739-0 04 1 1509- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		8-97078-739-0 04 1 1509- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97022-087-0 04 1 1509- ●
16 05.043 CUP; SHOE HOLDING
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-712-0 08 1 1509- ●
16 05.043 CUP; SHOE HOLDING
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-712-0 08 1 1509- ●
16 05.043 CUP; SHOE HOLDING
G.V.W. 3.0-3.5TON(RPP) 		9-47165-096-0 08 1 1509- ●
16 05.043 CUP; SHOE HOLDING
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		9-47165-096-0 08 1 1509- ●
16 05.043 CUP; SHOE HOLDING
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		9-47165-096-0 08 1 1509- ●
16 05.043 CUP; SHOE HOLDING
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		9-47162-033-0 08 1 1509- ●
16 05.043 CUP; SHOE HOLDING
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		9-47162-033-0 08 1 1509- ●
17 04.043 SPRING; SHOE HOLD DOWN
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-708-0 04 1 1509- ●
17 04.043 SPRING; SHOE HOLD DOWN
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-708-0 04 1 1509- ●
17 04.043 SPRING; SHOE HOLD DOWN
G.V.W. 3.0-3.5TON(RPP) 05.043 		5-09580-101-1 04 1 1509- ●
17 04.043 SPRING; SHOE HOLD DOWN
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 05.043 		5-09580-101-1 04 1 1509- ●
17 04.043 SPRING; SHOE HOLD DOWN
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 05.043 		5-09580-101-1 04 1 1509- ●
17 04.043 SPRING; SHOE HOLD DOWN
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 05.043 		9-09940-989-1 04 1 1509- ●
17 04.043 SPRING; SHOE HOLD DOWN
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 05.043 		9-09940-989-1 04 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97239-299-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97239-299-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97239-300-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97239-300-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 3.0-3.5TON(RPP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-854-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-854-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 3.0-3.5TON(RPP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-855-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-855-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-848-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) 		8-97079-848-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-849-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) 		8-97079-849-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),SINGLE RR TIRE(6TD) 		8-97191-698-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1),SINGLE RR TIRE(6TD) 		8-97191-699-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97093-934-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97093-935-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97192-080-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97192-081-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		8-97078-679-0 01 1 1509- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		8-97078-680-0 01 1 1509- ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-703-0 02 1 1509- ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-703-0 02 1 1509- ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 3.0-3.5TON(RPP) 		8-94128-306-0 02 1 1509- ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		8-94128-306-0 02 1 1509- ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-94128-307-0 02 1 1509- ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		8-94128-307-0 02 1 1509- ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97022-086-0 02 1 1509- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-714-0 16 1 1509- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-714-0 16 1 1509- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 3.0-3.5TON(RPP) 		5-09030-016-1 16 1 1509- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		5-09030-016-1 16 1 1509- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		5-09030-036-1 16 1 1509- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		5-09030-036-1 16 1 1509- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97081-305-0 16 1 1509- ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-711-0 04 1 1509- ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-711-0 04 1 1509- ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 3.0-3.5TON(RPP) 		5-47162-001-0 04 1 1509- ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		5-47162-001-0 04 1 1509- ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		9-47162-607-0 04 1 1509- ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		9-47162-607-0 04 1 1509- ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97022-089-0 04 1 1509- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-720-0 02 1 1509- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-720-0 02 1 1509- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 3.0-3.5TON(RPP) 		8-94171-287-0 02 1 1509- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		8-94171-287-0 02 1 1509- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-94344-919-0 02 1 1509- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		8-94344-919-0 02 1 1509- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97017-507-0 02 1 1509- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-702-0 02 1 1509- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-702-0 02 1 1509- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 3.0-3.5TON(RPP) 		8-94154-916-0 02 1 1509- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		8-94154-916-0 02 1 1509- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-94128-192-0 02 1 1509- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		8-94128-192-0 02 1 1509- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97192-215-0 02 1 1509- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97331-932-0 04 1 1509- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97331-932-0 04 1 1509- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 3.0-3.5TON(RPP) 		8-97287-778-0 04 1 1509- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		8-97287-778-0 04 1 1509- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97035-085-1 04 1 1509- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		8-97035-085-1 04 1 1509- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97201-061-0 04 1 1509- ●
136 05.002 GROMMET
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97191-718-0 08 1 1509- ●
136 05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) (B) 		8-97191-718-0 08 1 1509- ●
136 05.002 GROMMET
G.V.W. 3.0-3.5TON(RPP) 04.670 (C) 		1-47154-008-0 04 1 1509- ●
136 05.002 GROMMET
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 04.670 (C) 		1-47154-008-0 04 1 1509- ●
136 05.002 GROMMET
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 04.670 (C) 		1-47154-008-0 04 1 1509- ●
136 05.002 GROMMET
G.V.W. 3.0-3.5TON(RPP) (B) 		8-94171-287-0 04 1 1509- ●
136 05.002 GROMMET
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) (B) 		8-94171-287-0 04 1 1509- ●
136 05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		9-09956-640-0 04 1 1509- ●
136 05.002 GROMMET
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) (A) 		9-09956-640-0 04 1 1509- ●
136 05.002 GROMMET
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97017-507-0 04 1 1509- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 3.0-3.5TON(RPP) 		5-87831-801-0 01 1 1509- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		5-87831-801-0 01 1 1509- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		5-87831-774-0 01 1 1509- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 3.0-3.5TON(RPP) BEST VALUE PARTS 		5-87610-121-0 01 1 1509- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) BEST VALUE PARTS 		5-87610-121-0 01 1 1509- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> BEST VALUE PARTS 		5-87610-120-0 01 1 1509- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		5-87832-044-0 01 1 1509- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		5-87832-044-0 01 1 1509- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 3.0-3.5TON(RPP) 		5-87832-047-0 01 1 1509- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		5-87832-047-0 01 1 1509- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		5-87832-045-0 01 1 1509- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		5-87832-045-0 01 1 1509- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		5-87831-775-0 01 1 1509- ●

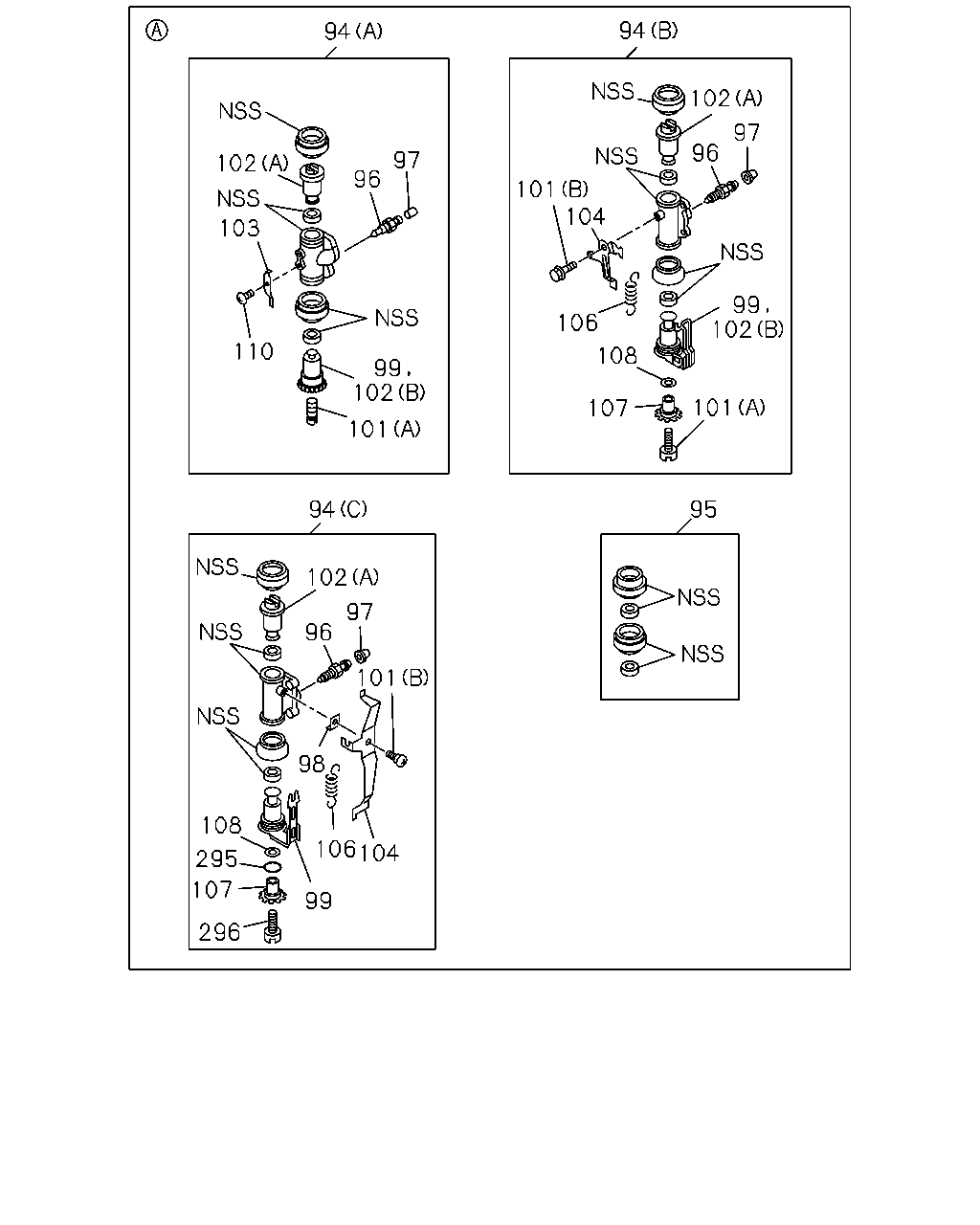

çizim 493028
94 97 96 102 103 110 99 102 101 94 102 97 96 101 98 108 295 107 296 106 104 99 94 101 106 107 108 102 96 97 99 102 101 95 104
BalonParca AdiParca NoAdetTipApplied Date A B
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> (C) FRONT 		8-97191-497-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) (C) FRONT 		8-97191-497-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> (C) REAR 		8-97191-499-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) (C) REAR 		8-97191-499-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> (C) FRONT 		8-97191-501-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) (C) FRONT 		8-97191-501-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> (C) REAR 		8-97191-502-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) (C) REAR 		8-97191-502-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 3.0-3.5TON(RPP) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97349-689-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97349-689-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 3.0-3.5TON(RPP) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-97349-691-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-97349-691-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97349-689-0 02 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) (B) 		8-97349-689-0 02 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 3.0-3.5TON(RPP) (B) REAR 		8-97349-690-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) (B) REAR 		8-97349-690-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 3.0-3.5TON(RPP) (B) FRONT 		8-97349-692-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) (B) FRONT 		8-97349-692-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT 		8-97139-840-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) (A) FRONT 		8-97139-840-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR 		8-97139-841-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) (A) REAR 		8-97139-841-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97139-842-0 02 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) (A) 		8-97139-842-0 02 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (B) REAR 		8-97349-705-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (B) REAR 		8-97349-706-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (B) FRONT 		8-97349-707-0 01 1 1509- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (B) FRONT 		8-97349-708-0 01 1 1509- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		5-87831-781-0 01 1 1509- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		5-87831-781-0 01 1 1509- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 3.0-3.5TON(RPP) 		5-87831-622-0 01 1 1509- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		5-87831-622-0 01 1 1509- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		5-87831-621-0 01 1 1509- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		5-87831-621-0 01 1 1509- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		5-87832-070-0 01 1 1509- ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-759-0 02 1 1509- ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-759-0 02 1 1509- ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 3.0-3.5TON(RPP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-476-0 02 1 1509- ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-476-0 02 1 1509- ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98050-476-0 02 1 1509- ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-476-0 01 1 1509- ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98050-476-0 01 1 1509- ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		8-98050-476-0 01 1 1509- ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) 		8-98050-476-0 01 1 1509- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-774-0 02 1 1509- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-774-0 02 1 1509- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 3.0-3.5TON(RPP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-479-0 02 1 1509- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-479-0 02 1 1509- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98050-479-0 02 1 1509- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 3.0-3.5TON(RPP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-479-0 01 1 1509- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98050-479-0 01 1 1509- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		8-98050-479-0 01 1 1509- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) 		8-98050-479-0 01 1 1509- ●
98 04.669 SPRING; RR WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-768-0 04 1 1509- ●
98 04.669 SPRING; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-768-0 04 1 1509- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-731-0 02 1 1509- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-731-0 02 1 1509- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-732-0 02 1 1509- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-732-0 02 1 1509- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 3.0-3.5TON(RPP) 		8-97349-727-0 02 1 1509- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		8-97349-727-0 02 1 1509- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 3.0-3.5TON(RPP) 		8-97349-728-0 02 1 1509- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		8-97349-728-0 02 1 1509- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97078-698-0 03 1 1509- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		8-97078-698-0 03 1 1509- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-729-0 01 1 1509- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-730-0 02 1 1509- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97191-770-0 04 1 1509- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) (B) 		8-97191-770-0 04 1 1509- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 3.0-3.5TON(RPP) (B) 		8-97349-747-0 04 1 1509- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) (B) 		8-97349-747-0 04 1 1509- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97349-747-0 04 1 1509- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 3.0-3.5TON(RPP) (A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 1509- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) (A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 1509- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 3.0-3.5TON(RPP) (A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 1509- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) (A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 1509- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 05.110 (A) 		8-97078-623-0 04 1 1509- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 05.110 (A) 		8-97078-623-0 04 1 1509- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97349-741-0 02 1 1509- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97349-742-0 02 1 1509- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97191-755-0 04 1 1509- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) (A) 		8-97191-755-0 04 1 1509- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 3.0-3.5TON(RPP) (A) D=25.4 		8-94128-531-1 04 1 1509- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> (A) D=25.4 		8-94128-531-1 04 1 1509- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) (A) D=25.4 		8-94128-531-1 04 1 1509- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97078-698-0 01 1 1509- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) (B) 		8-97078-698-0 01 1 1509- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97078-045-0 04 1 1509- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97349-729-0 01 1 1509- ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-94128-486-0 04 1 1509- ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		8-94128-486-0 04 1 1509- ●
104 05.103 LEVER; ADJ
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-739-0 02 1 1509- ●
104 05.103 LEVER; ADJ
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-739-0 02 1 1509- ●
104 05.103 LEVER; ADJ
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-740-0 02 1 1509- ●
104 05.103 LEVER; ADJ
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-740-0 02 1 1509- ●
104 05.103 LEVER; ADJ
G.V.W. 3.0-3.5TON(RPP) 		8-97349-743-0 02 1 1509- ●
104 05.103 LEVER; ADJ
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		8-97349-743-0 02 1 1509- ●
104 05.103 LEVER; ADJ
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-743-0 02 1 1509- ●
104 05.103 LEVER; ADJ
G.V.W. 3.0-3.5TON(RPP) 		8-97349-744-0 02 1 1509- ●
104 05.103 LEVER; ADJ
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		8-97349-744-0 02 1 1509- ●
104 05.103 LEVER; ADJ
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-744-0 02 1 1509- ●
106 05.107 SPRING; ADJ LEVER
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-743-0 02 1 1509- ●
106 05.107 SPRING; ADJ LEVER
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-743-0 02 1 1509- ●
106 05.107 SPRING; ADJ LEVER
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-744-0 02 1 1509- ●
106 05.107 SPRING; ADJ LEVER
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-744-0 02 1 1509- ●
106 05.107 SPRING; ADJ LEVER
G.V.W. 3.0-3.5TON(RPP) 		8-97349-745-0 04 1 1509- ●
106 05.107 SPRING; ADJ LEVER
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		8-97349-745-0 04 1 1509- ●
106 05.107 SPRING; ADJ LEVER
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-745-0 04 1 1509- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-747-0 02 1 1509- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-747-0 02 1 1509- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-748-0 02 1 1509- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-748-0 02 1 1509- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 3.0-3.5TON(RPP) 		8-97349-737-0 02 1 1509- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		8-97349-737-0 02 1 1509- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 3.0-3.5TON(RPP) 		8-97349-739-0 02 1 1509- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		8-97349-739-0 02 1 1509- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-738-0 02 1 1509- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-740-0 02 1 1509- ●
108 05.110 WASHER; THRUST,GEAR ADJ
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-762-0 04 1 1509- ●
108 05.110 WASHER; THRUST,GEAR ADJ
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-762-0 04 1 1509- ●
108 05.110 WASHER; THRUST,GEAR ADJ
G.V.W. 3.0-3.5TON(RPP) 		8-97029-304-0 04 1 1509- ●
108 05.110 WASHER; THRUST,GEAR ADJ
G.V.W. 5.0-5.5TON(RPT) EXC. CHILE EQUIPMENT(KE1) 		8-97029-304-0 04 1 1509- ●
108 05.110 WASHER; THRUST,GEAR ADJ
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-736-0 04 1 1509- ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-94128-727-0 04 1 1509- ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) CHILE EQUIPMENT(KE1) 		8-94128-727-0 04 1 1509- ●
295 05.110 SEAL; DUST
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-751-0 04 1 1509- ●
295 05.110 SEAL; DUST
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-751-0 04 1 1509- ●
296 05.125 BOLT; ADJ,RR WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-764-0 02 1 1509- ●
296 05.125 BOLT; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-764-0 02 1 1509- ●
296 05.125 BOLT; ADJ,RR WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97191-765-0 02 1 1509- ●
296 05.125 BOLT; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL DISC BRAKE<JF9>,CHILE EQUIPMENT(KE1) 		8-97191-765-0 02 1 1509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
