◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-42 - AUTO TRANS OIL PAN AND OIL CONTROL ▶
2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#166571) — 8 parça

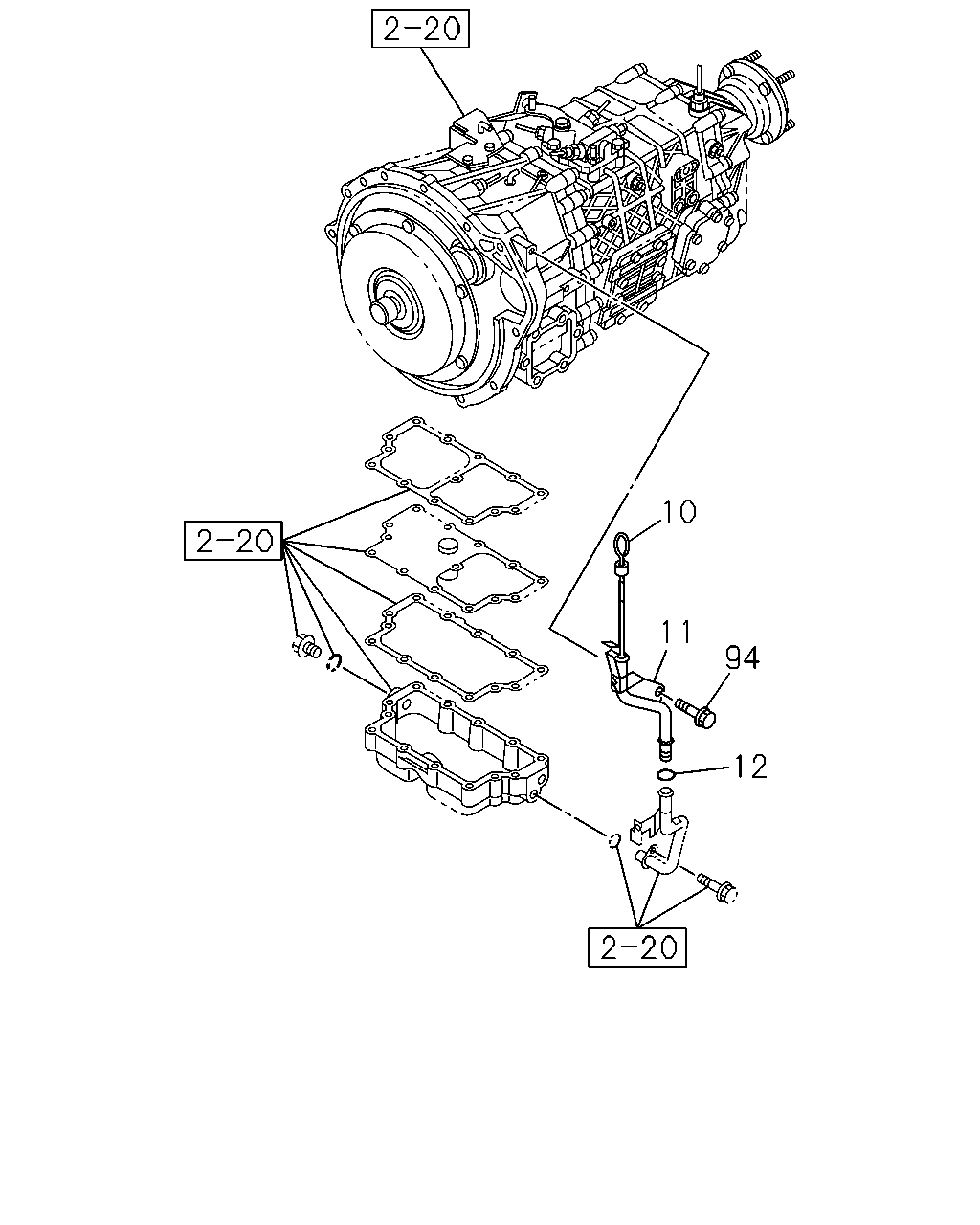

çizim 492316
10 11 94 12
BalonParca AdiParca NoAdetTipApplied Date A B C
10 04.197 GAUGE; OIL LEVEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97325-010-1 01 1 1509- ●
10 04.197 GAUGE; OIL LEVEL 8-97325-010-1 01 1 1509- ● ●
11 04.197 TUBE; OIL FILLER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98050-297-0 01 1 1509- ●
11 04.197 TUBE; OIL FILLER 8-98050-297-0 01 1 1509- ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.3 		8-97313-558-0 01 1 1509- ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
ID=12.3 		8-97313-558-0 01 1 1509- ● ●
94 04.197 BOLT; OIL FILLER TUBE
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M10X12 FLANGE 		0-28151-012-0 01 1 1509- ●
94 04.197 BOLT; OIL FILLER TUBE
02.343 M10X12 FLANGE 		0-28151-012-0 01 1 1509- ● ●
