8-28 — CHASSIS ELECTRICAL (#166566) — 11 parça

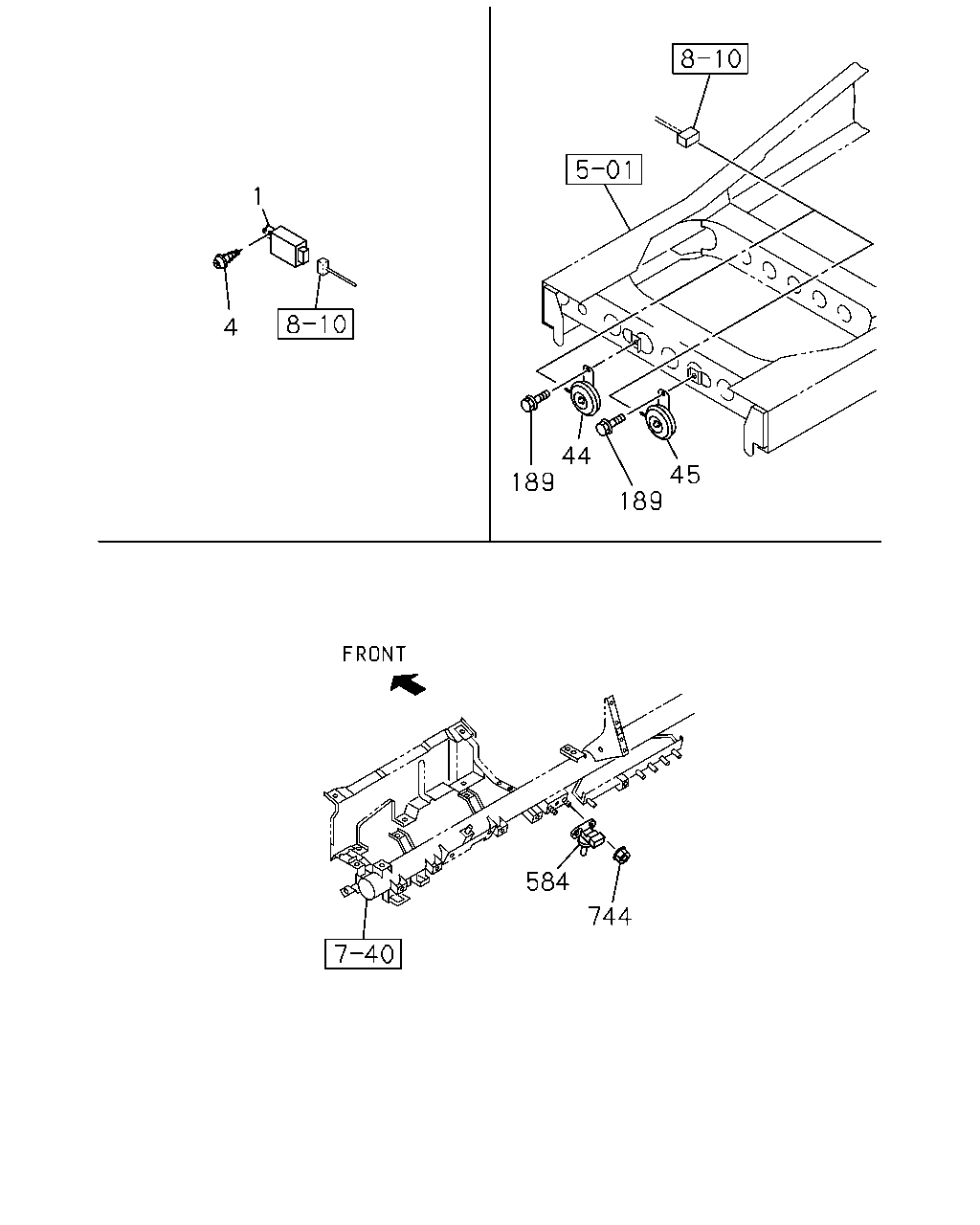

çizim 492574
1 4 44 189 45 189 584 744
BalonParca AdiParca NoAdetTipApplied Date
1 02.575 UNIT; FLASHER 1-83470-057-0 01 1 1509-
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509-
44 02.810 HORN; HIGH NOTE 8-98070-080-0 01 1 1509-
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 1509-
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1509-
584 02.440 SENSOR; PRESSURE
03.331 		8-98020-514-0 01 1 1509-
744 09.277 NUT; SENSOR
01.062 M6 FLANGE 		0-91180-106-0 02 1 1509-
çizim 493029
531 666 333
BalonParca AdiParca NoAdetTipApplied Date
333 09.277 RELAY; MARKER LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1509-
531 02.769 RELAY; MAIN
02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1509-
666 02.173 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1509-

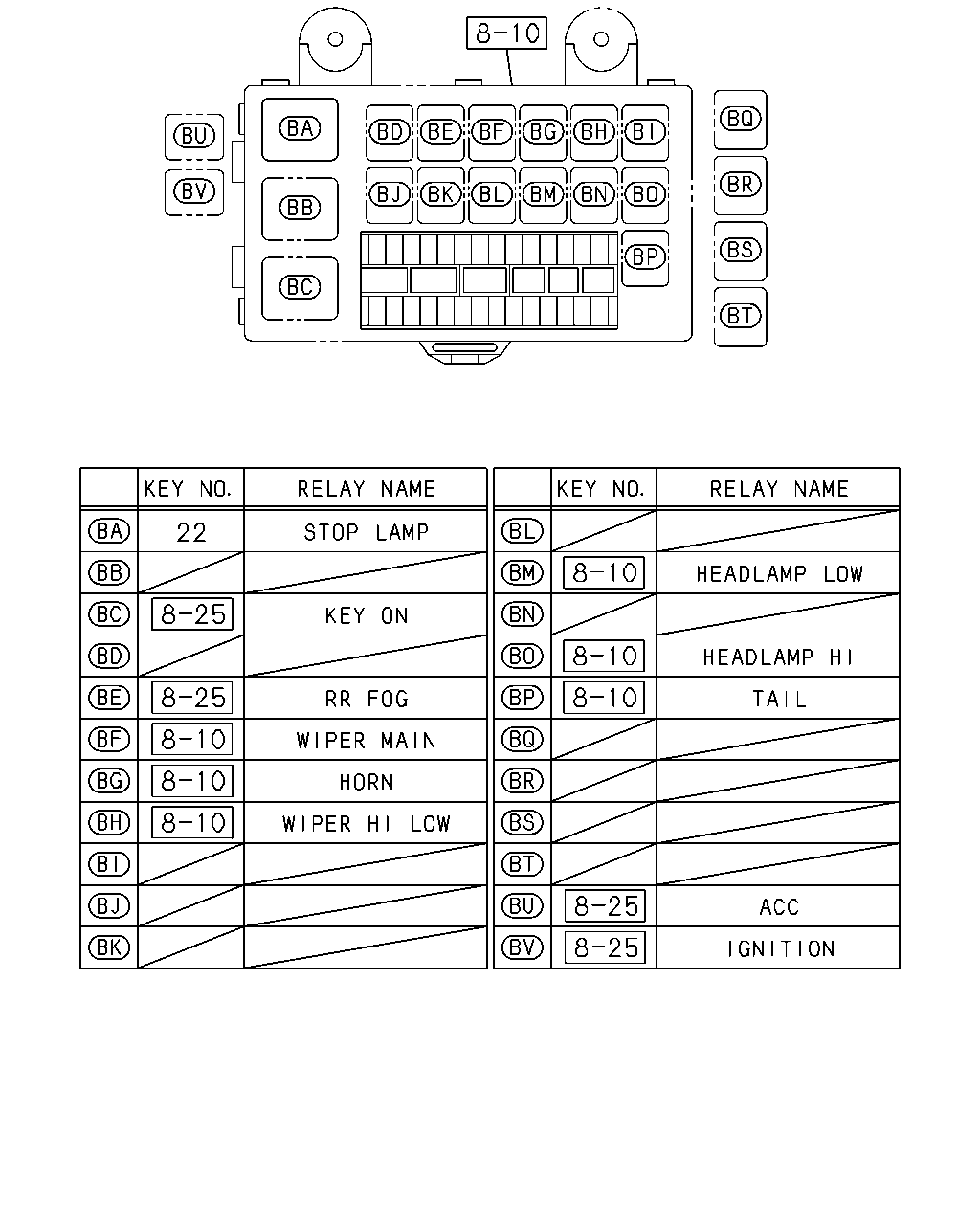

çizim 493394
22
BalonParca AdiParca NoAdetTipApplied Date
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509-
