◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51638 - NPR LHD BUS CHASSIS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#166564) — 20 parça

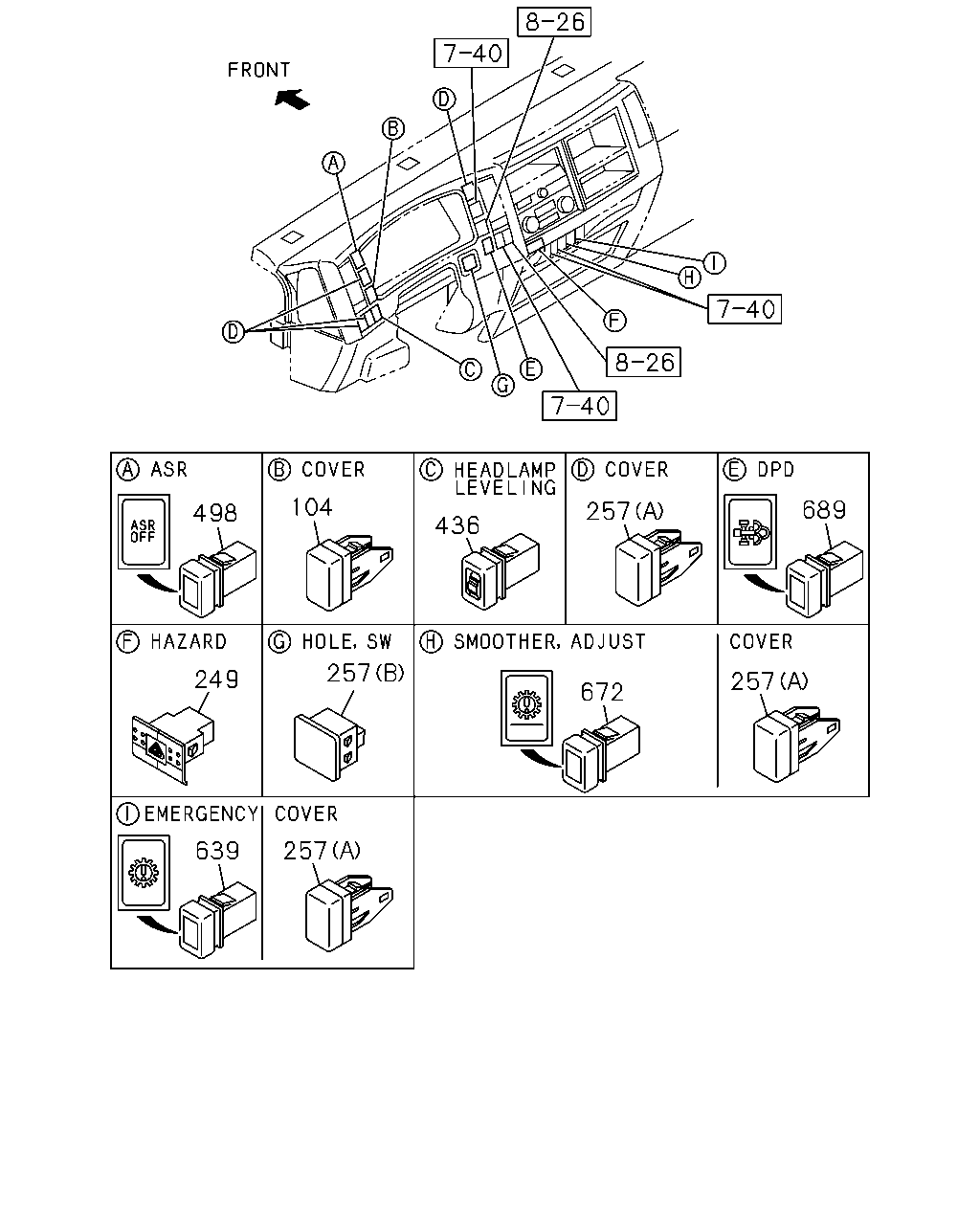

çizim 492693
689 257 672 257 436 104 498 249 257 257 639
BalonParca AdiParca NoAdetTipApplied Date
104 09.778 COVER; SW HOLE,FOG LAMP
16.081 		8-98025-954-1 01 1 1509-
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1509-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1509-
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1509-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1509-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1509-
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 02 1 1509-
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1509-
436 02.485 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1509-
498 03.883 SWITCH; ASR 8-98251-095-2 01 1 1509-
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 1509-
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 1509-
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 1509-

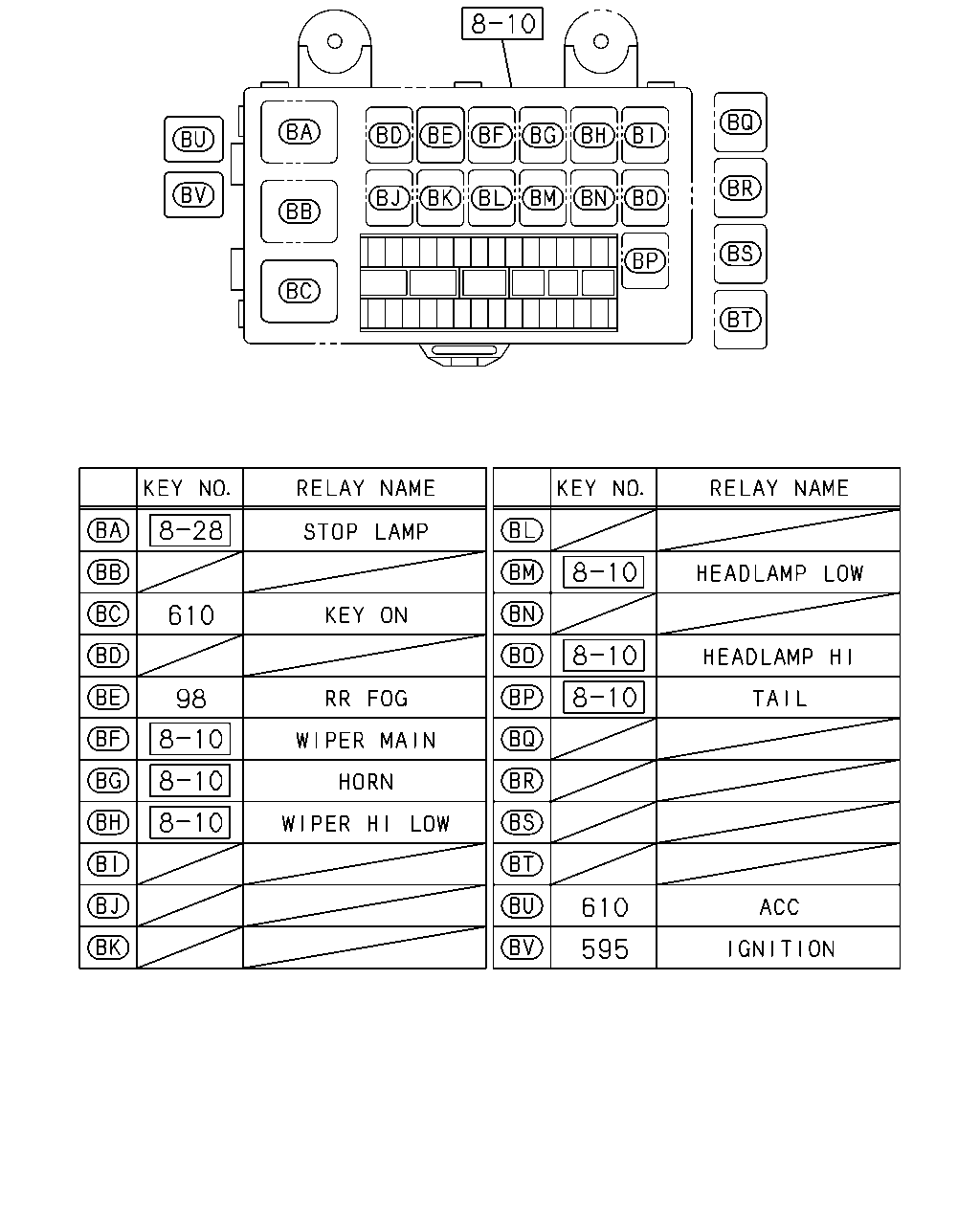

çizim 492705
610 98 610 595
BalonParca AdiParca NoAdetTipApplied Date
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1509-
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1509-
çizim 493214
608
BalonParca AdiParca NoAdetTipApplied Date
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1509-

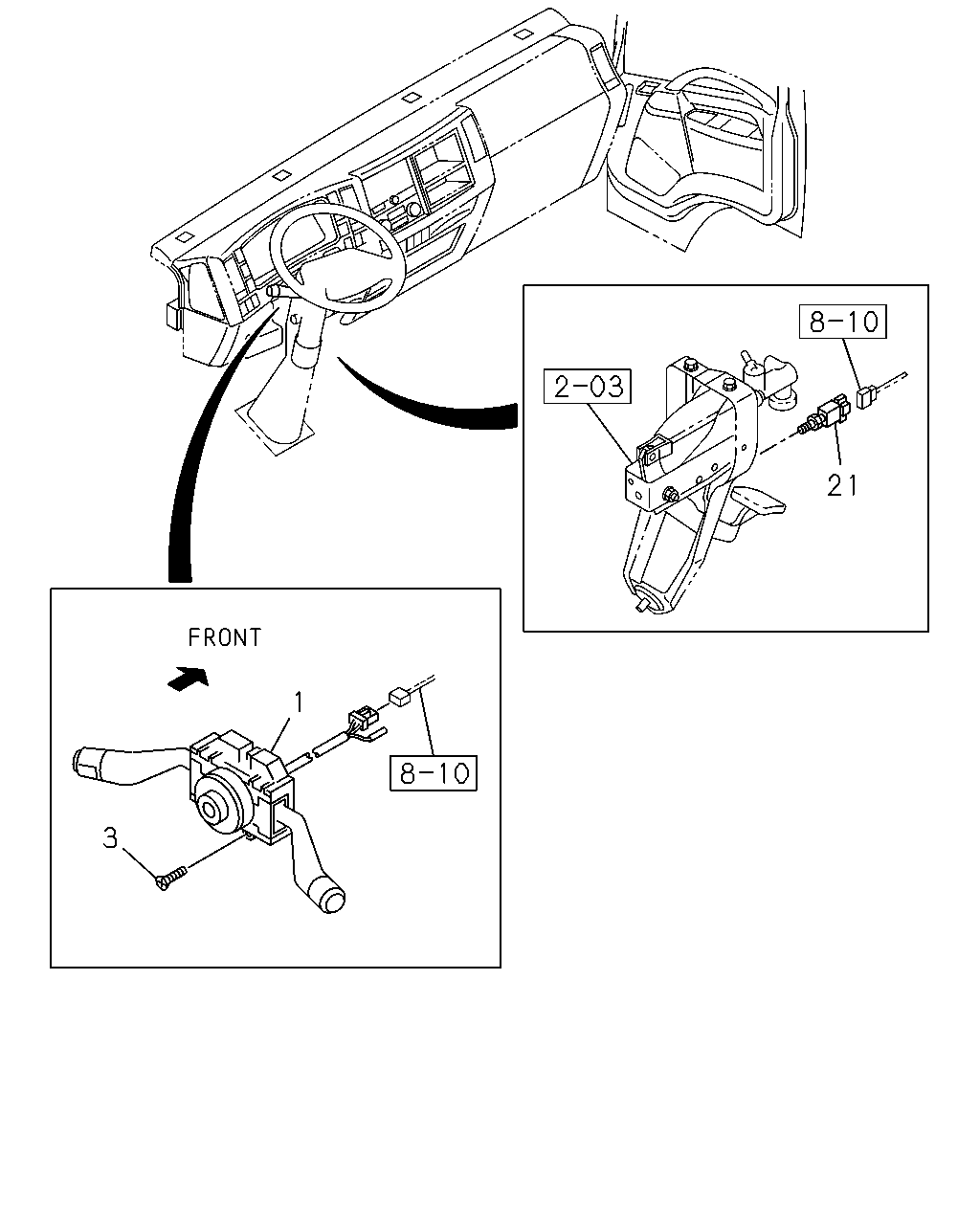

çizim 493392
21 1 3
BalonParca AdiParca NoAdetTipApplied Date
1 02.895 SWITCH; COMB 8-98243-750-0 01 1 1509-
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1509-
21 02.575 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-248-0 01 1 1509-
