8-21 — METER ASM (#166563) — 13 parça

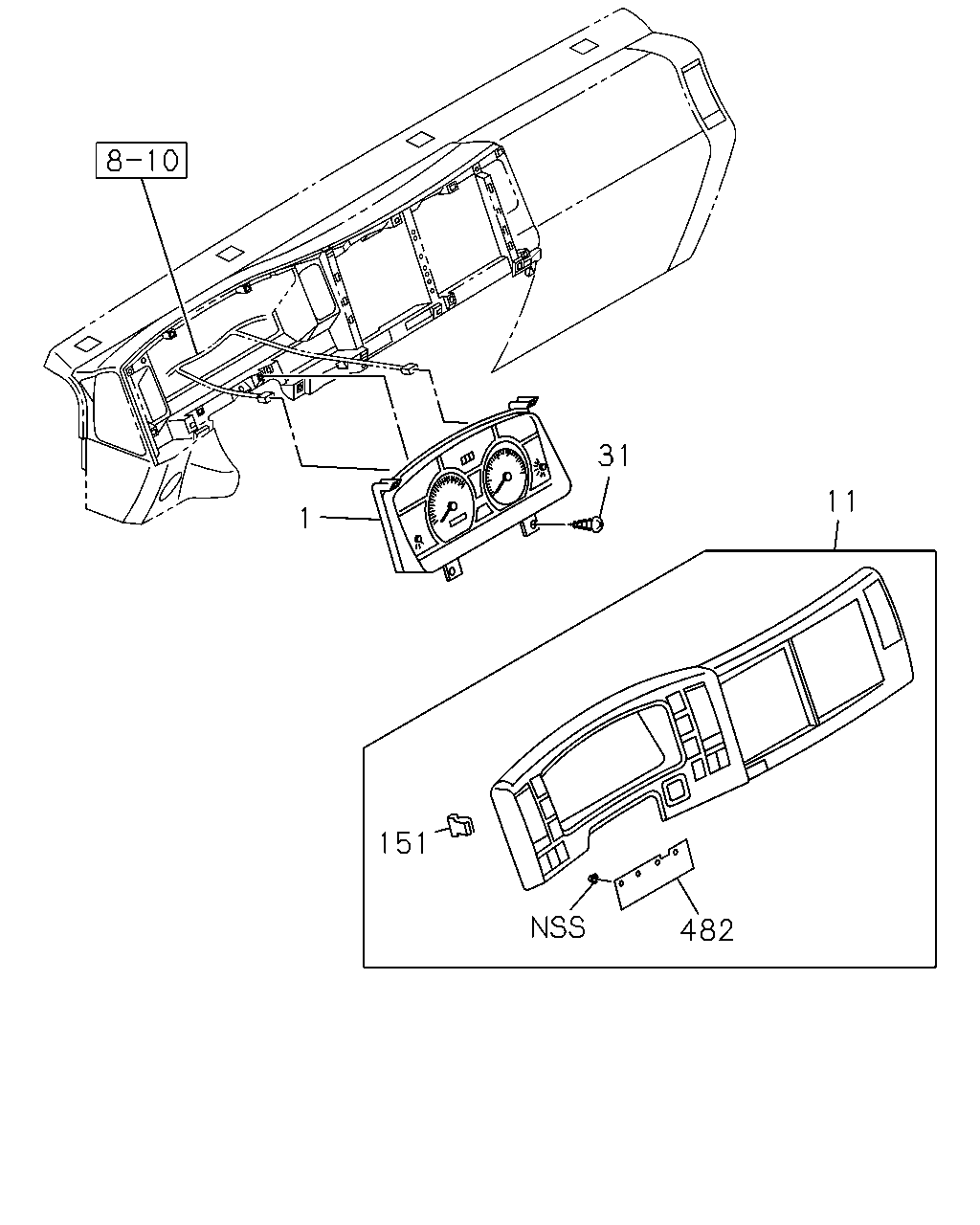

çizim 492668
1 31 11 151 482
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-992-0 01 1 1509-
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98275-983-0 01 1 1509-
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97406-005-6 01 1 1509-
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1509-
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 13 1 1509-
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 1509-

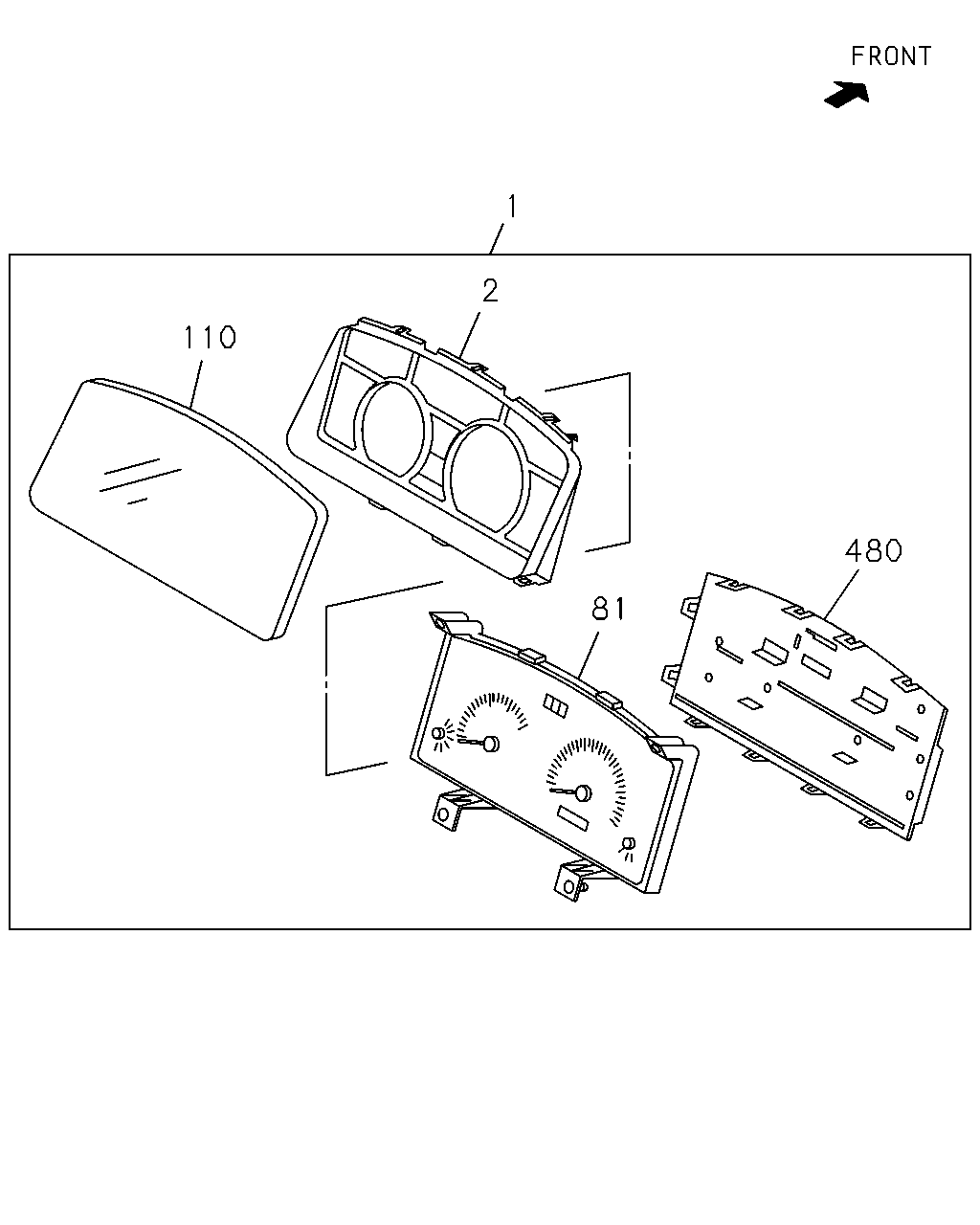

çizim 492672
1 2 110 81 480
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-992-0 01 1 1509-
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98275-983-0 01 1 1509-
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1509-
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-222-0 01 1 1509-
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-213-0 01 1 1509-
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1509-
480 09.748 COVER; METER 8-98151-362-0 01 1 1509-
