3-08 — PARKING BRAKE (#16656) — 68 parça

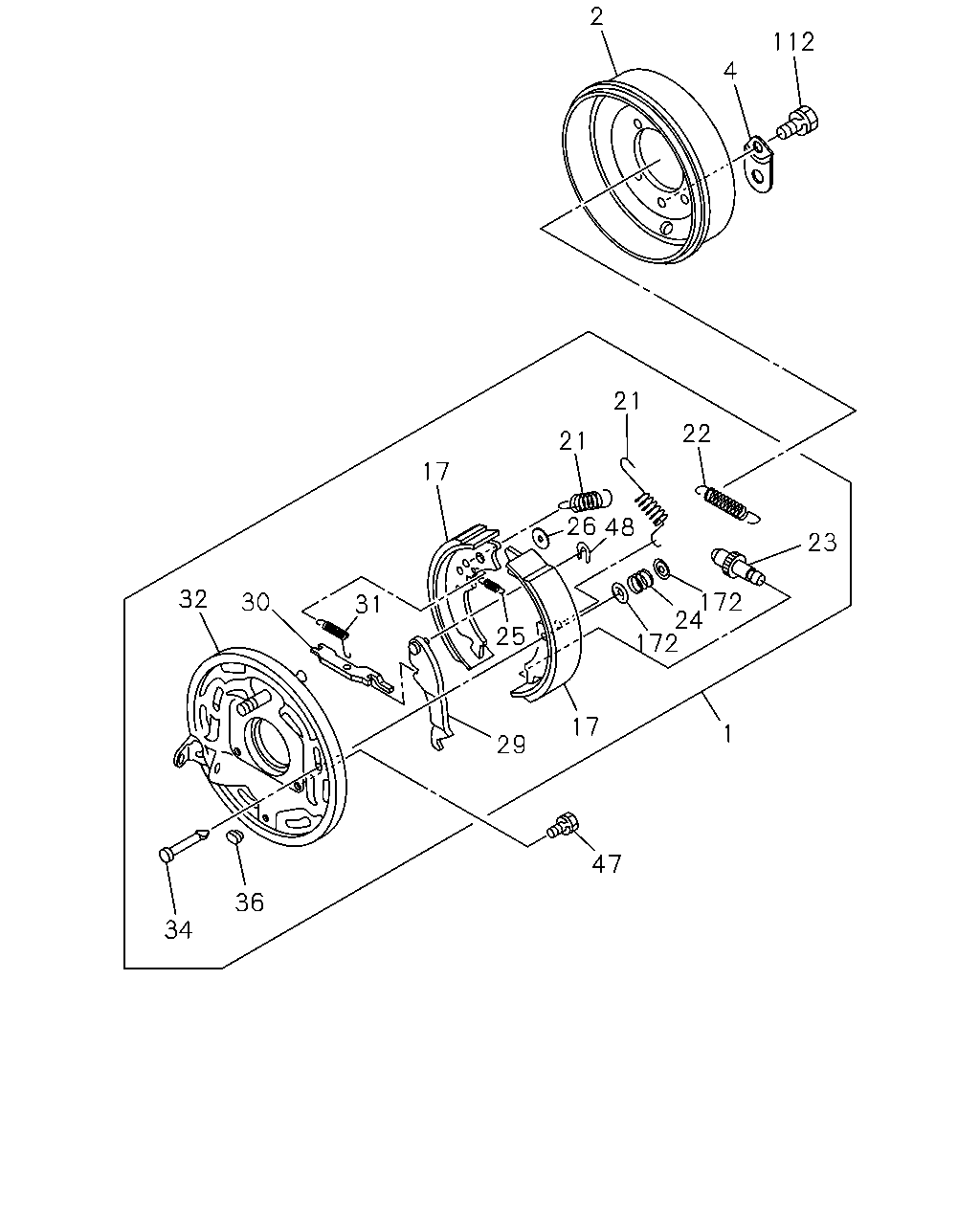

2 112 4 21 22 21 17 23 32 31 30 172 24 172 25 17 1 29 47 36 34 26 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRAKE ASM; CENTER,PARKING	8-97034-553-2	01	1	0009-	●	●
1	BRAKE ASM; CENTER,PARKING	8-97100-212-2	01	1	0009-			●
2	DRUM; PARKING BRK THA	8-97916-779-0	01	1	0009-	●	●
2	DRUM; PARKING BRK THA	8-97916-628-0	01	1	0009-			●
4	COVER; ADJ HOLE	5-42319-003-0	01	1	0009-	●	●
4	COVER; ADJ HOLE	5-46219-001-0	01	1	0009-			●
17	SHOE; PARKING BRK	8-97042-933-1	02	1	0009-	●	●
17	SHOE; PARKING BRK	8-97020-250-2	02	1	0009-			●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-552-1	01	1	0009-	●	●
21	SPRING; RETURN,PARKING BRK SHOE	8-94132-157-0	02	1	0009-			●
22	SPRING; ADJ SCREW,PARKING BRK	9-09942-340-1	01	1	0009-	●	●
22	SPRING; ADJ SCREW,PARKING BRK	8-94107-618-0	01	1	0009-			●
23	SCREW; ADJ,PARKING BRK SHOE	5-47165-025-0	01	1	0009-	●	●	●
24	SPRING; BRK SHOE	9-09941-062-1	02	1	0009-	●	●
24	SPRING; BRK SHOE	8-94132-155-0	02	1	0009-			●
25	SPRING; SHOE ALIGNMENT	8-94132-156-0	01	1	0009-			●
26	PLATE; SHOE GUIDE	9-09851-986-0	01	1	0009-			●
29	LEVER; PARKING BRK	8-94128-765-0	01	1	0009-	●	●
29	LEVER; PARKING BRK	8-97027-125-0	01	1	0009-			●
30	STRUT; PARKING BRK	5-46251-007-0	01	1	0009-	●	●
30	STRUT; PARKING BRK	8-94311-779-0	01	1	0009-			●
31	SPRING; SHOE TO STRUT	9-09942-521-1	01	1	0009-	●	●
31	SPRING; SHOE TO STRUT	8-94132-158-0	01	1	0009-			●
32	PLATE; SUPPORT,PARKING BRK	9-46213-601-2	01	1	0009-	●	●
32	PLATE; SUPPORT,PARKING BRK	8-94311-780-1	01	1	0009-			●
34	PIN; BRK SHOE	9-47162-034-0	02	1	0009-	●	●
34	PIN; BRK SHOE	8-94132-159-0	02	1	0009-			●
36	GROMMET; ADJ HOLE THA	5-47169-002-0	01	1	0009-			●
47	BOLT; SUPPORT PLATE	9-02060-814-0	02	1	0009-	●	●
47	BOLT; SUPPORT PLATE M12X20 FLANGE	8-97213-401-0	04	1	0009-			●
48	RETAINER; PIN,PARKING BRK	9-46349-005-1	01	1	0009-	●	●	●
112	BOLT; COVER TO BRK DRUM M6X16 W/LK WASHER	0-50040-616-0	01	1	0009-	●	●	●
172	CUP; SHOE HOLD	8-94378-404-0	04	1	0009-	●	●
172	CUP; SHOE HOLD	9-47162-033-0	04	1	0009-			●

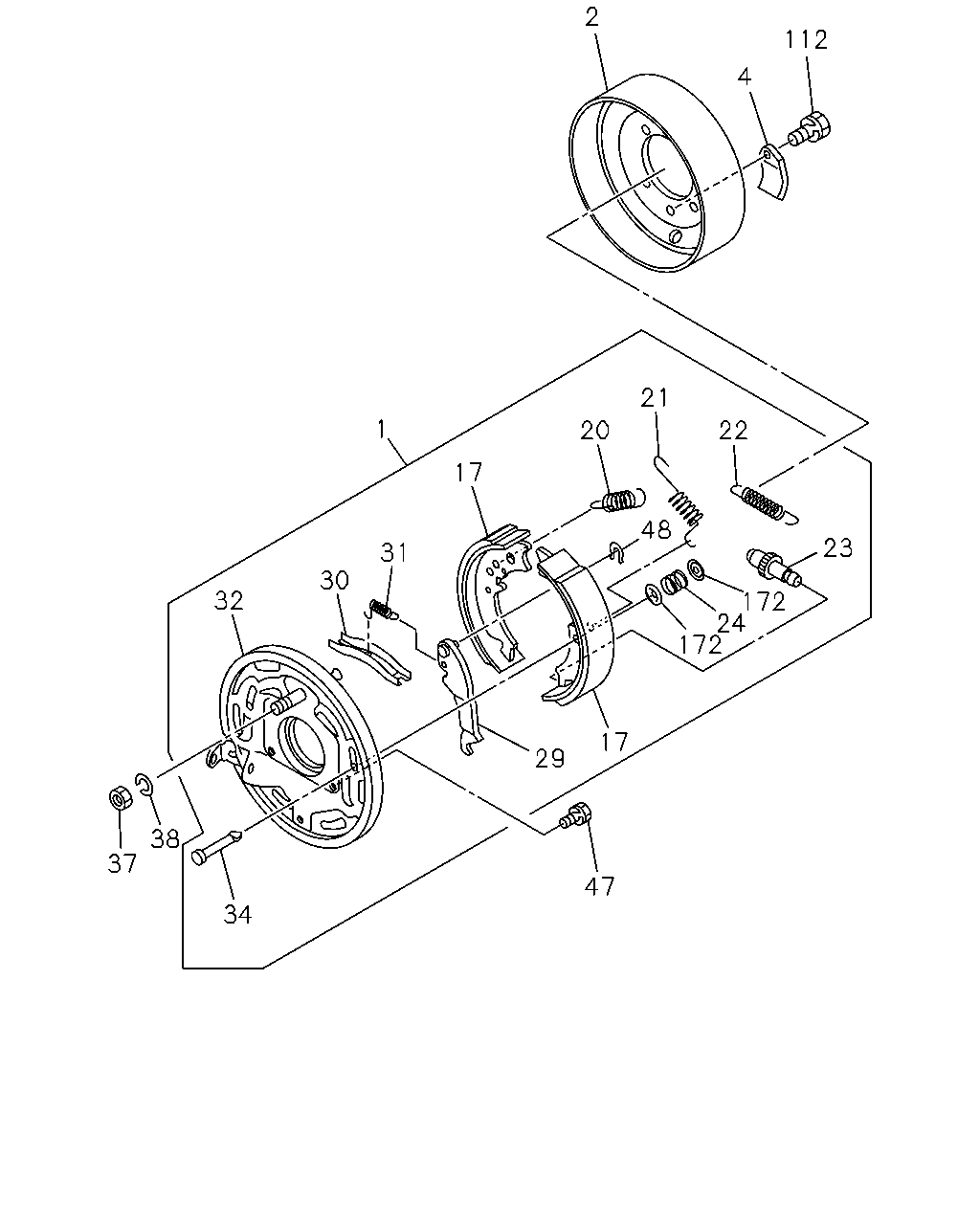

2 112 4 21 1 20 22 17 48 23 31 30 32 172 24 172 17 29 38 37 47 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRAKE ASM; CENTER,PARKING	8-97034-553-2	01	1	0009-	●	●
1	BRAKE ASM; CENTER,PARKING	8-97100-212-2	01	1	0009-			●
2	DRUM; PARKING BRK THA	8-97916-779-0	01	1	0009-	●	●
2	DRUM; PARKING BRK THA	8-97916-628-0	01	1	0009-			●
4	COVER; ADJ HOLE	5-42319-003-0	01	1	0009-	●	●
4	COVER; ADJ HOLE	5-46219-001-0	01	1	0009-			●
17	SHOE; PARKING BRK	8-97042-933-1	02	1	0009-	●	●
17	SHOE; PARKING BRK	8-97020-250-2	02	1	0009-			●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-553-1	01	1	0009-	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-552-1	01	1	0009-	●	●
21	SPRING; RETURN,PARKING BRK SHOE	8-94132-157-0	02	1	0009-			●
22	SPRING; ADJ SCREW,PARKING BRK	9-09942-340-1	01	1	0009-	●	●
22	SPRING; ADJ SCREW,PARKING BRK	8-94107-618-0	01	1	0009-			●
23	SCREW; ADJ,PARKING BRK SHOE	5-47165-025-0	01	1	0009-	●	●	●
24	SPRING; BRK SHOE	9-09941-062-1	02	1	0009-	●	●
24	SPRING; BRK SHOE	8-94132-155-0	02	1	0009-			●
29	LEVER; PARKING BRK	8-94128-765-0	01	1	0009-	●	●
29	LEVER; PARKING BRK	8-97027-125-0	01	1	0009-			●
30	STRUT; PARKING BRK	5-46251-007-0	01	1	0009-	●	●
30	STRUT; PARKING BRK	8-94311-779-0	01	1	0009-			●
31	SPRING; SHOE TO STRUT	9-09942-521-1	01	1	0009-	●	●
31	SPRING; SHOE TO STRUT	8-94132-158-0	01	1	0009-			●
32	PLATE; SUPPORT,PARKING BRK	9-46213-601-2	01	1	0009-	●	●
32	PLATE; SUPPORT,PARKING BRK	8-94311-780-1	01	1	0009-			●
34	PIN; BRK SHOE	9-47162-034-0	02	1	0009-	●	●
34	PIN; BRK SHOE	8-94132-159-0	02	1	0009-			●
37	NUT; SUPPORT PLATE M12	8-97033-122-0	01	1	0009-	●	●
38	WASHER; LK,SUPPORT PLATE ID=8.2	9-09150-808-0	02	1	0009-	●	●
47	BOLT; SUPPORT PLATE	9-02060-814-0	02	1	0009-	●	●
47	BOLT; SUPPORT PLATE M12X20 FLANGE	8-97213-401-0	04	1	0009-			●
48	RETAINER; PIN,PARKING BRK	9-46349-005-1	01	1	0009-	●	●	●
112	BOLT; COVER TO BRK DRUM M6X16 W/LK WASHER	0-50040-616-0	01	1	0009-	●	●	●
172	CUP; SHOE HOLD	8-94378-404-0	04	1	0009-	●	●
172	CUP; SHOE HOLD	9-47162-033-0	04	1	0009-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
