Isuzu WW
▶
TRUCKS
▶
NPR
▶
51638 - NPR LHD BUS CHASSIS
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶

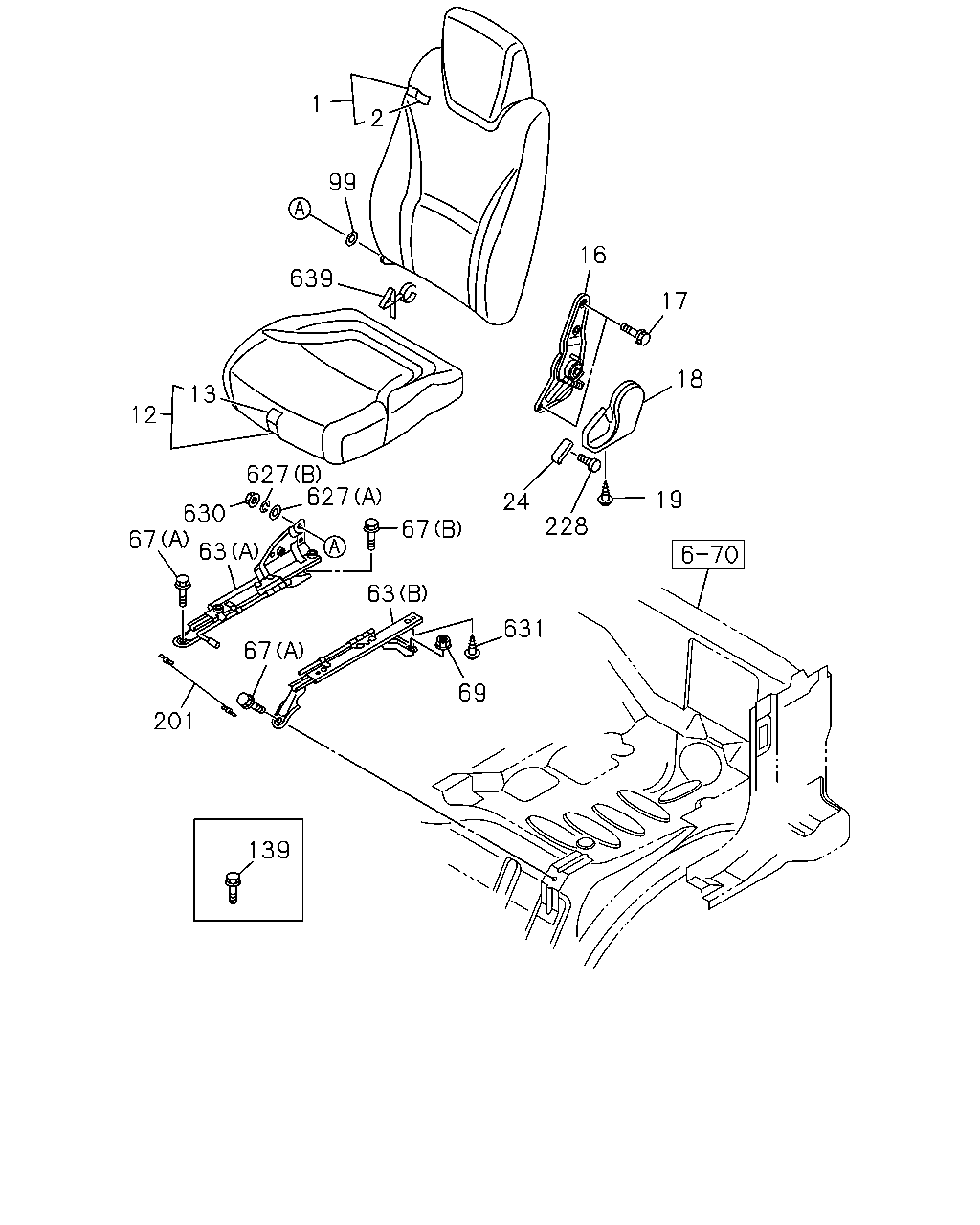

7-50 — FRONT SEAT
(#166558) — 24 parça
1
2
16
17
18
19
228
24
67
631
69
63
627
627
639
99
13
12
630
67
67
201
139
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.720 BACK ASM; SEAT
DARK GRAY
8-97414-155-5
01
1
1509-
2
16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY
8-97414-152-2
01
1
1509-
12
16.670 CUSHION; SEAT,FRT
DARK GRAY
8-97414-710-0
01
1
1509-
13
16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY
8-97414-711-0
01
1
1509-
16
16.682 ADJUSTER ASM; RECLINING
8-98005-418-1
01
1
1509-
17
16.682 BOLT; RECLINING
M10X20
8-98062-661-0
04
1
1509-
18
16.682 COVER; RECLINING
GRAY
8-97409-361-0
01
1
1509-
19
16.686 SCREW; COVER
M5
8-98062-663-0
01
1
1509-
24
16.682 KNOB; RECLINING,FRT,SEAT
GRAY
8-97409-362-0
01
1
1509-
63
16.682 ADJUSTER; SEAT SLIDE
(A) INNER
8-98002-907-2
01
1
1509-
63
16.682 ADJUSTER; SEAT SLIDE
(B) OUTER
8-98002-908-1
01
1
1509-
67
16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE
8-98055-941-0
02
1
1509-
67
16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE
8-98055-942-0
01
1
1509-
69
16.682 NUT; FRT SEAT
M10 FLANGE
8-98055-961-0
01
1
1509-
99
16.716 BUSHING; SEAT BACK
8-98112-751-0
01
1
1509-
139
16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER
8-98031-841-0
04
1
1509-
201
16.682 CABLE; ADJ
8-98003-086-1
01
1
1509-
228
16.714 SCREW; KNOB
M4
8-98062-662-0
01
1
1509-
627
16.682 WASHER; FRT SEAT
(A)
8-98063-223-0
01
1
1509-
627
16.682 WASHER; FRT SEAT
(B)
8-98063-224-0
01
1
1509-
630
16.682 NUT; CAP
M8
8-98063-225-0
01
1
1509-
631
16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER
8-98062-658-0
02
1
1509-
631
16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER
8-98062-659-0
02
1
1509-
639
16.679 CLIP; SEAT
8-98097-693-0
01
1
1509-
