◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51638 - NPR LHD BUS CHASSIS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#166557) — 101 parça

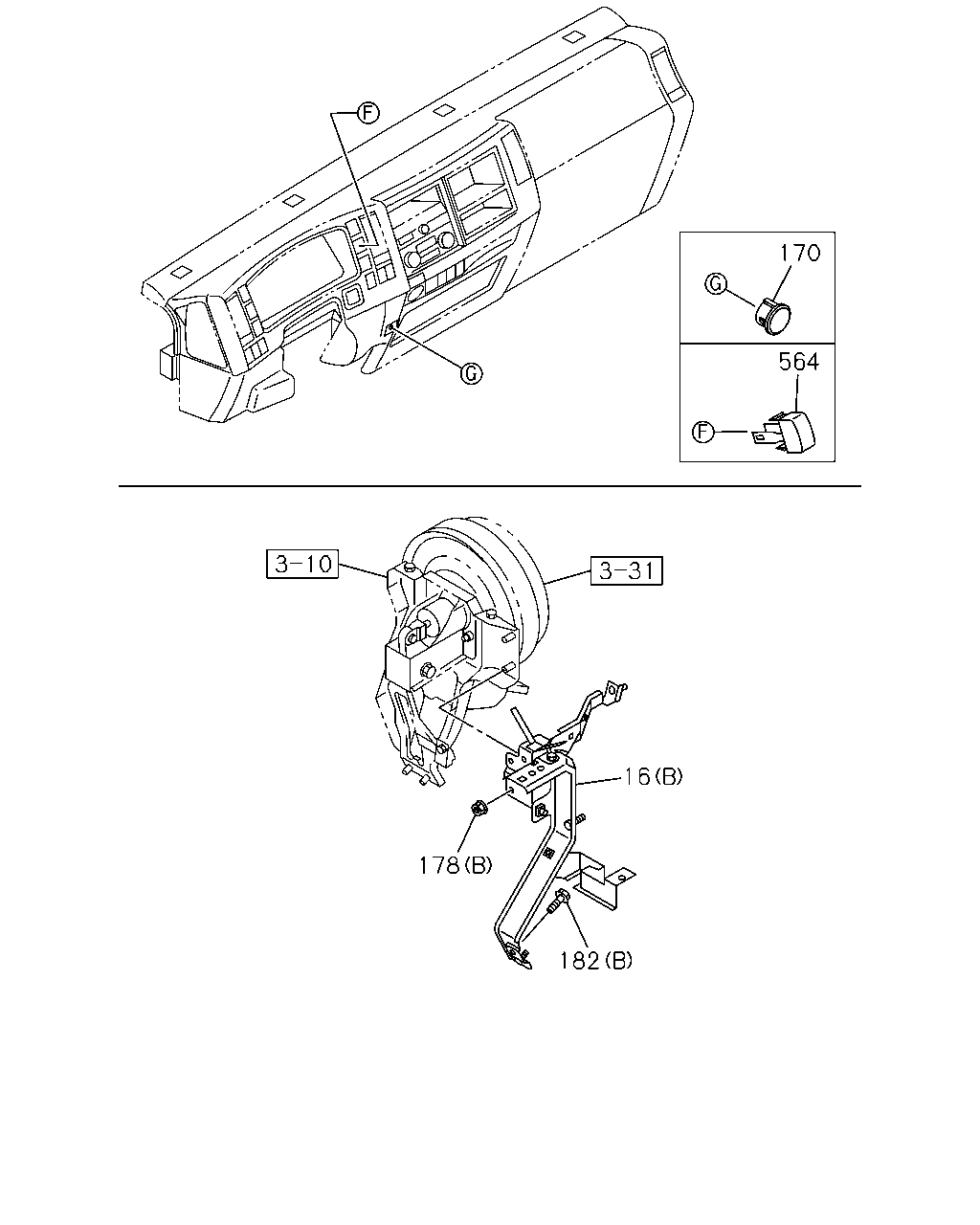

çizim 492796
170 564 16 178 182
BalonParca AdiParca NoAdetTipApplied Date
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98278-076-0 01 1 1509-
16 16.085 BRACKET; INST PNL
(A) 		8-98081-718-1 01 1 1509-
170 16.165 COVER; HOLE 8-98070-401-2 01 1 1509-
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1509-
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 1509-
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1509-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1509-
182 16.085 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1509-
564 16.081 COVER; SW 8-98025-954-1 03 1 1509-

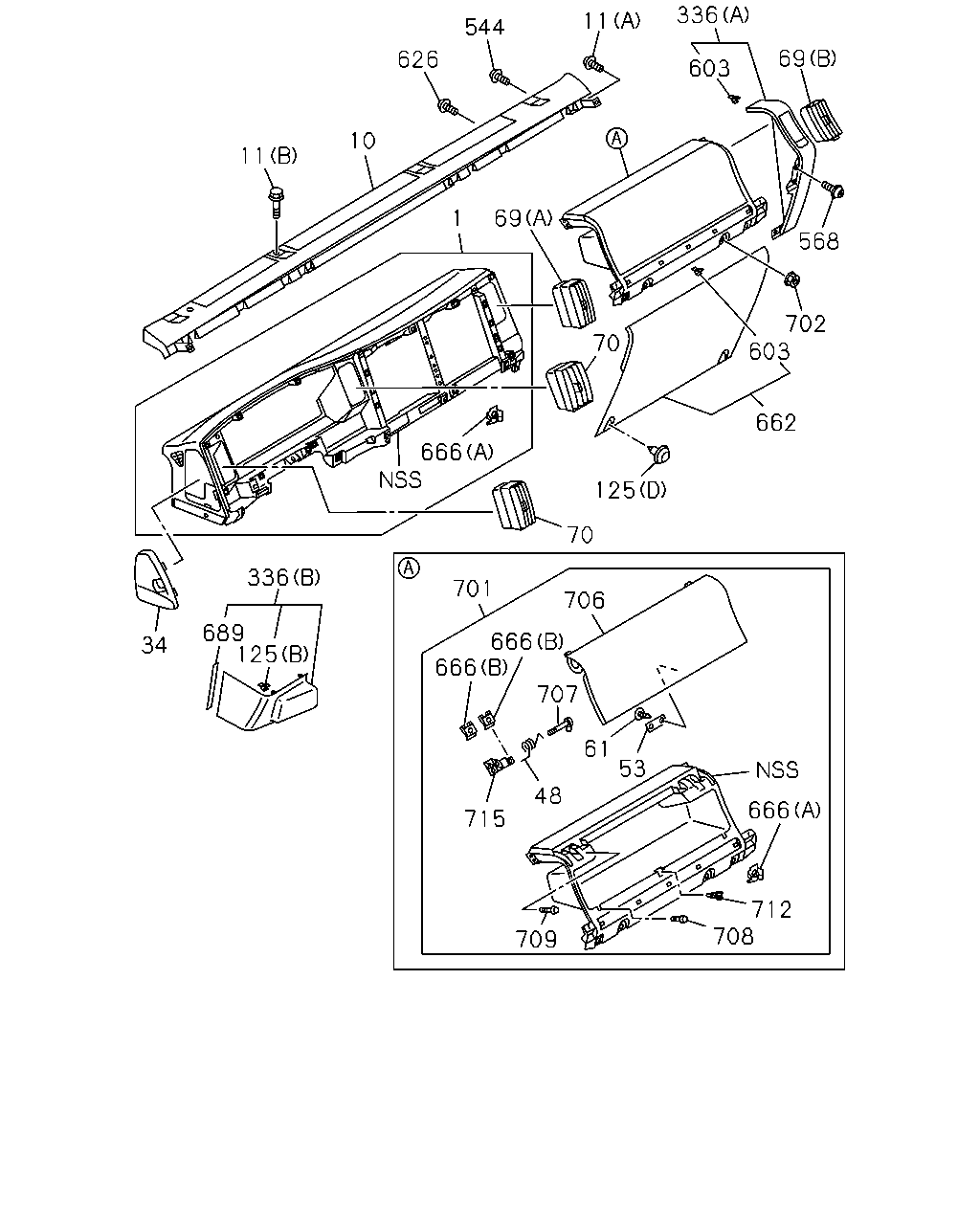

çizim 493073
11 10 626 544 11 336 603 69 1 69 568 702 603 662 125 70 666 70 336 689 34 125 701 706 666 666 707 61 53 666 48 715 712 708 709
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 1509-
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1509-
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1509-
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1509-
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 1509-
48 16.110 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1509-
48 16.110 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1509-
53 16.115 STRIKER; GLOVE BOX 8-98270-765-0 01 1 1509-
61 16.100 SCREW; GLOVE BOX
M4X85 		8-97926-404-0 02 1 1509-
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 1509-
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1509-
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 1509-
125 16.085 CLIP; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) M6 SPIRE NUT 		8-97210-973-1 01 1 1509-
125 16.085 CLIP; INST PANEL
16.802 (G) GRAY 		8-97405-205-0 01 1 1509-
125 16.085 CLIP; INST PANEL
(F) GRAY 		8-97408-063-0 02 1 1509-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1509-
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97419-968-1 01 1 1509-
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1509-
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1509-
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1509-
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97406-000-4 01 1 1509-
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1509-
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1509-
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509-
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 01 1 1509-
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 05 1 1509-
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1509-
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1509-
666 16.085 INSERT; INST PANEL
(B) M5 		8-97926-400-0 04 1 1509-
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 02 1 1509-
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1509-
689 09.743 SEAL; INST 8-98068-244-0 01 1 1509-
701 16.100 TRAY; INST
GRAY 		8-97429-702-1 01 1 1509-
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1509-
706 16.081 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1509-
707 09.744 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1509-
708 16.100 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1509-
709 16.085 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1509-
712 16.110 LOCK; TRAY INST LID 8-98031-846-0 01 1 1509-
715 16.081 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1509-
715 16.081 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1509-

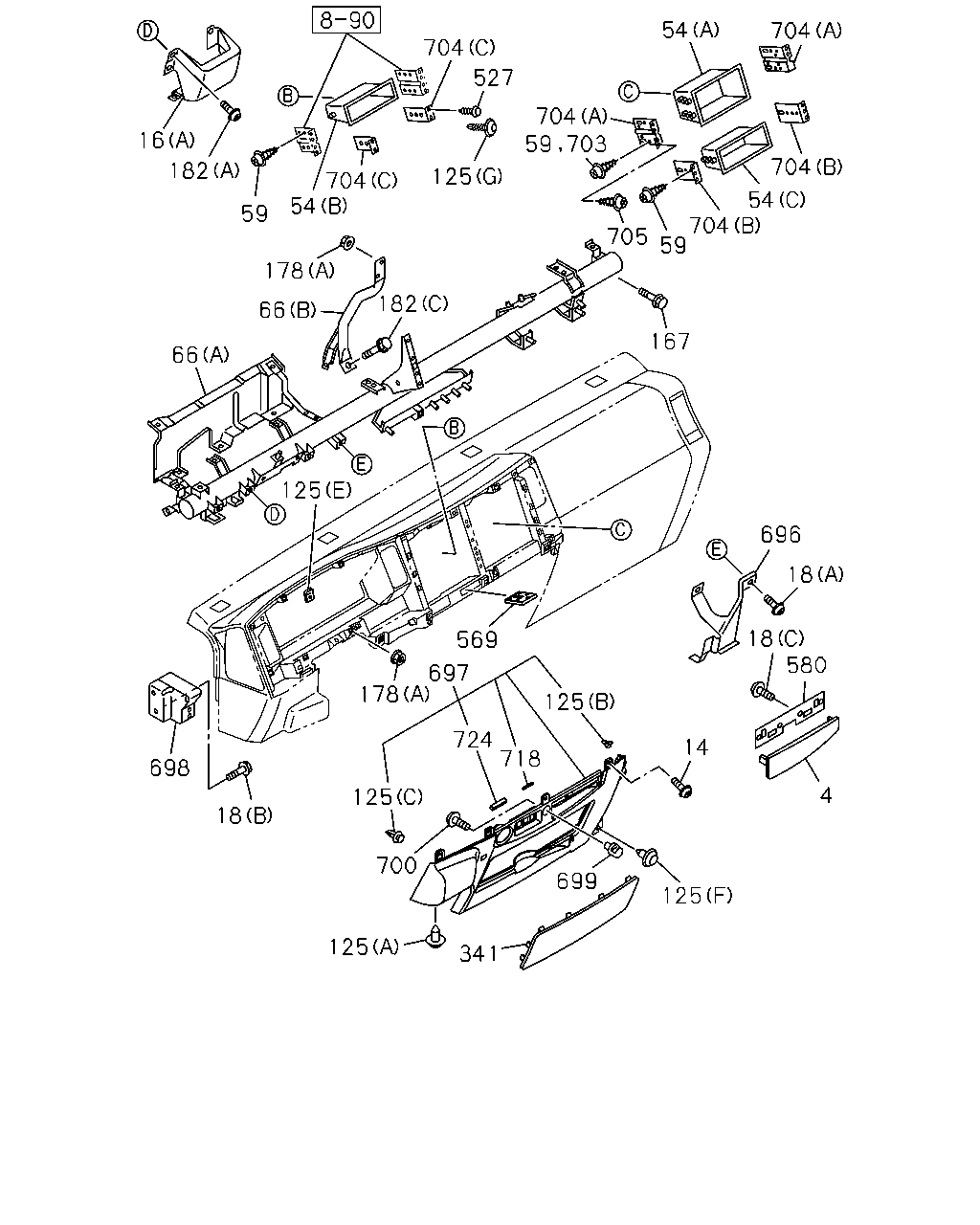

çizim 493275
704 527 125 704 54 59 182 16 178 66 182 704 54 59 703 705 59 704 54 704 704 66 125 569 697 178 724 125 718 125 18 698 700 699 167 696 18 18 580 4 14 125 341 125
BalonParca AdiParca NoAdetTipApplied Date
4 16.080 COVER; INST PNL
GRAY 		8-97407-898-1 01 1 1509-
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1509-
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98278-076-0 01 1 1509-
16 16.085 BRACKET; INST PNL
(A) 		8-98081-718-1 01 1 1509-
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1509-
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1509-
18 16.085 BOLT; BRKT
16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1509-
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1509-
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1509-
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1509-
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1509-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1509-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1509-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1509-
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-579-1 01 1 1509-
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98192-944-0 01 1 1509-
125 16.085 CLIP; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) M6 SPIRE NUT 		8-97210-973-1 01 1 1509-
125 16.085 CLIP; INST PANEL
16.802 (G) GRAY 		8-97405-205-0 01 1 1509-
125 16.085 CLIP; INST PANEL
(F) GRAY 		8-97408-063-0 02 1 1509-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1509-
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97419-968-1 01 1 1509-
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1509-
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1509-
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1509-
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1509-
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1509-
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 1509-
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1509-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1509-
182 16.085 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1509-
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1509-
527 16.100 CLIP; INST CLUSTER
16.742 DARK GRAY 		8-97098-326-0 01 1 1509-
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1509-
580 16.080 BRACKET; COVER 8-98091-546-0 01 1 1509-
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1509-
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1509-
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1509-
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1509-
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1509-
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509-
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1509-
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1509-
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1509-
704 16.085 BRACKET; CENTER POCKET
(C) 		8-98107-549-0 02 1 1509-
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1509-
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1509-
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1509-
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1509-
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1509-
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1509-
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1509-
