◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51638 - NPR LHD BUS CHASSIS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#166555) — 9 parça

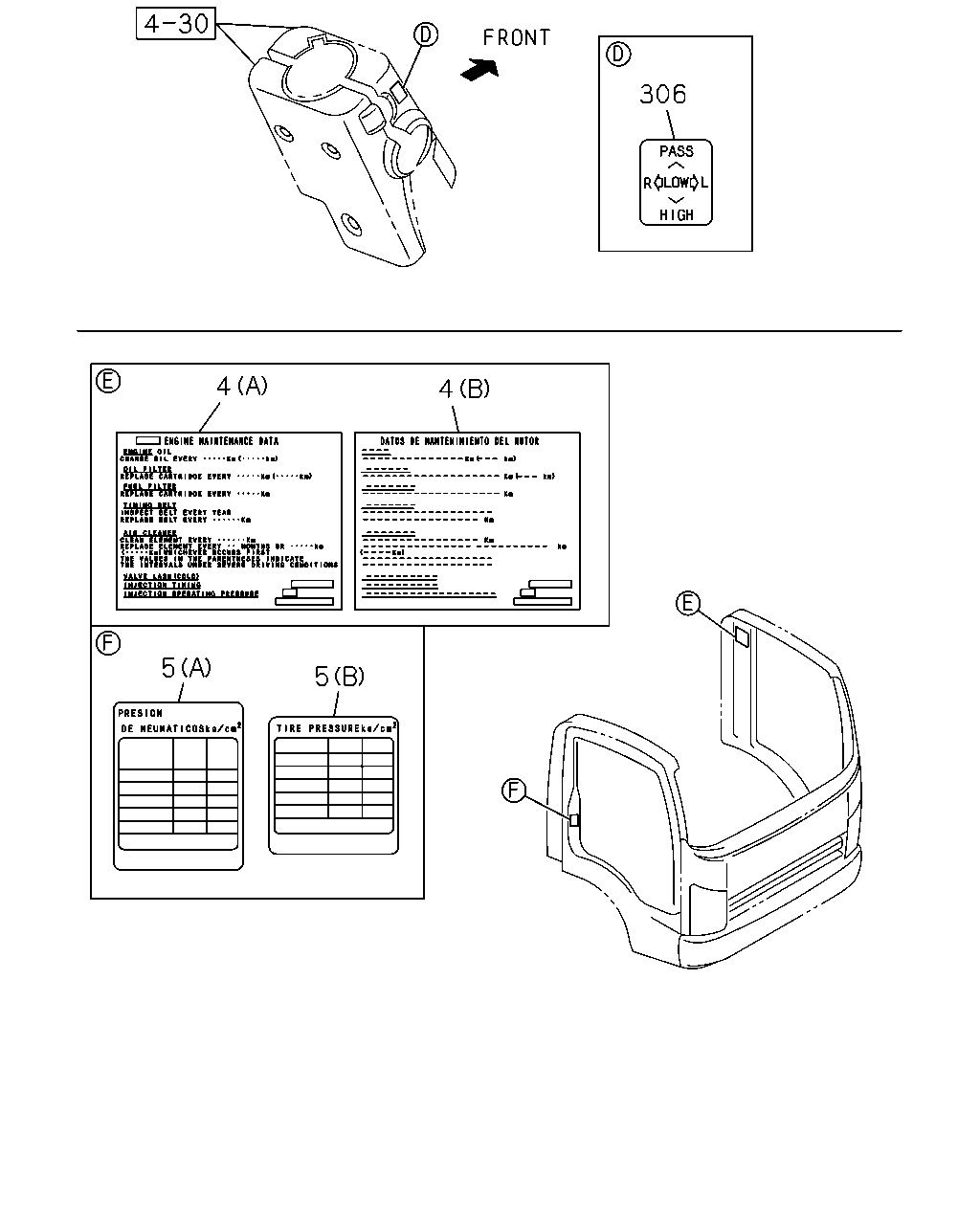

çizim 493135
4 4 5 5 306
BalonParca AdiParca NoAdetTipApplied Date
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 1509-
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 1509-
5 05.880 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1509-
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1509-
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1509-

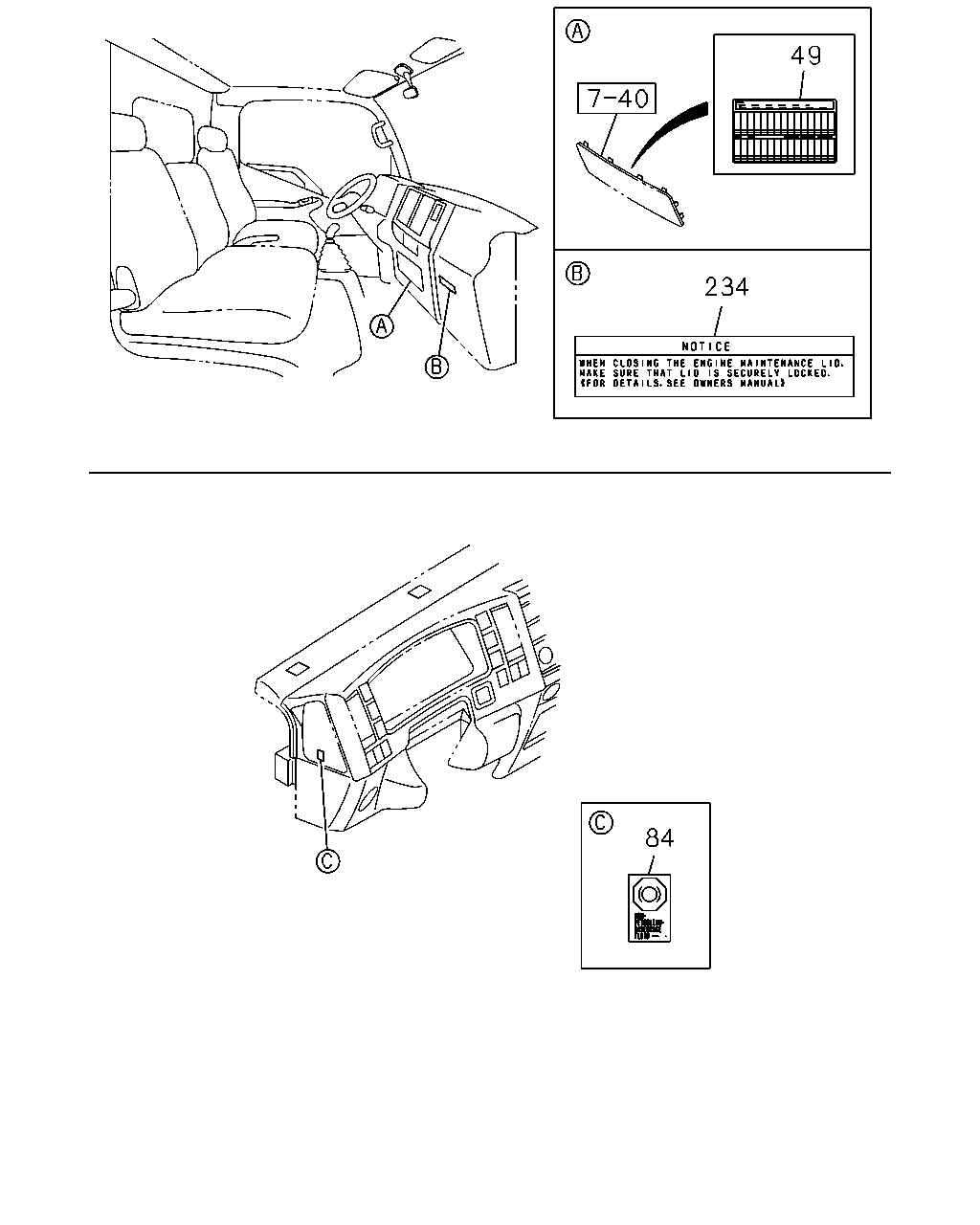

çizim 493261
84 234 49
BalonParca AdiParca NoAdetTipApplied Date
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 1509-
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-98022-836-1 01 1 1509-
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 1509-
234 08.808 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
