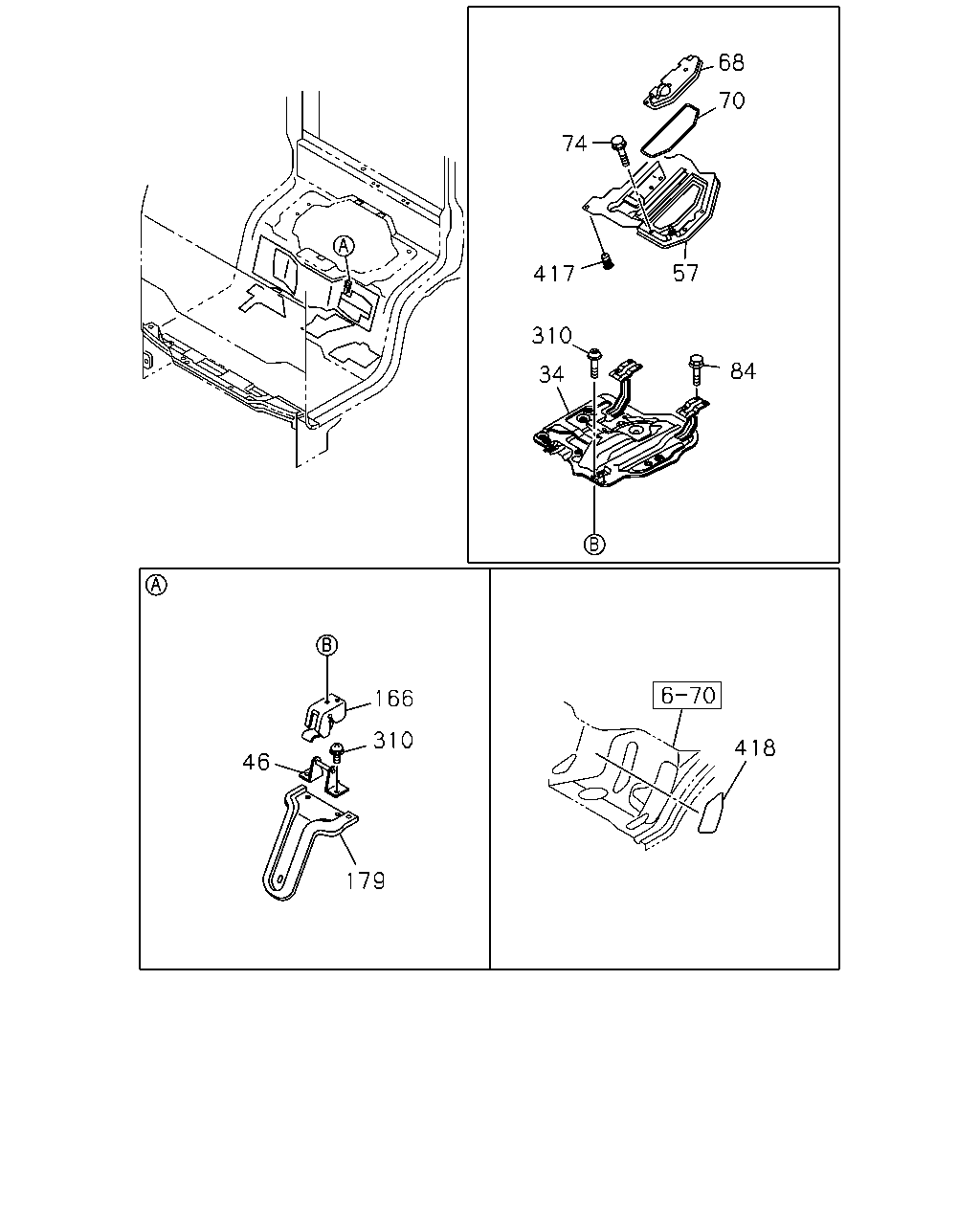

6-76 — FLOOR EQUIPMENT AND SEALING
(#166551) — 14 parça
418
310
46
179
166
34
84
57
310
417
74
70
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
16.549 COVER ASM; ENG,CAB FLOOR
8-97589-391-2
01
1
1509-
46
16.549 HOOK ASM; ENG COVER
8-98040-145-0
02
1
1509-
57
16.549 COVER ASM; SUPPORT,CAB FLOOR
8-97589-396-4
01
1
1509-
68
16.549 COVER ASM; SUB,ENG COVER
8-98040-141-0
01
1
1509-
70
16.549 SEAL; ENG SUB COVER,CAB FLOOR
8-97853-050-1
01
1
1509-
74
16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE
0-28650-820-0
10
1
1509-
84
16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE
0-28650-820-0
04
1
1509-
166
16.549 LOCK; ENG COVER
8-98040-152-0
02
1
1509-
179
16.549 REINFORCEMENT; COVER
8-98048-301-1
01
1
1509-
310
16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE
0-28650-616-0
04
1
1509-
310
16.549 SCREW; ENG COVER HOOK
16.570 M6X16
0-38050-616-0
05
1
1509-
417
16.549 NUT; POP
09.786 M6 POP NUT
8-98013-752-0
01
1
1509-
418
16.549 SEAL; PROTECTOR
8-98090-191-1
01
1
1509-
418
16.549 SEAL; PROTECTOR
8-98090-192-1
01
1
1509-
