Isuzu WW
▶
TRUCKS
▶
NPR
▶
51638 - NPR LHD BUS CHASSIS
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#166548) — 22 parça
◀

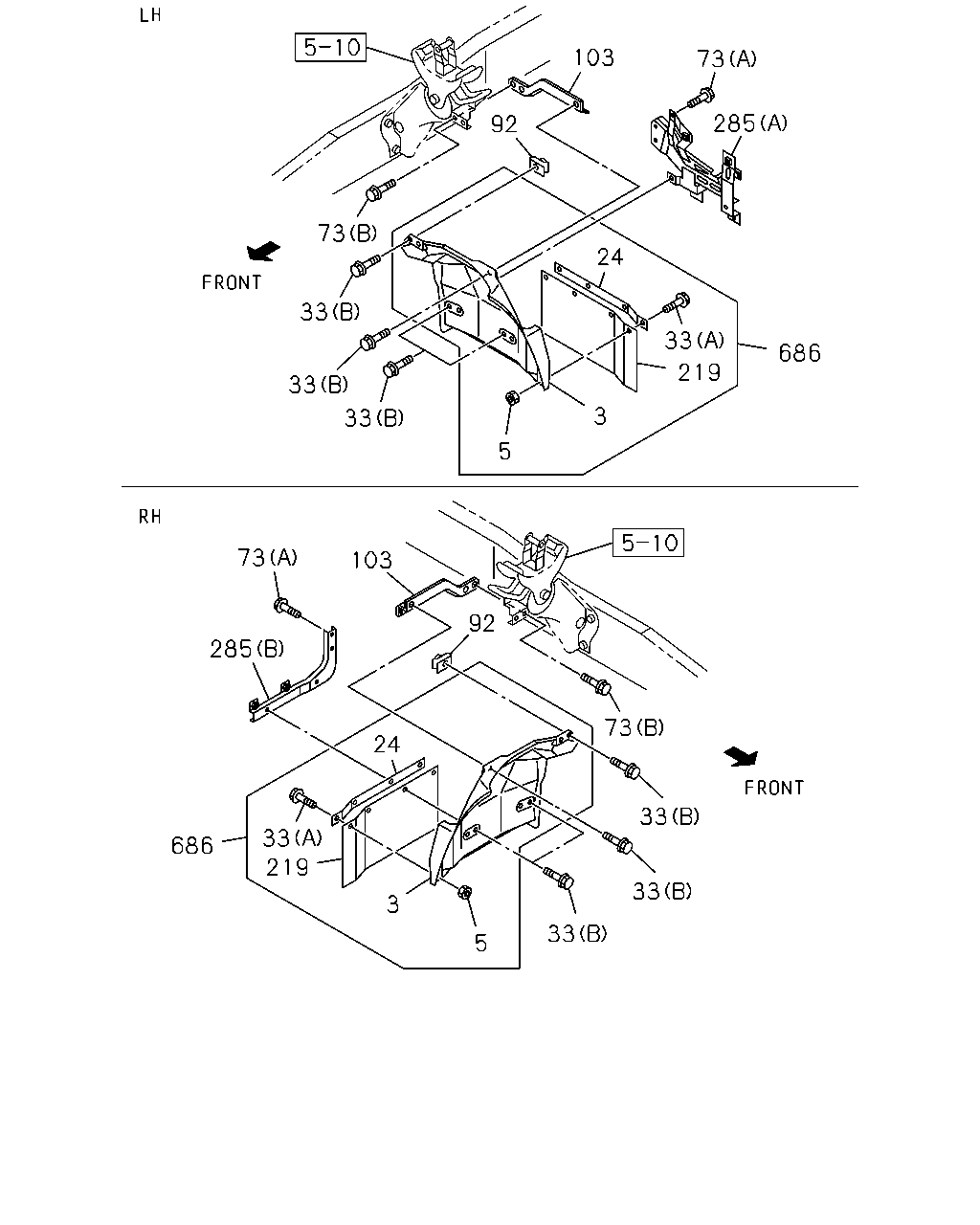

[647A] MUD GUARD (16 parça)
[647A] SIDE COVER (6 parça)
▶
33
33
33
5
3
219
686
24
33
73
103
285
92
73
3
5
33
33
33
73
92
103
73
285
686
33
24
219
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
08.153 GUARD; MUD,RR
8-98004-029-5
01
1
1509-
3
08.153 GUARD; MUD,RR
8-98004-030-4
01
1
1509-
5
08.155 NUT; FLAP RUBBER
M6
8-98227-380-0
08
1
1509-
24
08.155 PLATE; MUD COVER
8-98004-031-1
02
1
1509-
33
08.155 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1509-
33
08.155 BOLT; MUD COVER
(A) M6X16 FLANGE
8-98227-381-0
08
1
1509-
73
08.155 BOLT; MUD COVER BRKT
06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
1509-
73
08.155 BOLT; MUD COVER BRKT
00.029 (A) M10X25 FLANGE
0-28651-025-0
04
1
1509-
92
08.155 NUT; MUD COVER
M8 SPIRE NUT
8-98039-860-2
02
1
1509-
103
08.214 BRACKET ASM; RR MUD FLAP
08.155
8-98001-315-2
01
1
1509-
103
08.214 BRACKET ASM; RR MUD FLAP
08.155
8-98001-319-2
01
1
1509-
219
08.155 FLAP; MUD GUARD
8-98004-033-1
02
1
1509-
285
08.155 BRACKET; MUD COVER
(B)
8-98001-314-2
01
1
1509-
285
08.155 BRACKET; MUD COVER
(A)
8-98001-320-3
01
1
1509-
686
08.155 FLAP ASM; MUD
8-97387-750-7
01
1
1509-
686
08.155 FLAP ASM; MUD
8-97387-751-6
01
1
1509-
140
61
90
140
139
140
139
90
61
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
08.155 BRACKET; COVER
8-98040-465-1
01
1
1509-
61
08.155 BRACKET; COVER
8-98040-466-1
01
1
1509-
90
08.153 BOLT; COVER
06.216 M8X25 FLANGE
0-28650-825-0
04
1
1509-
139
08.153 PANEL; SIDE
(B)
8-98043-920-2
01
1
1509-
139
08.153 PANEL; SIDE
(A)
8-98115-458-0
01
1
1509-
140
08.155 BOLT; SIDE PANEL
M8X35 W/LK&PL WASHER
1-09030-094-0
06
1
1509-
