◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51638 - NPR LHD BUS CHASSIS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#166545) — 16 parça

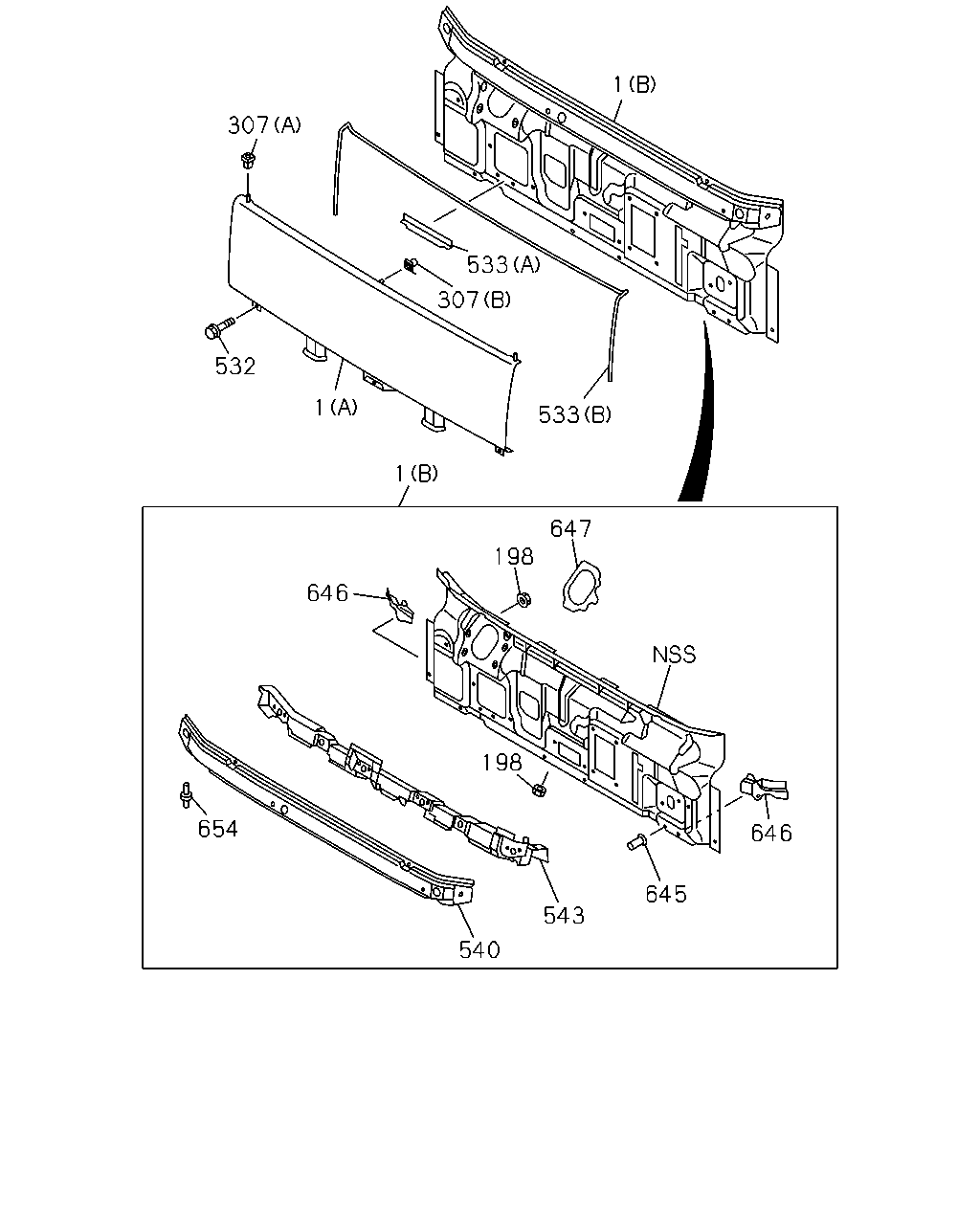

çizim 492764
1 307 533 307 533 532 1 1 647 198 646 198 646 645 543 540 654
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1509-
1 16.550 PANEL ASM; FRT
(B) 		8-98182-391-0 01 1 1509-
198 16.125 NUT; PANEL
16.545 M6 		9-09114-086-0 06 1 1509-
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1509-
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1509-
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1509-
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1509-
533 08.143 SEAL; FRT PANEL
(A) 		8-98049-007-0 01 1 1509-
533 08.143 SEAL; FRT PANEL
(B) 		8-98309-764-0 01 1 1509-
540 16.588 PANEL; FRONT,OUTER 8-97585-964-0 01 1 1509-
543 16.570 CLOSING; FRT MTG RAIL 8-98008-131-4 01 1 1509-
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1509-
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1509-
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1509-
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1509-
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1509-
