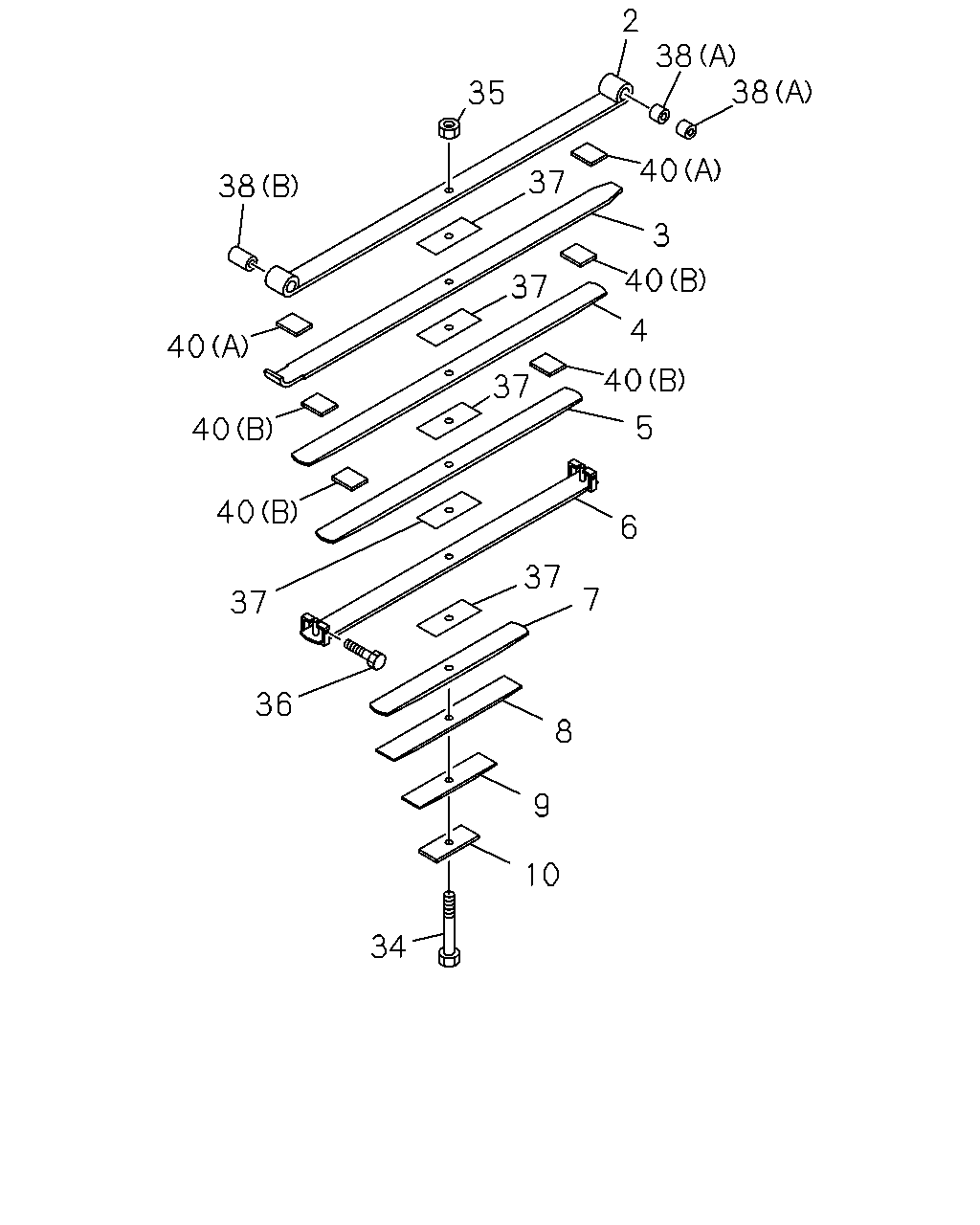

4-65 — REAR LEAF SPRING (#166537) — 18 parça

34 10 9 8 7 37 36 37 40 40 40 38 6 5 40 37 37 37 35 4 40 3 40 38 38 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98190-547-0, 98190547	8-98193-147-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98190-547-0, 98190547	8-98193-148-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98190-547-0, 98190547	8-98193-149-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98190-547-0, 98190547	8-98193-150-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98190-547-0, 98190547	8-98193-151-0	01	1	-
7	07.505 SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-98190-547-0, 98190547	8-98193-152-0	01	1	-
8	07.505 SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 8-98190-547-0, 98190547	8-98193-153-0	01	1	-
9	07.505 SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 8-98190-547-0, 98190547	8-98193-154-0	01	1	-
10	07.505 SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 8-98190-547-0, 98190547	8-98193-155-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=125 ASM PART: A = 8-98190-547-0, 98190547	8-98037-584-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98190-547-0, 98190547	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: A = 8-98190-547-0, 98190547	8-98040-332-0	02	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98190-547-0, 98190547	8-97084-102-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-98190-547-0, 98190547	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (A) ASM PART: A = 8-98190-547-0, 98190547	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: A = 8-98190-547-0, 98190547	8-97074-826-0	01	1	-
40	07.506 LINER; LEAF SPR,RR 07.436, (A) ASM PART: A = 8-98190-547-0, 98190547	8-97084-848-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98190-547-0, 98190547	8-98193-188-0	04	1	-
