4-55 — FRONT LEAF SPRING (#166534) — 69 parça

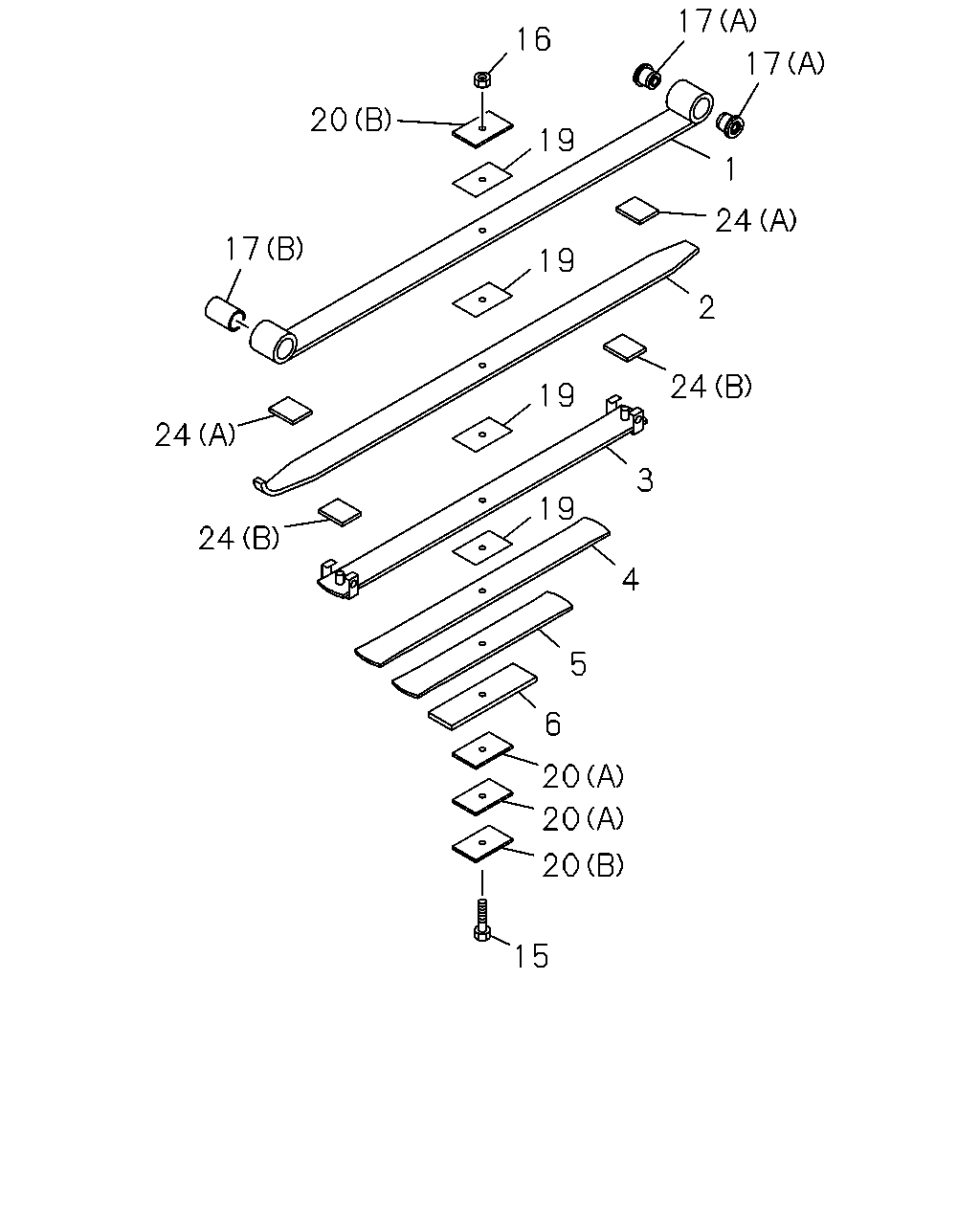

16 19 19 19 19 4 5 6 20 20 20 15 3 24 2 24 1 17 17 24 24 17 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98190-539-1, 98190539	8-98193-086-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98190-540-1, 98190540	8-98193-093-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98190-541-1, 98190541	8-98193-100-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98190-542-1, 98190542	8-98193-107-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98190-539-1, 98190539	8-98193-087-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98190-540-1, 98190540	8-98193-094-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98190-541-1, 98190541	8-98193-101-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98190-542-1, 98190542	8-98193-108-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98190-539-1, 98190539	8-98193-088-1	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98190-540-1, 98190540	8-98193-095-1	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98190-541-1, 98190541	8-98193-102-1	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: D = 8-98190-542-1, 98190542	8-98193-109-1	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98190-539-1, 98190539	8-98193-089-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98190-540-1, 98190540	8-98193-096-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: C = 8-98190-541-1, 98190541	8-98193-103-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: D = 8-98190-542-1, 98190542	8-98193-110-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98190-539-1, 98190539	8-98193-090-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98190-540-1, 98190540	8-98193-097-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: C = 8-98190-541-1, 98190541	8-98193-104-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: D = 8-98190-542-1, 98190542	8-98193-111-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98190-539-1, 98190539	8-98193-091-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98190-540-1, 98190540	8-98193-098-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: C = 8-98190-541-1, 98190541	8-98193-105-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: D = 8-98190-542-1, 98190542	8-98193-112-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=110 ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-98081-376-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.524, (A) ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-94118-588-1	02	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.105, (B) ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-94130-354-0	01	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-97084-845-0	04	1	-
20	07.425 SEAT; LEAF SPR,FRT (A) ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540	8-98039-233-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-98041-368-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT (C) ASM PART: C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-98077-684-0	01	1	-
24	07.436 LINER; LEAF SPR,FWD FRT (A) ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-97084-848-0	02	1	-
24	07.436 LINER; LEAF SPR,FWD FRT 07.506, (B) ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-98193-188-0	02	1	-

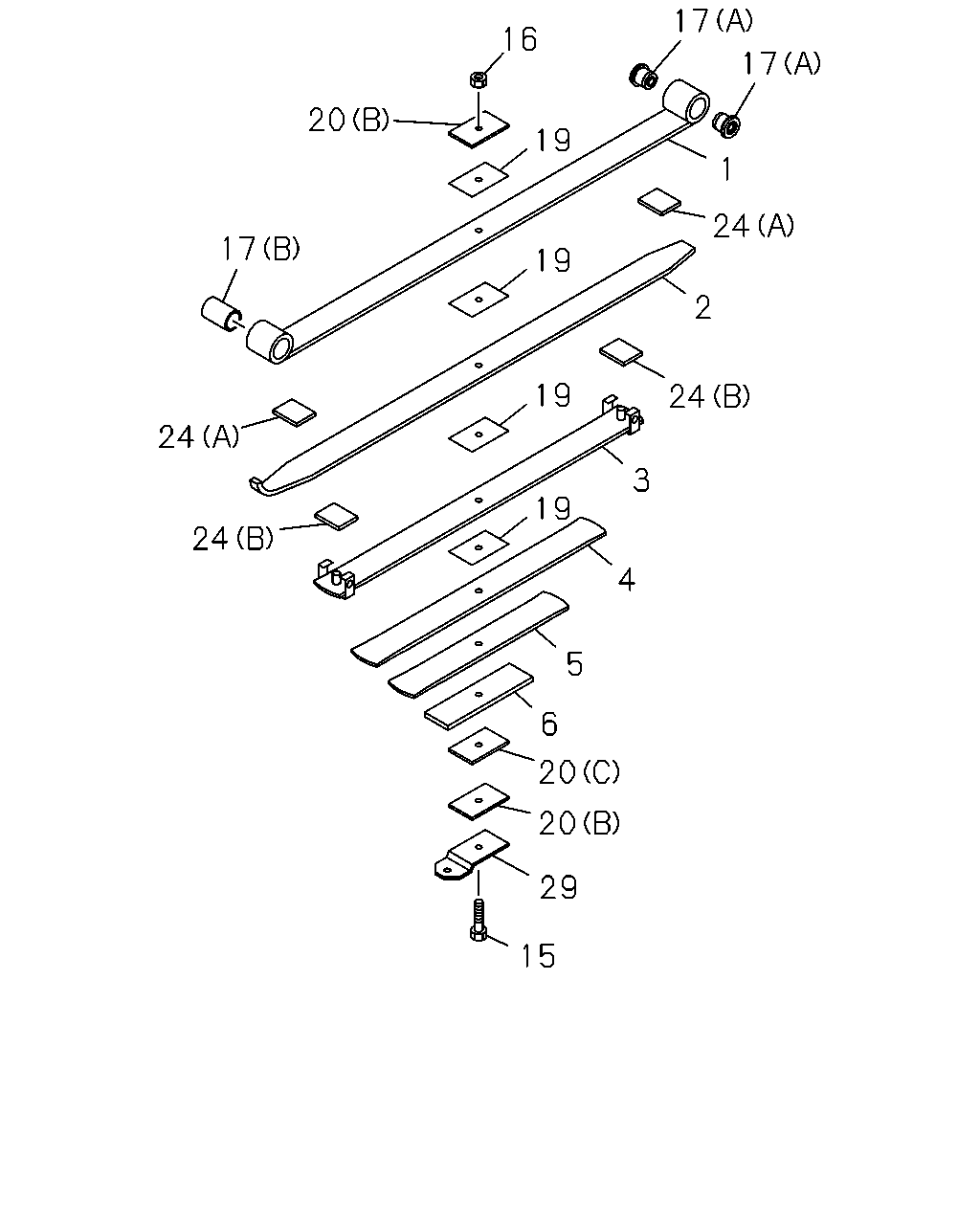

5 4 3 24 24 1 17 17 19 19 16 19 19 6 20 20 29 15 24 24 17 20 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98190-539-1, 98190539	8-98193-086-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98190-540-1, 98190540	8-98193-093-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98190-541-1, 98190541	8-98193-100-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98190-542-1, 98190542	8-98193-107-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98190-539-1, 98190539	8-98193-087-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98190-540-1, 98190540	8-98193-094-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98190-541-1, 98190541	8-98193-101-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98190-542-1, 98190542	8-98193-108-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98190-539-1, 98190539	8-98193-088-1	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98190-540-1, 98190540	8-98193-095-1	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98190-541-1, 98190541	8-98193-102-1	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: D = 8-98190-542-1, 98190542	8-98193-109-1	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98190-539-1, 98190539	8-98193-089-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98190-540-1, 98190540	8-98193-096-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: C = 8-98190-541-1, 98190541	8-98193-103-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: D = 8-98190-542-1, 98190542	8-98193-110-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98190-539-1, 98190539	8-98193-090-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98190-540-1, 98190540	8-98193-097-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: C = 8-98190-541-1, 98190541	8-98193-104-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: D = 8-98190-542-1, 98190542	8-98193-111-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98190-539-1, 98190539	8-98193-091-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98190-540-1, 98190540	8-98193-098-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: C = 8-98190-541-1, 98190541	8-98193-105-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: D = 8-98190-542-1, 98190542	8-98193-112-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=110 ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-98081-376-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.524, (A) ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-94118-588-1	02	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.105, (B) ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-94130-354-0	01	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-97084-845-0	04	1	-
20	07.425 SEAT; LEAF SPR,FRT (A) ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540	8-98039-233-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-98041-368-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT (C) ASM PART: C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-98077-684-0	01	1	-
24	07.436 LINER; LEAF SPR,FWD FRT (A) ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-97084-848-0	02	1	-
24	07.436 LINER; LEAF SPR,FWD FRT 07.506, (B) ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-98193-188-0	02	1	-
29	07.425 SUPPORTER; LEAF SPR,FRT ASM PART: C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542	8-94342-292-1	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
