4-50 — FRONT SUSPENSION (#166533) — 23 parça

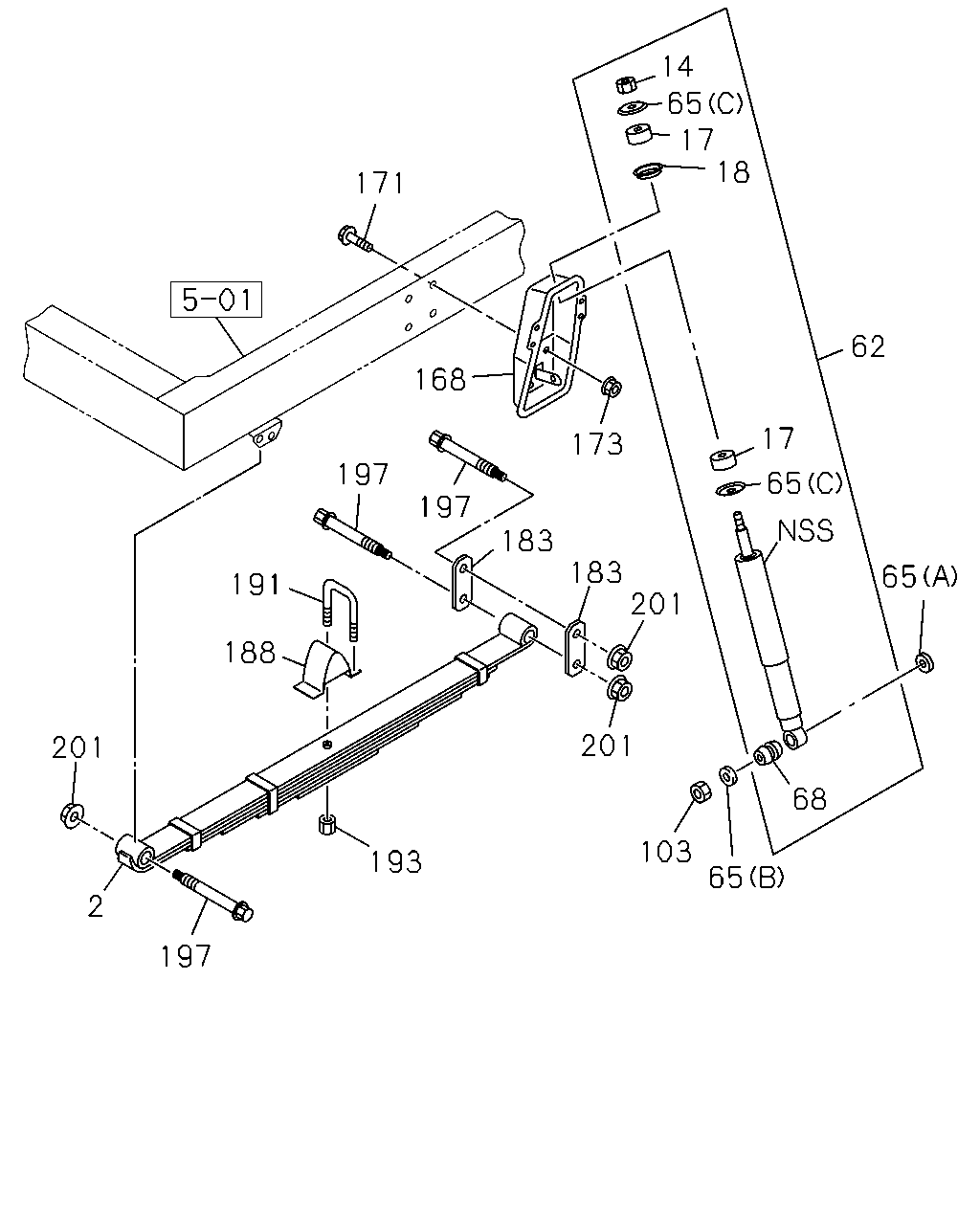

çizim 492743
14 65 17 18 62 17 65 65 68 65 103 201 193 197 2 201 188 191 197 168 197 173 183 183 201 171
BalonParca AdiParca NoAdetTipApplied Date
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-541-1 01 1 1509-
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-542-1 01 1 1509-
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-539-1 01 1 1509-
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-540-1 01 1 1509-
14 07.389 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 1509-
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1509-
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 1509-
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98080-130-1 02 1 1509-
65 07.347 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1509-
65 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1509-
65 07.347 WASHER; S/ABS
(C) OD=40 		9-51631-614-0 04 1 1509-
68 07.388 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 1509-
103 07.347 NUT; S/ABS TO LWR LINK
07.833 M14 		0-91110-514-0 02 1 1509-
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98015-001-0 01 1 1509-
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98015-002-0 01 1 1509-
171 07.395 BOLT; S/ABS BRKT
09.003 M12X35 FLANGE 		0-28651-235-0 08 1 1509-
173 07.395 NUT; S/ABS
M12 		8-97360-126-0 08 1 1509-
183 07.436 SHACKLE; FRT SUSP 8-94110-399-3 04 1 1509-
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-516-0 02 1 1509-
191 07.417 U-BOLT; FRT SPR
L=135 		5-51171-015-4 04 1 1509-
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 1509-
197 07.427 PIN; FRT SPR,FRT
M16X122 FLANGE 		8-97360-110-0 06 1 1509-
201 07.427 NUT; PIN LK
M16 FLANGE 		8-97360-125-0 06 1 1509-
