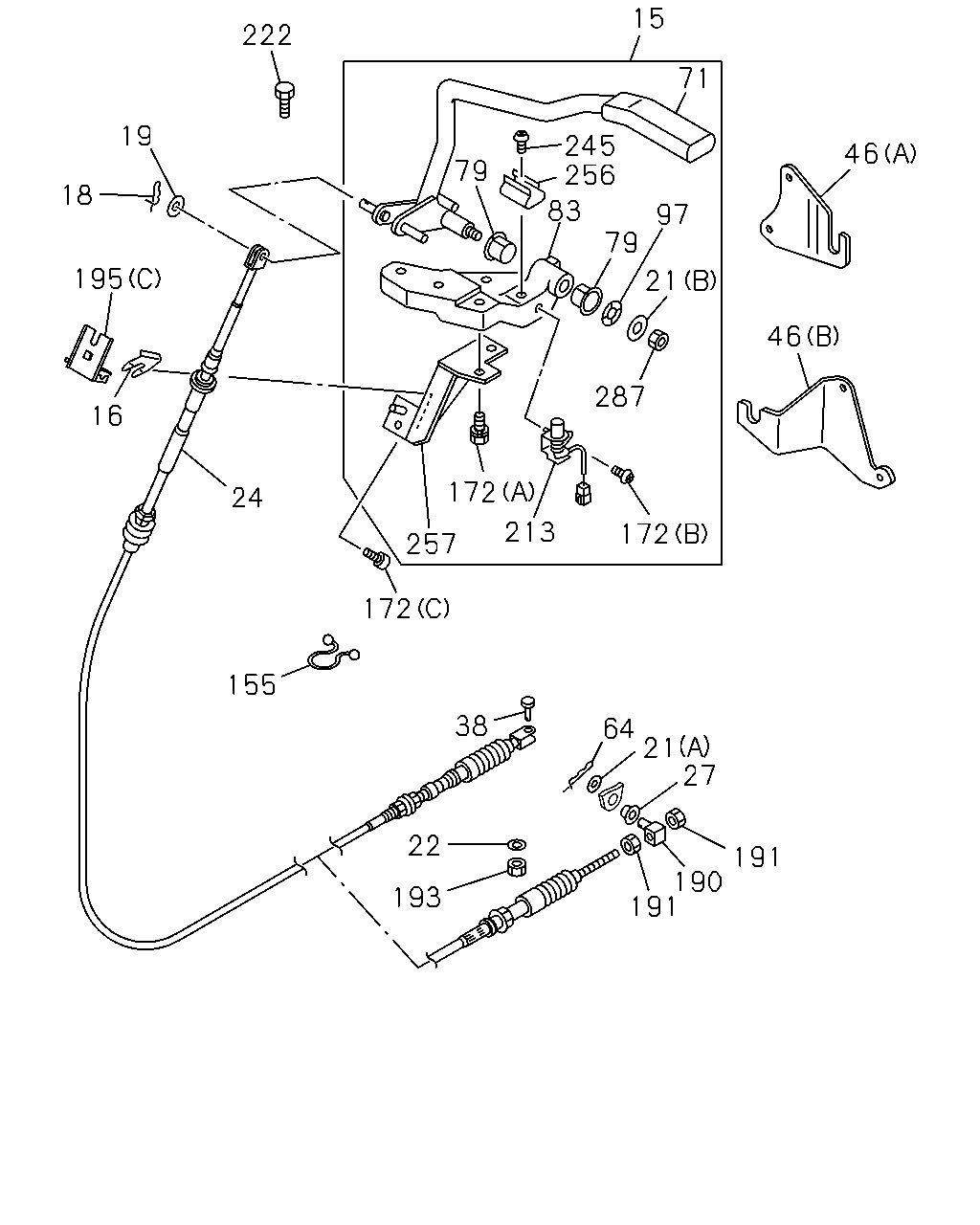

2-85 — POWER TAKE OFF CONTROL (#16653) — 62 parça

15 222 71 19 245 256 46 79 18 83 97 79 195 21 46 287 16 172 24 213 172 257 172 155 38 64 21 27 22 191 190 191 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	LEVER ASM; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97177-805-3	01	1	0009-	●	●	●
16	CLIP; CABLE,PTO PTO TRANSMISSION SIDE<V66>	8-94152-900-0	01	1	0009-	●	●	●
18	PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE<V66> L=27.7	8-94111-137-0	01	1	0009-	●	●	●
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE<V66> ID=8.4	9-09160-508-0	01	1	0009-	●	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (A) ID=8.4	9-09160-508-0	01	1	0009-	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (B) ID=8.4 OD=22	9-09160-708-0	01	1	0009-	●	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22	9-09164-708-0	01	1	0009-			●
22	WASHER; LK,LEVER PTO TRANSMISSION SIDE<V66> ID=8.5 T=0.3	5-09509-001-0	01	1	0009-			●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE<V66> L=2690	8-97142-482-0	01	1	0009-	●	●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE<V66> L=2810	8-97185-425-1	01	1	0009-			●
27	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE<V66>	8-94367-367-0	01	1	0009-			●
38	PIN; JOINT,CABLE TO LEVER PTO TRANSMISSION SIDE<V66>	8-94153-035-0	01	1	0009-	●	●
46	BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE<V66> (A)	8-94157-541-0	01	1	0009-	●	●
46	BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE<V66> (B)	8-97240-638-0	01	1	0009-			●
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE<V66> L=27.7	8-94111-137-0	01	1	0009-	●	●	●
71	LEVER; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97177-806-1	01	1	0009-	●	●	●
79	BUSHING; CONT LEVER PTO TRANSMISSION SIDE<V66> ID=14 OD=16	8-94252-671-0	02	1	0009-0204	●	●	●
79	BUSHING; CONT LEVER PTO TRANSMISSION SIDE<V66>	8-94238-596-0	02	1	0205-	●	●	●
83	BRACKET; CONT LEVER PTO TRANSMISSION SIDE<V66>	8-97117-352-0	01	1	0009-	●	●	●
97	WASHER; LK PTO TRANSMISSION SIDE<V66> ID=15 OD=25	8-11053-111-0	01	1	0009-	●	●	●
155	CLIP; CABLE PTO TRANSMISSION SIDE<V66> ID=15	1-09709-003-0	01	1	0009-	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (C) M8X16 FLANGE	0-28080-816-0	01	1	0009-	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (D) M8X25 FLANGE	0-28680-825-0	02	1	0009-	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0009-	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0009-	●	●	●
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE<V66>	8-94366-842-1	01	1	0009-			●
191	NUT; BOSS PTO TRANSMISSION SIDE<V66> M6	9-09110-506-0	02	1	0009-			●
193	NUT PTO TRANSMISSION SIDE<V66> M12	9-99111-412-0	01	1	0009-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (A)	8-97076-429-6	01	1	0009-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (D)	8-97079-557-3	01	1	0009-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (E)	8-97079-558-3	01	1	0009-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (B)	8-97085-695-3	01	1	0009-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (C)	8-97088-407-1	01	1	0009-	●	●	●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97041-412-1	01	1	0009-0308	●	●	●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97370-568-0	01	1	0309-	●	●	●
222	BOLT; LEVER PTO TRANSMISSION SIDE<V66> M8X14 FLANGE	0-28080-814-0	04	1	0009-	●	●	●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE<V66> M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0009-	●	●	●
256	PLATE; LOCK PTO TRANSMISSION SIDE<V66>	8-97117-351-0	01	1	0009-	●	●	●
257	REINFORCEMENT; PTO PTO TRANSMISSION SIDE<V66>	8-97088-406-3	01	1	0009-	●	●	●
287	NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE<V66> M8 W/LK WASHER	8-94279-050-0	01	1	0009-	●	●	●

195 172 195 195 172 195 173 172 1 14 13 11 12 8 7 6 4 5 7 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE<V66>	8-94169-638-3	01	1	0009-	●	●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE<V66>	8-94169-639-0	01	1	0009-	●	●
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE<V66>	8-94147-828-0	01	1	0009-	●	●
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE<V66>	8-94147-829-1	01	1	0009-	●	●
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE<V66>	5-33659-053-0	02	1	0009-	●	●
8	NIPPLE; GREASE PTO TRANSMISSION SIDE<V66> M6 STRAIGHT	9-09031-006-0	01	1	0009-	●	●
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE<V66> ID=8.2	9-09150-508-0	01	1	0009-	●	●
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE<V66> M8	9-09110-408-0	01	1	0009-	●	●
11	JOINT; JAW,YOKE PTO TRANSMISSION SIDE<V66>	8-94342-085-0	01	1	0009-	●	●
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE<V66>	8-94174-099-0	01	1	0009-	●	●
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE<V66> ID=12.5	9-09160-512-0	01	1	0009-	●	●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE<V66>	1-09987-158-1	01	1	0009-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (C) M8X16 FLANGE	0-28080-816-0	01	1	0009-	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (D) M8X25 FLANGE	0-28680-825-0	02	1	0009-	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0009-	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0009-	●	●	●
173	NUT; BRKT PTO TRANSMISSION SIDE<V66> M8 FLANGE	0-91150-108-0	01	1	0009-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (A)	8-97076-429-6	01	1	0009-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (D)	8-97079-557-3	01	1	0009-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (E)	8-97079-558-3	01	1	0009-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (B)	8-97085-695-3	01	1	0009-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (C)	8-97088-407-1	01	1	0009-	●	●	●
