◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51638 - NPR LHD BUS CHASSIS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#166526) — 9 parça

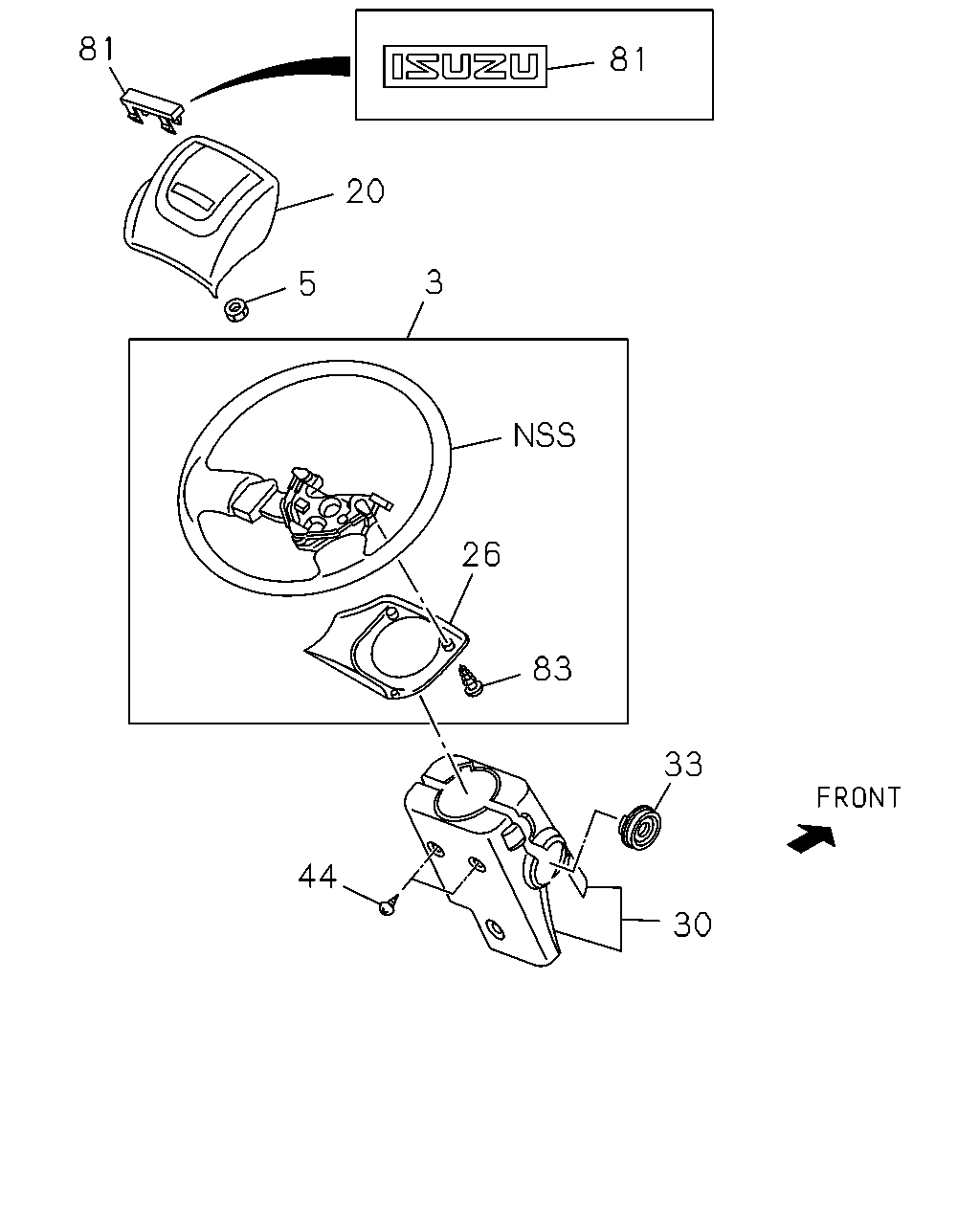

çizim 493266
81 81 20 3 5 26 83 33 30 44
BalonParca AdiParca NoAdetTipApplied Date
3 06.513 WHEEL; STRG
DARK GRAY 		8-97465-649-2 01 1 1509-
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1509-
20 06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97465-647-0 01 1 1509-
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97465-650-0 01 1 1509-
30 06.518 COWL; STEERING
DARK GRAY 		8-97418-761-1 01 1 1509-
33 06.518 COVER; STRG COWL
DARK GRAY 		8-97409-495-0 01 1 1509-
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1509-
81 02.820 EMBLEM; STRG WHEEL
DARK GRAY 		8-97465-648-0 01 1 1509-
83 06.514 SCREW; LWR COVER TO WHEEL
09.242 M4X10 TAPPING 		0-71240-410-0 03 1 1509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
