4-10 — FRONT AXLE (#166522) — 51 parça

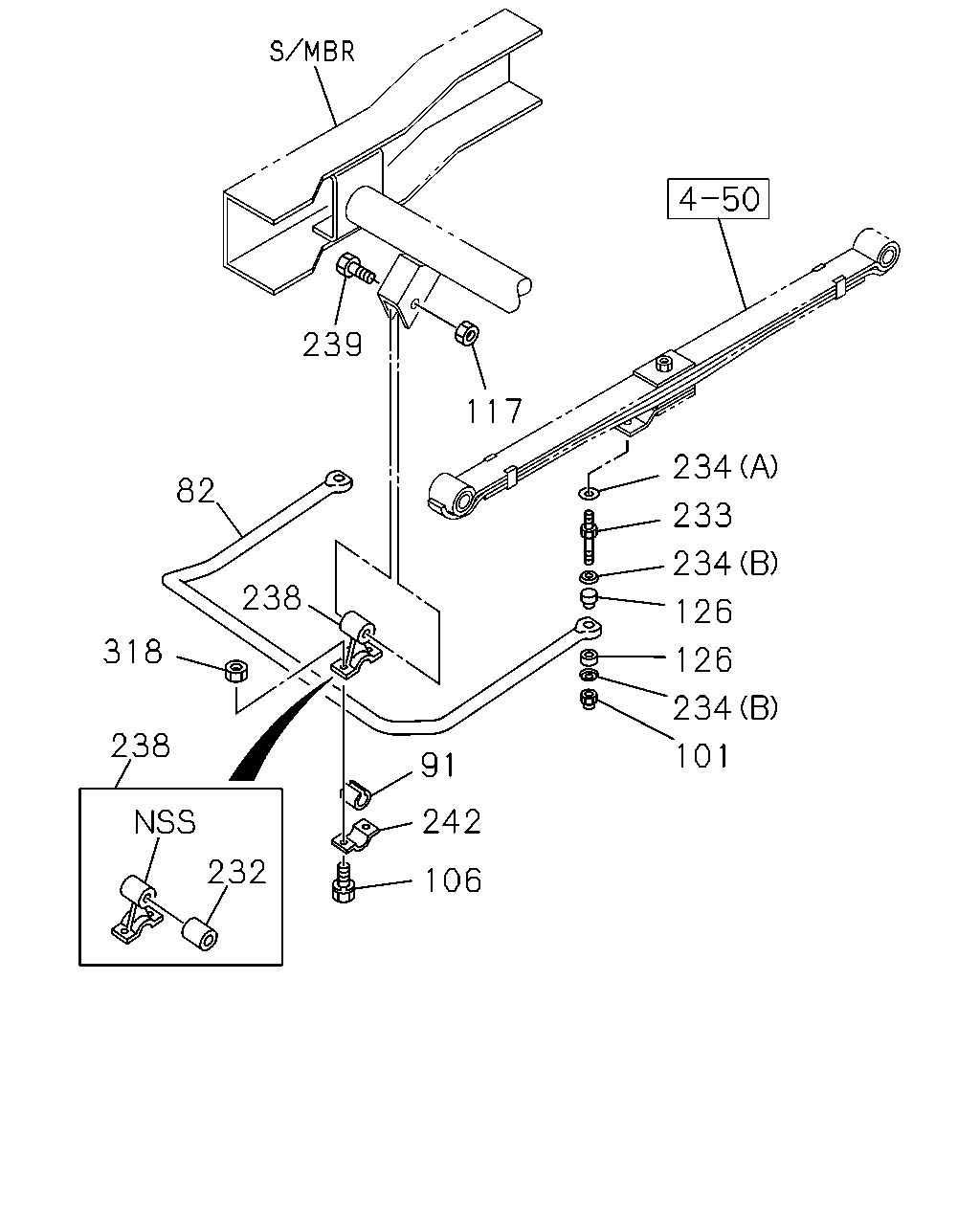

çizim 492773
239 117 234 234 126 233 126 234 101 91 242 106 232 238 318 82 238
BalonParca AdiParca NoAdetTipApplied Date
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-98006-957-0 01 1 1509-
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-187-0 02 1 1509-
101 07.242 NUT; STAB BAR
FRONT STABILIZER SHAFT<F59> M12 LOCK NUT 		0-91370-012-0 02 1 1509-
106 06.216 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1509-
117 06.174 NUT; STAB BAR BUSHING
FRONT STABILIZER SHAFT<F59> M14 FLANGE 		8-97360-124-0 02 1 1509-
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-083-0 04 1 1509-
232 07.243 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 1509-
233 07.242 STUD; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-97360-120-0 02 1 1509-
234 07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> 05.605 (A) ID=14.2 		0-91510-514-0 02 1 1509-
234 07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> (B) 		8-97360-055-0 04 1 1509-
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-907-0 02 1 1509-
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28851-470-0 02 1 1509-
242 07.242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 1509-
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509-

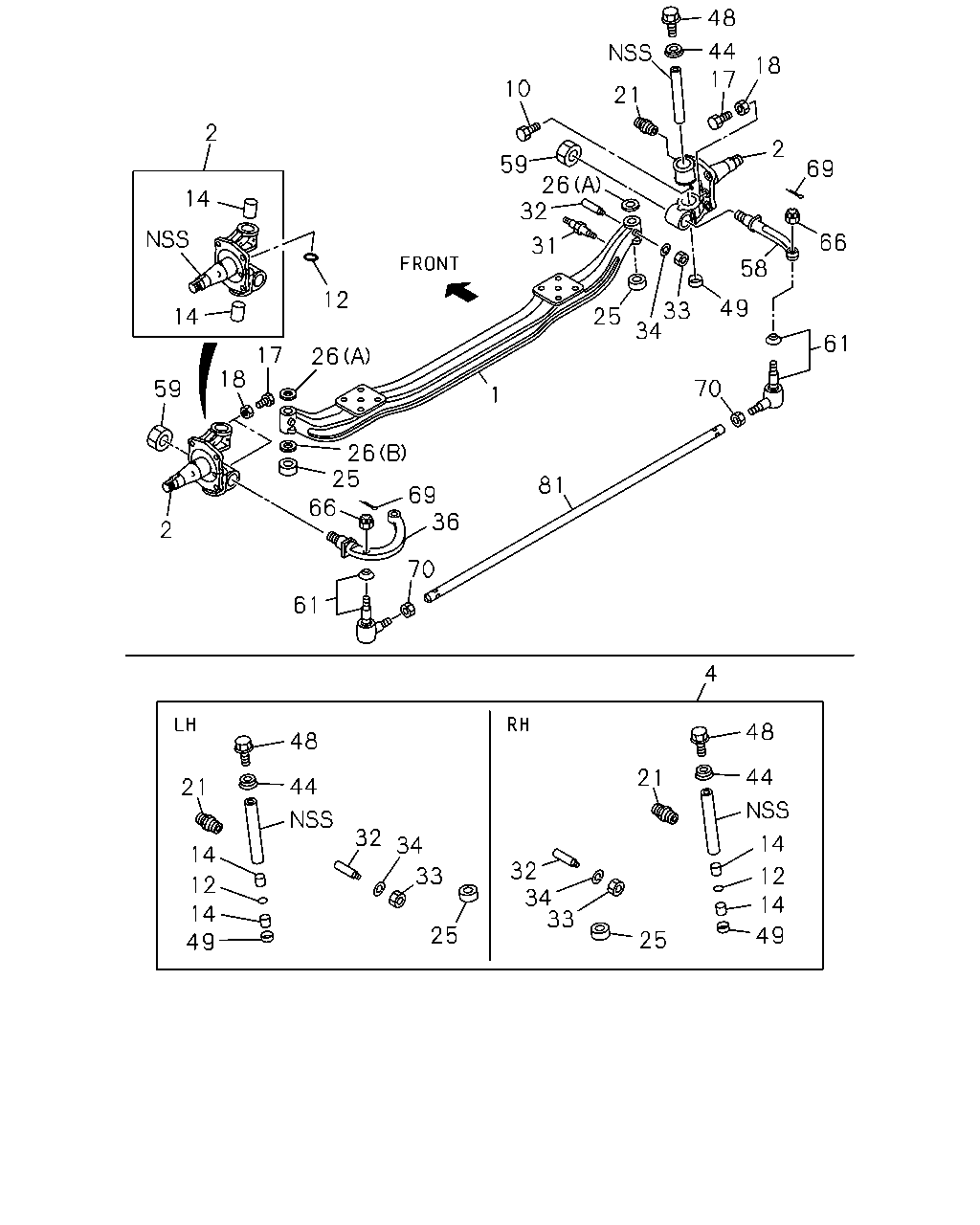

çizim 492999
2 14 14 12 17 18 59 2 26 26 25 66 61 69 36 70 81 1 25 34 70 61 49 33 31 32 26 59 10 21 17 18 44 48 2 69 66 58 48 44 21 14 12 14 49 32 34 33 25 32 34 33 25 21 4 48 44 14 12 14 49
BalonParca AdiParca NoAdetTipApplied Date
1 06.008 AXLE; FRT 8-98038-384-3 01 1 1509-
2 06.020 KNUCKLE; FRT AXLE 8-98009-941-1 01 1 1509-
2 06.020 KNUCKLE; FRT AXLE 8-98009-942-1 01 1 1509-
4 06.203 KING PIN KIT 5-87832-220-2 01 1 1509-
10 06.009 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 1509-
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 1509-
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 1509-
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1509-
18 06.216 NUT; STOPPER BOLT,KNUCKLE
04.439 M12 		0-91111-512-0 03 1 1509-
21 06.166 NIPPLE; GREASE,KING PIN
05.601 M6 STRAIGHT 		0-90301-406-0 04 1 1509-
25 06.210 BEARING; THRUST,KING PIN
06.021 		8-94248-883-3 01 1 1509-
25 06.210 BEARING; THRUST,KING PIN 8-97141-943-1 01 1 1509-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1509-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1509-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1509-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1509-
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 1509-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1509-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1509-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1509-
31 07.347 PIN; S/ABS,LWR 8-97145-460-0 02 1 1509-
32 06.216 BOLT; KEY,KING PIN 8-97141-945-2 02 1 1509-
33 06.216 NUT; KEY BOLT
00.833 M10 		0-91110-510-0 02 1 1509-
34 06.216 WASHER; LK,KEY BOLT
06.606 ID=10.2 		0-91510-510-0 02 1 1509-
36 06.103 ARM; KNUCKLE 8-97210-771-4 01 1 1509-
44 06.225 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 1509-
48 06.225 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 1509-
49 06.225 CAP; KNUCKLE 8-97360-024-0 02 1 1509-
58 06.103 ARM; TIE ROD 8-97147-636-1 01 1 1509-
59 06.104 NUT; TIE ROD ARM 8-97360-123-0 02 1 1509-
61 06.233 ROD END; TIE ROD 8-97107-348-2 01 1 1509-
61 06.233 ROD END; TIE ROD 8-97107-349-2 01 1 1509-
66 06.234 NUT; TIE ROD END
06.216 M16 SLOTTED 		8-98049-689-0 02 1 1509-
69 06.255 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 1509-
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1509-
70 06.234 NUT; TIE ROD END
M20 		8-98043-530-0 01 1 1509-
81 06.230 ROD; TIE 8-97061-869-0 01 1 1509-
