1 |

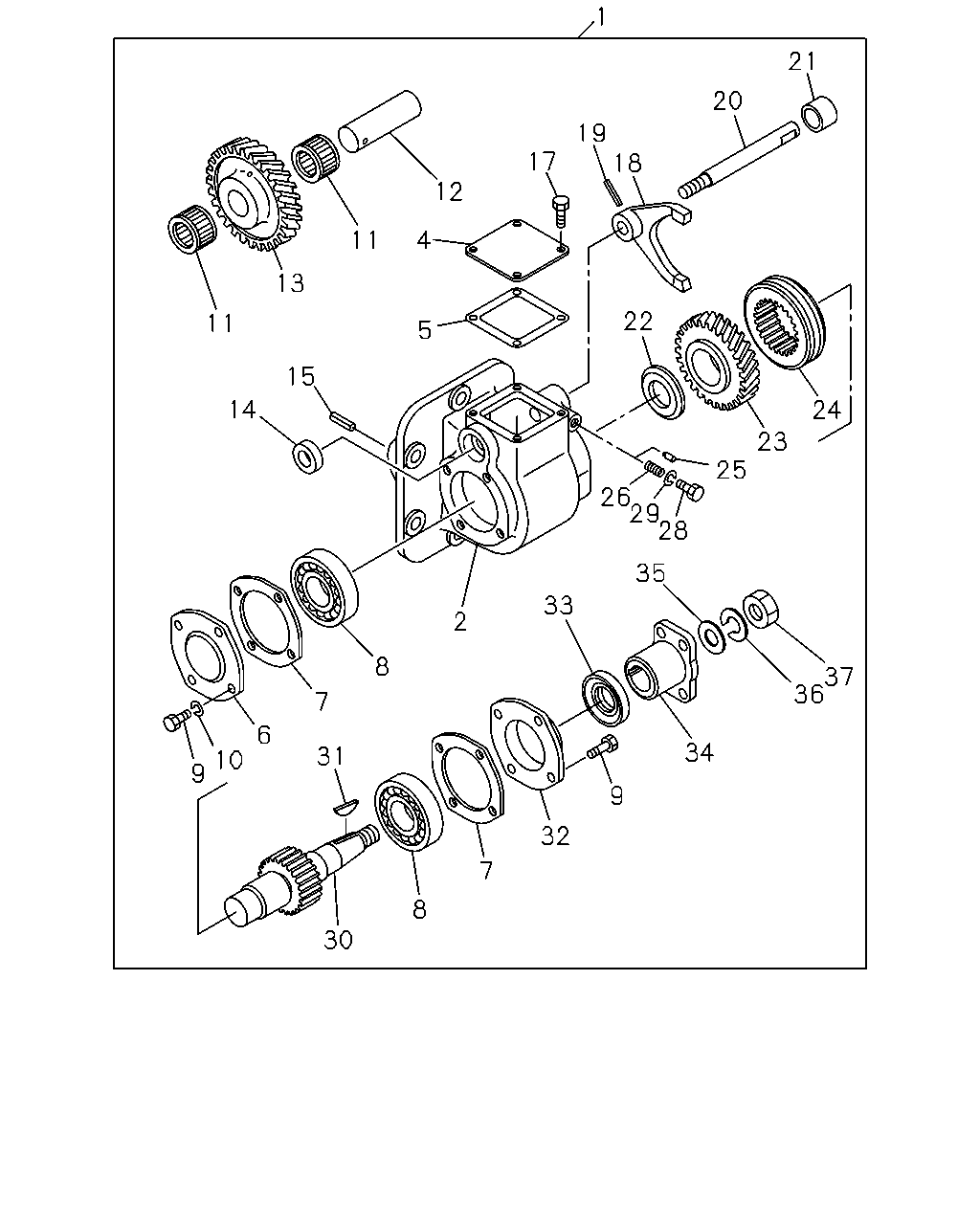

POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE<V66>
IDENTIFICATION=H
|
8-94343-025-3 |
01 |
1 |
0009- |
● |
● |
| |
2 |
CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
8-97076-703-1 |
02 |
1 |
0009- |
● |
● |
| |
4 |
COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
8-97106-718-0 |
01 |
1 |
0009- |
● |
● |
| |
5 |
GASKET; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
8-97077-326-0 |
01 |
1 |
0009-0109 |
● |
● |
| |
6 |
COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
9-38151-604-0 |
01 |
1 |
0009- |
● |
● |
| |
8 |
BEARING; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
ID=25 OD=62
|
8-94343-031-1 |
02 |
1 |
0009- |
● |
● |
| |
9 |
BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
PTO TRANSMISSION SIDE<V66>
M8X16
|
0-20800-816-0 |
08 |
1 |
0009- |
● |
● |
| |
11 |
BEARING; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
9-00096-646-0 |
02 |
1 |
0009- |
● |
● |
| |
12 |
SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
9-38211-606-0 |
01 |
1 |
0009- |
● |
● |
| |
13 |
GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
Z=34
|
9-38241-614-1 |
01 |
1 |
0009- |
● |
● |
| |
14 |
SEAL; OIL,GEAR CASE,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
9-09724-015-0 |
01 |
1 |
0009- |
● |
● |
| |
15 |
PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
L=16
|
9-09878-613-0 |
01 |
1 |
0009- |
● |
● |
| |
17 |
BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0009- |
● |
● |
| |
18 |
ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
8-97027-045-0 |
01 |
1 |
0009- |
● |
● |
| |
19 |
PIN; SPR,SHIFT ARM,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
L=25 OD=5
|
8-94135-771-0 |
01 |
1 |
0009- |
● |
● |
| |
20 |
ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
8-97224-714-0 |
01 |
1 |
0009- |
● |
● |
| |
21 |
COVER; SHIFTER ROD,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
9-33545-602-0 |
01 |
1 |
0009- |
● |
● |
| |
22 |
COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
PTO TRANSMISSION SIDE<V66>
|
9-38245-603-1 |
01 |
1 |
0009- |
● |
● |
| |
23 |
GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
Z=22
|
9-38241-612-1 |
01 |
1 |
0009- |
● |
● |
| |
24 |
SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
9-38244-602-2 |
01 |
1 |
0009-0109 |
● |
● |
| |
24 |
SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
8-97231-316-0 |
01 |
1 |
0110- |
● |
● |
| |
25 |
PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
8-94169-071-0 |
01 |
1 |
0009- |
● |
● |
| |
26 |
SPRING; SHIFTER ROD,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
9-09940-380-0 |
01 |
1 |
0009- |
● |
● |
| |
28 |
BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE<V66>
M8X10 FLANGE
|
0-28080-810-0 |
01 |
1 |
0009- |
● |
● |
| |
30 |
SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
8-97118-183-0 |
01 |
1 |
0009- |
● |
● |
| |
32 |
COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
1-38152-024-0 |
01 |
1 |
0009- |
● |
● |
| |
33 |
SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
1-38159-007-0 |
01 |
1 |
0009- |
● |
● |
| |
34 |
FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
|
8-97118-184-0 |
01 |
1 |
0009- |
● |
● |
| |
35 |
WASHER; PL,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
ID=15
|
9-09160-514-0 |
01 |
1 |
0009- |
● |
● |
| |
36 |
WASHER; LK,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
ID=14.2
|
9-09150-514-0 |
01 |
1 |
0009- |
● |
● |
| |
37 |
NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
M14
|
9-99111-414-0 |
01 |
1 |
0009- |
● |
● |
