Isuzu WW
▶
TRUCKS
▶
NPR
▶
51638 - NPR LHD BUS CHASSIS
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#166517) — 19 parça
◀

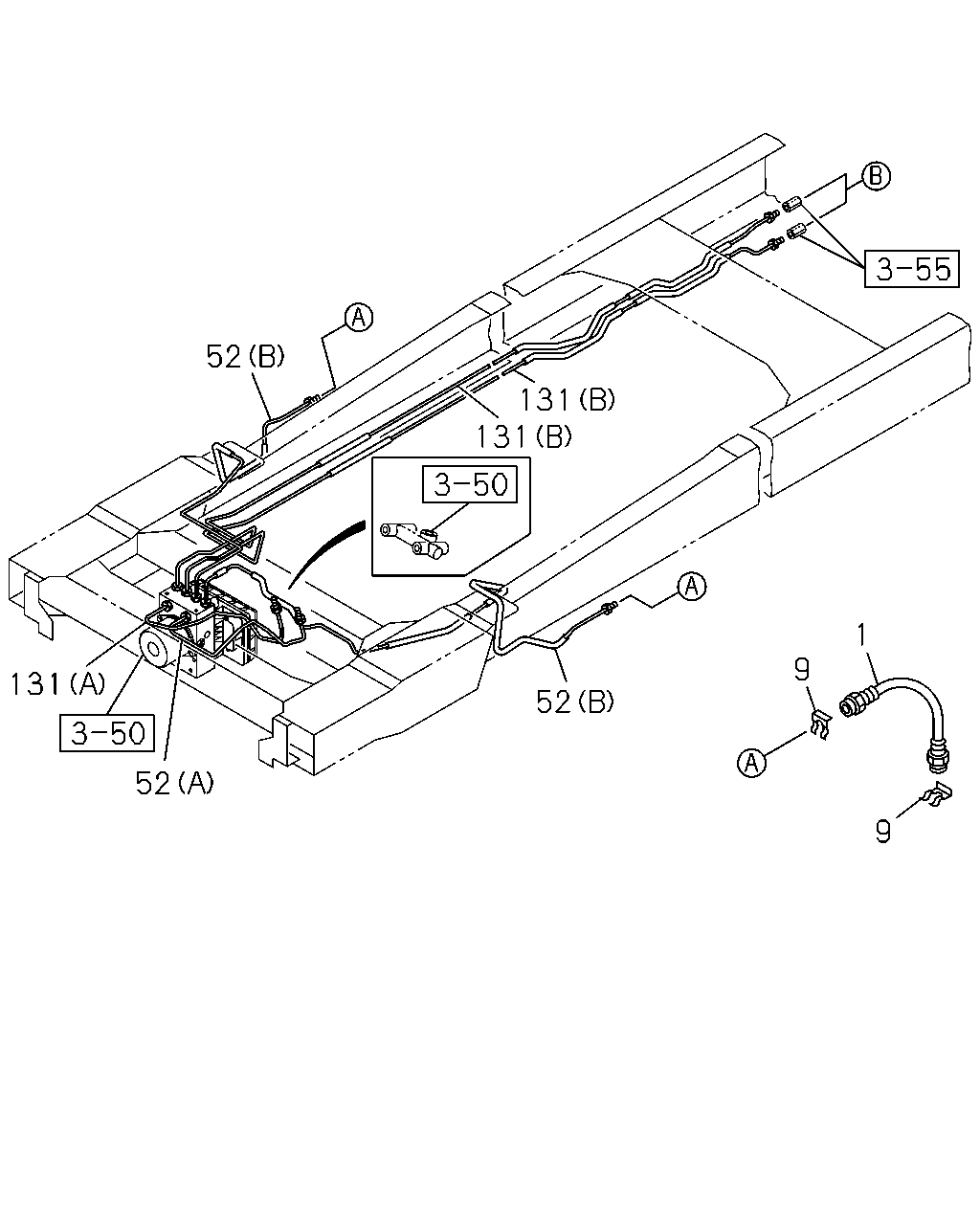

[352A] HYDRO BRAKE BOOSTER NO.1 (5 parça)

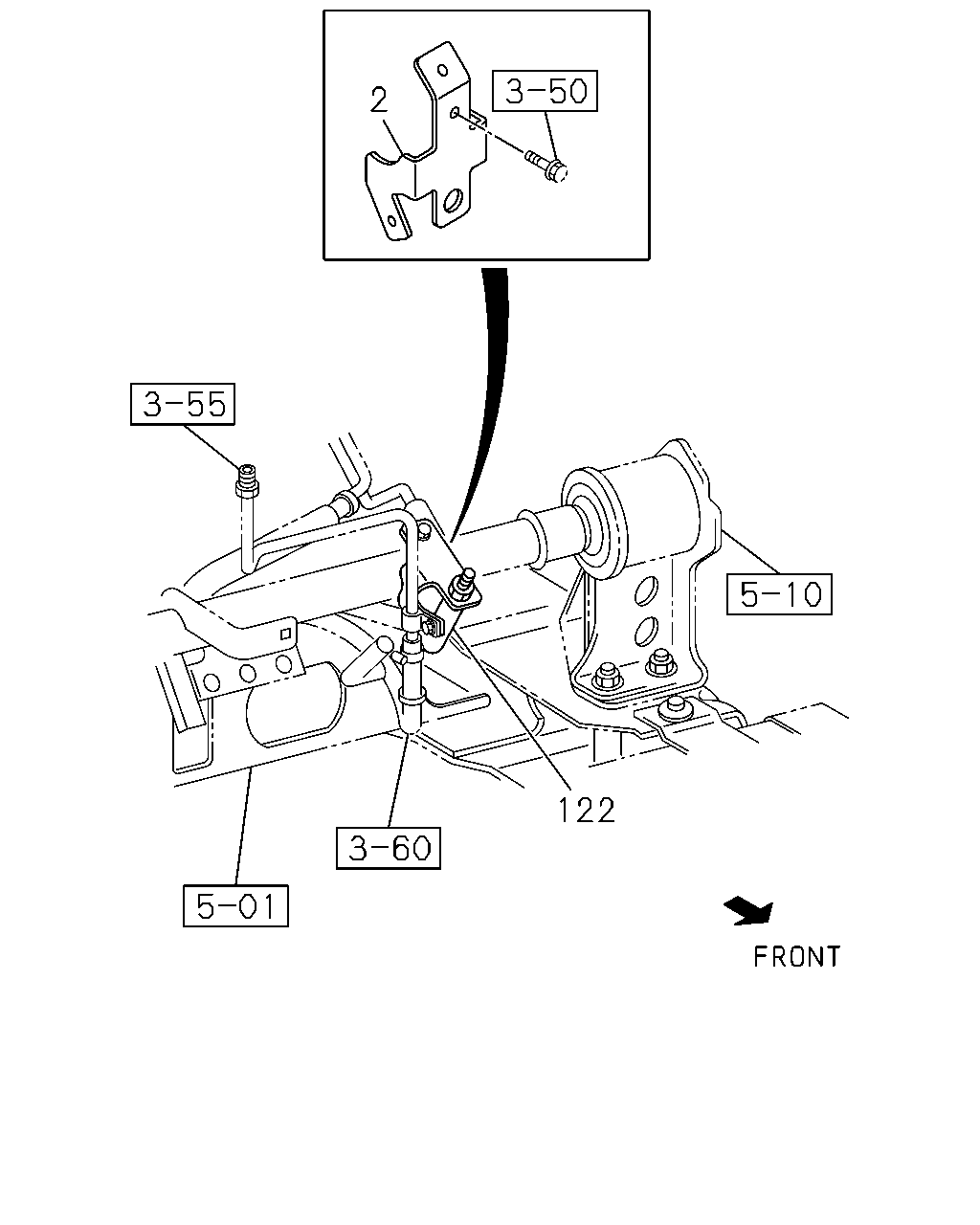

[352A] HYDRO BRAKE BOOSTER NO.2 (2 parça)

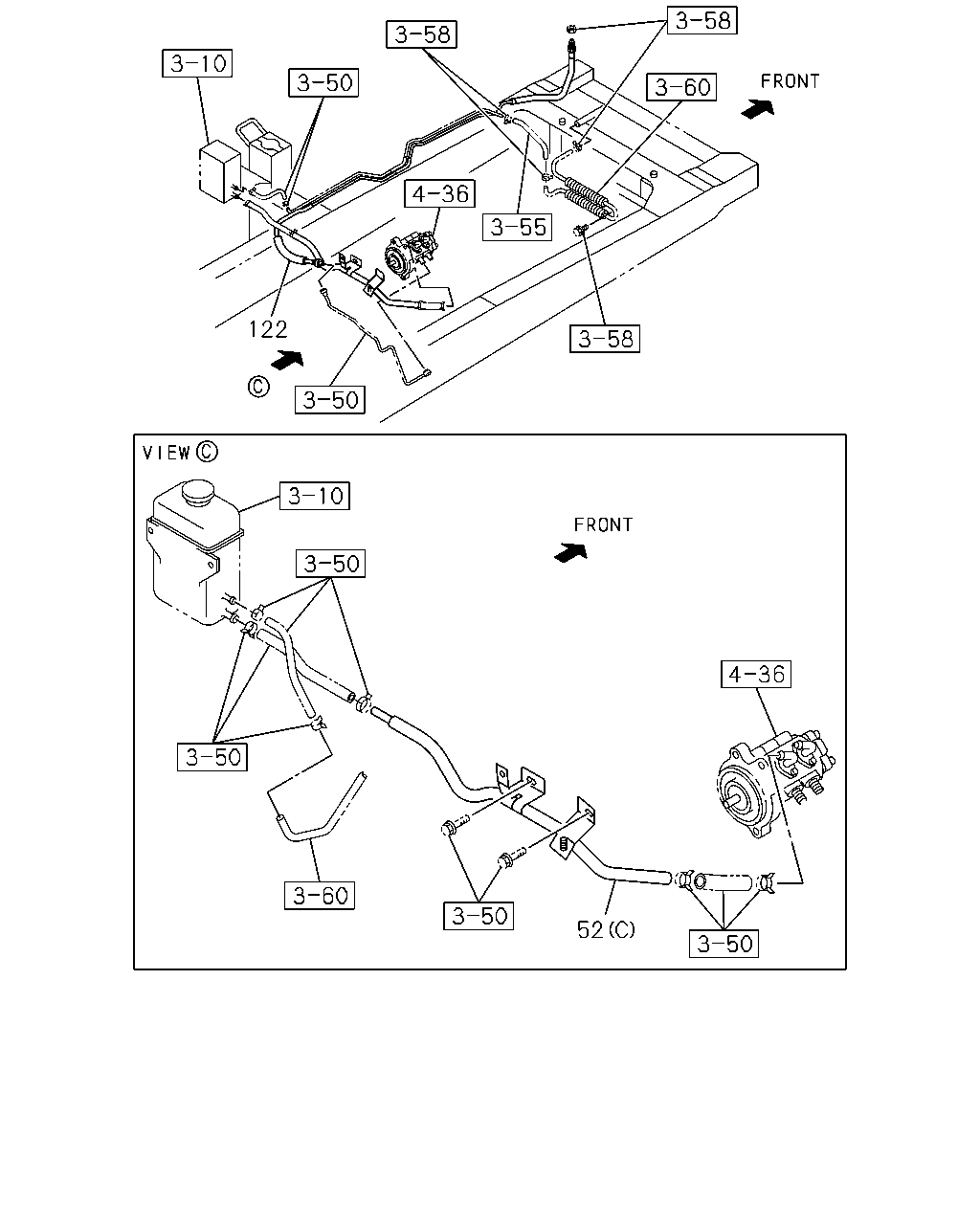

[352A] PIPING; FRONT (10 parça)
[352A] PIPING; REAR (2 parça)
▶
52
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT
8-98201-456-0
01
1
1509-
52
04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT
8-98216-264-0
01
1
1509-
52
04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT
8-98216-265-0
01
1
1509-
52
04.685 PIPE; BRK
(C)
8-98036-162-0
01
1
1509-
122
04.685 PIPE ASM; BRK,2 WAY
L=1284
8-98136-575-0
01
1
1509-
122
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
04.681 BRACKET; FLEX HOSE,FRT BRK
8-98136-578-0
01
1
1509-
122
04.685 PIPE ASM; BRK,2 WAY
L=1284
8-98136-575-0
01
1
1509-
52
52
131
52
131
131
9
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.680 HOSE; FLEX,FRT BRK
8-97039-543-1
02
1
1509-
9
04.686 CLIP; FLEX HOSE,FRT BRK
8-97360-054-0
02
1
1509-
9
04.686 CLIP; FLEX HOSE,FRT BRK
8-97360-054-0
02
1
1509-
52
04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT
8-98201-456-0
01
1
1509-
52
04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT
8-98216-264-0
01
1
1509-
52
04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT
8-98216-265-0
01
1
1509-
52
04.685 PIPE; BRK
(C)
8-98036-162-0
01
1
1509-
131
04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR
8-98192-392-0
01
1
1509-
131
04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR
8-98192-393-1
01
1
1509-
131
04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR
8-98201-457-0
01
1
1509-
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
51
04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO REAR
8-98052-566-0
01
1
1509-
51
04.685 PIPE; BRK
(A) BRAKE SYSTEM,RR LH 2WAY TO REAR
8-98112-451-2
01
1
1509-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
