Isuzu WW
▶
TRUCKS
▶
NPR
▶
51638 - NPR LHD BUS CHASSIS
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶
3-05 — REAR WHEEL BRAKE
(#166508) — 35 parça
◀

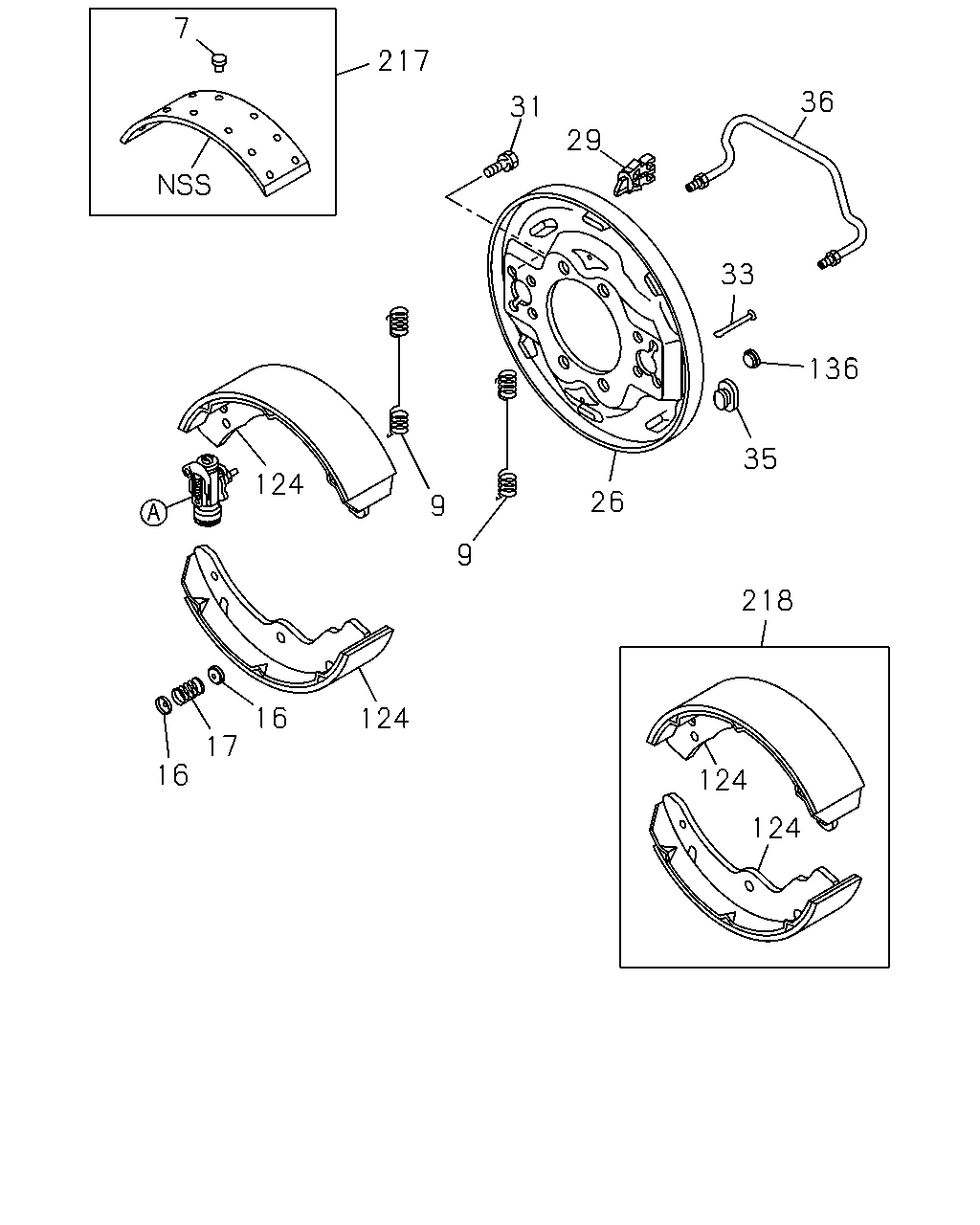

[305A] NO.1 (16 parça)
[305A] NO.2 (19 parça)
▶
7
217
31
29
36
33
136
35
26
9
9
124
16
17
16
124
218
124
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
05.019 RIVET; LINING,RR BRK
1-09732-029-0
64
1
1509-
9
05.026 SPRING; RETURN,BRK SHOE
8-97122-869-0
04
1
1509-
16
05.043 CUP; SHOE HOLDING
9-47165-096-0
08
1
1509-
17
04.043 SPRING; SHOE HOLD DOWN
05.043
5-09580-101-1
04
1
1509-
26
05.001 PLATE; BACK,RR BRK
8-97207-157-0
01
1
1509-
26
05.001 PLATE; BACK,RR BRK
8-97207-158-0
01
1
1509-
29
04.685 CLIP; PIPE,BRK
8-97022-086-0
02
1
1509-
31
04.665 BOLT; RR WHEEL CYL
8-97081-305-0
16
1
1509-
33
05.043 PIN; SHOE HOLD DOWN
8-97122-870-0
04
1
1509-
35
05.002 GROMMET; CHECK HOLE
8-97017-507-0
06
1
1509-
36
04.685 PIPE; OIL,RR BRK
8-97192-215-0
02
1
1509-
124
05.017 SHOE ASM; BRK,RR
8-97188-455-0
04
1
1509-
136
05.002 GROMMET
04.670
1-47154-008-0
04
1
1509-
217
05.018 LINING KIT; RR BRK
5-87831-692-0
01
1
1509-
217
05.018 LINING KIT; RR BRK
BEST VALUE PARTS
5-87610-119-0
01
1
1509-
218
05.017 SHOE KIT; BRK,RR
5-87831-693-0
01
1
1509-
94
102
97
96
101
106
104
99
108
107
101
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
94
04.665 CYLINDER; WHEEL,RR BRK
REAR
8-97358-878-0
01
1
1509-
94
04.665 CYLINDER; WHEEL,RR BRK
REAR
8-97358-879-0
01
1
1509-
94
04.665 CYLINDER; WHEEL,RR BRK
FRONT
8-97358-880-0
01
1
1509-
94
04.665 CYLINDER; WHEEL,RR BRK
FRONT
8-97358-881-0
01
1
1509-
95
04.665 CUP SET; RR WHEEL CYL
5-87832-051-0
02
1
1509-
96
04.666 SCREW; BLEEDER,RR BRK
8-98050-477-0
02
1
1509-
97
04.666 CAP; BLEEDER,RR WHEEL CYL
8-98050-479-0
02
1
1509-
99
04.668 PISTON; RR WHEEL CYL
8-97349-731-0
02
1
1509-
99
04.668 PISTON; RR WHEEL CYL
8-97349-732-0
02
1
1509-
101
04.666 SCREW; ADJ,RR WHEEL CYL
(A)
8-97349-741-0
02
1
1509-
101
04.666 SCREW; ADJ,RR WHEEL CYL
(A)
8-97349-742-0
02
1
1509-
101
04.666 SCREW; ADJ,RR WHEEL CYL
(B)
8-97349-747-0
04
1
1509-
102
04.668 PISTON; REAR WHEEL CYL
8-97332-043-0
04
1
1509-
104
05.103 LEVER; ADJ
8-97349-743-0
02
1
1509-
104
05.103 LEVER; ADJ
8-97349-744-0
02
1
1509-
106
05.107 SPRING; ADJ LEVER
8-97349-745-0
04
1
1509-
107
05.110 GEAR; ADJ,RR W/CYL
04.665
8-97358-894-0
02
1
1509-
107
05.110 GEAR; ADJ,RR W/CYL
04.665
8-97358-895-0
02
1
1509-
108
05.110 WASHER; THRUST,GEAR ADJ
8-97349-736-0
04
1
1509-
