51638 - NPR LHD BUS CHASSIS
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶

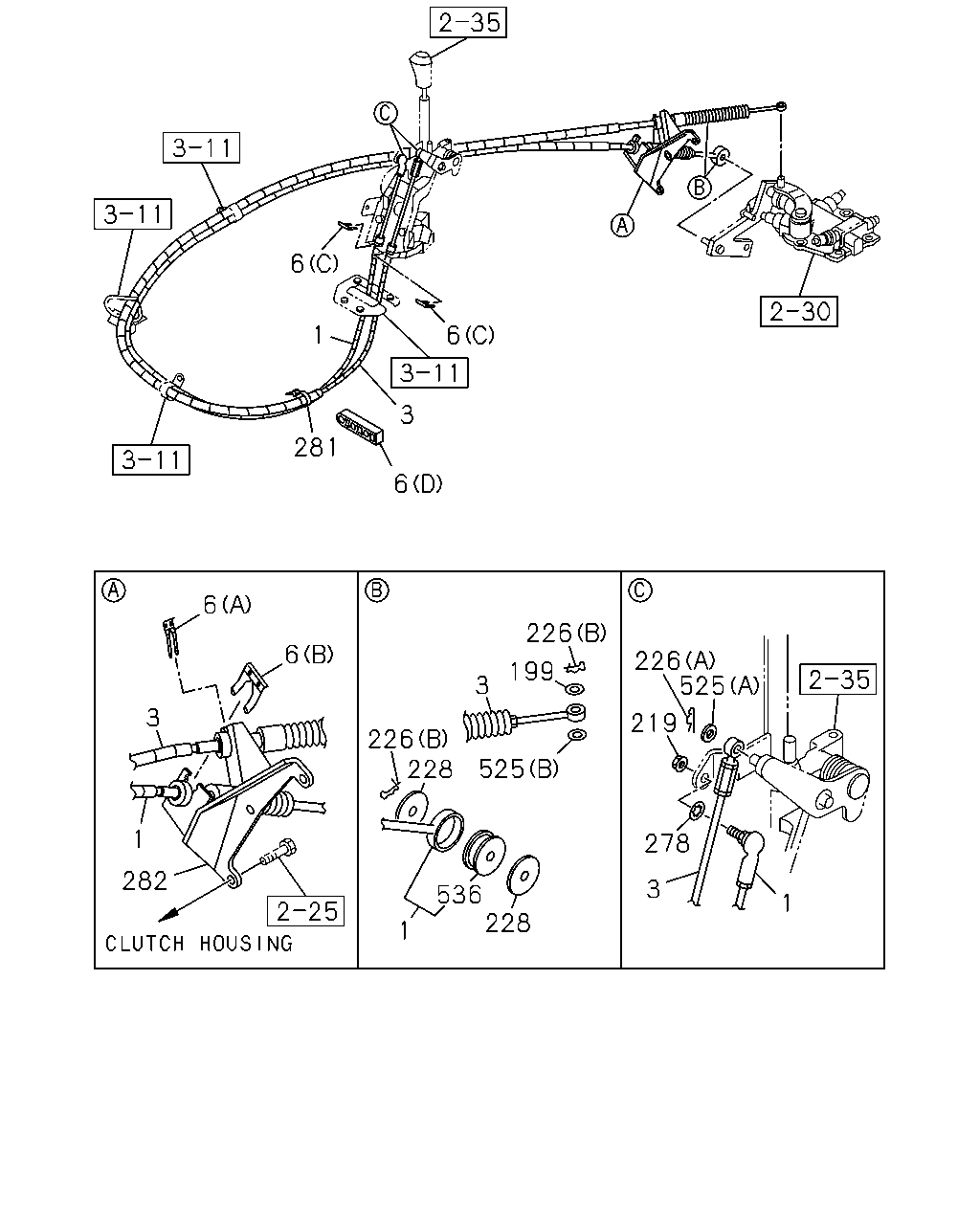

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#166503) — 17 parça
6
1
281
3
6
6
6
6
3
1
282
1
228
536
228
226
525
3
226
199
219
278
3
1
525
226
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.854 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140
8-98146-879-0
01
1
1509-
3
00.852 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3279
8-98025-446-5
01
1
1509-
6
04.047 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.854 (A) ID=22.2
1-09701-209-1
01
1
1509-
6
04.047 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)
8-97011-448-0
02
1
1509-
6
04.047 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.008 (D)
8-97093-491-1
01
1
1509-
6
04.047 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=19.2
8-97211-011-0
01
1
1509-
199
04.012 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.417 ID=8.4 OD=16
0-91610-508-0
01
1
1509-
219
04.047 NUT; FLANGE,SHAFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.037 M8 T=8.0
8-94363-045-0
01
1
1509-
226
04.047 PIN; SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (A) L=27.7
8-94111-137-0
01
1
1509-
226
04.047 PIN; SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=23
8-94170-378-0
02
1
1509-
228
04.047 WASHER; PL,SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2 OD=40
8-97182-975-0
02
1
1509-
278
00.854 WASHER; LK,SHIFT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 TOOTH LK INT
0-91541-208-0
01
1
1509-
281
04.042 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140
5-09707-031-1
01
1
1509-
282
04.010 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98032-396-2
01
1
1509-
525
04.047 WASHER; SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.056 (A) ID=8.4 OD=16
0-91614-508-0
01
1
1509-
525
04.047 WASHER; SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.854 (B) ID=8.4 OD=14
5-09550-002-0
01
1
1509-
536
00.854 DAMPER; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98097-681-0
01
1
1509-
