2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#166502) — 27 parça

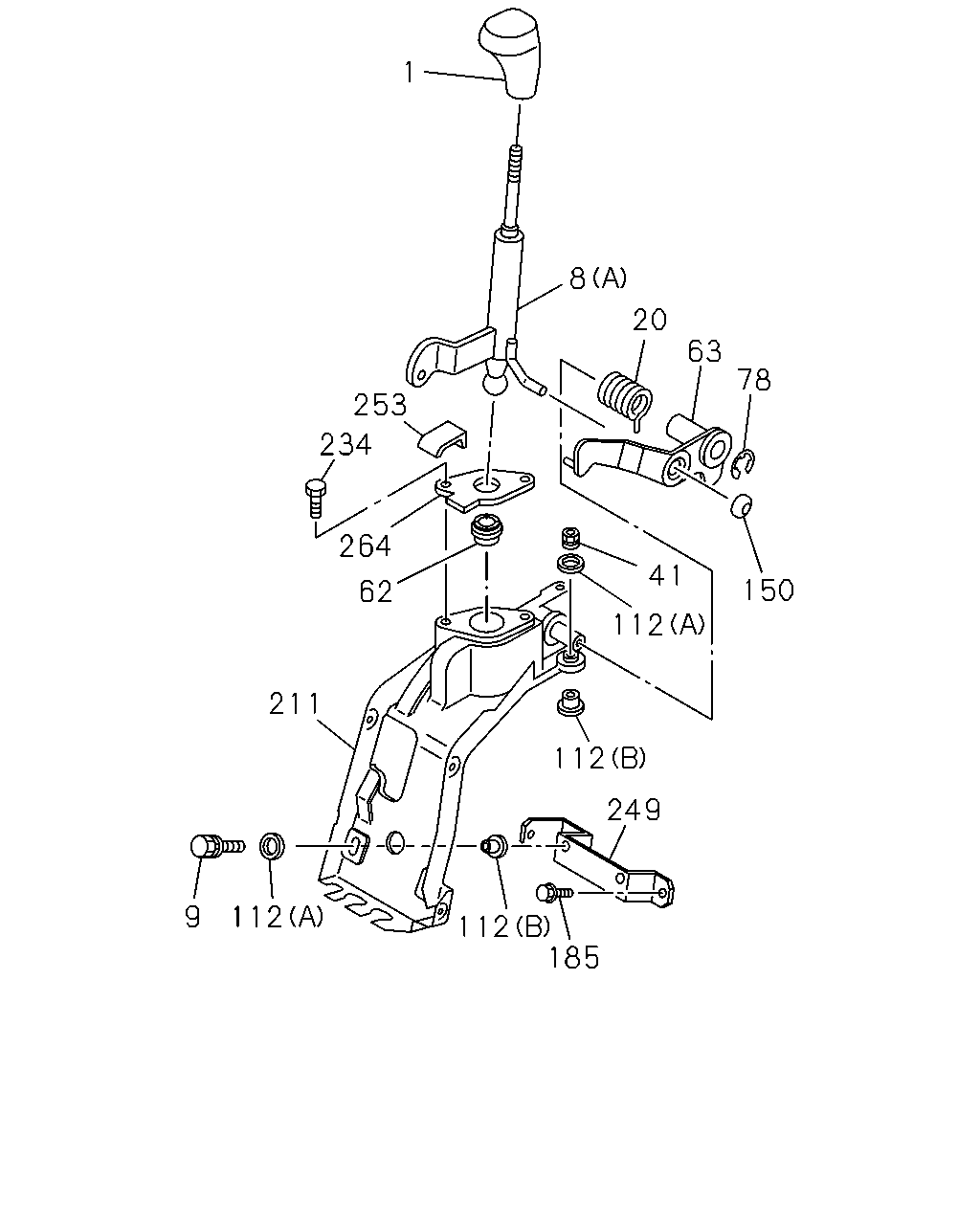

çizim 492403
1 8 20 63 78 253 234 264 62 211 9 112 112 185 249 112 112 41 150
BalonParca AdiParca NoAdetTipApplied Date
1 04.006 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BLACK 		8-97196-287-1 01 1 1509-
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97465-739-1 01 1 1509-
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97204-506-0 01 1 1509-
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1509-
20 04.012 SPRING; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-514-1 01 1 1509-
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509-
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1509-
62 04.012 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97011-895-1 01 1 1509-
63 04.006 LEVER; RELAY,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97163-768-0 01 1 1509-
78 04.008 RING; SNAP,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 1509-
112 04.012 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97091-426-0 04 1 1509-
112 04.012 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97091-427-0 04 1 1509-
150 04.008 BALL; DETENT,CONT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97049-147-0 01 1 1509-
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509-
211 04.010 BRACKET; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-505-1 01 1 1509-
234 04.010 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE 		1-33739-842-0 02 1 1509-
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 1509-
253 04.012 STOPPER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-510-0 01 1 1509-
264 04.015 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-511-0 01 1 1509-

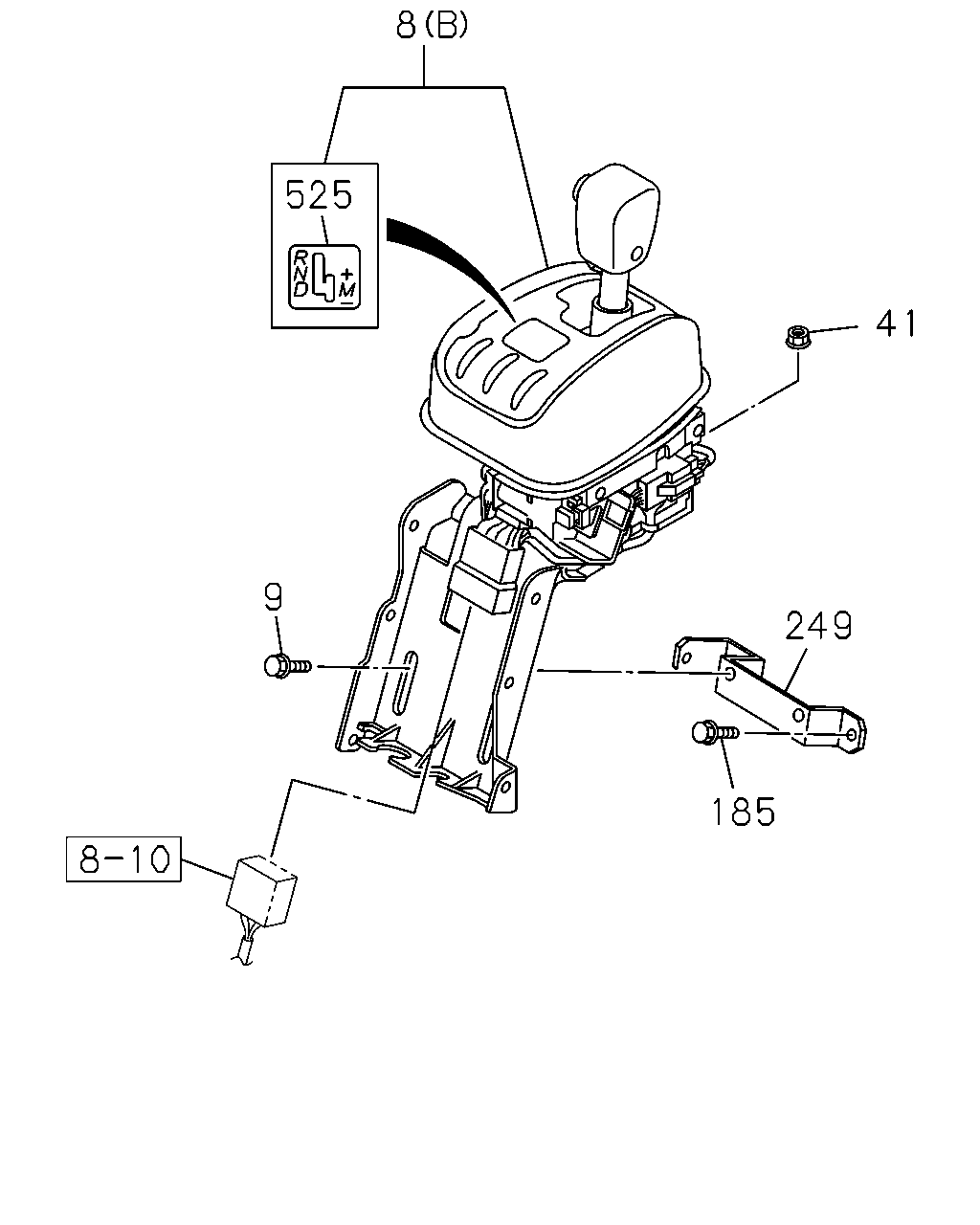

çizim 493161
8 525 41 249 185 9
BalonParca AdiParca NoAdetTipApplied Date
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97465-739-1 01 1 1509-
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97204-506-0 01 1 1509-
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1509-
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509-
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1509-
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509-
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 1509-
525 04.040 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-480-1 01 1 1509-
