2-26 — MANUAL TRANSMISSION GEAR (#166500) — 87 parça

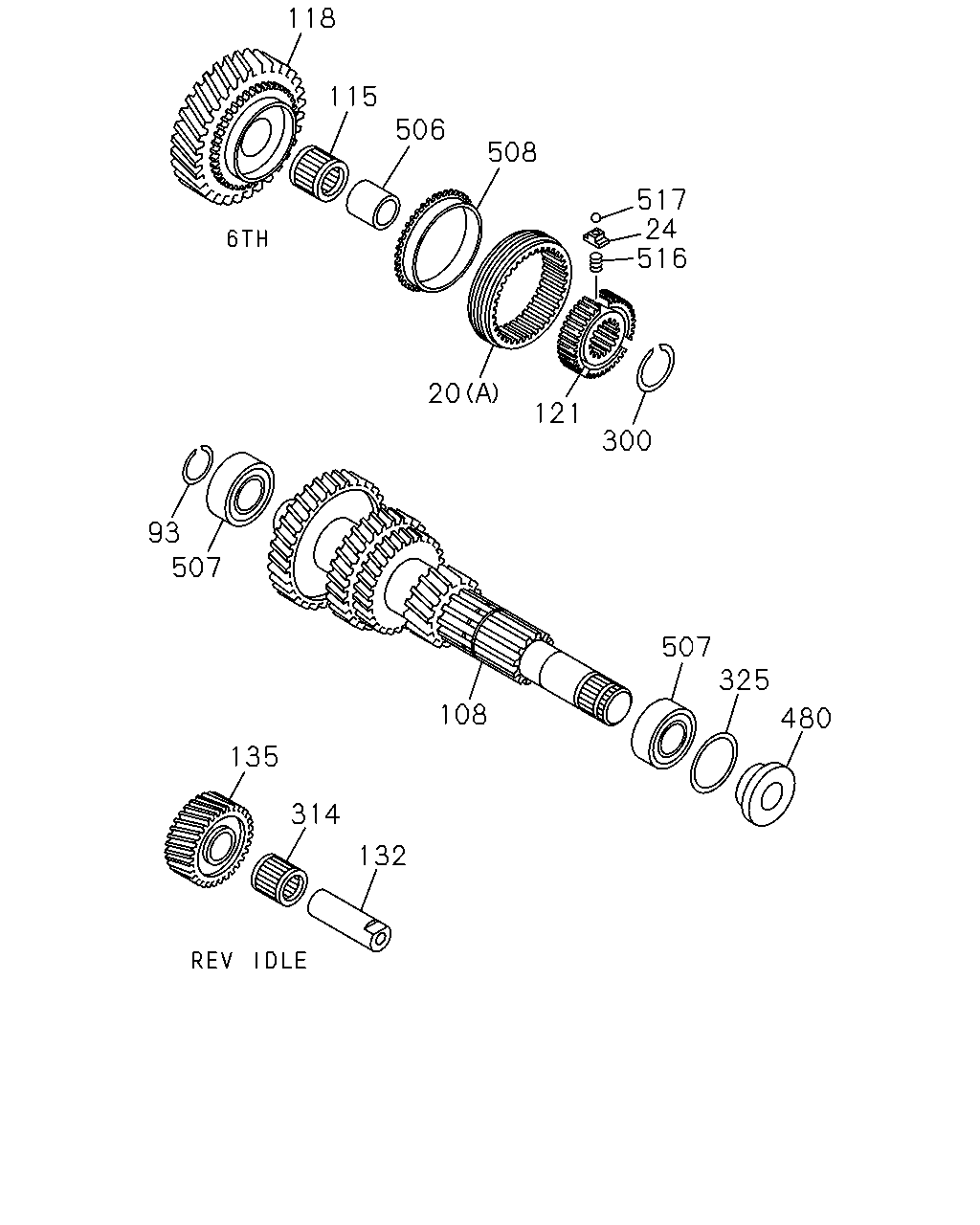

çizim 492383
118 115 506 508 517 24 516 121 20 300 93 507 135 314 132 108 507 325 480
BalonParca AdiParca NoAdetTipApplied Date
20 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1509-
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 1509-
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 1509-
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1509-
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 1509-
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 1509-
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 1509-
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 1509-
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-98249-489-0 01 1 1509-
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 1509-
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1509-
118 04.421 GEAR; 6TH,COUNTER
Z=47 		8-97241-246-0 01 1 1509-
121 04.384 HUB; CLU,6TH 8-97241-301-2 01 1 1509-
132 04.433 SHAFT; REV 8-97252-655-0 01 1 1509-
135 04.430 GEAR; REV IDLER
Z=26 		8-97241-292-2 01 1 1509-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.7 		8-97288-618-0 01 1 1509-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.8 		8-97288-619-0 01 1 1509-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.9 		8-97288-620-0 01 1 1509-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.6 		8-97365-616-0 01 1 1509-
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 1509-
480 04.419 WASHER; THRUST,6TH 8-97253-122-1 01 1 1509-
506 04.419 COLLAR; 6TH,COUNTER 8-97253-120-1 01 1 1509-
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 1509-
508 04.383 RING; BLOCK,6TH
Z=45 		8-97241-306-1 01 1 1509-
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 1509-
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 03 1 1509-
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1509-
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 1509-

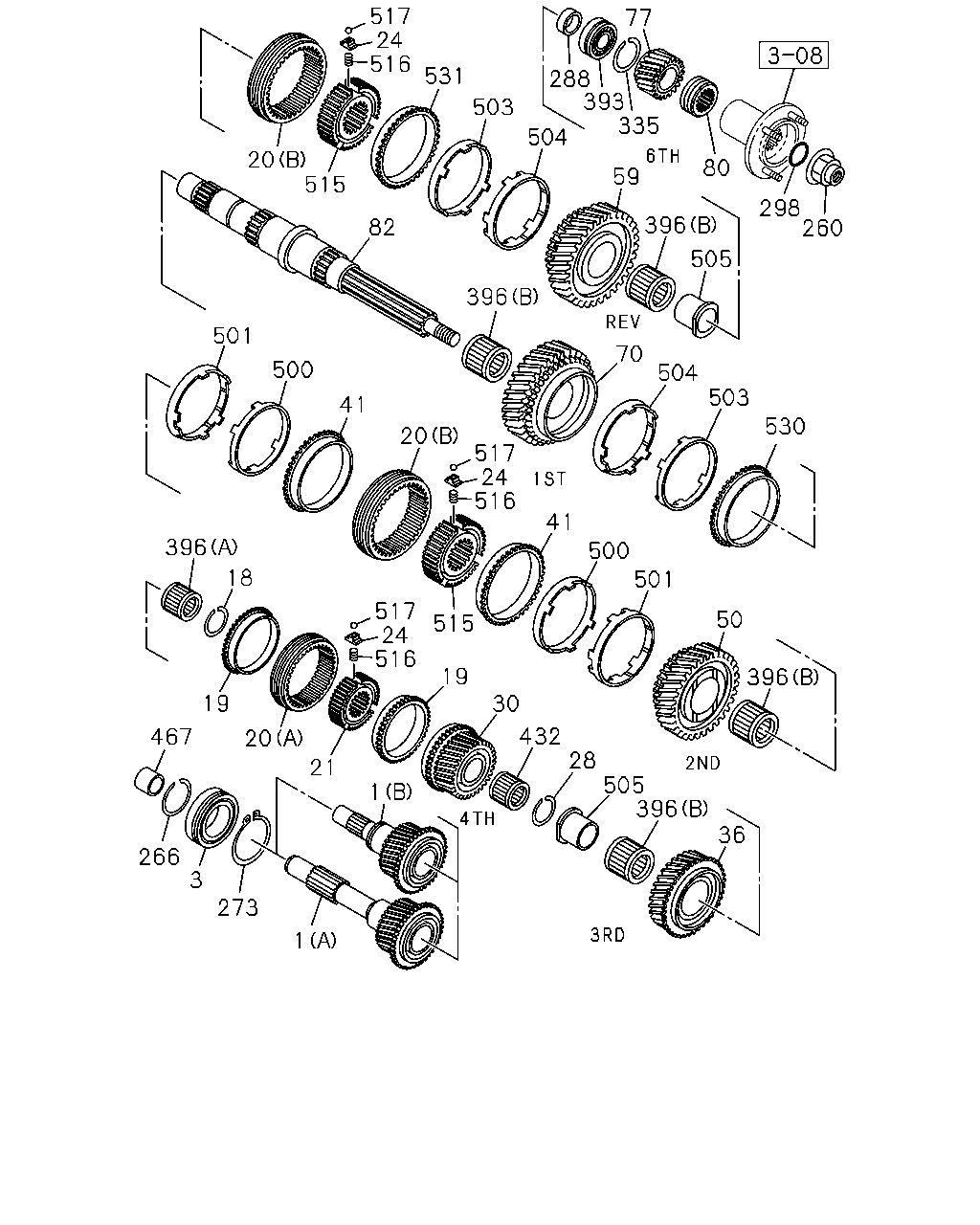

çizim 493212
517 24 516 531 503 20 515 82 504 288 77 393 335 80 298 260 396 59 505 70 504 396 500 501 41 517 20 516 41 24 500 501 50 396 396 36 3 505 28 432 30 19 516 517 24 20 19 467 21 1 1 273 266 515 396 18 503 530 3
BalonParca AdiParca NoAdetTipApplied Date
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25 		8-97371-091-0 01 1 1509-
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=25 		8-97371-090-0 01 1 1509-
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 1509-
18 04.384 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1509-
19 04.383 RING; BLOCK,4TH & 5TH
Z=45 		8-97241-306-1 02 1 1509-
20 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1509-
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 1509-
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 1509-
21 04.384 HUB; CLU,4TH & 5TH 8-97241-299-3 01 1 1509-
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1509-
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 1509-
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1509-
30 04.415 GEAR; 4TH,MAINSHAFT
Z=28 		8-97252-628-0 01 1 1509-
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-97252-630-1 01 1 1509-
41 04.383 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 1509-
50 04.395 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 1509-
59 04.417 GEAR; REV MAINSHAFT
Z=45 		8-97241-243-0 01 1 1509-
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97241-241-0 01 1 1509-
77 04.421 GEAR; 6TH,MAINSHAFT
Z=20 		8-97252-634-0 01 1 1509-
80 04.343 GEAR; SPD DRIVE
Z=6 		8-97327-118-0 01 1 1509-
82 04.403 SHAFT; MAIN,TRANS
Z=26-42-23 		8-97253-115-3 01 1 1509-
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 1509-
266 04.525 RING; SNAP,BRG INNER 8-97286-915-0 01 1 1509-
273 04.525 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 1509-
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 1509-
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 1509-
335 04.383 RING; SNAP,BEARING 8-97254-720-0 01 1 1509-
393 04.352 BEARING; MAINSHAFT END 8-97253-104-0 01 1 1509-
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 1509-
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1509-
432 04.419 BEARING; NEEDLE,4TH
NSK 		8-97253-111-0 01 1 1509-
467 04.317 COLLAR; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 1509-
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 1509-
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 1509-
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 1509-
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 1509-
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 1509-
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 1509-
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 1509-
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 1509-
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 03 1 1509-
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1509-
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 1509-
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 1509-
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 1509-
