◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#1665) — 42 parça

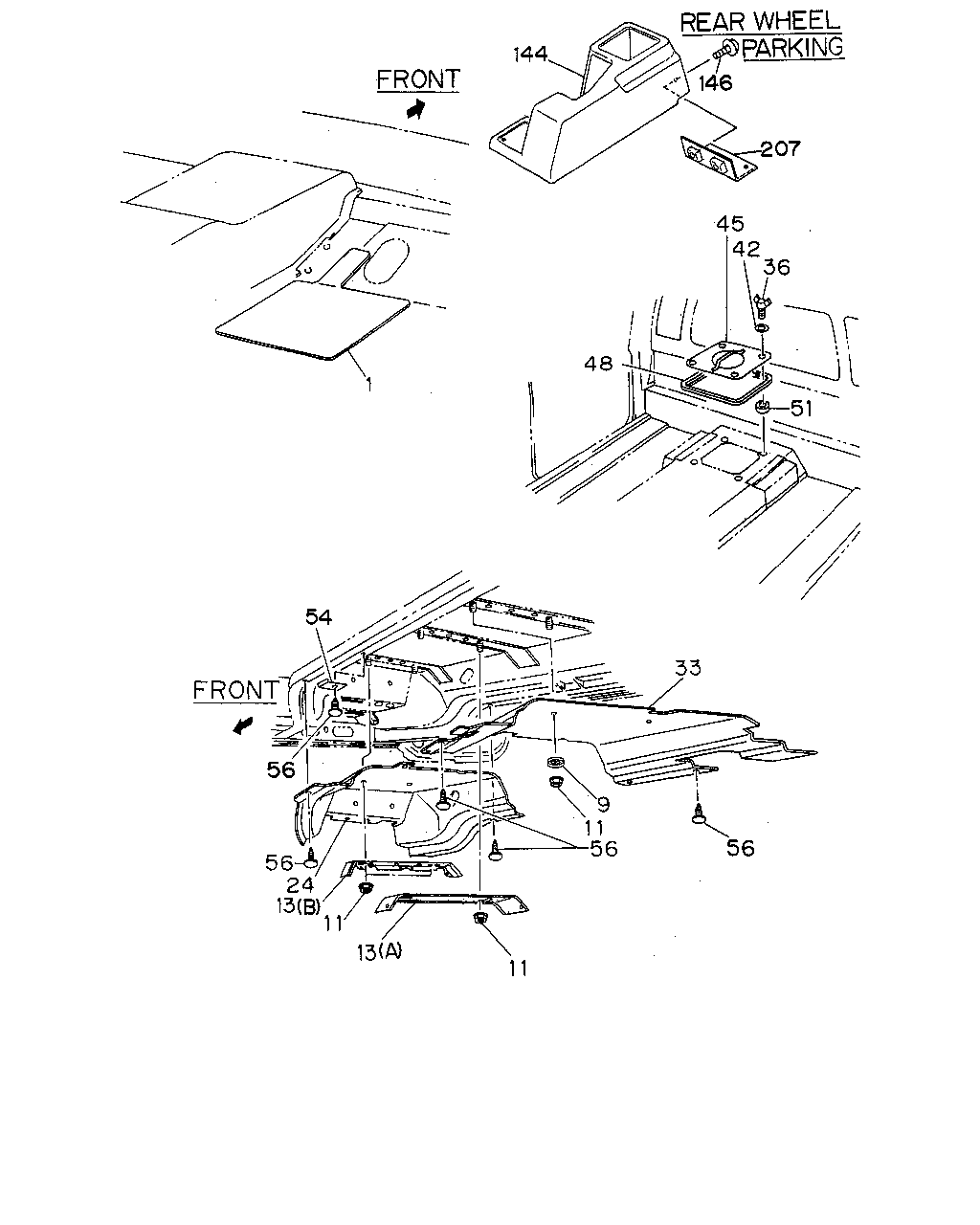

çizim 94018
144 146 207 45 42 36 51 48 33 56 56 11 9 54 56 56 24 13 11 13 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 WASHER; HEAT INSULATOR 1-73377-052-1 02 1 9207- ● ● ● ● ●
11 NUT; HEAT INSULATOR
M6 FLANGE 		1-09984-141-0 04 1 9207- ● ● ● ●
11 NUT; HEAT INSULATOR
M6 FLANGE 		1-09984-141-0 06 1 9207- ●
13 PLATE; HEAT INSULATOR
(B) 		1-71998-159-5 01 1 9207- ● ● ● ● ●
13 PLATE; HEAT INSULATOR
(A) 		1-71998-324-2 01 1 9207- ●
24 INSULATOR; HEAT,FRT 1-71998-181-7 01 1 9207- ●
24 INSULATOR; HEAT,FRT
EXC. REAR WHEEL PARKING(B3A) 		1-71998-181-7 01 1 9207- ● ● ●
24 INSULATOR; HEAT,FRT
REAR WHEEL PARKING(B3A) 		1-71998-325-7 01 1 9207- ● ● ●
24 INSULATOR; HEAT,FRT
REAR WHEEL PARKING(B3A) 		1-71998-370-7 01 1 9207- ●
24 INSULATOR; HEAT,FRT
EXC. REAR WHEEL PARKING(B3A) 		1-71998-183-8 01 1 9207- ●
33 INSULATOR; HEAT,RR
REAR WHEEL PARKING(B3A) 		1-71998-371-5 01 1 9207- ●
33 INSULATOR; HEAT,RR
EXC. REAR WHEEL PARKING(B3A) 		1-71998-519-1 01 1 9511- ●
36 BOLT; WING,COVER 9-61405-010-0 04 1 9207- ●
42 WASHER; PL,COVER
ID=10.5 OD=18 		9-09160-510-0 04 1 9207- ●
45 COVER; CENTER,CHECK HOLE 1-65380-056-0 01 1 9207- ●
48 SEAL; CHECK HOLE LID,CENTER 1-65380-091-0 01 1 9207- ●
51 SEAL; LID,CHECK HOLE 1-65380-121-0 04 1 9210- ●
54 BRACKET; HEAT INSULATOR 1-71998-323-0 02 1 9207- ●
56 CLIP; HEAT INSULATOR,ENG HOOD
D6X23 BLACK 		1-09987-114-0 12 1 9207- ● ● ● ●
56 CLIP; HEAT INSULATOR,ENG HOOD
D6X23 BLACK 		1-09987-114-0 24 1 9207- ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING(B3A) 		1-73998-818-0 01 1 9207- ● ● ● ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING(B3A) M6X16 W/WASHER 		9-03900-616-0 04 1 9210-9311 ● ● ● ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING(B3A) M6X16 W/WASHER 		9-03900-616-0 06 1 9312- ● ● ● ●
207 BRACKET ASM; HAND BRAKE VALVE
REAR WHEEL PARKING(B3A) 		1-73998-575-0 01 1 9210- ● ● ● ●

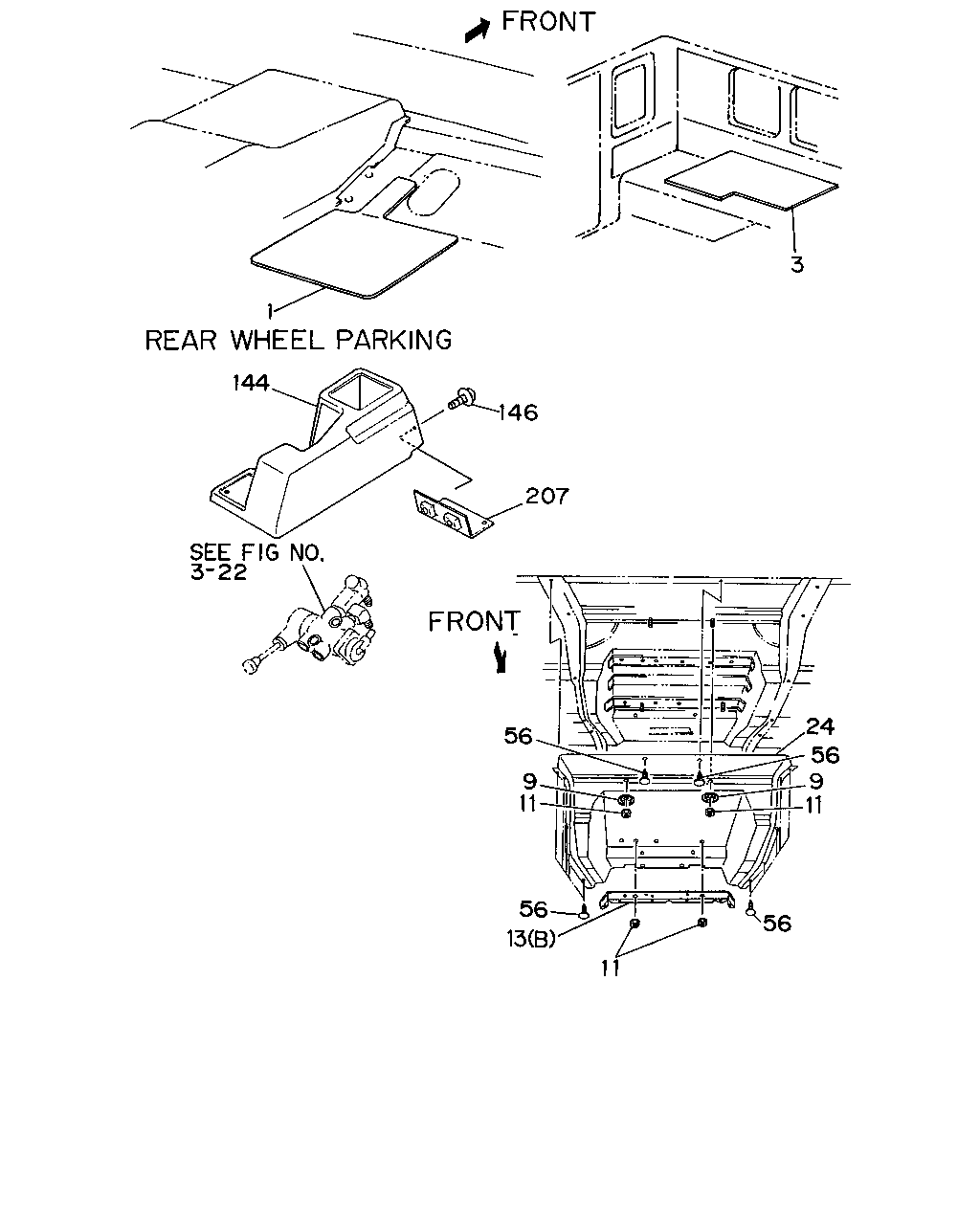

çizim 95731
3 1 144 146 207 56 9 11 56 13 11 56 11 9 56 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 900X1000 		1-61970-039-0 AR 1 9207- ● ● ● ● ●
3 SHEET; MELTING,BED PAN
CUT BULK SHEET 900X1000 		1-61970-039-0 AR 1 9207- ● ● ● ●
9 WASHER; HEAT INSULATOR 1-73377-052-1 02 1 9207- ● ● ● ● ●
11 NUT; HEAT INSULATOR
M6 FLANGE 		1-09984-141-0 04 1 9207- ● ● ● ●
11 NUT; HEAT INSULATOR
M6 FLANGE 		1-09984-141-0 06 1 9207- ●
13 PLATE; HEAT INSULATOR
(B) 		1-71998-159-5 01 1 9207- ● ● ● ● ●
13 PLATE; HEAT INSULATOR
(A) 		1-71998-324-2 01 1 9207- ●
24 INSULATOR; HEAT,FRT 1-71998-181-7 01 1 9207- ●
24 INSULATOR; HEAT,FRT
EXC. REAR WHEEL PARKING(B3A) 		1-71998-181-7 01 1 9207- ● ● ●
24 INSULATOR; HEAT,FRT
REAR WHEEL PARKING(B3A) 		1-71998-325-7 01 1 9207- ● ● ●
24 INSULATOR; HEAT,FRT
REAR WHEEL PARKING(B3A) 		1-71998-370-7 01 1 9207- ●
24 INSULATOR; HEAT,FRT
EXC. REAR WHEEL PARKING(B3A) 		1-71998-183-8 01 1 9207- ●
56 CLIP; HEAT INSULATOR,ENG HOOD
D6X23 BLACK 		1-09987-114-0 12 1 9207- ● ● ● ●
56 CLIP; HEAT INSULATOR,ENG HOOD
D6X23 BLACK 		1-09987-114-0 24 1 9207- ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING(B3A) 		1-73998-818-0 01 1 9207- ● ● ● ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING(B3A) M6X16 W/WASHER 		9-03900-616-0 04 1 9210-9311 ● ● ● ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING(B3A) M6X16 W/WASHER 		9-03900-616-0 06 1 9312- ● ● ● ●
207 BRACKET ASM; HAND BRAKE VALVE
REAR WHEEL PARKING(B3A) 		1-73998-575-0 01 1 9210- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
