◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51638 - NPR LHD BUS CHASSIS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#166491) — 34 parça

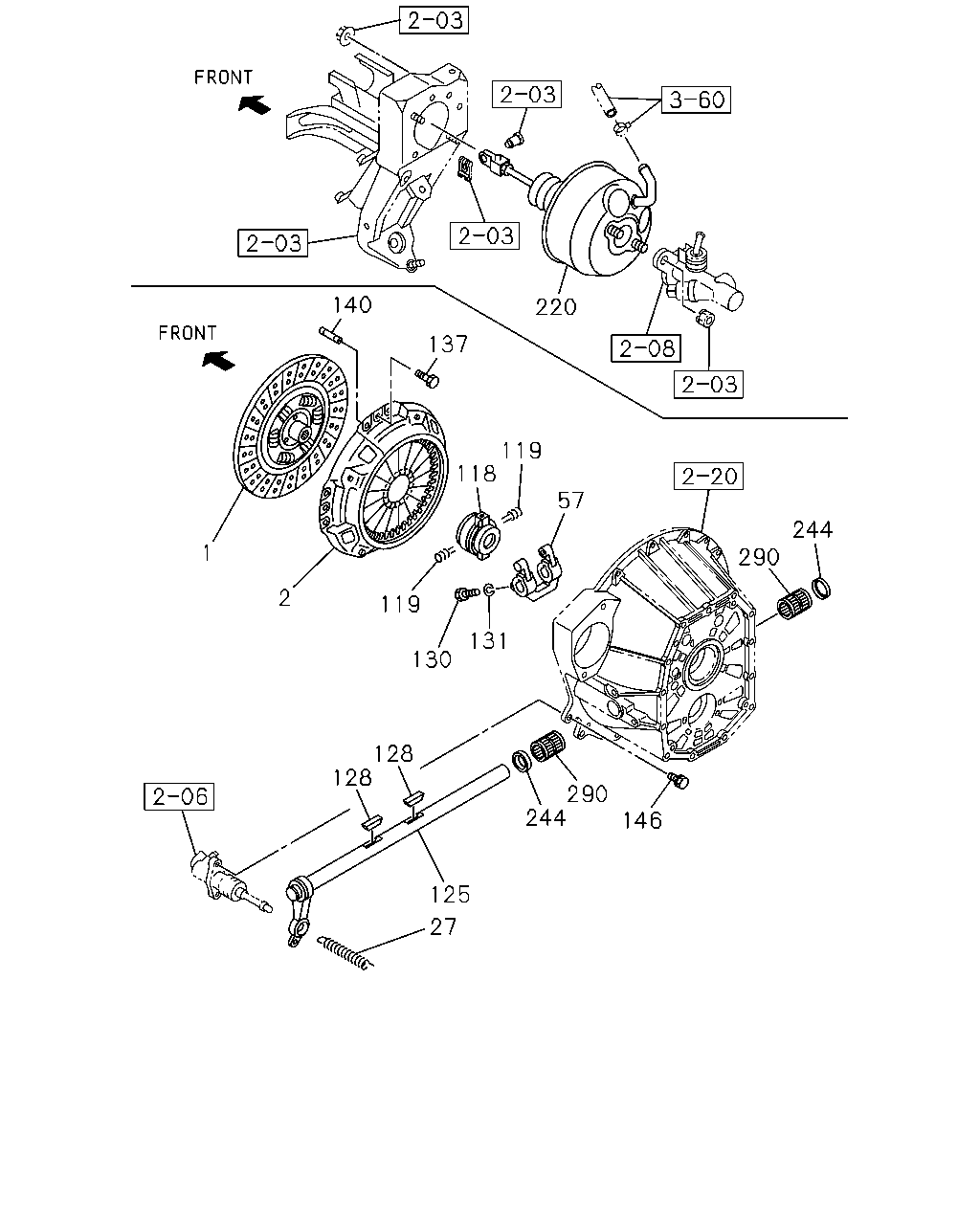

çizim 492335
220 140 137 118 119 57 290 244 146 290 244 125 27 128 128 130 131 119 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 00.886 DISC; CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98164-917-1 01 1 1509-
2 00.859 PLATE ASM; PRESSURE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97038-831-2 01 1 1509-
2 00.859 PLATE ASM; PRESSURE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-104-0 01 1 1509-
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98025-314-0 01 1 1509-
57 00.795 FORK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97310-456-1 01 1 1509-
118 00.799 BEARING; CLU RELEASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31310-012-0 01 1 1509-
118 00.799 BEARING; CLU RELEASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		1-87610-110-0 01 1 1509-
119 00.797 SPRING; SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31329-024-0 02 1 1509-
125 00.805 SHAFT; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97310-435-0 01 1 1509-
128 00.833 KEY; FEATHER,CLU SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09867-008-0 02 1 1509-
130 00.833 SCREW; SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X14 		0-61200-814-0 01 1 1509-
131 00.833 WASHER; LK,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.439 ID=8.2 		0-91510-508-0 01 1 1509-
137 00.862 BOLT; CLU COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1509-
140 00.862 PIN; STRAIGHT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25 		8-94410-361-0 02 1 1509-
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1509-
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98033-837-0 01 1 1509-
244 00.805 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.797 		1-09625-002-0 02 1 1509-
290 00.862 BEARING; NEEDLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.683 NTN 		1-09811-002-1 02 1 1509-
çizim 492361
296 209 297 296 292 299 299 300 291 298 295 294 293 298 302 306 303 301
BalonParca AdiParca NoAdetTipApplied Date
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-318-0 01 1 1509-
291 00.863 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98056-709-2 01 1 1509-
292 00.862 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-329-0 01 1 1509-
293 00.799 BAND; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98014-192-1 01 1 1509-
294 00.846 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-703-0 01 1 1509-
295 00.864 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1509-
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97255-688-0 01 1 1509-
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97255-689-0 01 1 1509-
297 00.862 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97300-070-0 01 1 1509-
298 04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98107-924-1 01 1 1509-
299 04.105 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-330-0 02 1 1509-
300 04.226 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.173 M8X45 FLANGE 		0-28050-845-0 11 1 1509-
301 04.166 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-811-0 01 1 1509-
302 04.226 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-188-0 01 1 1509-
303 02.480 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-265-2 01 1 1509-
306 00.785 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=100 		8-94279-939-0 03 1 1509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
