◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51638 - NPR LHD BUS CHASSIS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#166490) — 20 parça
çizim 492313
10 5 5 1 1 8
BalonParca AdiParca NoAdetTipApplied Date
1 03.632 BRAKE UNIT; EXH
(A) 		8-98227-170-0 01 1 1509-
1 03.632 BRAKE UNIT; EXH
(B) 		8-98258-269-0 01 1 1509-
5 03.634 GASKET; EXH BRAKE UNIT
03.611 ID=64 		8-97373-108-0 02 1 1509-
8 03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 1509-
10 03.634 NUT; BRKT,EXH BRAKE
03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 1509-

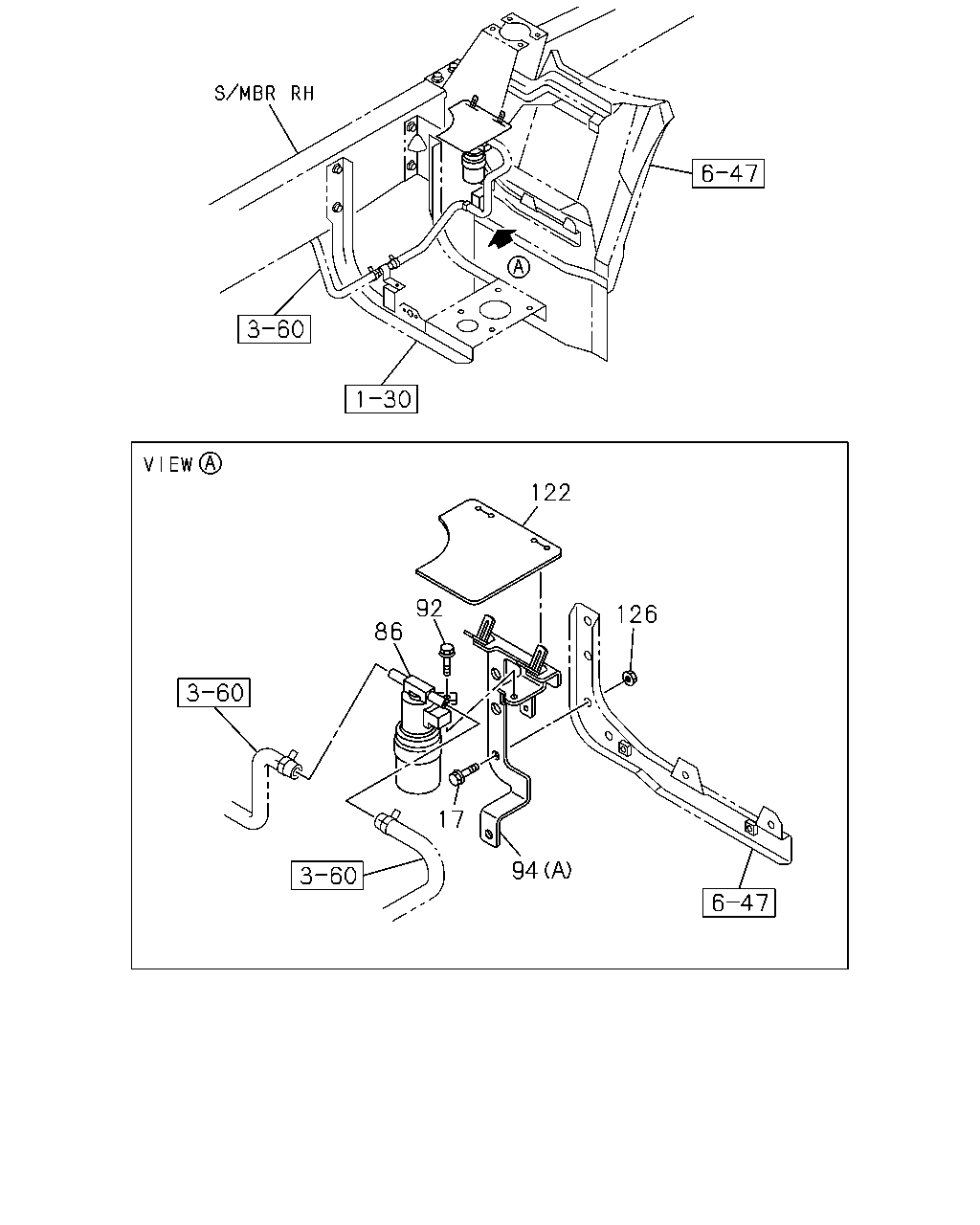

çizim 492319
122 126 92 86 17 94
BalonParca AdiParca NoAdetTipApplied Date
17 03.634 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509-
86 03.636 VALVE; MAG,EXH BRK 8-98043-344-0 01 1 1509-
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509-
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98034-053-3 01 1 1509-
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(B) 		8-98040-096-2 01 1 1509-
122 03.640 PROTECTOR; MAG VLV 8-98087-988-0 01 1 1509-
126 03.634 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-

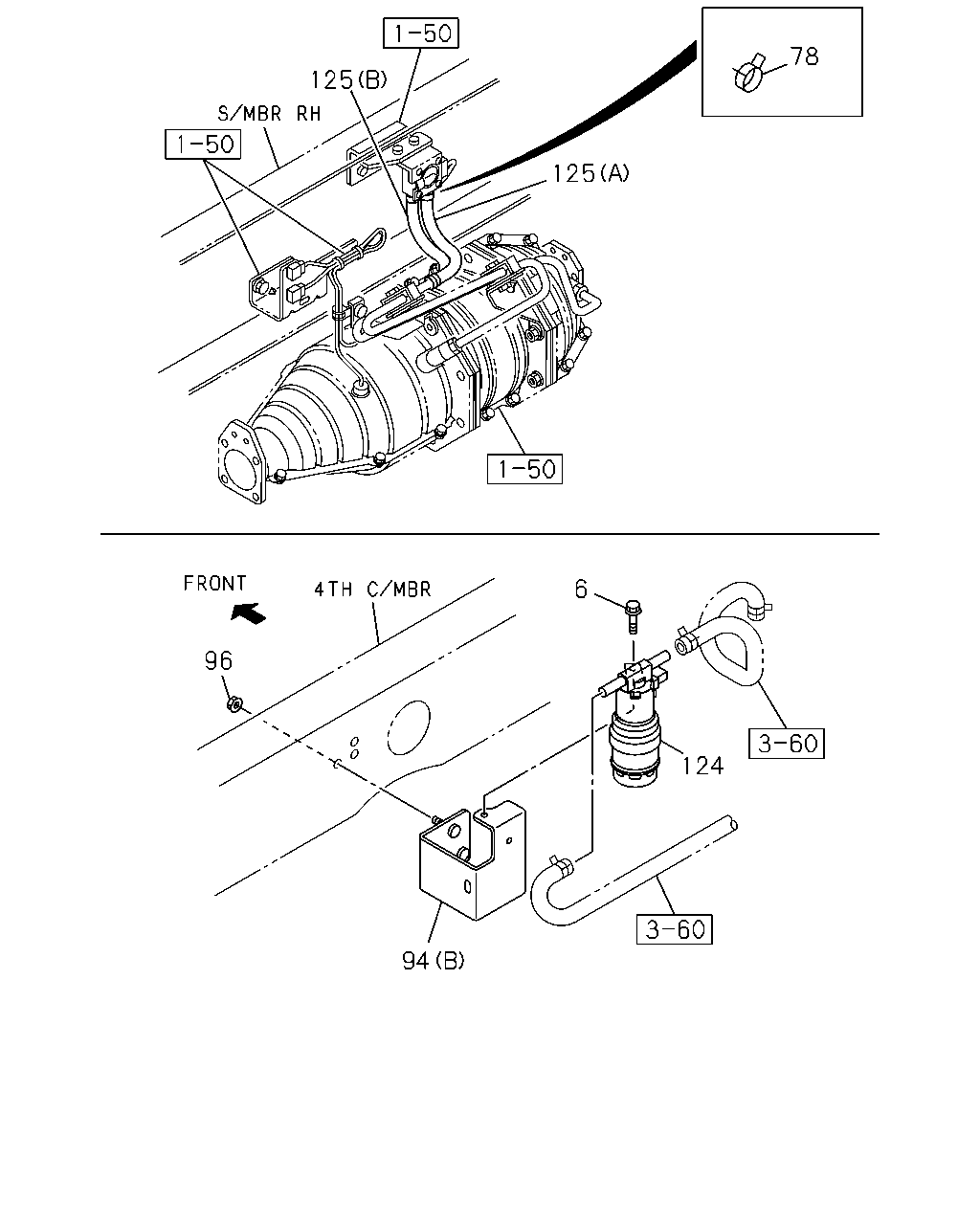

çizim 493204
78 125 125 6 124 94 96
BalonParca AdiParca NoAdetTipApplied Date
6 03.632 BOLT; EXH BRAKE UNIT FIX
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509-
78 03.636 CLIP; HOSE
03.162 ID=13 		8-97329-627-0 04 1 1509-
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98034-053-3 01 1 1509-
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(B) 		8-98040-096-2 01 1 1509-
96 03.636 NUT; BRKT,MAG VLV,EXH BRAKE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1509-
124 03.636 VALVE; MAG,DPD EXH THROTTLE 8-98043-344-0 01 1 1509-
125 03.630 HOSE; DPD
03.163 (B) L=200 SERVICED BY L=3000 		0-01558-300-0 01 1 1509-
125 03.630 HOSE; DPD
(A) L=170 		8-98068-068-0 01 1 1509-
