51638 - NPR LHD BUS CHASSIS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#166489) — 45 parça
◀

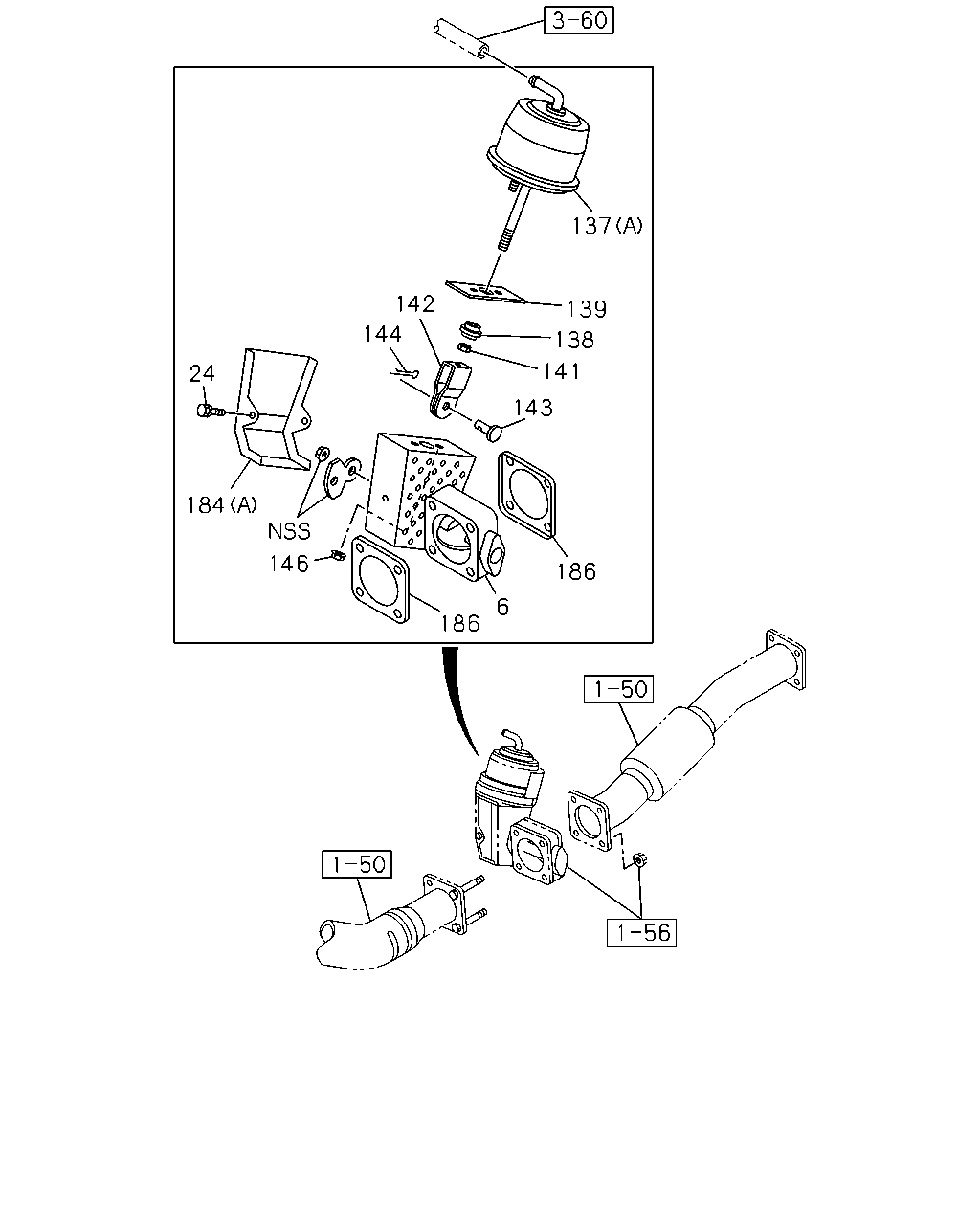

[155A] FRONT (22 parça)

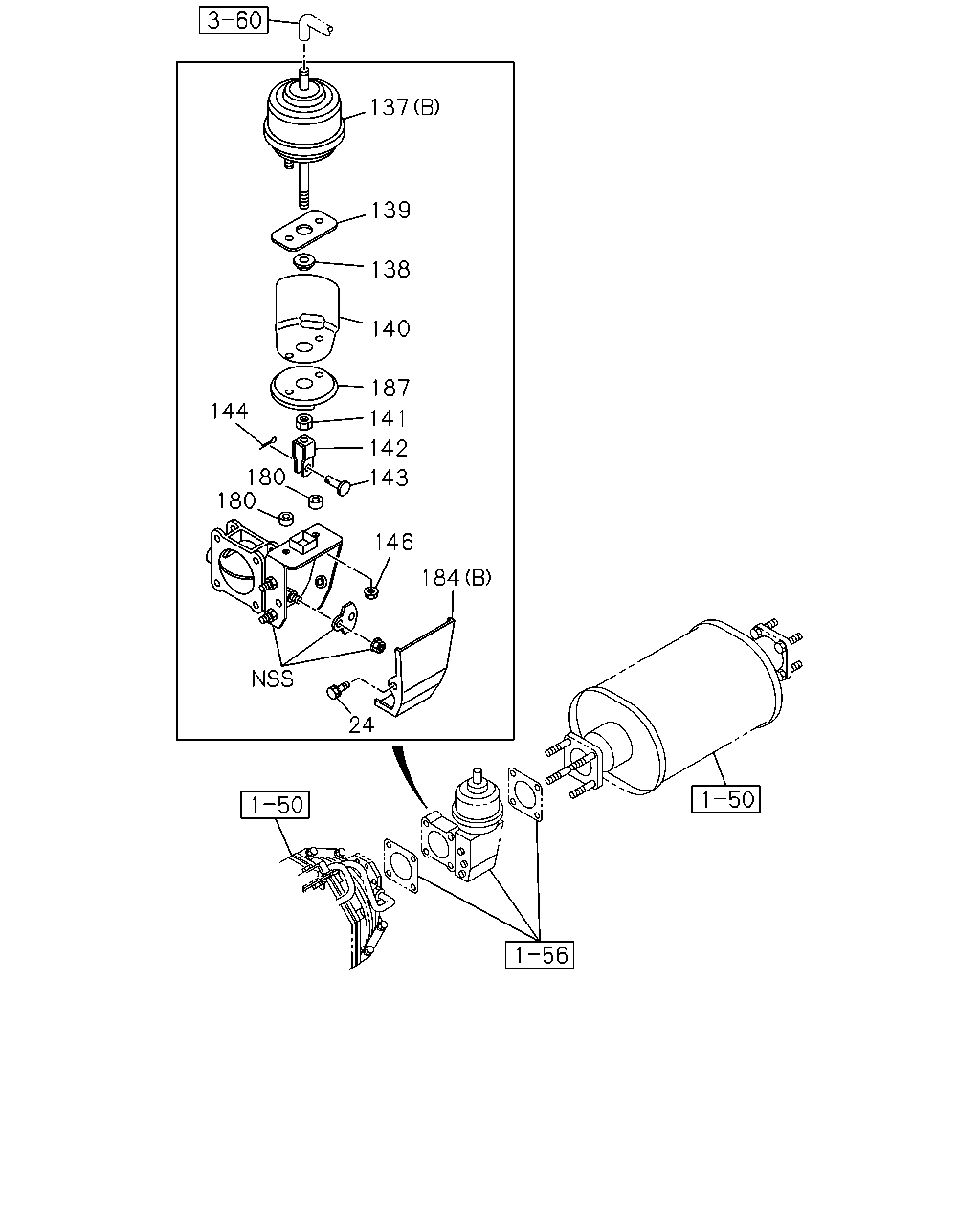

[155A] REAR (23 parça)
▶
137
139
138
141
143
142
144
186
6
186
146
184
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
03.632 VALVE; EXH BRAKE
8-98069-291-0
01
1
1509-
24
03.634 BOLT; COVER
03.444
8-97065-029-0
02
1
1509-
24
03.634 BOLT; COVER
03.444
8-97065-029-0
02
1
1509-
137
03.634 CHAMBER; POWER
(B)
8-97985-132-0
01
1
1509-
137
03.634 CHAMBER; POWER
(A)
8-98229-058-0
01
1
1509-
138
03.634 BEARING; EXH BRK VLV
REAR
5-22189-004-0
01
1
1509-
138
03.634 BEARING; EXH BRK VLV
FRONT
8-98231-608-0
01
1
1509-
139
03.634 GASKET; EXH BRK VLV
8-94328-234-0
01
1
1509-
139
03.634 GASKET; EXH BRK VLV
8-94328-234-0
01
1
1509-
141
03.636 NUT; CLEVIS,EXH BRK VLV
05.122 FRONT
8-94311-428-0
01
1
1509-
141
03.636 NUT; CLEVIS,EXH BRK VLV
REAR
8-97985-128-0
01
1
1509-
142
03.636 CLEVIS; EXH BRK VLV
REAR
8-97985-133-0
01
1
1509-
142
03.636 CLEVIS; EXH BRK VLV
FRONT
8-98231-609-0
01
1
1509-
143
03.636 PIN; EXH BRK VLV
REAR
8-97985-126-0
01
1
1509-
143
03.636 PIN; EXH BRK VLV
FRONT
8-98231-610-0
01
1
1509-
144
03.636 PIN; SPLIT,EXH BRK VLV
8-97985-124-0
01
1
1509-
144
03.636 PIN; SPLIT,EXH BRK VLV
8-97985-124-0
01
1
1509-
146
03.634 NUT; EXH BRK VLV
01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
146
03.634 NUT; EXH BRK VLV
01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
184
03.634 COVER; BRKT
(A) FRONT
8-97370-068-0
01
1
1509-
184
03.634 COVER; BRKT
(B) REAR
8-98037-493-0
01
1
1509-
186
03.611 GASKET; EXH BRK VLV,BODY
8-98022-713-0
02
1
1509-
137
139
138
140
187
142
141
143
146
180
144
180
24
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
03.634 BOLT; COVER
03.444
8-97065-029-0
02
1
1509-
24
03.634 BOLT; COVER
03.444
8-97065-029-0
02
1
1509-
137
03.634 CHAMBER; POWER
(B)
8-97985-132-0
01
1
1509-
137
03.634 CHAMBER; POWER
(A)
8-98229-058-0
01
1
1509-
138
03.634 BEARING; EXH BRK VLV
REAR
5-22189-004-0
01
1
1509-
138
03.634 BEARING; EXH BRK VLV
FRONT
8-98231-608-0
01
1
1509-
139
03.634 GASKET; EXH BRK VLV
8-94328-234-0
01
1
1509-
139
03.634 GASKET; EXH BRK VLV
8-94328-234-0
01
1
1509-
140
03.634 INSULATOR; EXH BRK VLV
8-98037-494-0
01
1
1509-
141
03.636 NUT; CLEVIS,EXH BRK VLV
05.122 FRONT
8-94311-428-0
01
1
1509-
141
03.636 NUT; CLEVIS,EXH BRK VLV
REAR
8-97985-128-0
01
1
1509-
142
03.636 CLEVIS; EXH BRK VLV
REAR
8-97985-133-0
01
1
1509-
142
03.636 CLEVIS; EXH BRK VLV
FRONT
8-98231-609-0
01
1
1509-
143
03.636 PIN; EXH BRK VLV
REAR
8-97985-126-0
01
1
1509-
143
03.636 PIN; EXH BRK VLV
FRONT
8-98231-610-0
01
1
1509-
144
03.636 PIN; SPLIT,EXH BRK VLV
8-97985-124-0
01
1
1509-
144
03.636 PIN; SPLIT,EXH BRK VLV
8-97985-124-0
01
1
1509-
146
03.634 NUT; EXH BRK VLV
01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
146
03.634 NUT; EXH BRK VLV
01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
180
03.640 COLLAR; EXH BRK VLV
03.440
8-97018-597-0
02
1
1509-
184
03.634 COVER; BRKT
(A) FRONT
8-97370-068-0
01
1
1509-
184
03.634 COVER; BRKT
(B) REAR
8-98037-493-0
01
1
1509-
187
03.685 PROTECTOR; EXH BRK VLV
8-98037-495-0
01
1
1509-
