◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51638 - NPR LHD BUS CHASSIS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶

1-50 — EXHAUST PIPE AND SILENCER (#166488) — 115 parça

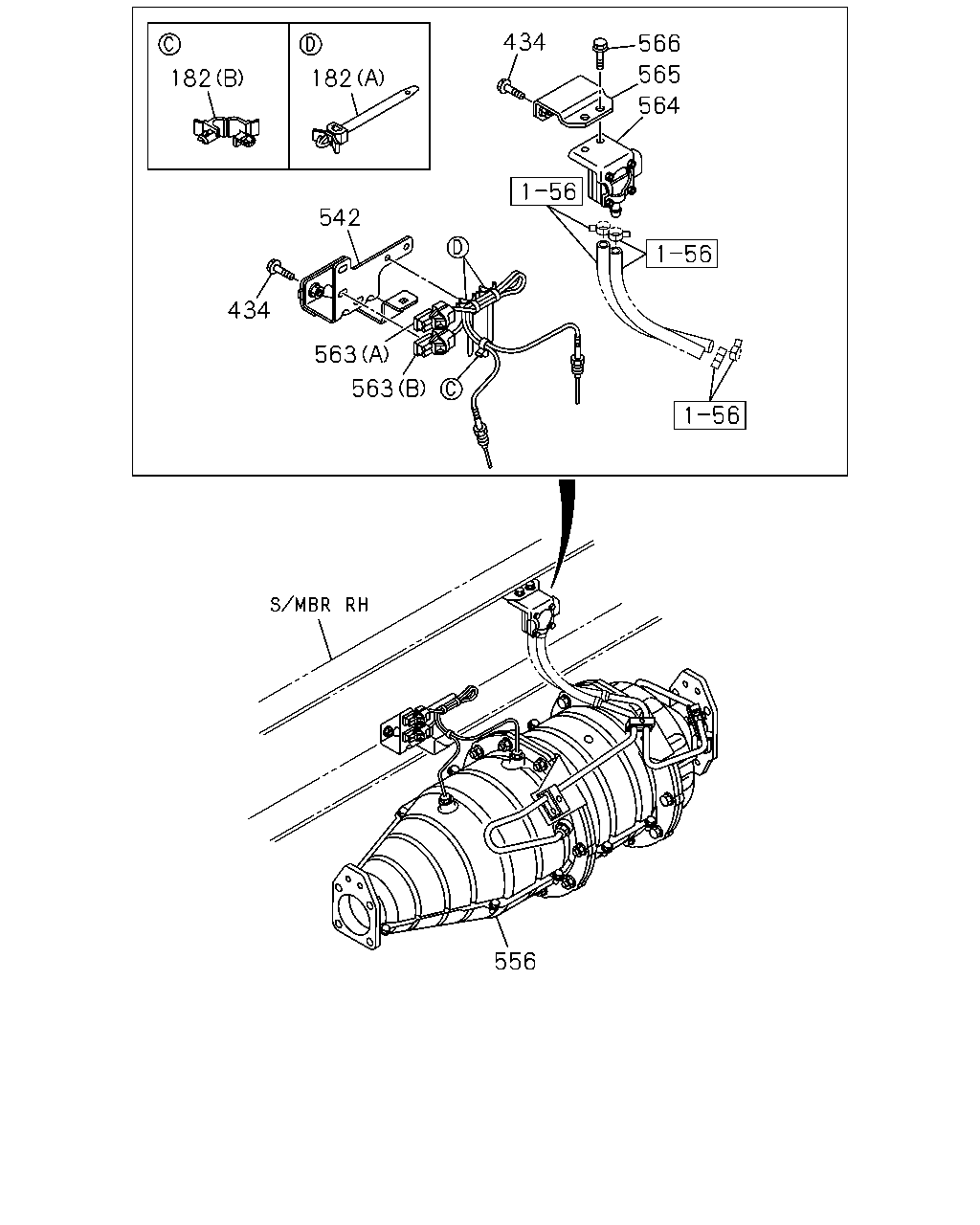

182 182 434 564 565 566 542 434 563 563 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	02	1	1509-
182	03.682 CLIP; HARNESS (B) ID=7 L=7.5	8-97369-561-0	01	1	1509-
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1509-
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1509-
542	03.704 BRACKET	8-98039-602-0	01	1	1509-
556	03.701 DPD ASM	8-98084-602-4	01	1	1509-
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	1509-
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	1509-
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	1509-
565	03.706 BRACKET; SENSOR,PRESSURE	8-98029-347-0	01	1	1509-
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-

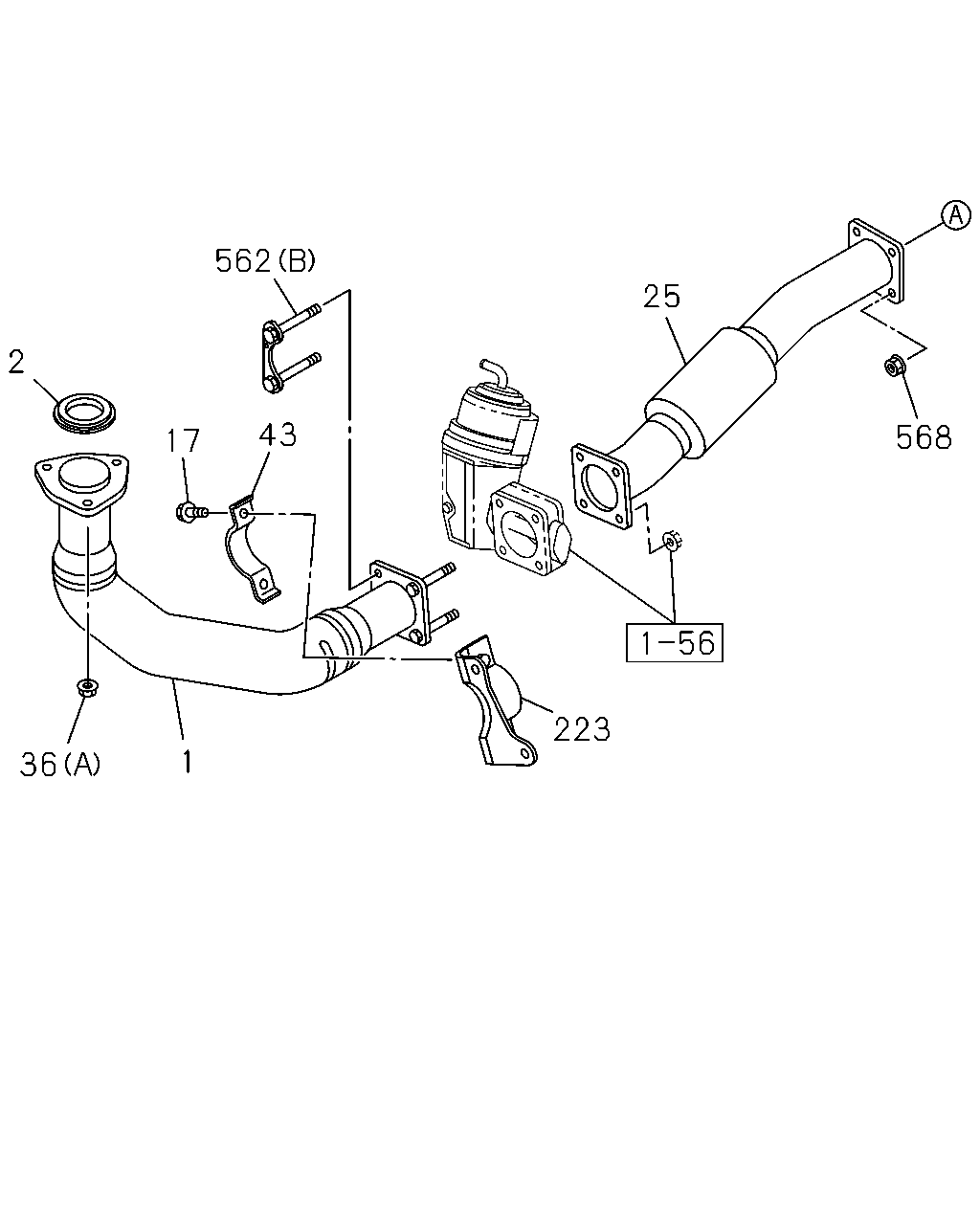

562 17 2 43 1 36 223 25 568

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH	8-98006-765-2	01	1	1509-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1509-
17	03.613 BOLT; EXH PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1509-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98006-766-0	01	1	1509-
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1509-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1509-
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1509-
223	03.706 BRACKET; EXH PIPE 03.613	8-98020-555-0	01	1	1509-
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1509-
562	03.690 PLATE; STUD,BOLT (B)	8-98030-175-0	01	1	1509-
568	03.704 NUT; DPD 02.042 M12 FLANGE	0-91180-112-0	04	1	1509-

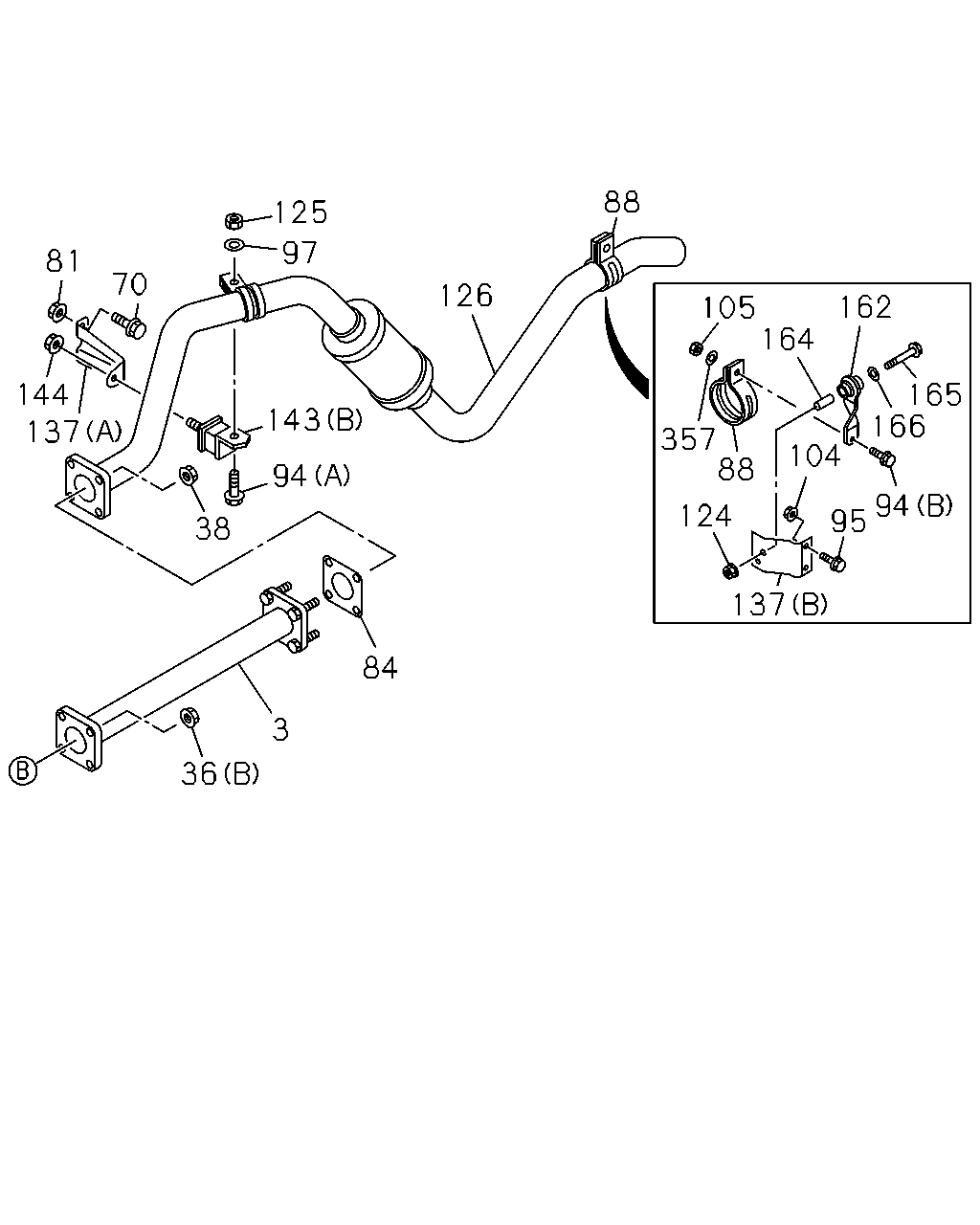

81 70 125 97 126 88 143 94 144 137 38 84 3 36 105 162 164 357 104 166 165 94 95 88 124 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.609 PIPE; EXH,CENTER	8-98020-602-0	01	1	1509-
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1509-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1509-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	1509-
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-
81	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-
84	03.611 GASKET; EXH PIPE 03.704 ID=85.8	1-22116-043-0	01	1	1509-
84	03.611 GASKET; EXH PIPE 03.704 ID=85.8	1-22116-043-0	01	1	1509-
88	03.708 CLAMP; EXH PIPE	8-98034-766-0	01	1	1509-
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1509-
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1509-
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1509-
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1509-
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1509-
126	03.705 PIPE; EXH,RR	8-98045-047-0	01	1	1509-
137	03.706 BRACKET; TAIL PIPE 03.613 (A)	8-97096-651-0	01	1	1509-
137	03.706 BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	1509-
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	1509-
143	03.704 RUBBER; SUPPORT (A)	8-94457-278-1	01	1	1509-
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	1509-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1509-
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1509-
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1509-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1509-
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1509-

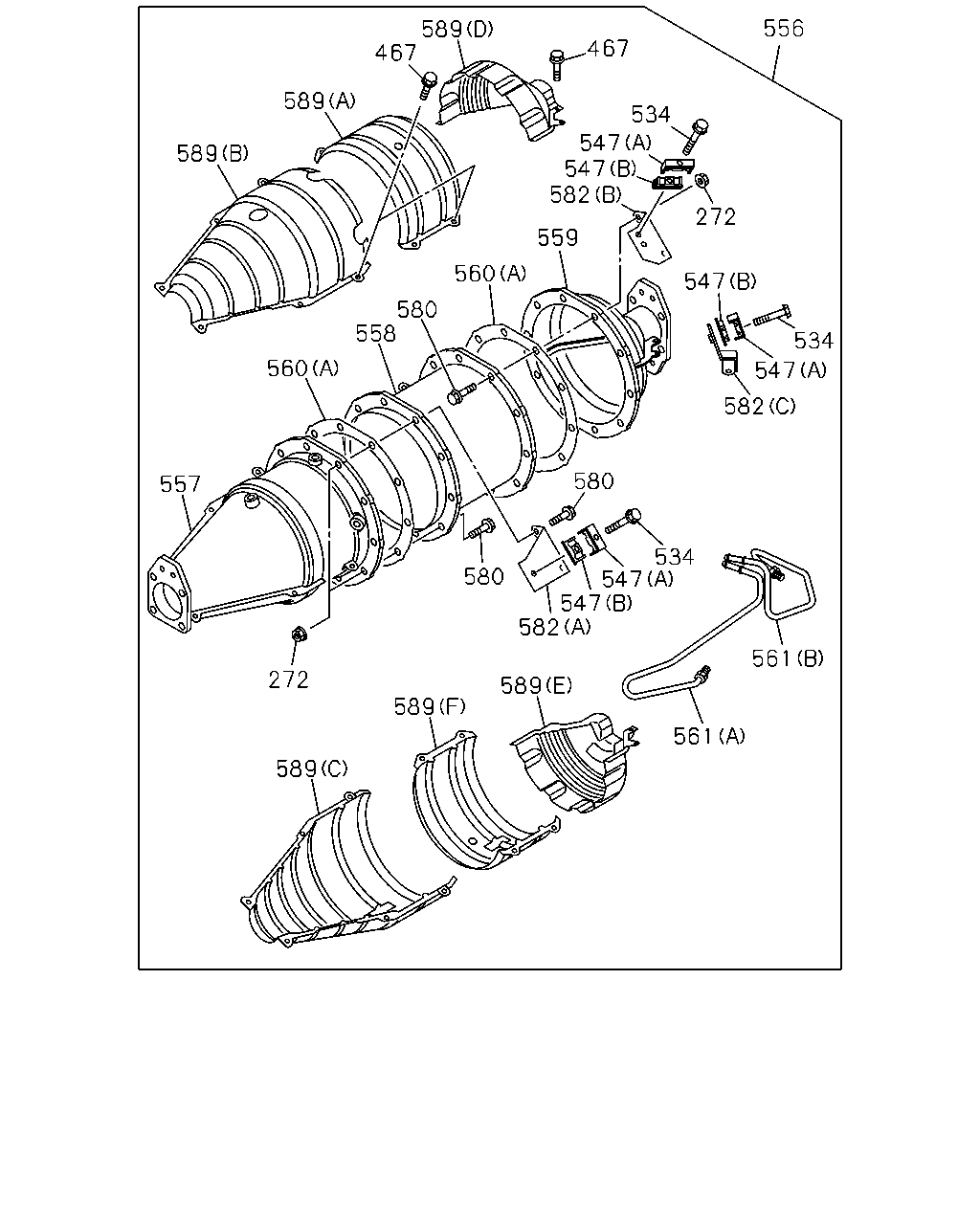

589 467 589 467 547 547 534 556 272 547 534 547 582 580 534 561 561 589 589 589 272 580 582 547 547 560 558 580 560 589 557 559 582

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
272	03.685 NUT; FLANGE 01.062 M8 FLANGE	0-91180-108-0	20	1	1509-
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	1509-
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	03	1	1509-
547	03.682 CLIP; PIPE (A)	8-97381-635-0	03	1	1509-
547	03.682 CLIP; PIPE (B)	8-97381-636-0	03	1	1509-
556	03.701 DPD ASM	8-98084-602-4	01	1	1509-
557	03.701 CATALYST ASM	8-97608-055-8	01	1	1509-
558	03.634 FILTER ASM	8-97608-057-3	01	1	1509-
559	03.602 COVER; RR	8-97622-887-0	01	1	1509-
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1509-
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	1509-
561	03.609 PIPE; DPD (A)	8-98084-603-0	01	1	1509-
561	03.609 PIPE; DPD (B)	8-98084-604-0	01	1	1509-
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	20	1	1509-
582	03.706 BRACKET; PIPE (A)	8-97611-083-0	01	1	1509-
582	03.706 BRACKET; PIPE (B)	8-97611-084-0	01	1	1509-
582	03.706 BRACKET; PIPE (C)	8-97611-085-0	01	1	1509-
589	03.609 PROTECTOR; HEAT,DPD (A)	8-97605-172-0	01	1	1509-
589	03.609 PROTECTOR; HEAT,DPD (B)	8-97611-086-0	01	1	1509-
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97611-087-0	01	1	1509-
589	03.609 PROTECTOR; HEAT,DPD (D)	8-97611-088-0	01	1	1509-
589	03.609 PROTECTOR; HEAT,DPD (E)	8-97611-089-0	01	1	1509-
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97613-390-0	01	1	1509-

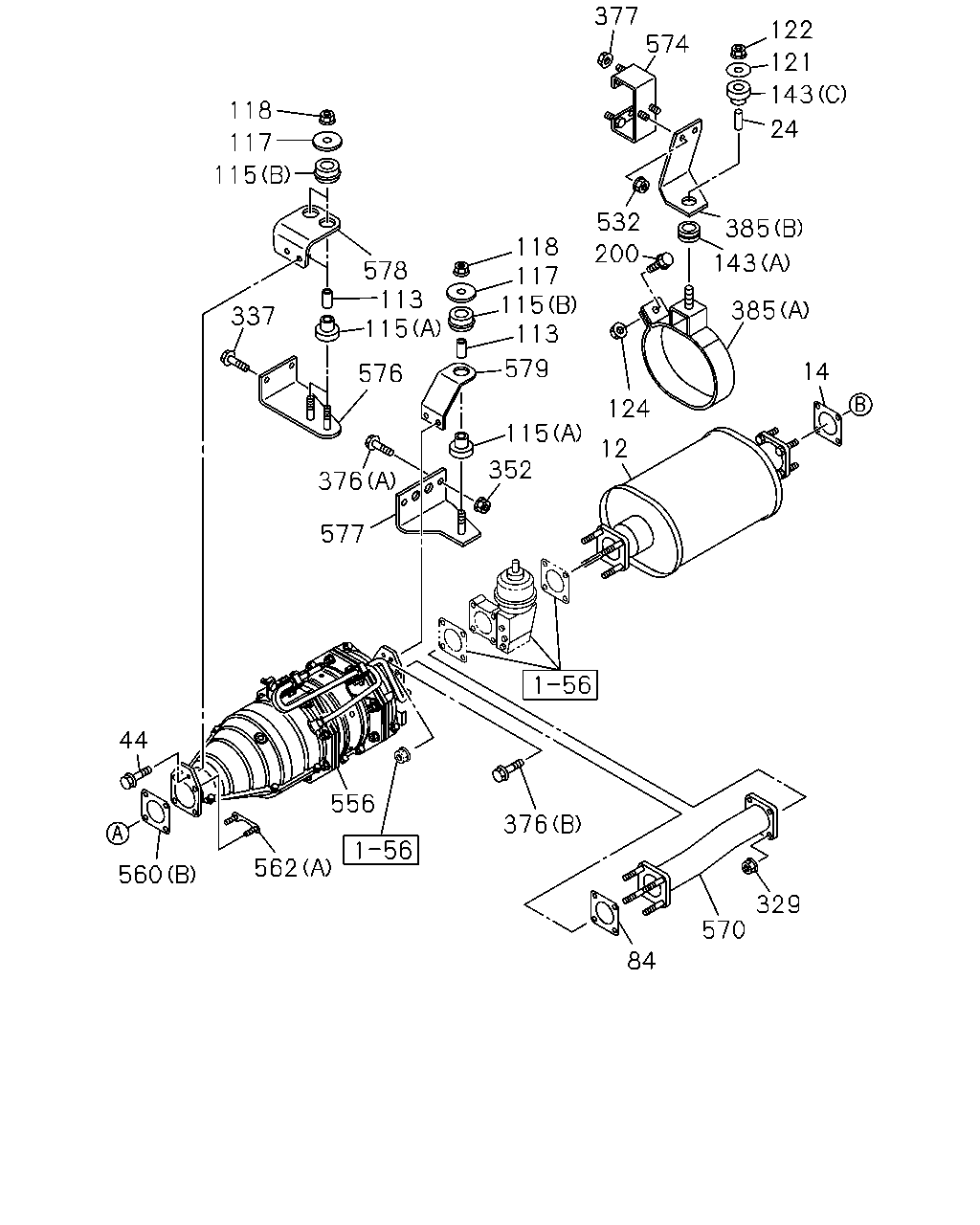

118 117 115 377 574 122 121 143 24 385 143 385 14 124 12 200 532 118 117 115 113 579 115 352 376 570 329 84 556 562 560 44 577 376 576 115 113 578 337

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH	8-98020-562-1	01	1	1509-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=85.8	1-22116-043-0	01	1	1509-
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	1509-
44	03.613 BOLT; BRKT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1509-
84	03.611 GASKET; EXH PIPE 03.704 ID=85.8	1-22116-043-0	01	1	1509-
84	03.611 GASKET; EXH PIPE 03.704 ID=85.8	1-22116-043-0	01	1	1509-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	03	1	1509-
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	03	1	1509-
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	03	1	1509-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	03	1	1509-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	03	1	1509-
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	1509-
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	1509-
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	1509-
143	03.704 RUBBER; SUPPORT (A)	8-94457-278-1	01	1	1509-
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	1509-
200	03.704 BOLT; SUPPORT RUBBER 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1509-
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	04	1	1509-
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1509-
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1509-
376	03.708 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1509-
377	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-
385	03.704 BRACKET; SILENCER MTG (A)	8-98006-776-1	01	1	1509-
385	03.704 BRACKET; SILENCER MTG (B)	8-98073-376-0	01	1	1509-
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-
556	03.701 DPD ASM	8-98084-602-4	01	1	1509-
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1509-
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	1509-
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1509-
562	03.690 PLATE; STUD,BOLT (B)	8-98030-175-0	01	1	1509-
570	03.704 ADAPTER; EXH PIPE	8-98073-373-0	01	1	1509-
574	03.706 SPACER; DPD	8-98044-774-0	01	1	1509-
576	03.706 BRACKET; DPD FRT TO FRAME	8-98006-770-0	01	1	1509-
577	03.706 BRACKET; DPD RR TO FRAME	8-98048-292-1	01	1	1509-
578	03.706 BRACKET; DPD FRT	8-98048-296-0	01	1	1509-
579	03.704 BRACKET; DPD RR	8-98048-300-1	01	1	1509-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
