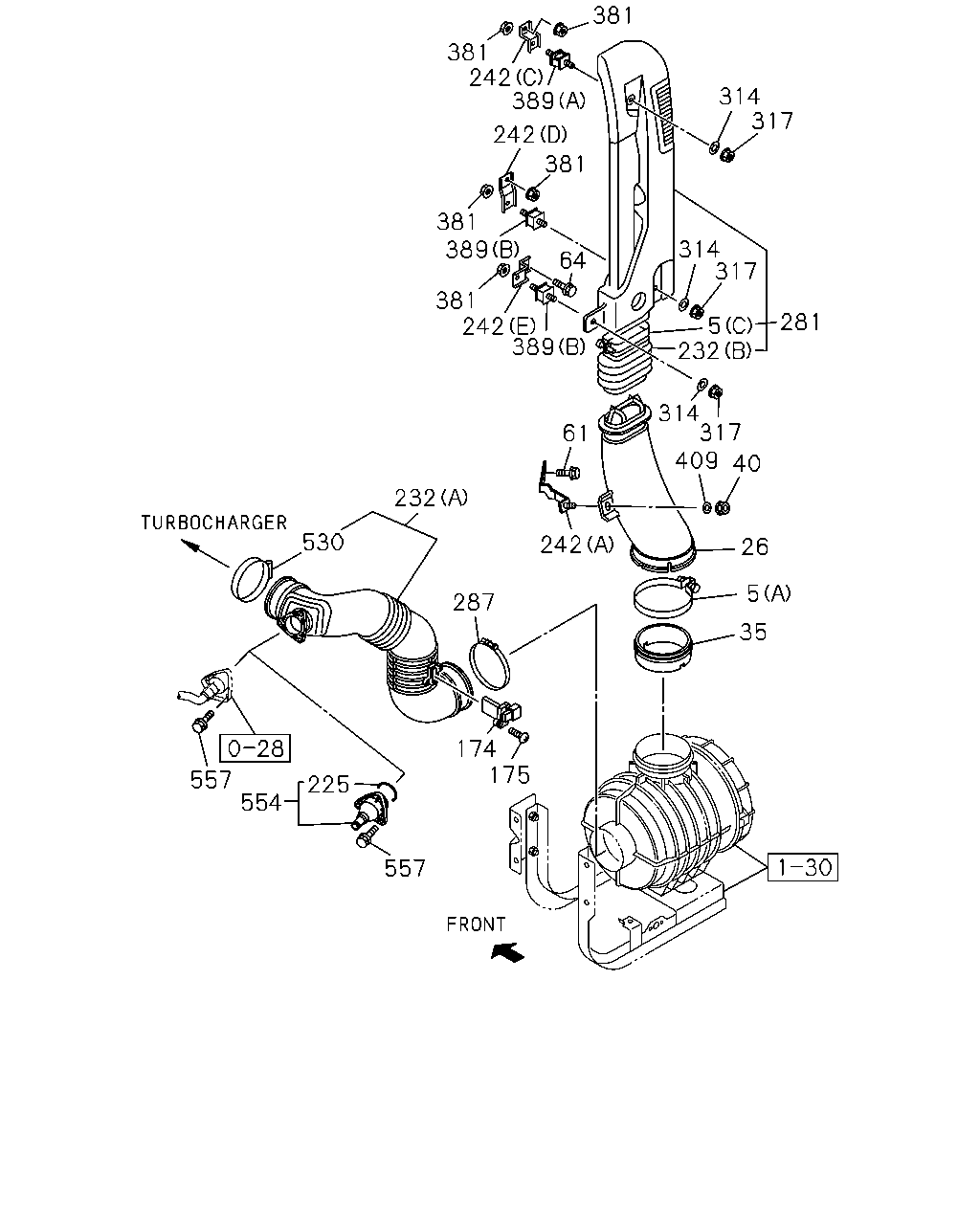

5 |
03.407 CLIP; AIR DUCT
(B)
ID=77-99
|
1-09707-141-0 |
02 |
1 |
1509- |
| |
5 |
03.407 CLIP; AIR DUCT
(A)
ID=127
|
1-14239-263-0 |
01 |
1 |
1509- |
| |
5 |
03.407 CLIP; AIR DUCT
(D)
ID=70-90
|
8-98122-372-0 |
01 |
1 |
1509- |
| |
5 |
03.407 CLIP; AIR DUCT
(C)
D=101.6
|
9-09915-502-1 |
01 |
1 |
1509- |
| |
26 |
03.417 DUCT; AIR INT
|
8-98025-626-0 |
01 |
1 |
1509- |
| |
35 |
03.406 SEAL; DUCT,INT
|
8-98029-332-0 |
01 |
1 |
1509- |
| |
40 |
03.417 NUT; AIR INT DUCT
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1509- |
| |
61 |
03.417 BOLT; BRKT,AIR DUCT
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1509- |
| |
64 |
03.417 BOLT; BRKT,AIR DUCT
M8X16
|
0-52000-816-0 |
01 |
1 |
1509- |
| |
174 |
03.682 SENSOR; AIR FLOW CONT
|
8-97601-967-0 |
01 |
1 |
1509- |
| |
175 |
03.682 BOLT; AIR FLOW CONT SENSOR
02.559
M4X10 W/LK&PL WASHER
|
0-36230-410-0 |
02 |
1 |
1509- |
| |
225 |
03.417 GASKET; AIR PIPE
FRIGID ZONE(YL3)
01.097
ID=43.7
|
9-09561-344-0 |
01 |
1 |
1509- |
| |
232 |
03.417 HOSE; CONN
(B)
|
8-98231-785-0 |
01 |
1 |
1509- |
| |
232 |
03.417 HOSE; CONN
(A)
|
8-98281-176-0 |
01 |
1 |
1509- |
| |
242 |
03.417 BRACKET; AIR DUCT
(B)
|
8-98032-142-1 |
01 |
1 |
1509- |
| |
242 |
03.417 BRACKET; AIR DUCT
(B)
|
8-98032-143-1 |
01 |
1 |
1509- |
| |
242 |
03.417 BRACKET; AIR DUCT
(C)
|
8-98036-646-2 |
01 |
1 |
1509- |
| |
242 |
03.417 BRACKET; AIR DUCT
(D)
|
8-98036-647-2 |
01 |
1 |
1509- |
| |
242 |
03.417 BRACKET; AIR DUCT
(E)
|
8-98036-649-2 |
01 |
1 |
1509- |
| |
242 |
03.417 BRACKET; AIR DUCT
(A)
|
8-98145-112-1 |
01 |
1 |
1509- |
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
|
8-98080-929-2 |
01 |
1 |
1509- |
| |
287 |
03.417 CLIP; AIR DUCT
03.407
ID=112
|
9-09915-074-1 |
01 |
1 |
1509- |
| |
314 |
03.417 WASHER; PL,AIR INT DUCT
00.002
ID=10.5 OD=32
|
0-91614-810-0 |
03 |
1 |
1509- |
| |
317 |
03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER
|
8-97581-234-0 |
03 |
1 |
1509- |
| |
381 |
03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER
|
8-97581-234-0 |
02 |
1 |
1509- |
| |
381 |
03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER
|
8-97581-234-0 |
03 |
1 |
1509- |
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
(A)
|
8-98036-825-0 |
01 |
1 |
1509- |
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
03.417
(B)
|
8-98036-826-0 |
02 |
1 |
1509- |
| |
409 |
03.417 WASHER; PL,BRKT
00.002
ID=10.5 OD=32
|
0-91614-810-0 |
01 |
1 |
1509- |
| |
530 |
03.407 CLAMP; AIR DUCT
ID=77-99
|
1-09707-141-0 |
01 |
1 |
1509- |
| |
554 |
04.439 FLANGE; PIPE,PCV
FRIGID ZONE(YL3)
|
8-98038-208-0 |
01 |
1 |
1509- |
| |
557 |
03.403 BOLT; HOSE CLIP
00.386
M6X20 FLANGE
|
0-28050-620-0 |
03 |
1 |
1509- |
