0-40 — FUEL INJECTION SYSTEM (#166467) — 107 parça

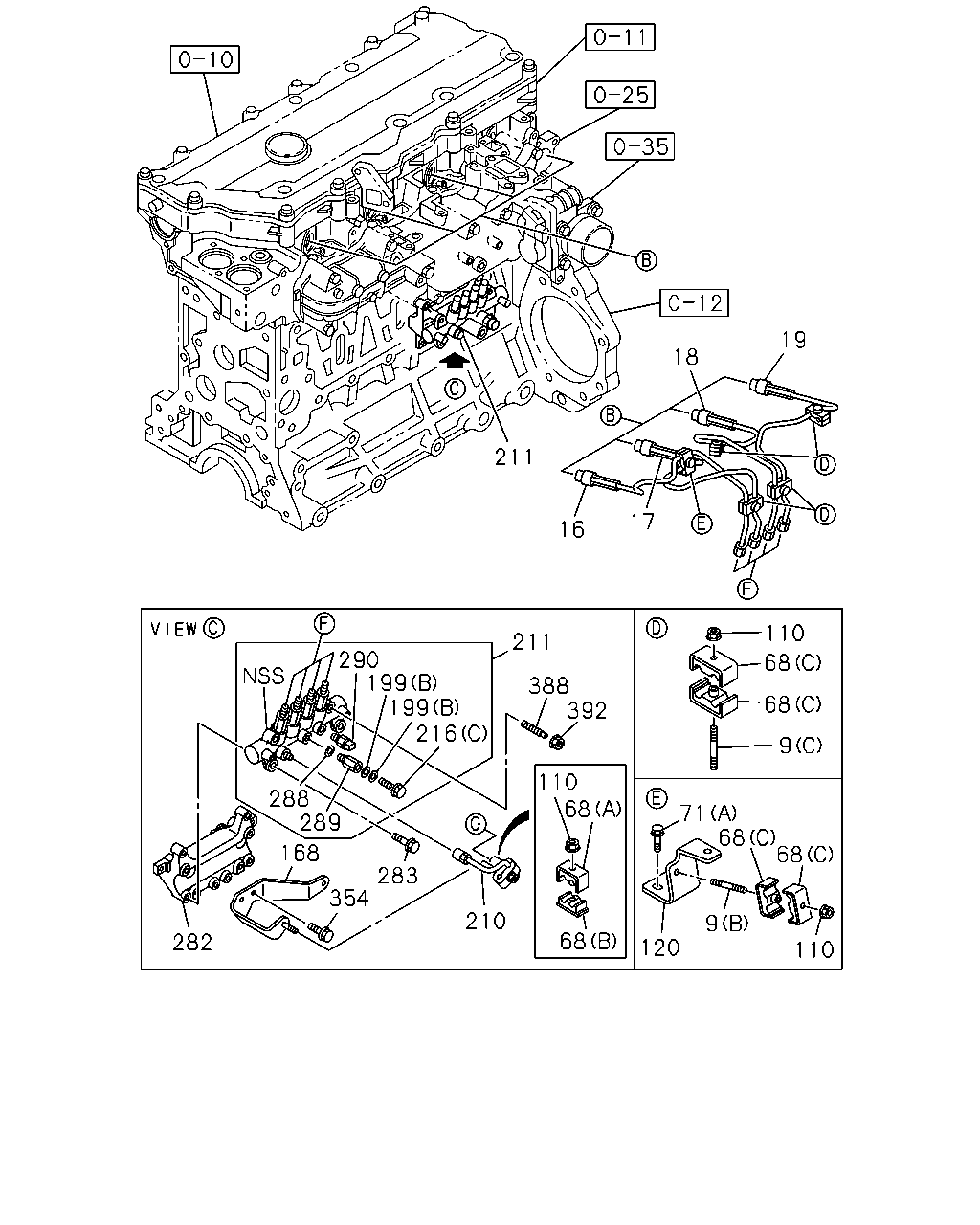

19 18 211 16 17 110 68 68 9 392 388 211 199 199 290 216 110 68 68 71 68 68 110 9 120 210 283 354 168 289 288 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	03.340 STUD; CLIP 00.413 (C) M6X30 L=38	0-41010-630-0	04	1	1509-
9	03.340 STUD; CLIP 03.278 (A) M6X40 L=50	0-41010-640-0	02	1	1509-
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1509-
16	03.330 PIPE; INJ NO.1	8-98298-628-0	01	1	1509-
17	03.330 PIPE; INJ NO.2	8-98298-629-0	01	1	1509-
18	03.330 PIPE; INJ NO.3	8-98298-630-0	01	1	1509-
19	03.330 PIPE; INJ NO.4	8-98298-631-0	01	1	1509-
68	03.162 CLIP; INJ PIPE (A)	8-97330-118-3	01	1	1509-
68	03.162 CLIP; INJ PIPE (B)	8-97330-119-3	01	1	1509-
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1509-
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1509-
71	03.162 BOLT; BRKT 09.242 (D) M6X16 FLANGE	0-28050-616-0	02	1	1509-
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1509-
71	03.162 BOLT; BRKT 04.686 (C) M8X60 FLANGE	0-28050-860-0	02	1	1509-
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	08	1	1509-
120	03.330 BRACKET; INJ PIPE	8-98041-601-0	01	1	1509-
168	03.890 BRACKET; FUEL PIPE	8-98096-204-0	01	1	1509-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1509-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1509-
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1509-
210	03.330 PIPE; INJ,C/R	8-98096-496-0	01	1	1509-
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1509-
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	1509-
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1509-
216	03.162 BOLT; EYE (C)	8-98043-033-0	01	1	1509-
282	03.163 BRACKET; COMMON RAIL	8-98106-661-1	01	1	1509-
283	03.330 BOLT; COMMON RAIL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1509-
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1509-
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1509-
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1509-
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-
388	03.332 STUD; RAIL 03.278 M8X35 L=53	0-49140-835-0	02	1	1509-
392	03.330 NUT; RAIL ASM 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-

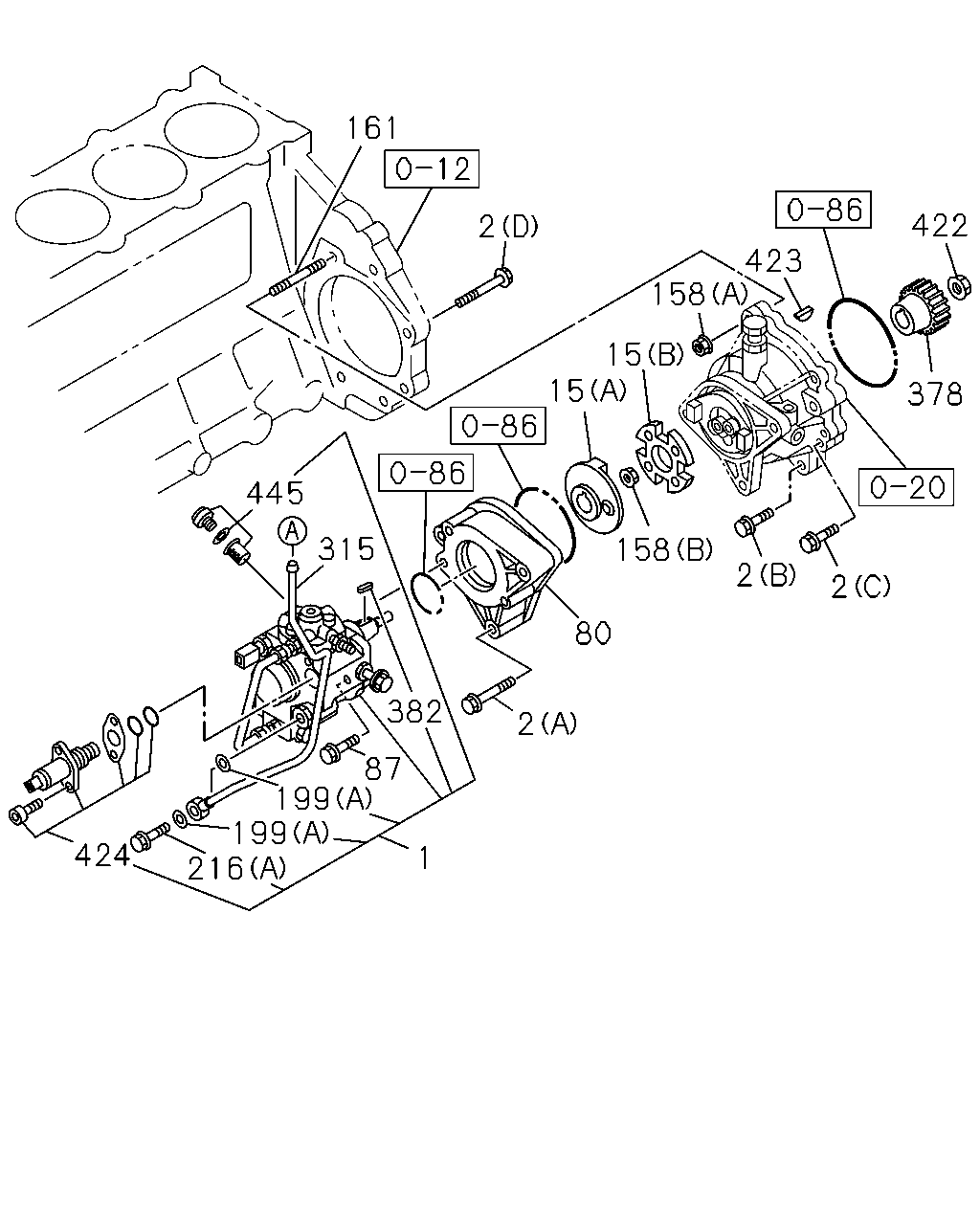

161 2 423 422 378 2 2 158 80 158 15 15 2 382 87 1 199 199 216 424 315 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.306 PUMP ASM; INJ	8-97386-557-5	01	1	1509-
2	03.330 BOLT; INJ PUMP 00.685 (A) M10X60 FLANGE	0-28051-060-0	03	1	1509-
2	03.330 BOLT; INJ PUMP 02.277 (B) M10X70 FLANGE	0-28151-070-0	01	1	1509-
2	03.330 BOLT; INJ PUMP 00.206 (C) M12X70 FLANGE	0-28151-270-0	01	1	1509-
2	03.330 BOLT; INJ PUMP (D) M12X95 FLANGE	8-94396-485-1	01	1	1509-
15	03.340 COUPLING ASM; INJ PUMP (A)	8-97306-054-0	01	1	1509-
15	03.340 COUPLING ASM; INJ PUMP (B) SEE FIG-NO 0-87 FOR COMPONENT.	8-97306-059-1	01	1	1509-
80	03.306 BRACKET; PUMP	8-98061-699-0	01	1	1509-
87	03.330 BOLT; PUMP 03.403 M8X30 FLANGE	0-28650-830-0	03	1	1509-
158	03.330 NUT; INJ PUMP 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1509-
158	03.330 NUT; INJ PUMP 07.529 (B) M14 FLANGE	0-91180-114-0	01	1	1509-
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	1509-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1509-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1509-
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1509-
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	1509-
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1509-
216	03.162 BOLT; EYE (C)	8-98043-033-0	01	1	1509-
315	03.163 PIPE; FUEL,SUCTION	8-98126-334-0	01	1	1509-
378	03.330 GEAR; PUMP Z=35	8-98017-915-0	01	1	1509-
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1509-
422	03.330 NUT; GEAR 06.172 M18	8-97141-154-0	01	1	1509-
423	03.162 KEY; GEAR 08.960	9-08055-519-0	01	1	1509-
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1509-
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1509-

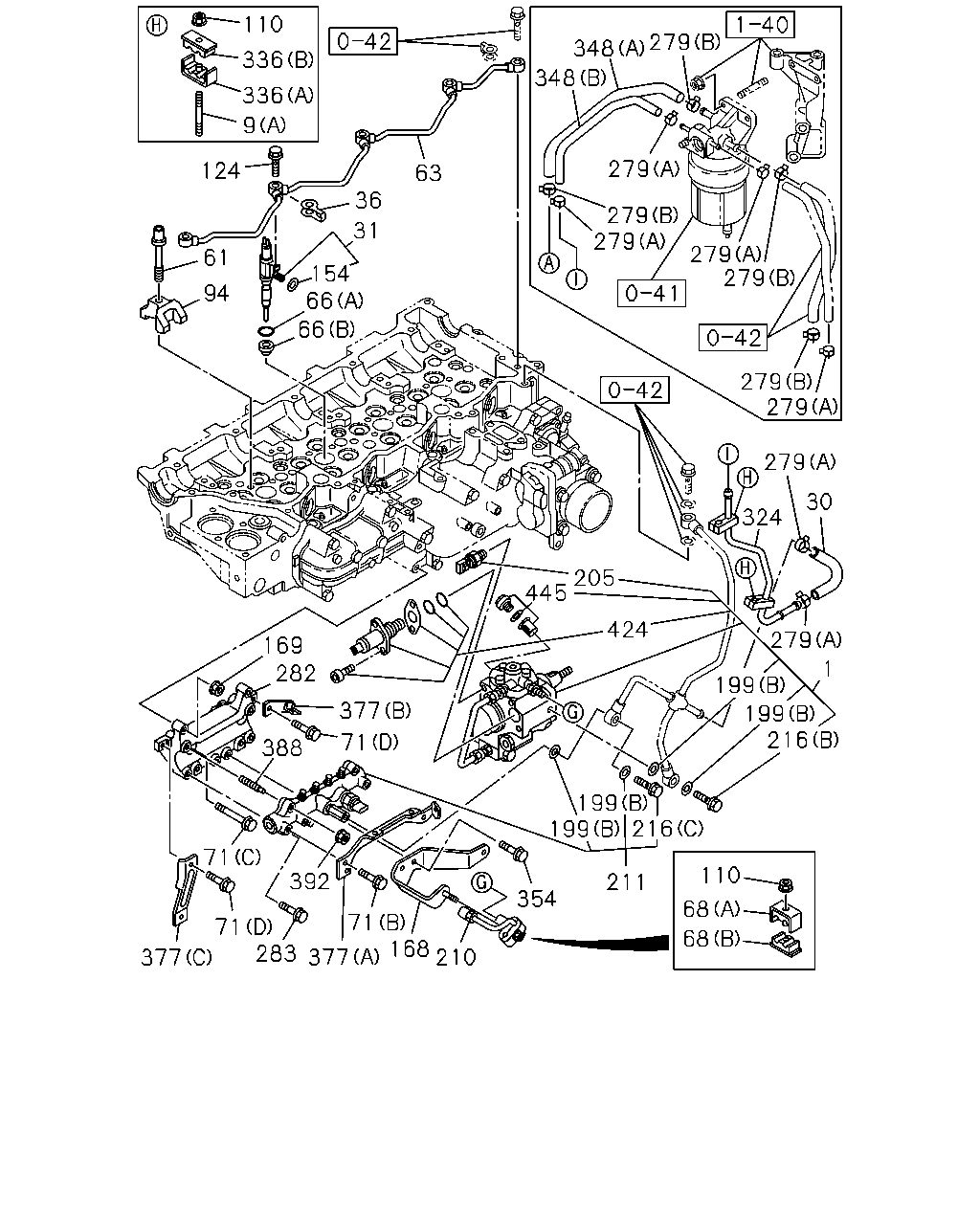

279 348 348 110 336 336 9 124 61 36 63 31 154 94 66 66 279 279 279 279 279 279 279 324 279 30 279 1 216 199 199 424 5 445 377 71 169 382 388 392 71 71 354 210 168 377 283 377 110 68 68 216 211 199 199 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.306 PUMP ASM; INJ	8-97386-557-5	01	1	1509-
9	03.340 STUD; CLIP 00.413 (C) M6X30 L=38	0-41010-630-0	04	1	1509-
9	03.340 STUD; CLIP 03.278 (A) M6X40 L=50	0-41010-640-0	02	1	1509-
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1509-
30	03.163 HOSE; RUBBER,FUEL LEAK	8-98025-994-2	01	1	1509-
31	03.332 NOZZLE ASM; INJ	8-97609-788-6	04	1	1509-
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	1509-
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	1509-
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	1509-
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (A) ID=23.3	8-94173-412-0	04	1	1509-
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=9.2 T=8.1	8-98079-248-0	04	1	1509-
68	03.162 CLIP; INJ PIPE (A)	8-97330-118-3	01	1	1509-
68	03.162 CLIP; INJ PIPE (B)	8-97330-119-3	01	1	1509-
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1509-
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1509-
71	03.162 BOLT; BRKT 09.242 (D) M6X16 FLANGE	0-28050-616-0	02	1	1509-
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1509-
71	03.162 BOLT; BRKT 04.686 (C) M8X60 FLANGE	0-28050-860-0	02	1	1509-
94	03.330 BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1509-
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	08	1	1509-
124	03.162 BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	1509-
154	03.332 GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	04	1	1509-
168	03.890 BRACKET; FUEL PIPE	8-98096-204-0	01	1	1509-
169	03.890 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1509-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1509-
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1509-
210	03.330 PIPE; INJ,C/R	8-98096-496-0	01	1	1509-
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1509-
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	1509-
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1509-
216	03.162 BOLT; EYE (C)	8-98043-033-0	01	1	1509-
279	03.162 CLIP; FUEL HOSE 01.097 (B) ID=16	8-97329-628-0	04	1	1509-
279	03.162 CLIP; FUEL HOSE 01.153 (A) ID=11.5	8-97375-638-0	06	1	1509-
283	03.330 BOLT; COMMON RAIL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1509-
324	03.330 PIPE; FUEL RETURN	8-98025-858-0	01	1	1509-
336	03.163 CLIP; FUEL PIPE 01.531 (A) ID=8 & 9 L=25	8-97603-522-0	02	1	1509-
336	03.163 CLIP; FUEL PIPE 01.531 (B) ID=8 & 9 L=25	8-97603-523-0	02	1	1509-
348	03.163 HOSE; FUEL (B)	8-98087-960-0	01	1	1509-
348	03.163 HOSE; FUEL (A)	8-98126-629-0	01	1	1509-
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-
377	03.332 BRACKET; HARNESS (A)	8-98113-835-0	01	1	1509-
377	03.332 BRACKET; HARNESS (B)	8-98114-440-0	01	1	1509-
377	03.332 BRACKET; HARNESS (C)	8-98114-730-0	01	1	1509-
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1509-
388	03.332 STUD; RAIL 03.278 M8X35 L=53	0-49140-835-0	02	1	1509-
392	03.330 NUT; RAIL ASM 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1509-
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1509-
