0-33 — FAN AND FAN BELT (#166464) — 23 parça

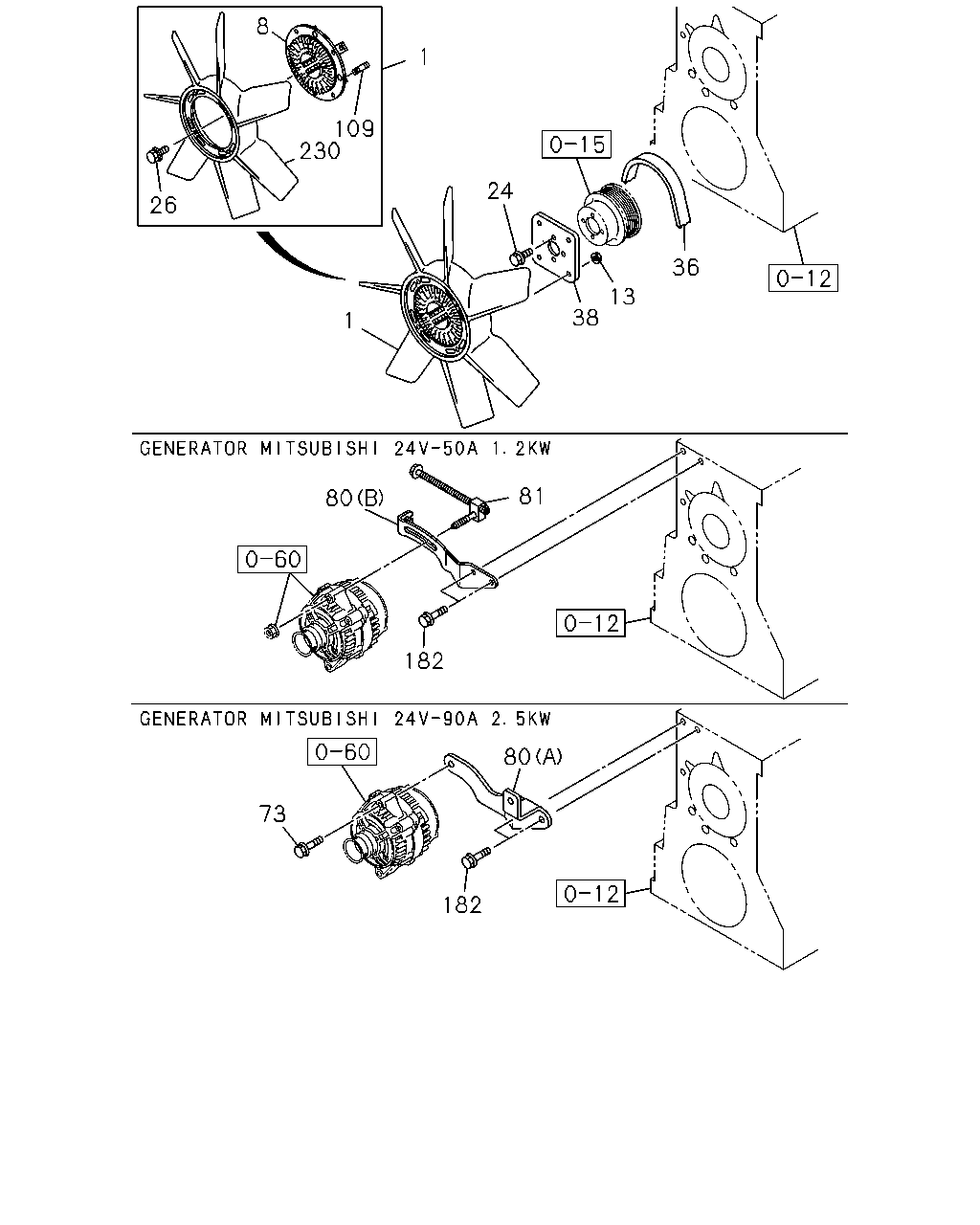

çizim 492101
1 8 230 109 26 24 38 13 36 1 80 182 81 80 73 182
BalonParca AdiParca NoAdetTipApplied Date
1 01.064 FAN; COOLING
OD=510 		8-98190-148-1 01 1 1509-
8 01.064 CLUTCH; COOLING FAN 8-98019-743-0 01 1 1509-
13 01.062 NUT; COOLING FAN
M8 FLANGE 		0-91180-108-0 04 1 1509-
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 1509-
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 1509-
36 01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=1121 		8-98038-423-0 01 1 1509-
36 01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) L=1046 		8-98003-187-0 01 1 1509-
36 01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) BEST VALUE PARTS 		5-87610-102-0 01 1 1509-
36 01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) BEST VALUE PARTS 		5-87610-101-0 01 1 1509-
38 01.062 SPACER; FAN 8-97108-643-0 01 1 1509-
73 02.277 BOLT; GEN TO ADJ PLATE
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1509-
80 02.317 PLATE; ADJ
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) 		8-98288-436-1 01 1 1509-
80 02.317 PLATE; ADJ
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (B) 		8-98288-434-1 01 1 1509-
81 02.317 PIECE; SLIDING
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) 		8-98075-762-0 01 1 1509-
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 1509-
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1509-
230 01.055 FAN; COOLING 8-98190-058-0 01 1 1509-
çizim 493294
36 144 147 147
BalonParca AdiParca NoAdetTipApplied Date
36 01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=1121 		8-98038-423-0 01 1 1509-
36 01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) L=1046 		8-98003-187-0 01 1 1509-
36 01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) BEST VALUE PARTS 		5-87610-102-0 01 1 1509-
36 01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) BEST VALUE PARTS 		5-87610-101-0 01 1 1509-
144 01.060 TENSIONER; DRIVE BELT
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 09.180 1-GROOVE 		8-98031-811-1 01 1 1509-
147 01.060 BOLT; BELT TENSIONER
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 03.417 M10X20 FLANGE 		0-28151-020-0 03 1 1509-
