◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51638 - NPR LHD BUS CHASSIS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#166463) — 12 parça

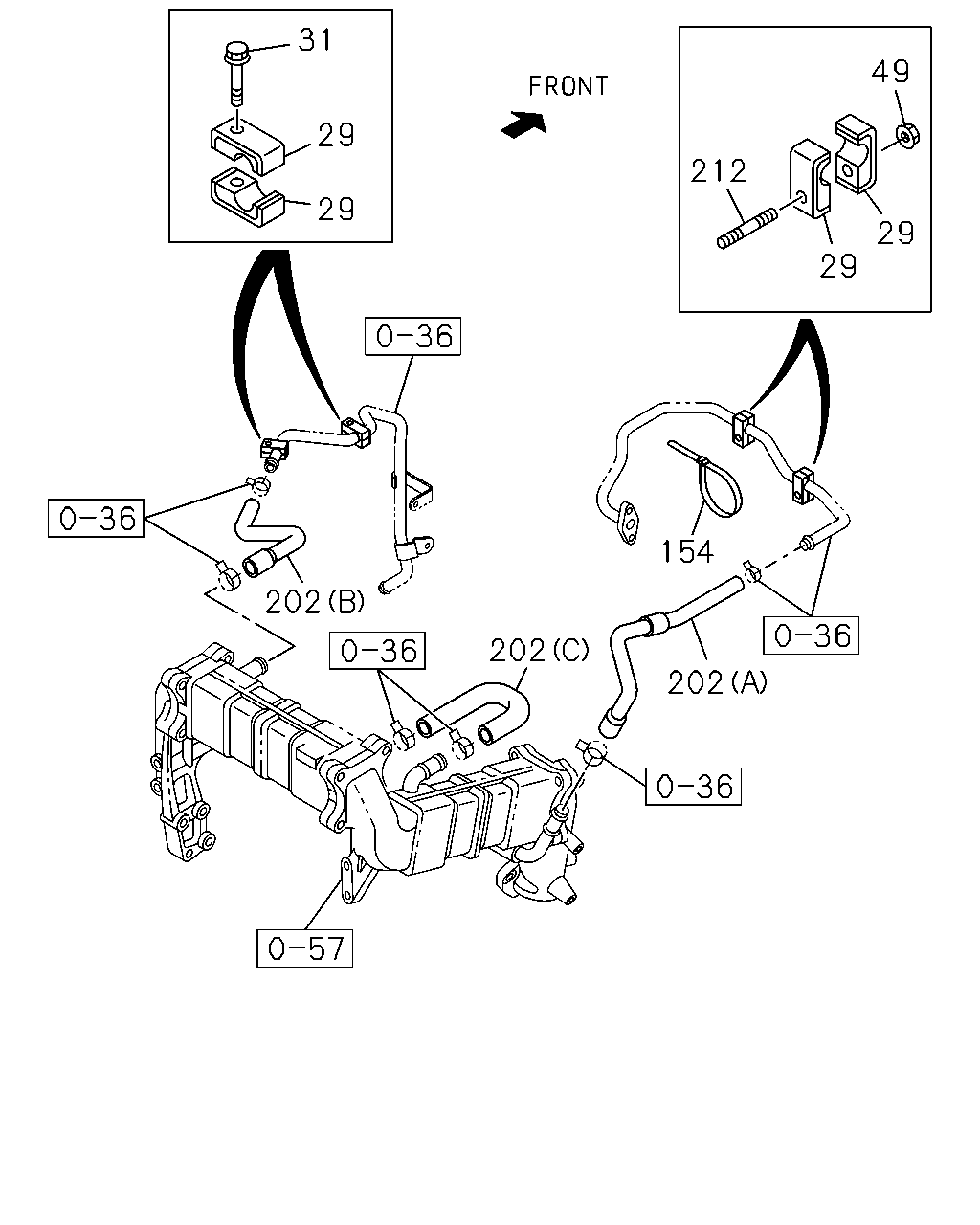

çizim 492078
31 29 29 202 202 154 202 212 29 29 49
BalonParca AdiParca NoAdetTipApplied Date
29 01.166 CLIP; PIPE
ID=12 L=17 		1-09701-284-0 08 1 1509-
31 01.159 BOLT; CLIP
02.277 M8X40 FLANGE 		0-28050-840-0 02 1 1509-
49 01.153 NUT; WATER PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1509-
154 01.153 CLIP; WATER HOSE
02.559 L=170.3 		1-09987-182-0 01 1 1509-
202 01.240 HOSE; RUBBER,EGR COOLER
(A) 		8-98028-169-2 01 1 1509-
202 01.240 HOSE; RUBBER,EGR COOLER
(B) 		8-98028-170-0 01 1 1509-
202 01.240 HOSE; RUBBER,EGR COOLER
(C) 		8-98028-171-0 01 1 1509-
212 01.153 STUD; PIPE
00.413 M8X45 L=55 		8-94217-227-0 02 1 1509-

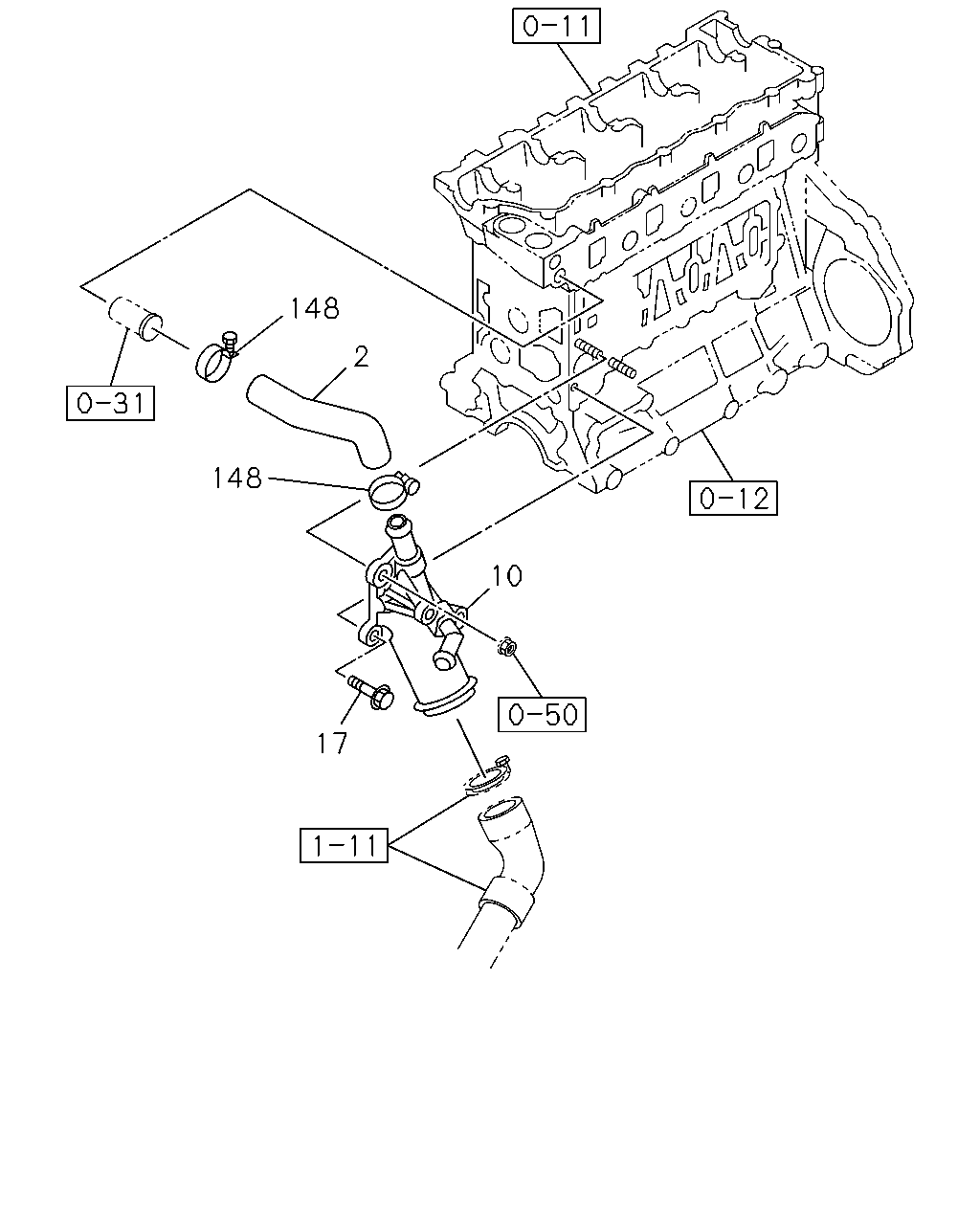

çizim 493123
148 148 2 10 17
BalonParca AdiParca NoAdetTipApplied Date
2 01.097 HOSE; WATER,BY-PASS 8-97379-228-1 01 1 1509-
10 01.153 PIPE; SUCTION 8-98166-991-0 01 1 1509-
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 1509-
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 1509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
