◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#16646) — 15 parça

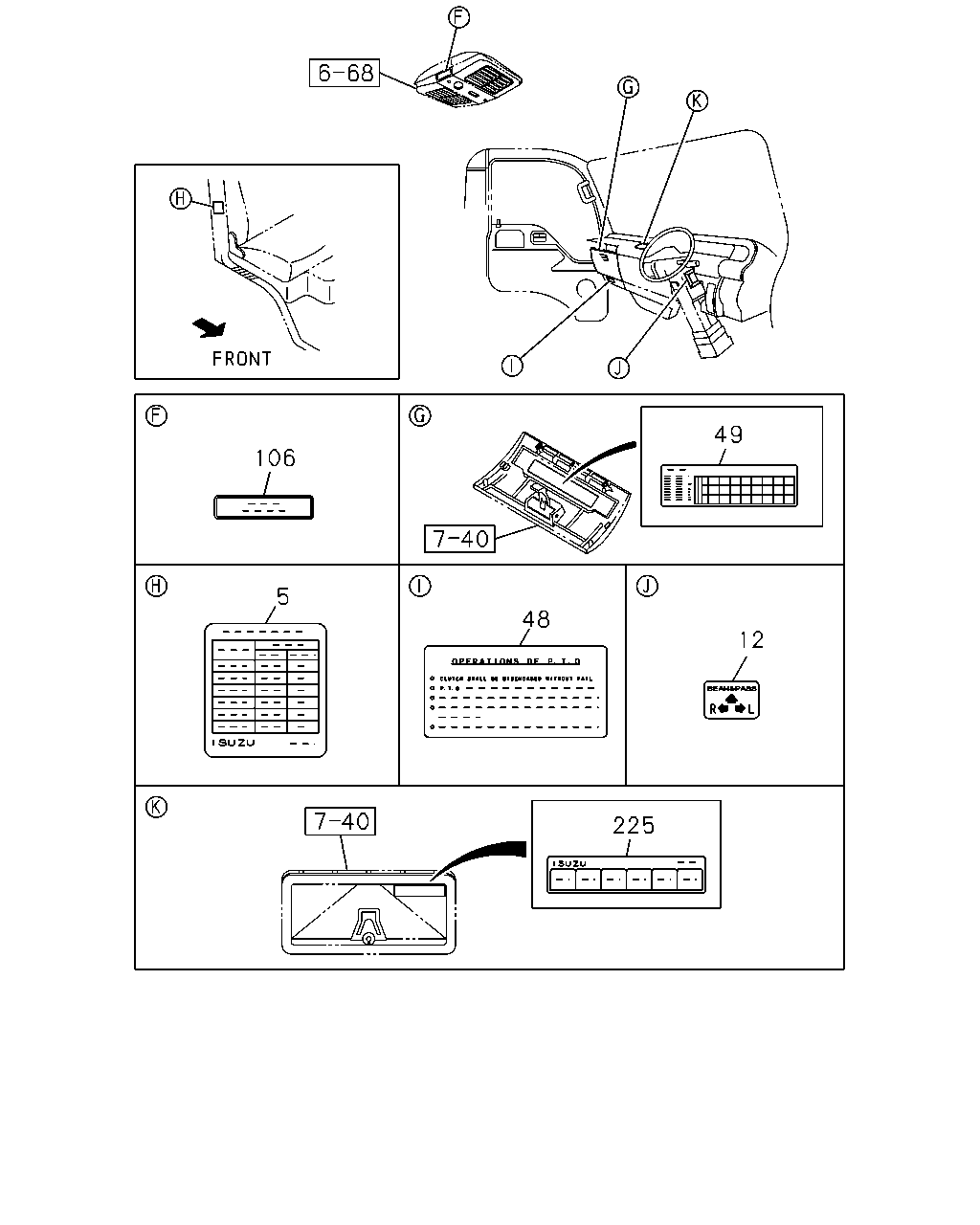

çizim 119009
49 106 5 48 12 225
BalonParca AdiParca NoAdetTipApplied Date A B C
5 LABEL; TIRE AIR PRESSURE
4JB1-TC ENG<RDT> THA 		8-97918-774-2 01 1 0508- ●
12 LABEL; TURN
THA 		8-97918-780-0 01 1 0508- ● ● ●
48 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE<V66> 		8-94469-277-0 01 1 0508- ● ● ●
49 PLATE; CAUTION,FUSE BOX
THA 		8-97922-784-0 01 1 0508- ● ●
49 PLATE; CAUTION,FUSE BOX
THA 		8-97922-785-0 01 1 0508- ●
106 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> THA 		8-97918-777-0 01 1 0508- ● ● ●
225 PLATE; CAUTION,RELAY POSITION
THA 		8-97922-787-0 01 1 0508- ● ● ●
çizim 119015
35 35 9 96 4 4
BalonParca AdiParca NoAdetTipApplied Date A B C
4 LABEL; ENG MAINTENANCE
4JB1-TC ENG<RDT> (A) THA 		8-97920-158-0 01 1 0508- ● ●
4 LABEL; ENG MAINTENANCE
4HG1-T ENG<RDP> (B) THA 		8-97917-043-1 01 1 0508- ●
9 PLATE; NAME,SPD RANGE
4JB1-TC ENG<RDT> M/T MSB5S<R45> EXC. TACHOMETER<U16> THA 		8-97918-773-0 01 1 0508- ●
9 PLATE; NAME,SPD RANGE
4JB1-TC ENG<RDT> M/T MSB5M<RM5> EXC. TACHOMETER<U16> THA 		8-97918-773-0 01 1 0508- ●
9 PLATE; NAME,SPD RANGE
4HG1-T ENG<RDP> M/T MYY5T<RSM> EXC. TACHOMETER<U16> THA 		8-97918-772-0 01 1 0508- ●
35 PLATE; CAUTION,CAB
(B) THA 		8-97918-771-0 01 1 0508- ● ● ●
35 PLATE; CAUTION,CAB
(A) THA 		8-97918-776-0 01 1 0508- ● ● ●
96 PLATE; CAUTION,ENGINE OIL
4JB1-TC ENG<RDT> 		8-97066-479-1 01 1 0508- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
