Isuzu WW
▶
TRUCKS
▶
NPR
▶
51638 - NPR LHD BUS CHASSIS
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶

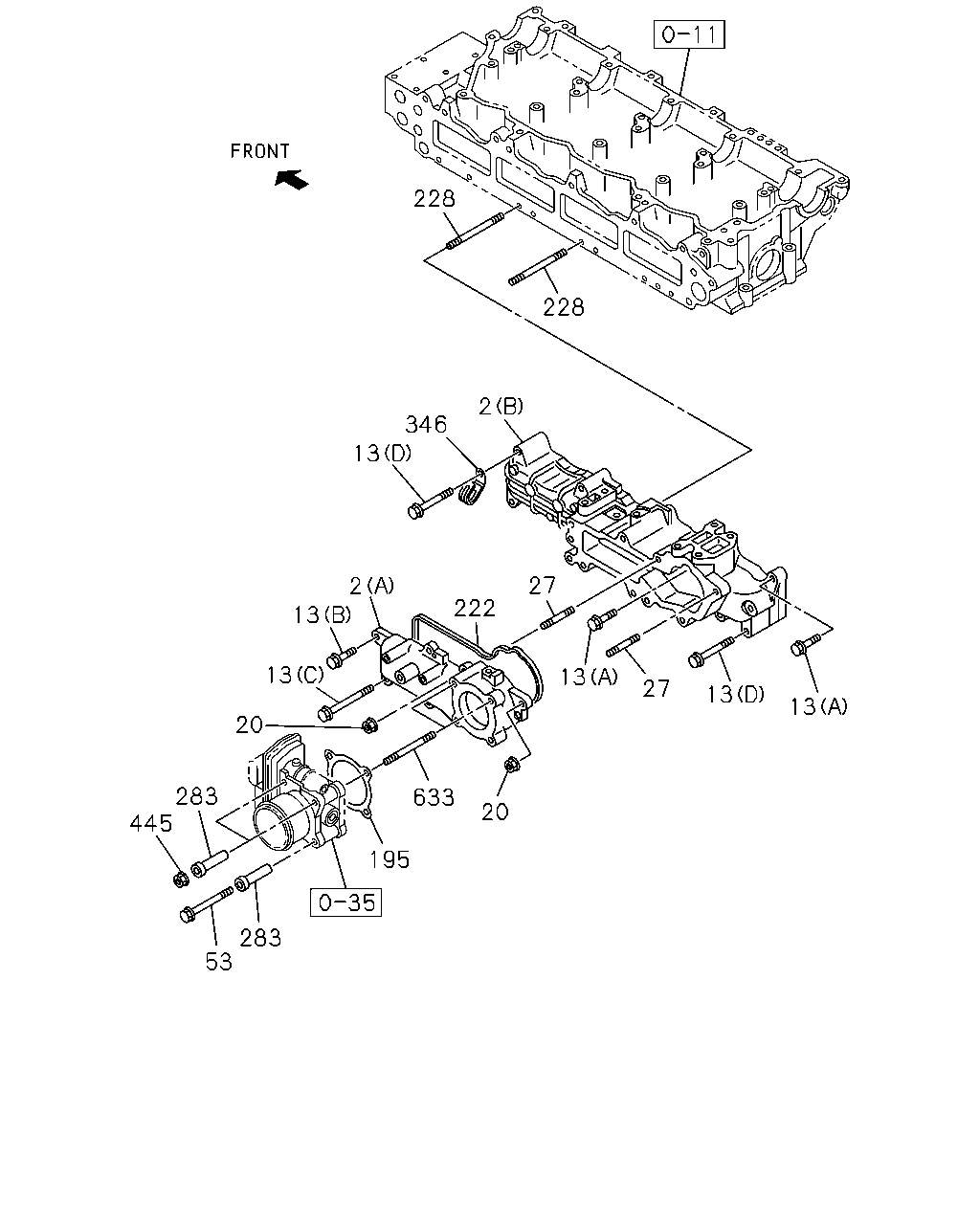

0-25 — INLET MANIFOLD
(#166458) — 16 parça
27
222
13
27
13
13
633
20
195
283
445
53
283
20
13
13
13
2
346
2
228
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
03.407 COVER; INL
(A)
8-98085-730-1
01
1
1509-
2
03.407 COVER; INL
(B)
8-98115-667-1
01
1
1509-
13
03.275 BOLT; INL MANIF
(B) M8X25 FLANGE
0-28050-825-0
02
1
1509-
13
03.275 BOLT; INL MANIF
00.206 (A) M8X30 FLANGE
0-28050-830-0
02
1
1509-
13
03.275 BOLT; INL MANIF
04.686 (D) M8X60 FLANGE
0-28050-860-0
05
1
1509-
13
03.275 BOLT; INL MANIF
01.780 (C) M8X120 FLANGE
0-28055-812-0
03
1
1509-
20
03.275 NUT; INL MANIF
01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
27
03.275 STUD; INL MANIF
M8X25 L=37
0-41010-825-0
02
1
1509-
53
03.602 BOLT; INL PIPE
00.206 M8X70 FLANGE
0-28050-870-0
02
1
1509-
195
03.729 GASKET; THROTTLE BODY INJECTOR
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98032-612-0
01
1
1509-
222
03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.275
8-98032-611-0
01
1
1509-
228
03.407 STUD; INL COVER
03.342 M8X126 L=137
8-97378-069-0
02
1
1509-
283
03.265 RUBBER
L=58
8-97387-995-1
04
1
1509-
346
02.559 CLIP; ENG HARNESS
03.671 ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
1509-
445
03.275 NUT; THROTTLE BODY TO MANIF
01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
633
03.275 STUD; THROTTLE BODY
M8X71 L=83
9-09830-212-0
02
1
1509-
