Isuzu WW
▶
TRUCKS
▶
NPR
▶
51638 - NPR LHD BUS CHASSIS
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#166455) — 30 parça
◀
[015A] FLYWHEEL (9 parça)

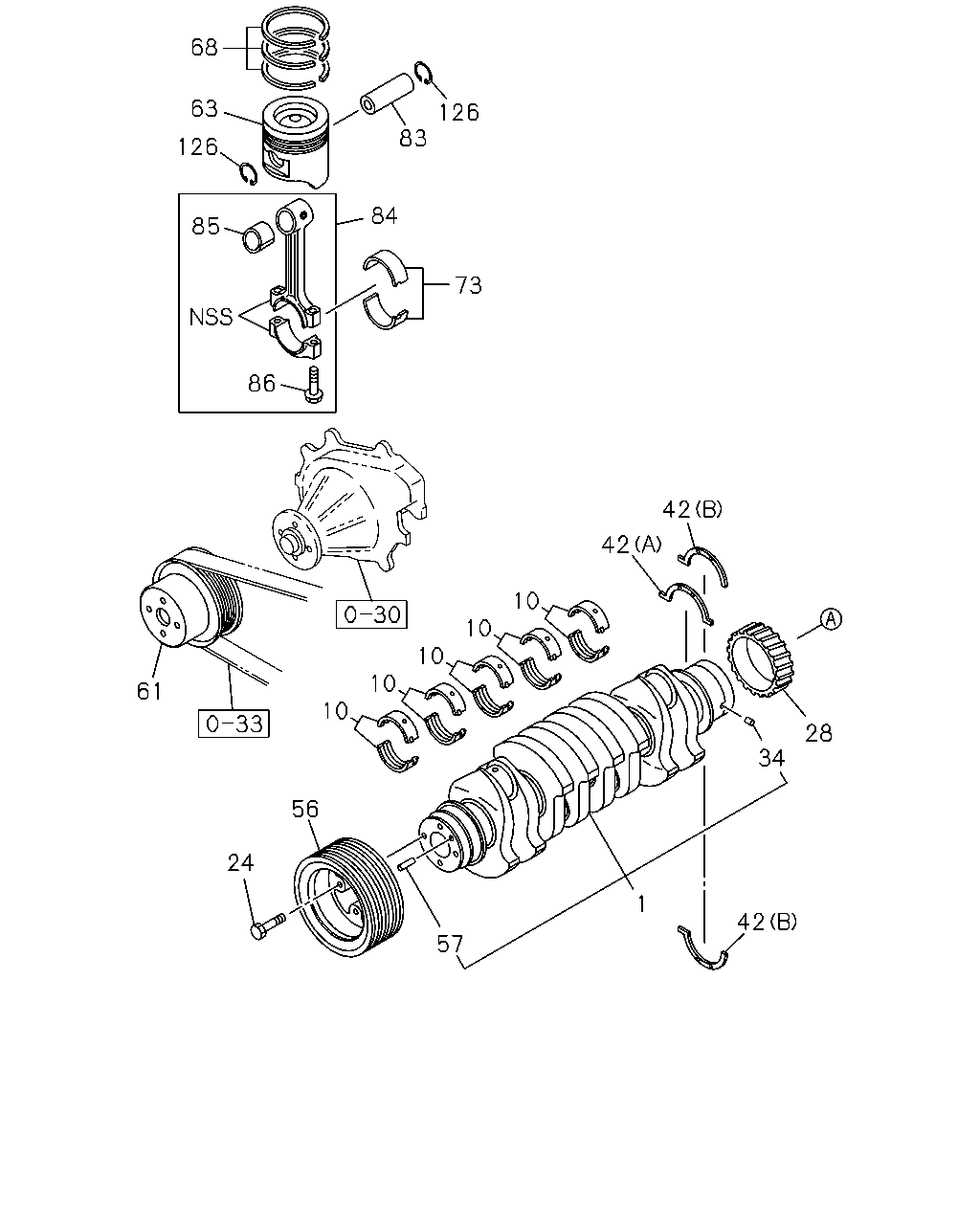

[015A] CRANKSHAFT AND PISTON (21 parça)
▶
40
49
38
35
12
40
38
100
218
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
00.666 FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97326-227-2
01
1
1509-
35
00.673 GEAR; RING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=138
8-97046-366-1
01
1
1509-
38
00.862 WASHER; FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50 OD=140
8-98176-366-0
01
1
1509-
38
00.862 WASHER; FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=55 OD=110
8-94397-496-1
01
1
1509-
40
00.669 BOLT; FLYWHEEL
M16X42
8-97178-013-0
08
1
1509-
49
00.669 BEARING; PILOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97258-239-0
01
1
1509-
49
00.669 BEARING; PILOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS
5-87610-164-0
01
1
1509-
100
00.666 PLATE; FLEX
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97362-336-3
01
1
1509-
218
00.662 SPACER; CRANK END
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97332-858-1
01
1
1509-
126
83
68
63
126
84
85
73
86
42
42
10
10
10
10
10
28
34
42
1
57
56
24
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.646 CRANKSHAFT
8-98029-270-0
01
1
1509-
10
00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
05
1
1509-
10
00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
05
1
1509-
10
00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
05
1
1509-
24
00.659 BOLT; DAMPER
M16X42
8-97028-733-0
04
1
1509-
28
00.728 GEAR; CR/SHF
Z=42
8-94394-342-4
01
1
1509-
34
00.738 PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
1509-
42
00.095 WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
1509-
42
00.095 WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
1509-
56
00.659 PULLEY; CR/SHF DAMPER
3-GROOVE
8-98004-024-3
01
1
1509-
57
00.662 PIN; PULLEY
00.862 OD=8 L=20
9-08150-820-0
02
1
1509-
61
00.659 PULLEY; FAN DRIVE
1-GROOVE
8-98003-384-1
01
1
1509-
63
00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98041-141-2
04
1
1509-
68
00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98040-125-0
04
1
1509-
73
00.616 METAL SET; CONN ROD,STANDARD
YELLOW
8-98055-479-0
04
1
1509-
73
00.616 METAL SET; CONN ROD,STANDARD
GREEN
8-98055-480-0
04
1
1509-
83
00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-98018-863-1
04
1
1509-
84
00.603 ROD ASM; CONN
8-98018-425-3
04
1
1509-
85
00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-94391-794-1
04
1
1509-
86
00.623 BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
08
1
1509-
126
00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7
8-98006-828-0
08
1
1509-
