9-01 — TOOLS (#166447) — 23 parça

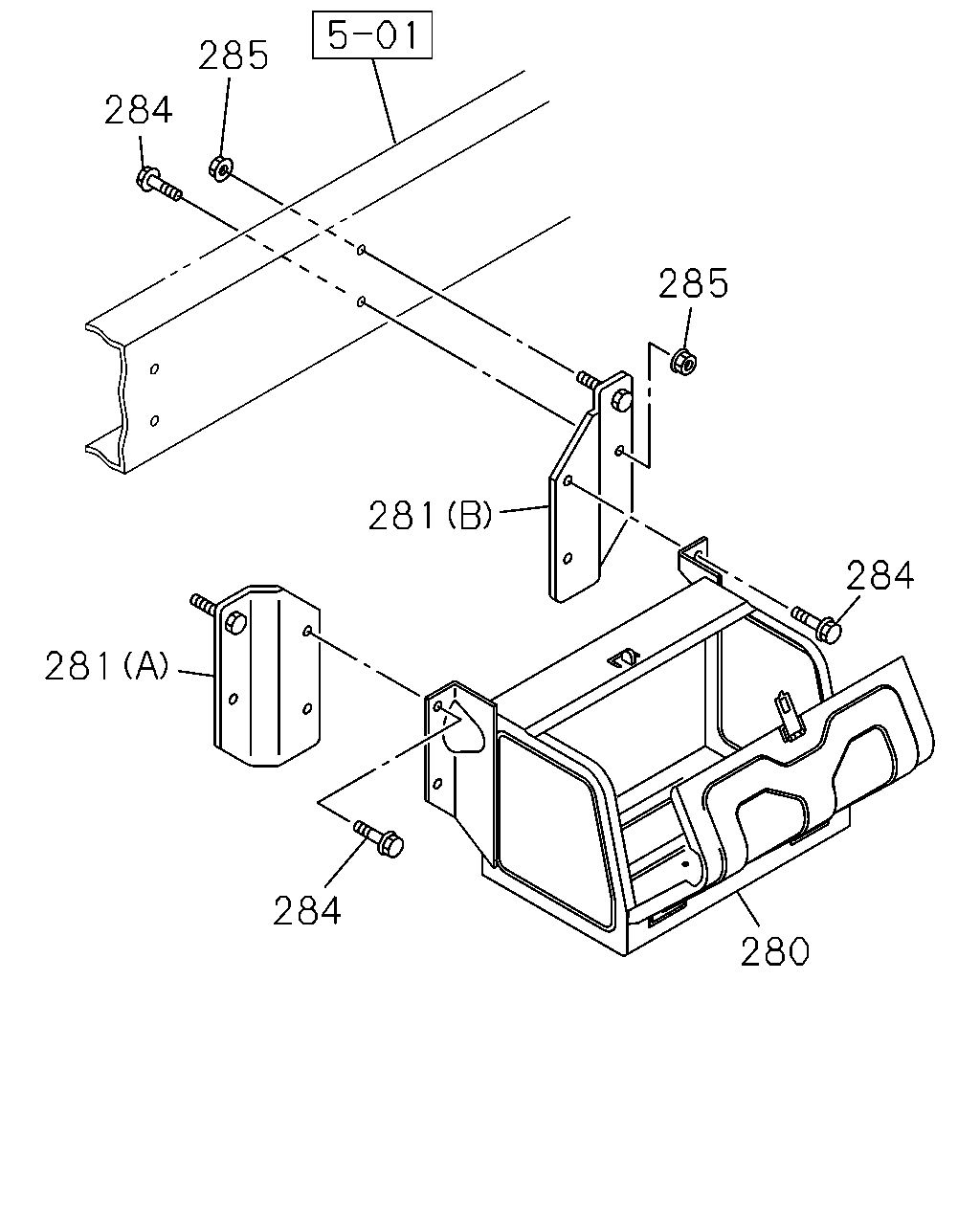

çizim 492594
285 284 281 281 284 280 284 285
BalonParca AdiParca NoAdetTipApplied Date
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 		8-97384-079-0 01 1 1509-
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98207-076-0 01 1 1509-
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98207-077-0 01 1 1509-
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 06 1 1509-
284 08.821 BOLT; TOOL BOX
WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1509-
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509-

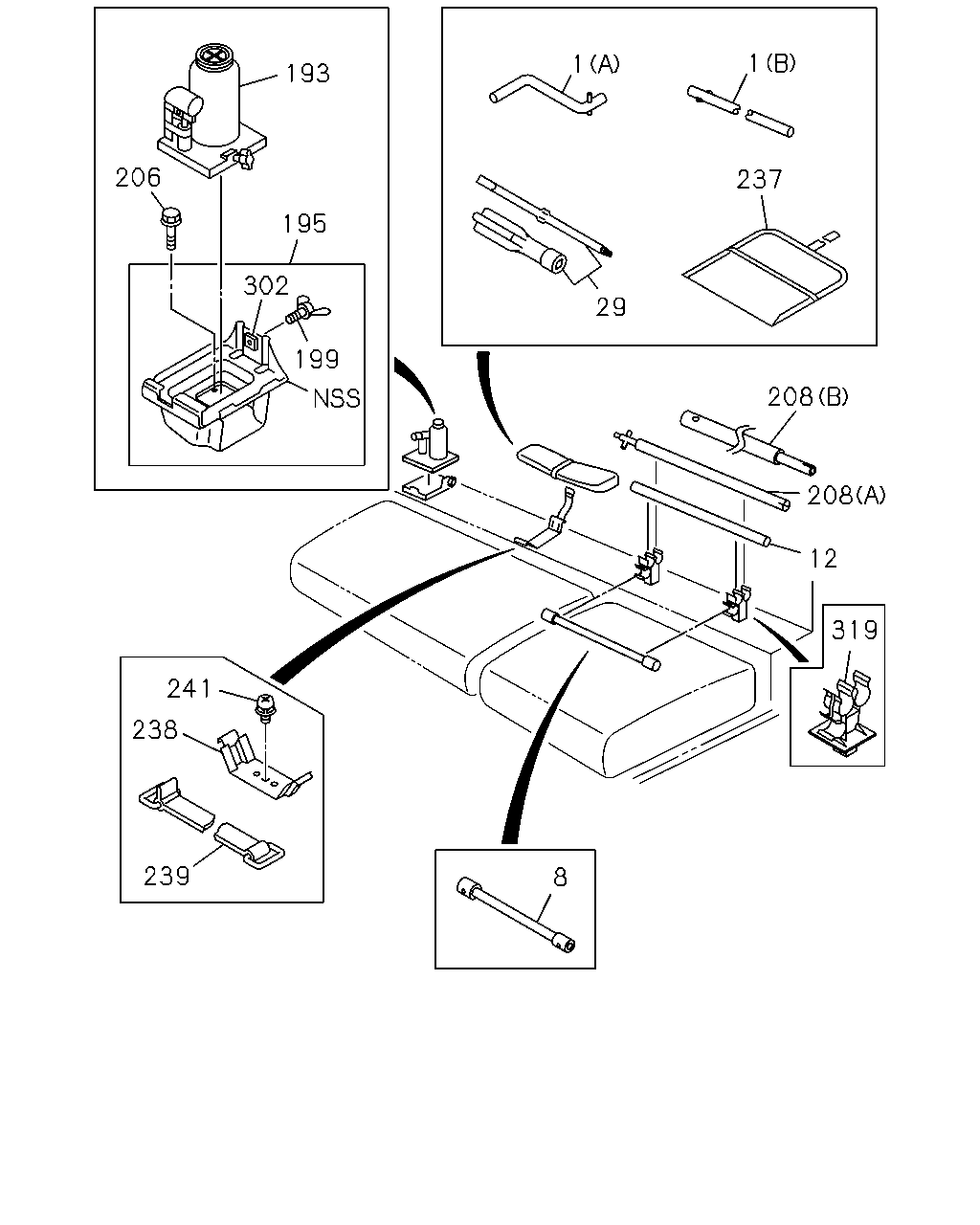

çizim 492625
206 193 195 302 199 1 1 237 29 208 208 12 319 8 241 238 239
BalonParca AdiParca NoAdetTipApplied Date
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) L=280 		8-98181-251-0 01 1 1509-
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 1509-
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 1509-
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> OD=25 L=480 		8-98257-407-0 01 1 1509-
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1509-
193 08.820 JACK ASM
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1509-
195 08.820 BRACKET; JACK
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-98033-737-2 01 1 1509-
199 08.820 BOLT; JACK
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) M8X50 WING 		8-98005-537-0 01 1 1509-
206 08.820 SCREW; OIL JACK BRKT
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509-
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) L=580 		8-98181-249-0 01 1 1509-
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-98181-477-0 01 1 1509-
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1509-
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1509-
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1509-
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1509-
302 08.820 NUT; JACK BRKT
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-98021-556-0 01 1 1509-
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1509-
