1 |

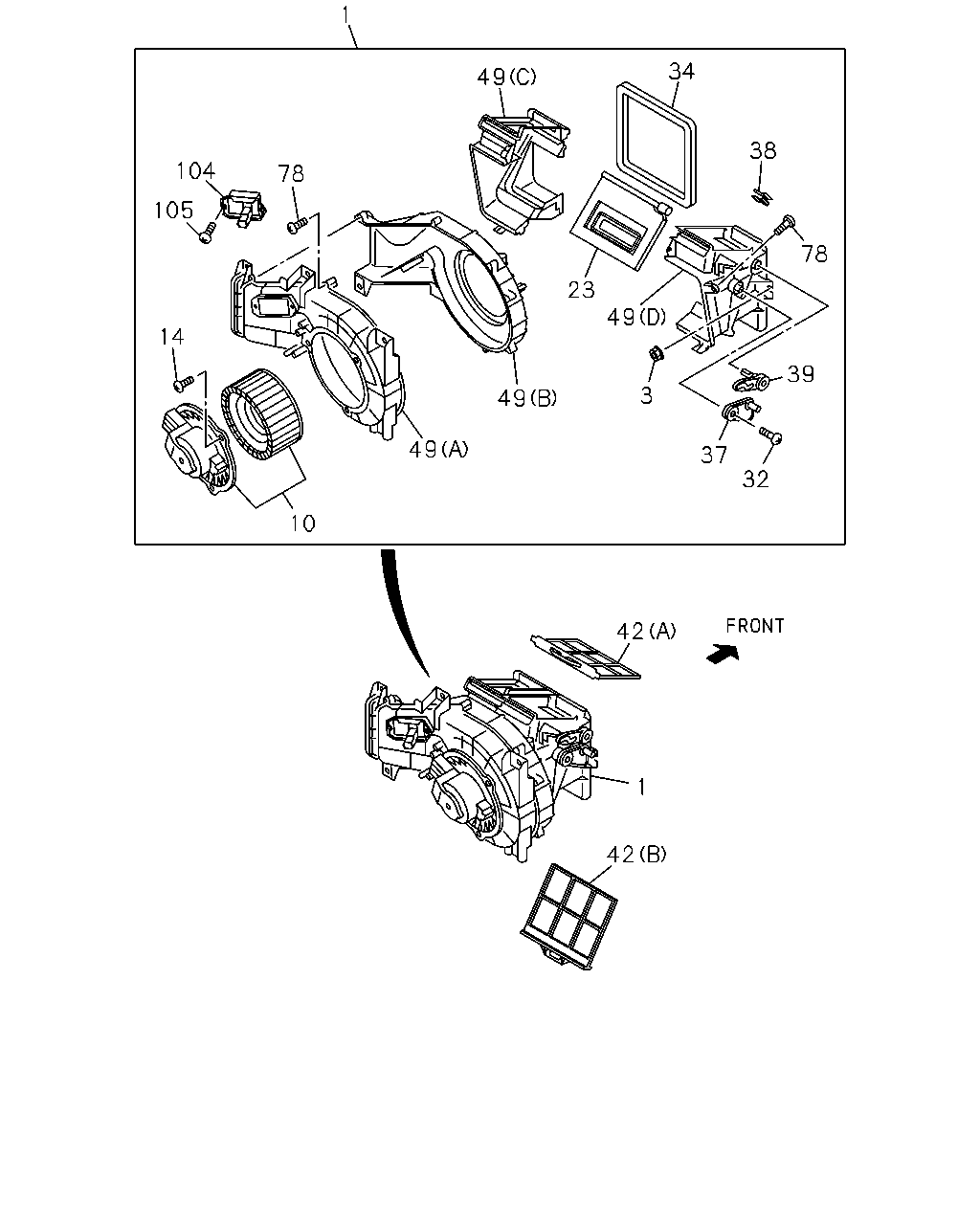

08.855 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
|
8-98183-594-0 |
01 |
1 |
1509- |
| |
3 |
08.855 NUT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
09.190
M6
|
1-83539-354-0 |
02 |
1 |
1509- |
| |
10 |
08.855 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
|
8-98183-926-0 |
01 |
1 |
1509- |
| |
14 |
08.857 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
M5X16
|
8-98047-448-0 |
03 |
1 |
1509- |
| |
23 |
08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
|
8-98047-761-0 |
01 |
1 |
1509- |
| |
32 |
08.856 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
08.852
M4X16
|
8-98047-416-0 |
01 |
1 |
1509- |
| |
34 |
08.856 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
|
8-98047-430-0 |
01 |
1 |
1509- |
| |
37 |
09.786 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
|
8-98047-453-0 |
01 |
1 |
1509- |
| |
38 |
09.787 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
08.854
|
8-98047-417-0 |
01 |
1 |
1509- |
| |
39 |
09.786 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
|
8-98047-454-0 |
01 |
1 |
1509- |
| |
42 |
08.857 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
(A)
|
8-97387-096-1 |
01 |
1 |
1509- |
| |
42 |
08.857 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
(B)
|
8-98025-006-1 |
01 |
1 |
1509- |
| |
49 |
08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
(A)
|
8-98047-444-0 |
01 |
1 |
1509- |
| |
49 |
08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
(B)
|
8-98047-445-0 |
01 |
1 |
1509- |
| |
49 |
08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
(C)
|
8-98047-446-0 |
01 |
1 |
1509- |
| |
49 |
08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
(D)
|
8-98047-447-0 |
01 |
1 |
1509- |
| |
78 |
08.857 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
08.852
M4X16 TAPPING
|
8-97957-708-0 |
15 |
1 |
1509- |
| |
104 |
08.855 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
|
8-98077-418-0 |
01 |
1 |
1509- |
| |
105 |
08.855 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
08.852
M4X16 TAPPING
|
8-97957-708-0 |
02 |
1 |
1509- |
