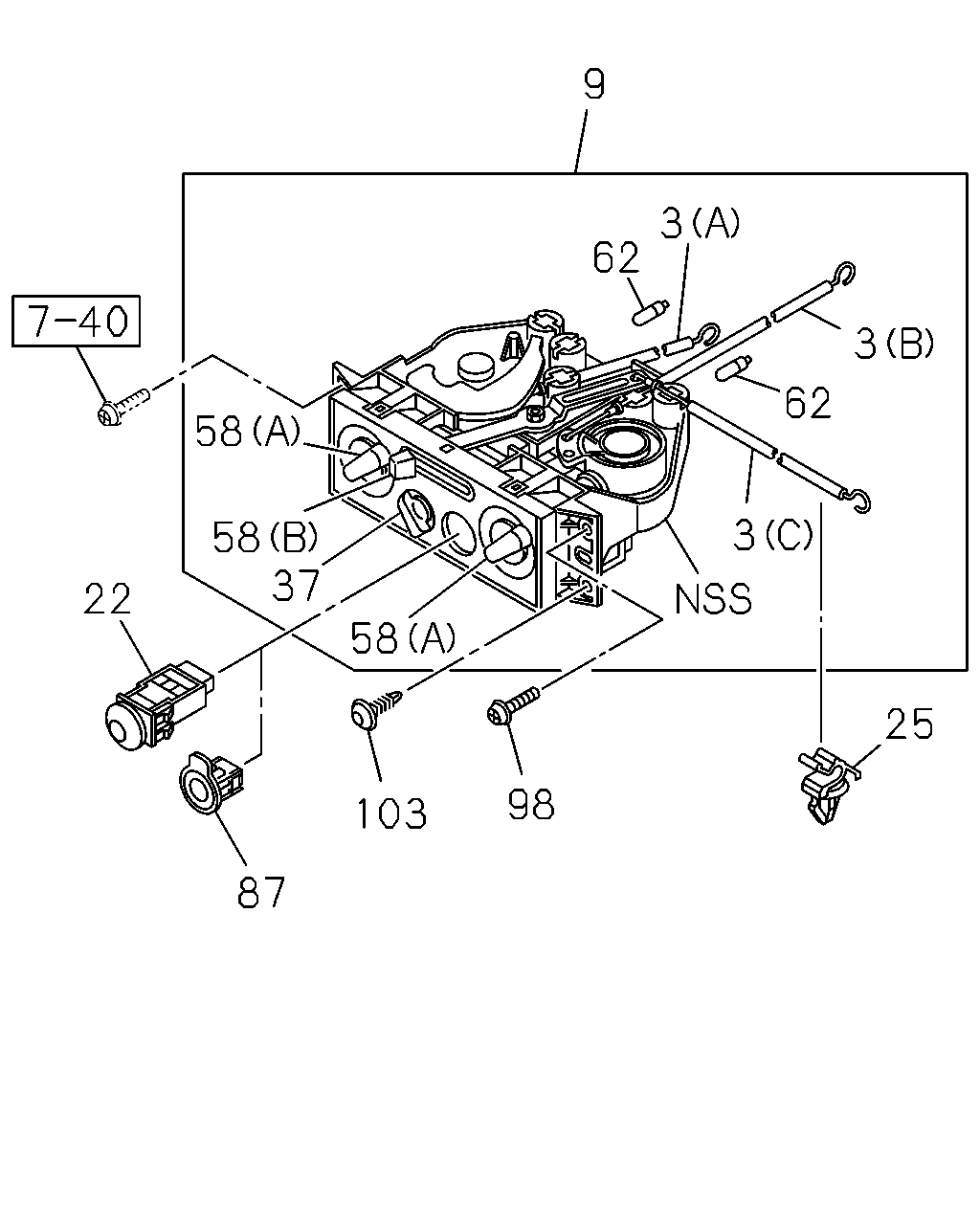

8-65 — CONTROL LEVER; HEATER AND AIR CON (#166441) — 13 parça

9 3 62 3 62 3 25 58 58 58 37 22 87 103 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE	8-98039-254-1	01	1	1509-
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX	8-98039-255-1	01	1	1509-
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH	8-98039-256-1	01	1	1509-
9	08.852 LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98067-881-1	01	1	1509-
22	08.852 SWITCH; A/C,MAIN AIR CONDITIONER MANUAL CONT(C60)	8-98021-982-0	01	1	1509-
25	08.854 CLIP; CABLE,CONT LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8	8-94128-483-0	01	1	1509-
37	08.852 KNOB; SW,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98037-368-0	01	1	1509-
58	09.787 KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98037-369-0	02	1	1509-
58	09.787 KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98037-370-0	01	1	1509-
62	08.991 BULB; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W	8-98037-371-0	02	1	1509-
87	08.849 CAP; A/C SWITCH HEATER & DEFROSTER(C41)	8-98006-089-0	01	1	1509-
98	08.852 SCREW; CONT PANEL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	1509-
103	08.854 CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY	8-97098-326-0	01	1	1509-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
