◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51637 - NQR AIR BRAKE LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#166440) — 88 parça
çizim 492552
234 235 235 236 41 207
BalonParca AdiParca NoAdetTipApplied Date
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-412-0 01 1 1509-
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1509-
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1509-
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 1509-
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 1509-
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 1509-
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1509-
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1509-

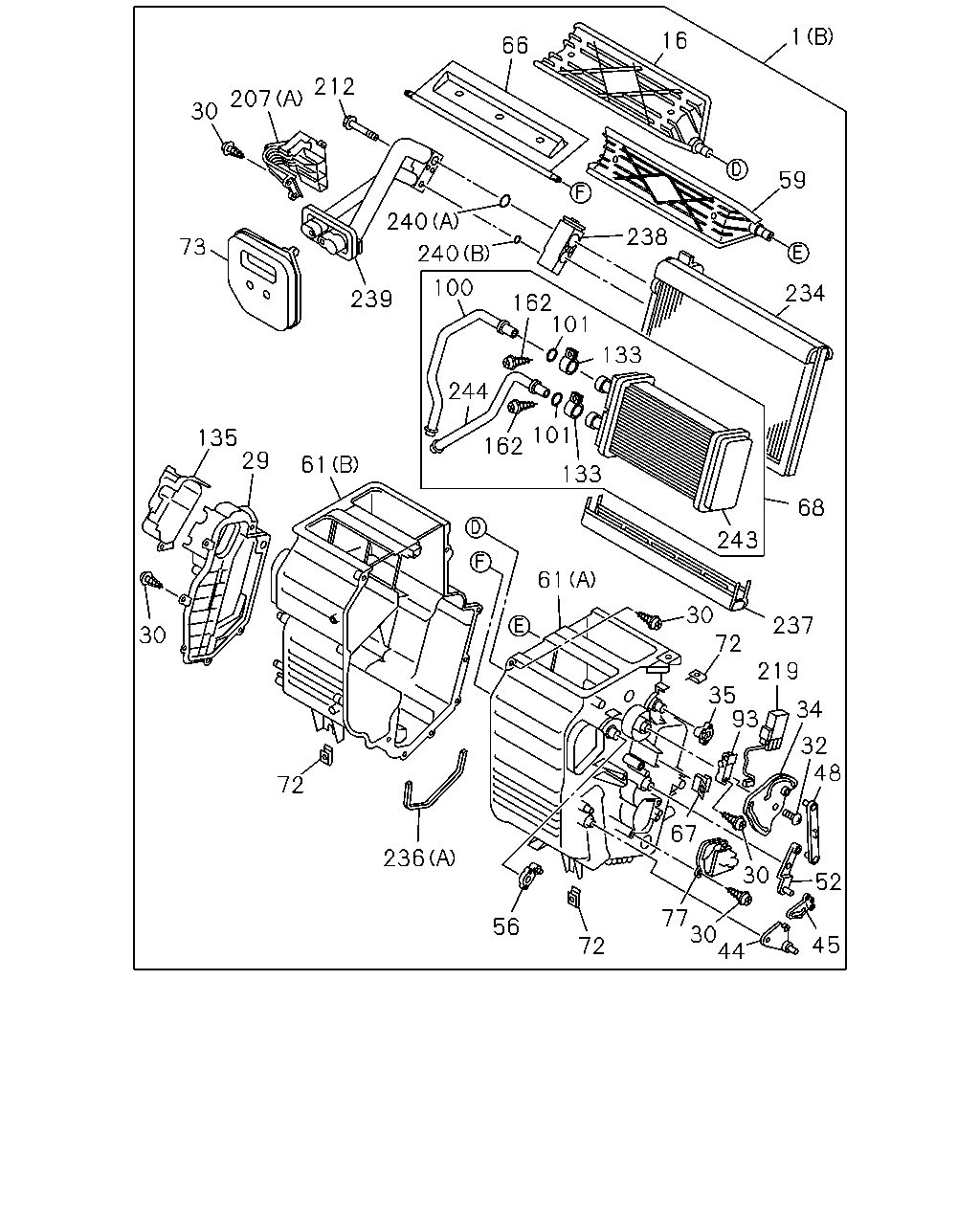

çizim 492983
1 16 66 212 207 30 73 239 240 240 100 244 162 162 101 133 101 133 243 238 234 59 68 237 219 34 32 48 52 45 44 30 77 72 56 236 72 30 135 29 61 61 30 72 35 93 67 30
BalonParca AdiParca NoAdetTipApplied Date
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1509-
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1509-
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1509-
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 1509-
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 1509-
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1509-
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 1509-
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1509-
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1509-
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-502-0 01 1 1509-
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-503-0 01 1 1509-
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1509-
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1509-
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1509-
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1509-
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-478-0 01 1 1509-
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-479-0 01 1 1509-
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1509-
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1509-
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-122-0 01 1 1509-
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1509-
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-817-0 01 1 1509-
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-491-0 01 1 1509-
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1509-
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 1509-
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-532-0 01 1 1509-
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1509-
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1509-
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-481-0 01 1 1509-
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1509-
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1509-
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1509-
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M5X61 		8-98047-415-0 02 1 1509-
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 1509-
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 1509-
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1509-
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1509-
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-382-0 01 1 1509-
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-383-0 01 1 1509-
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-504-0 01 1 1509-
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 1509-
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 1509-
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1509-
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-511-0 01 1 1509-

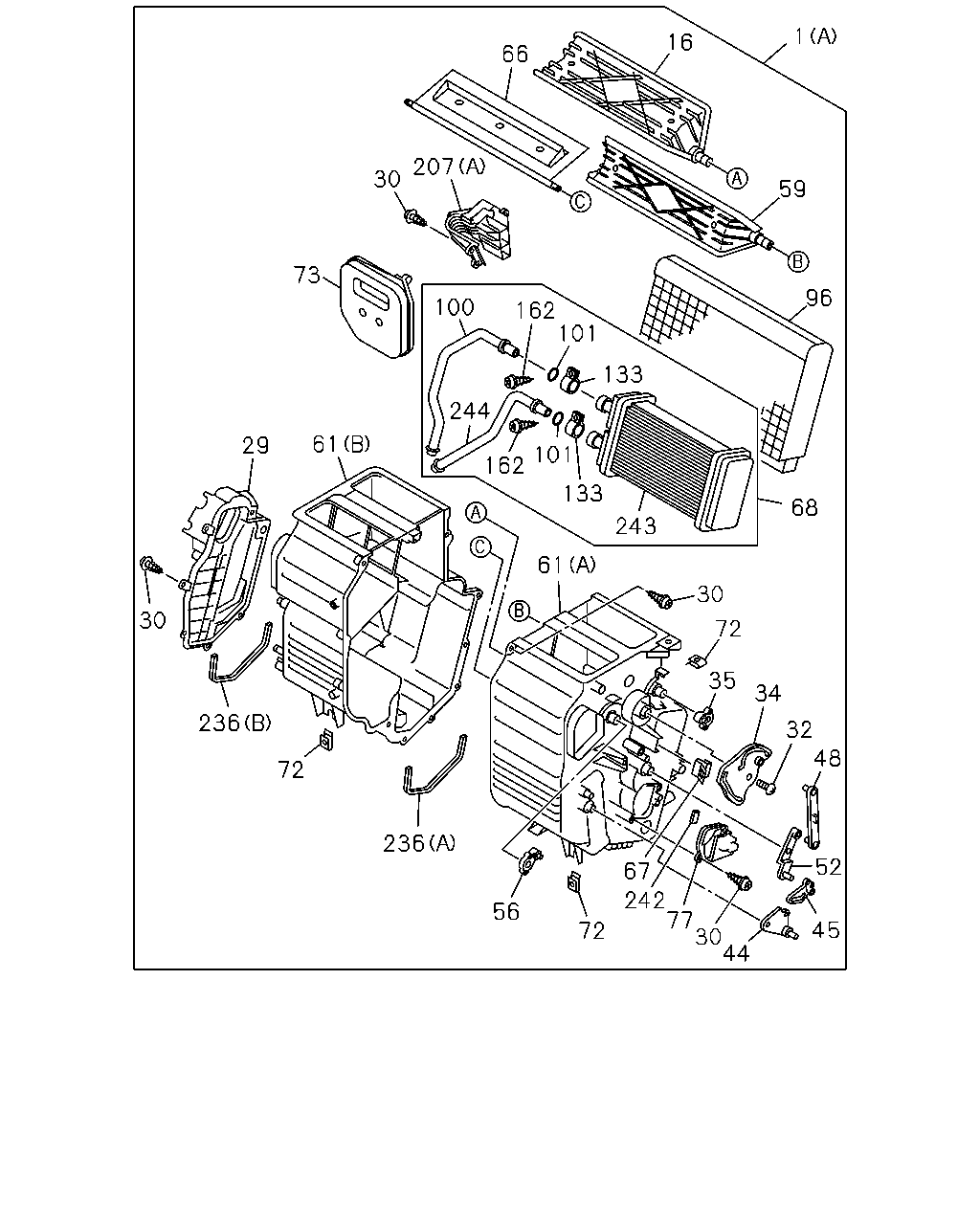

çizim 493418
45 44 30 77 242 72 67 56 236 72 236 30 29 61 162 61 30 72 35 34 32 48 52 68 243 133 101 133 101 162 100 30 73 207 66 16 1 59 96 244
BalonParca AdiParca NoAdetTipApplied Date
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1509-
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1509-
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1509-
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 1509-
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 1509-
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1509-
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 1509-
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1509-
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1509-
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-502-0 01 1 1509-
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-503-0 01 1 1509-
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1509-
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1509-
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1509-
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1509-
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-478-0 01 1 1509-
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-479-0 01 1 1509-
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1509-
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1509-
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-122-0 01 1 1509-
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1509-
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-817-0 01 1 1509-
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-491-0 01 1 1509-
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1509-
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1509-
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-532-0 01 1 1509-
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1509-
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1509-
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1509-
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1509-
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1509-
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1509-
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1509-
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1509-
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1509-
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-511-0 01 1 1509-
