Isuzu WW
▶
TRUCKS
▶
NQR
▶
51637 - NQR AIR BRAKE LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#166438) — 22 parça
◀

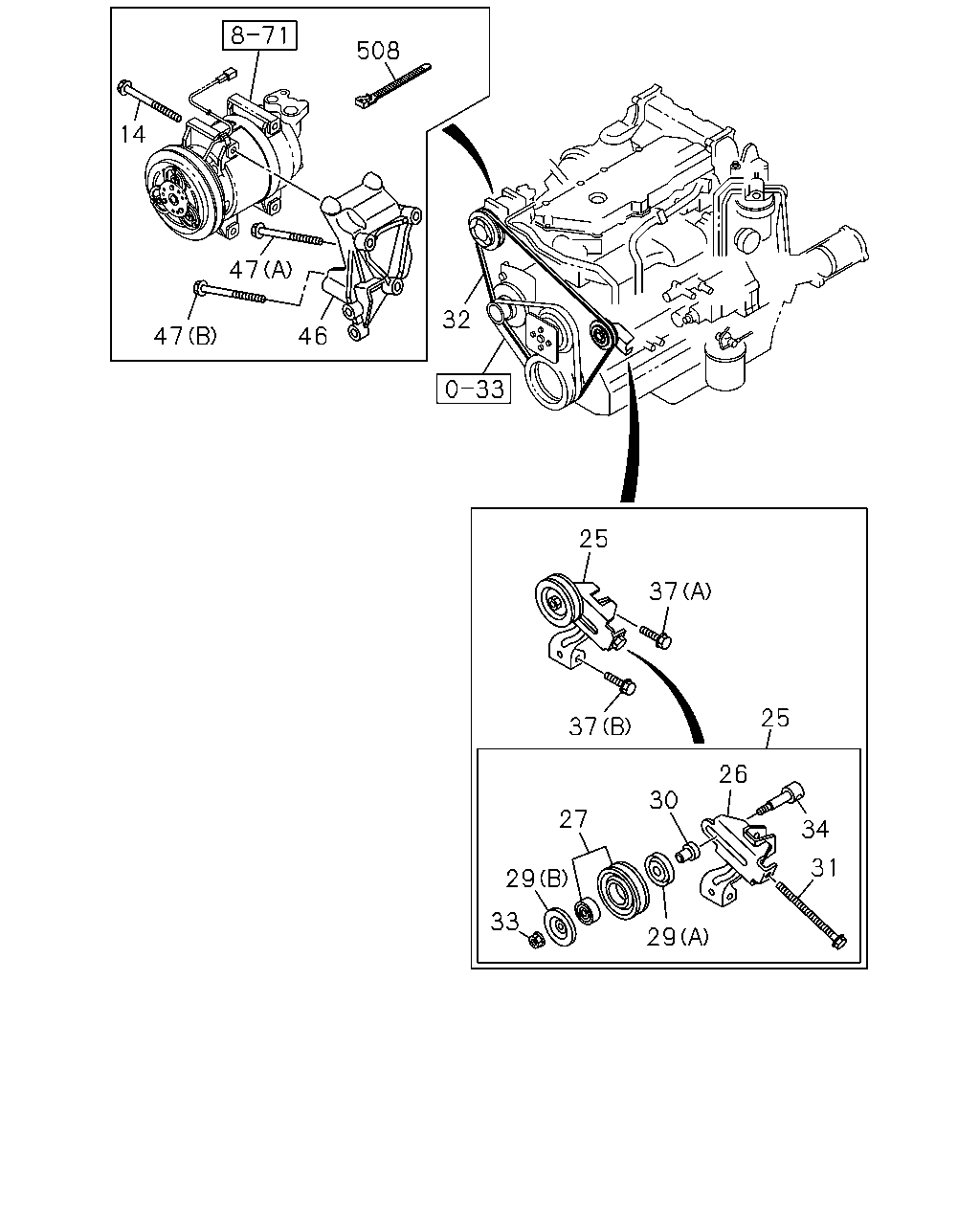

[850A] BELT AND PULLEY (17 parça)

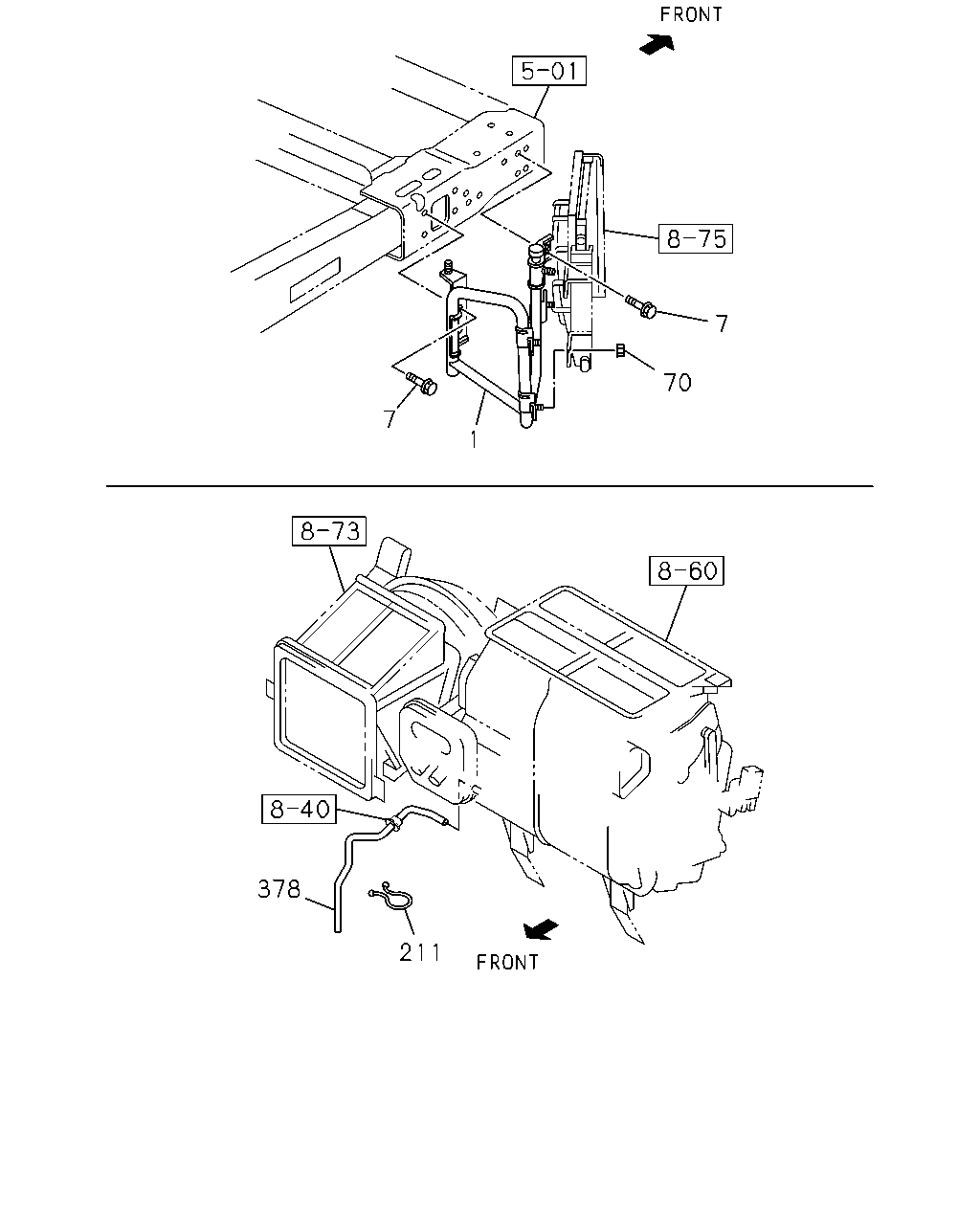

[850A] OTHER PARTS (5 parça)
▶
508
14
47
47
46
32
25
37
37
25
26
34
31
30
29
27
29
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE
0-28050-890-0
04
1
1509-
25
09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE
8-97161-198-1
01
1
1509-
26
09.180 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60)
8-97161-031-1
01
1
1509-
27
09.180 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60)
8-97386-869-0
01
1
1509-
29
09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (B)
8-97384-114-0
01
1
1509-
29
09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (A)
8-97384-115-0
01
1
1509-
30
09.181 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60)
8-97384-117-0
01
1
1509-
31
09.181 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60)
8-97384-113-0
01
1
1509-
32
01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1674
8-98010-841-1
01
1
1509-
33
09.181 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60)
8-97384-118-0
01
1
1509-
34
09.181 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60)
8-97384-116-0
01
1
1509-
37
09.173 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE
0-28050-850-0
01
1
1509-
37
09.173 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE
8-94344-540-1
01
1
1509-
46
09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 09.242
8-98006-515-3
01
1
1509-
47
09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M10X90 FLANGE
0-28151-090-0
02
1
1509-
47
09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE
0-28156-012-0
01
1
1509-
508
09.181 CLIP; HARNESS
03.162 L=140
5-09707-031-1
01
1
1509-
7
70
1
7
378
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98214-412-0
01
1
1509-
7
09.242 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 07.395 M12X30 FLANGE
0-28651-230-0
04
1
1509-
70
09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE
0-91180-108-0
04
1
1509-
211
09.190 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) 03.278
8-94463-508-0
01
1
1509-
378
09.211 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-98006-239-3
01
1
1509-
