8-28 — CHASSIS ELECTRICAL (#166435) — 19 parça

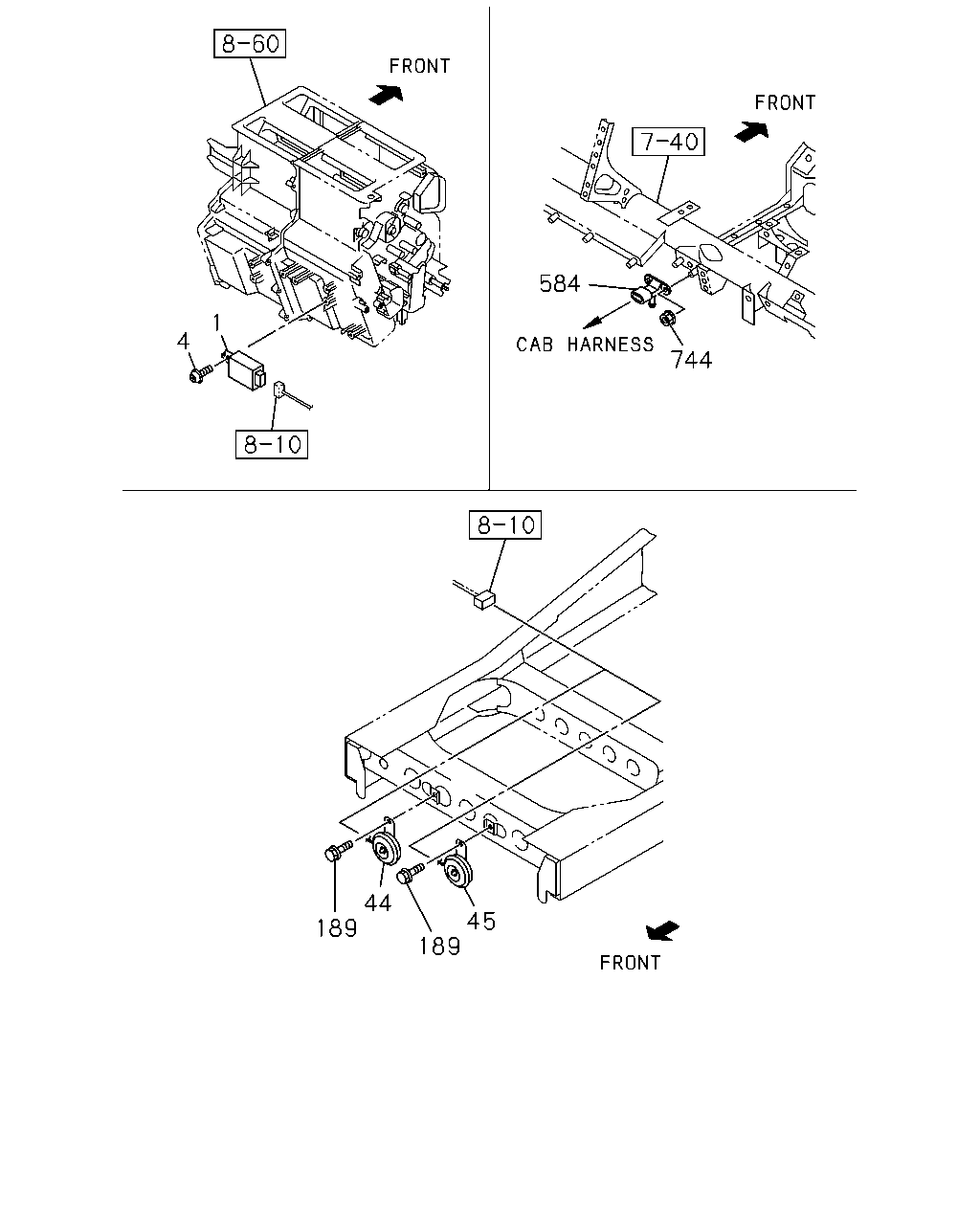

1 4 584 744 45 189 44 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.575 UNIT; FLASHER	8-98025-533-1	01	1	1509-
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-98070-080-0	01	1	1509-
45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	1509-
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN<6KK> 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1509-
189	02.812 BOLT; HORN EXC. DUAL HEAVY DUTY HORN<6KK> 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1509-
584	02.440 SENSOR; PRESSURE 03.331	8-98020-514-0	01	1	1509-
744	09.277 NUT; SENSOR 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-

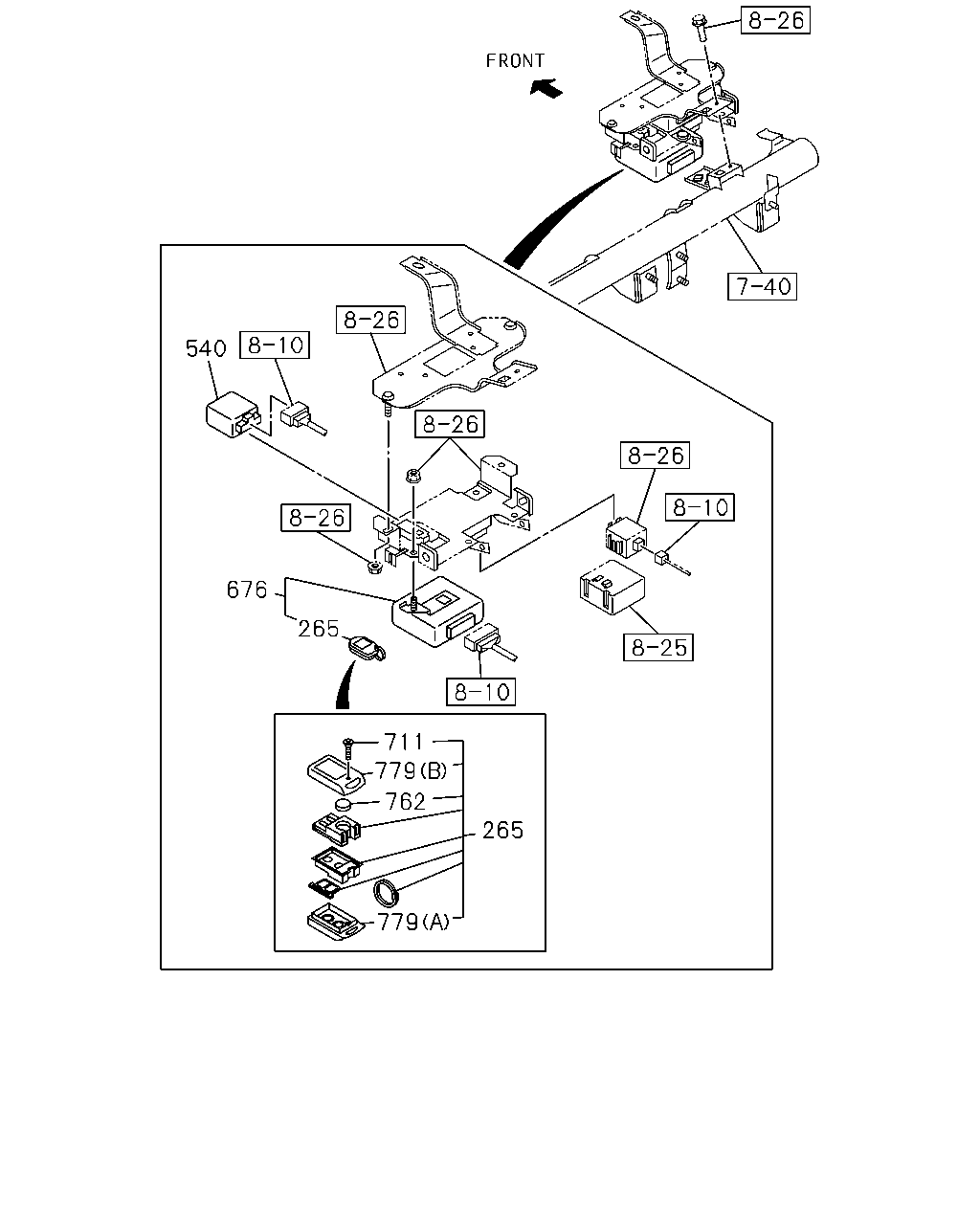

540 676 265 711 779 762 265 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98249-522-0	02	1	1509-
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1509-
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98249-524-0	01	1	1509-
711	02.510 SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1509-
762	02.559 BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	1509-
779	04.115 COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> 02.510 (A)	8-98218-240-0	02	1	1509-
779	04.115 COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> 02.510 (B)	8-98250-559-0	02	1	1509-

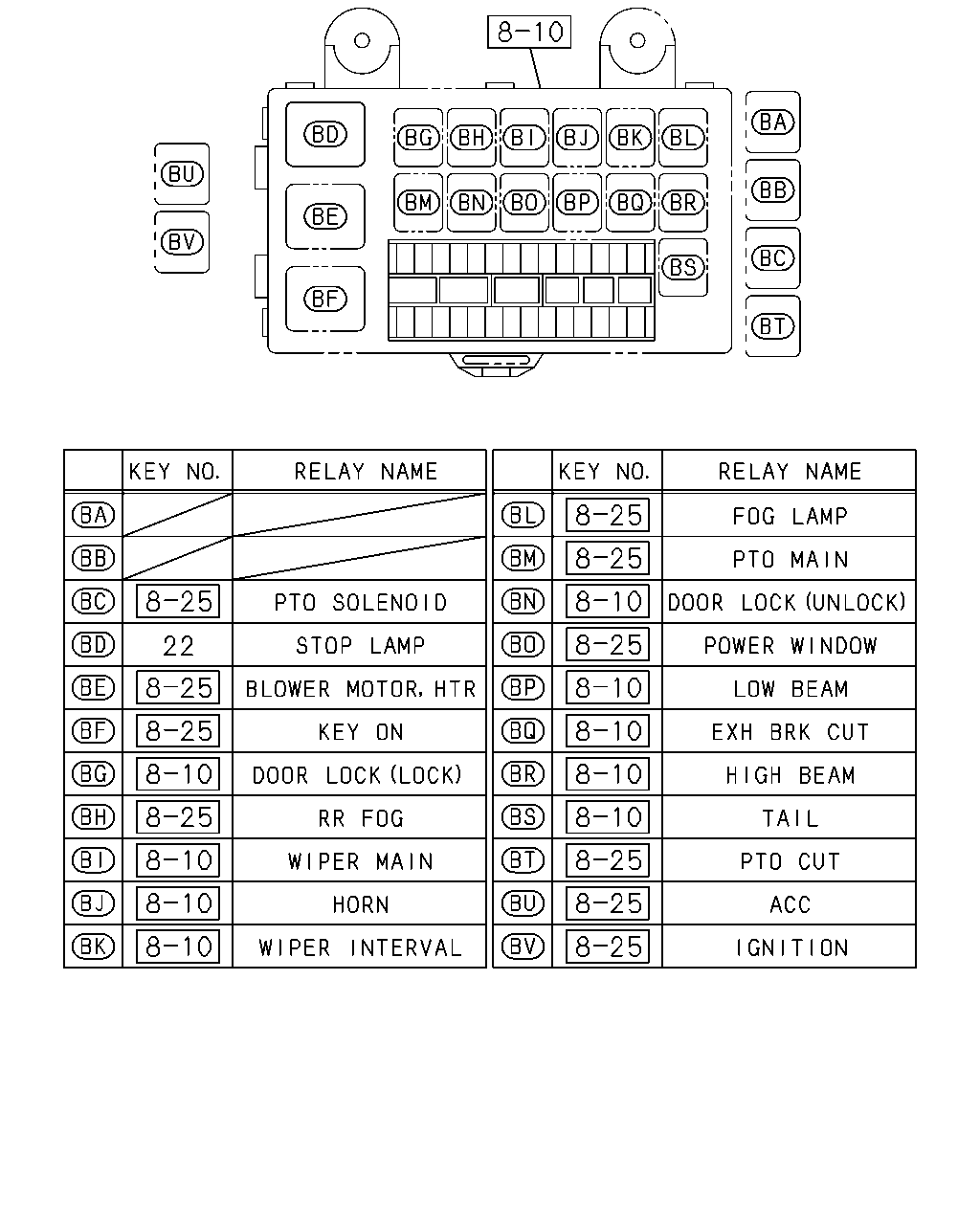

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-

333 531 666

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
333	09.277 RELAY; MARKER LAMP RR FOG LAMP<T79> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1509-
531	02.769 RELAY; MAIN 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1509-
666	02.173 RELAY; STARTER 24V 10A PANASONIC	8-98167-173-0	01	1	1509-
