◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51637 - NQR AIR BRAKE LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#166432) — 22 parça

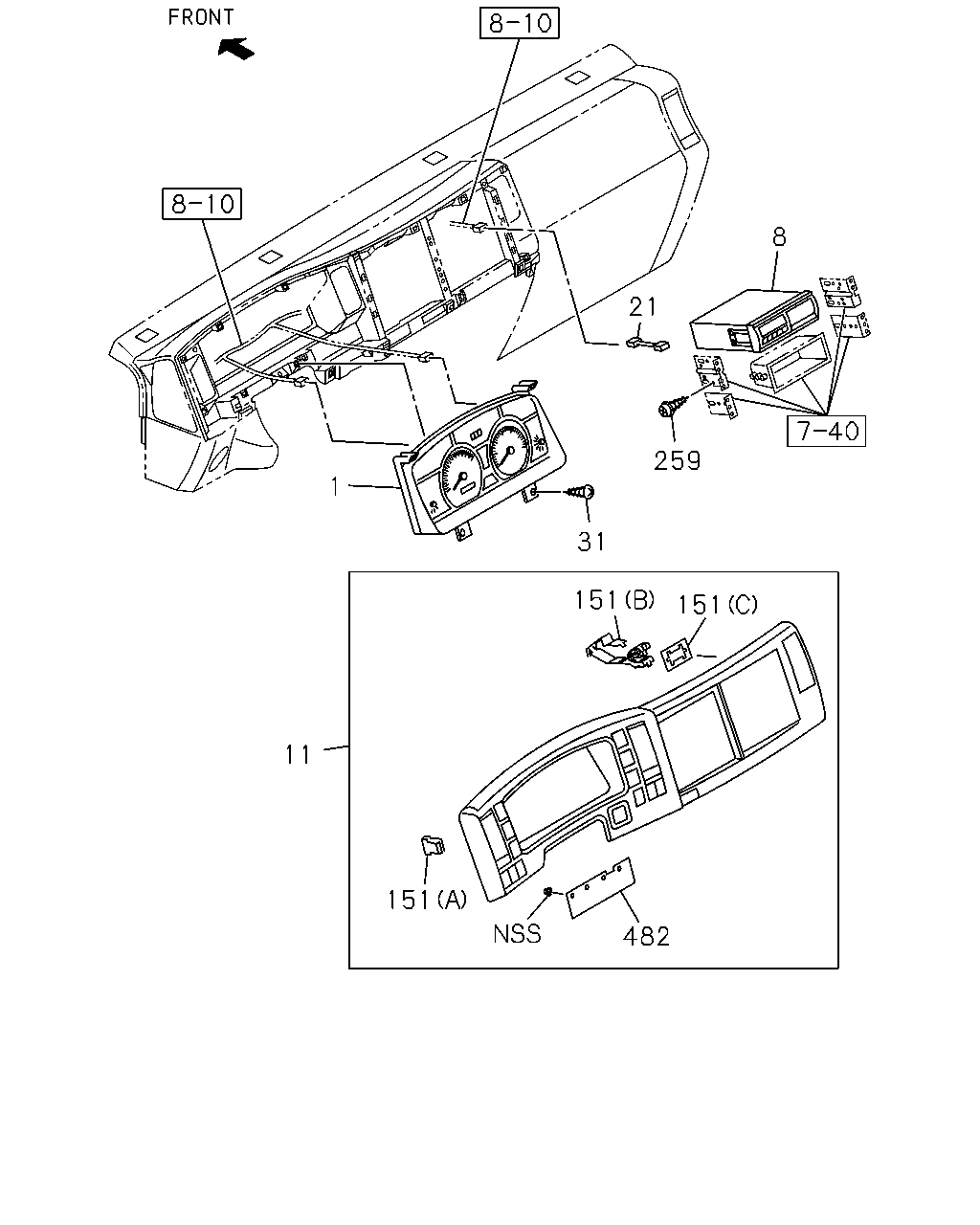

çizim 492666
8 21 259 31 1 11 151 151 151 482
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
TAIWAN EQUIPMENT(B04) EXC. SPEEDOMETER MILE<UC1> 		8-98302-037-0 01 1 1509-
1 09.735 METER COMPL; CLUSTER
CHILE EQUIPMENT(KE1) EXC. SPEEDOMETER MILE<UC1> 		8-98284-692-0 01 1 1509-
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<SM8> 		8-97387-082-2 01 1 1509-
11 09.743 CLUSTER ASM; METER
ECE R29<EFE> DARK GRAY 		8-97418-534-1 01 1 1509-
11 09.743 CLUSTER ASM; METER
EXC. ECE R29<EFE> DARK GRAY 		8-97406-005-6 01 1 1509-
21 09.743 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> 		8-98201-154-0 01 1 1509-
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1509-
151 09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.085 (A) 		8-98021-271-0 12 1 1509-
151 09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.090 (B) 		8-98152-030-0 01 1 1509-
151 09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.090 (C) 		8-98152-031-0 01 1 1509-
151 09.747 CLIP; METER CLUSTER
EXC. ECE R29<EFE> 16.085 (A) 		8-98021-271-0 13 1 1509-
259 09.772 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> 09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1509-
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 1509-

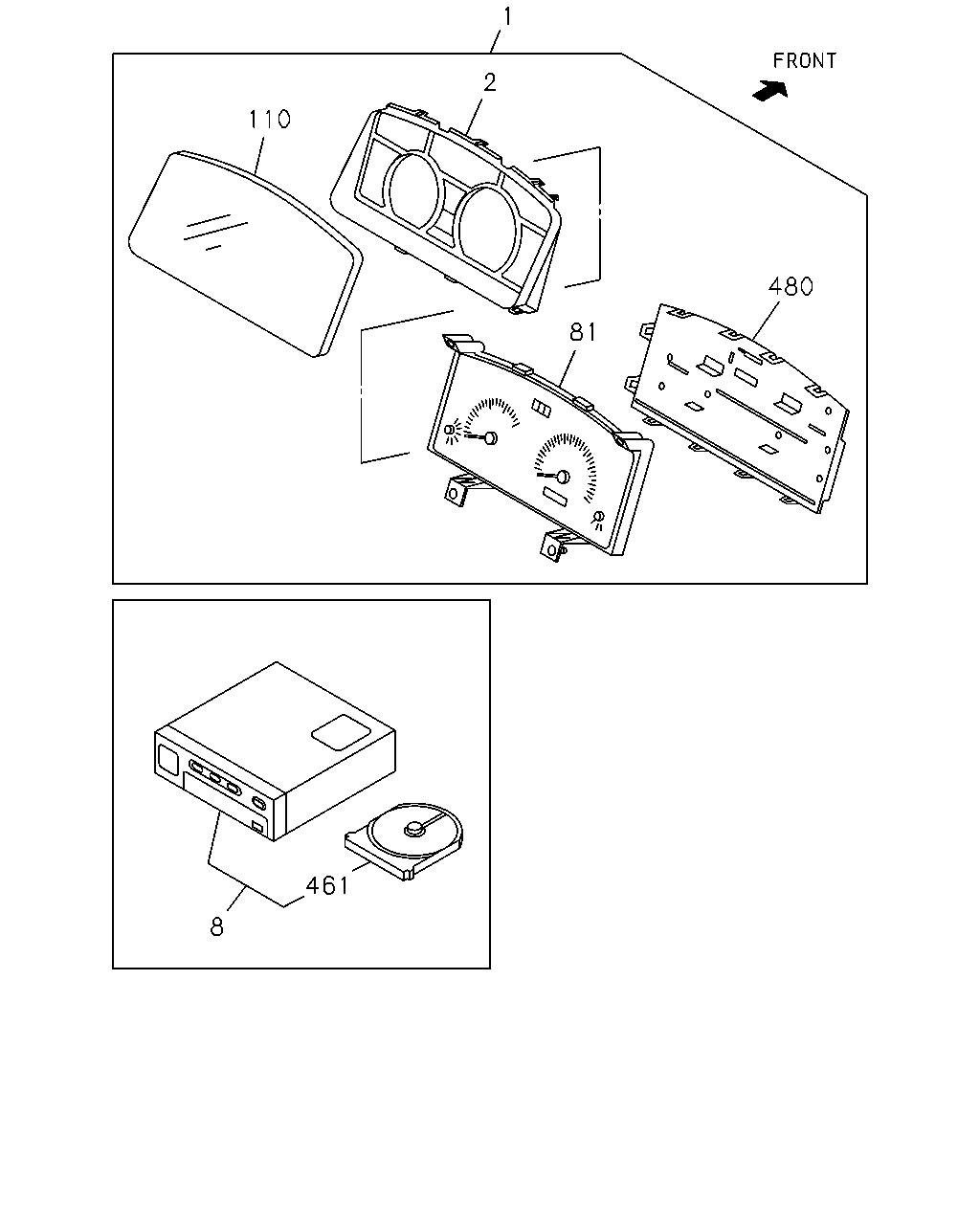

çizim 492671
1 2 110 81 480 8 461
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
TAIWAN EQUIPMENT(B04) EXC. SPEEDOMETER MILE<UC1> 		8-98302-037-0 01 1 1509-
1 09.735 METER COMPL; CLUSTER
CHILE EQUIPMENT(KE1) EXC. SPEEDOMETER MILE<UC1> 		8-98284-692-0 01 1 1509-
2 09.735 PANEL; CLUSTER
EXC. SPEEDOMETER MILE<UC1> 		8-98054-432-0 01 1 1509-
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<SM8> 		8-97387-082-2 01 1 1509-
81 09.735 METER SUB ASM
TAIWAN EQUIPMENT(B04) EXC. SPEEDOMETER MILE<UC1> 		8-98302-865-0 01 1 1509-
81 09.735 METER SUB ASM
CHILE EQUIPMENT(KE1) EXC. SPEEDOMETER MILE<UC1> 		8-98302-862-0 01 1 1509-
110 09.748 GLASS; CLUSTER METER
EXC. SPEEDOMETER MILE<UC1> 		8-98054-431-0 01 1 1509-
461 09.750 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> 		1-83129-433-0 01 1 1509-
480 09.748 COVER; METER
EXC. SPEEDOMETER MILE<UC1> BLACK 		8-98054-433-0 01 1 1509-
