8-15 — FIXING PARTS; WIRING HARNESS (#166430) — 160 parça

483 483 483 483 483 570 14 102 16 14 102 16 483 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	02.559 CLIP; BAND,HARNESS CATALYSIS CONTROL(6MZ) 03.162 (B) L=140	5-09707-031-1	03	1	1509-
14	02.559 CLIP; BAND,HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 09.242 (A) L=150	8-97355-273-0	03	1	1509-
14	02.559 CLIP; BAND,HARNESS CATALYSIS CONTROL(6MZ) 09.242 (A) L=150	8-97355-273-0	03	1	1509-
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	1509-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1509-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1509-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1509-
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1509-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1509-
16	02.559 CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	1509-
16	02.559 CLIP; HARNESS 03.483 (B)	8-97101-436-0	01	1	1509-
102	02.559 CLIP; BAND CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (C) L=152	8-98132-426-0	01	1	1510-
102	02.559 CLIP; BAND CATALYSIS CONTROL(6MZ) 03.162 (A) L=140	5-09707-031-1	02	1	1509-
102	02.559 CLIP; BAND CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 03.162 (A) L=140	5-09707-031-1	04	1	1509-
102	02.559 CLIP; BAND CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 04.342 (B) L=197	1-83574-032-0	01	1	1509-
102	02.559 CLIP; BAND CATALYSIS CONTROL(6MZ) 04.342 (B) L=197	1-83574-032-0	01	1	1509-
102	02.559 CLIP; BAND CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (C) L=152	8-98132-426-0	01	1	1509-1509
102	02.559 CLIP; BAND CATALYSIS CONTROL(6MZ) (C) L=152	8-98132-426-0	01	1	1509-1509
102	02.559 CLIP; BAND CATALYSIS CONTROL(6MZ) (C) L=152	8-98132-426-0	02	1	1510-
483	02.559 CLIP; ENG HARNESS FRIGID ZONE(YL3) CATALYSIS CONTROL(6MZ) 06.602 (F) ID=15 H=24 L=20	1-09700-606-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS FRIGID ZONE(YL3) CATALYSIS CONTROL(6MZ) (B) L=250	5-09707-030-1	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL(6MZ) (C) ID=21 L=47.5	8-94178-108-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL(6MZ) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL(6MZ) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 01.152 (E) L=36	8-94224-891-1	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL(6MZ) 01.152 (E) L=36	8-94224-891-1	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (G) ID=33 L=30	8-97619-250-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL(6MZ) (G) ID=33 L=30	8-97619-250-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (H) ID=12	8-98170-218-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL(6MZ) (H) ID=12	8-98170-218-0	01	1	1509-
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1509-

48 48 483 48 16 16 572 48 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	1509-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1509-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1509-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1509-
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1509-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1509-
16	02.559 CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	1509-
16	02.559 CLIP; HARNESS 03.483 (B)	8-97101-436-0	01	1	1509-
48	02.559 CLIP; FRAME HARNESS 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1509-
48	02.559 CLIP; FRAME HARNESS CATALYSIS CONTROL WITH DPD(8JM) (A) ID=20	8-94241-972-0	01	1	1509-
48	02.559 CLIP; FRAME HARNESS CATALYSIS CONTROL WITH DPD(8JM) (D) T=4.5 & 9	8-97371-947-0	01	1	1509-
48	02.559 CLIP; FRAME HARNESS CATALYSIS CONTROL WITH DPD(8JM) (E) T=5.5	8-97371-951-0	01	1	1509-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1509-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1509-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (B) ID=14 L=47	5-09700-319-0	05	1	1509-
483	02.559 CLIP; ENG HARNESS FRIGID ZONE(YL3) CATALYSIS CONTROL(6MZ) 06.602 (F) ID=15 H=24 L=20	1-09700-606-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS FRIGID ZONE(YL3) CATALYSIS CONTROL(6MZ) (B) L=250	5-09707-030-1	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL(6MZ) (C) ID=21 L=47.5	8-94178-108-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL(6MZ) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL(6MZ) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 01.152 (E) L=36	8-94224-891-1	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL(6MZ) 01.152 (E) L=36	8-94224-891-1	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (G) ID=33 L=30	8-97619-250-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL(6MZ) (G) ID=33 L=30	8-97619-250-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (H) ID=12	8-98170-218-0	01	1	1509-
483	02.559 CLIP; ENG HARNESS CATALYSIS CONTROL(6MZ) (H) ID=12	8-98170-218-0	01	1	1509-
572	02.559 CLIP; HARNESS,SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> ID=11 L=20	0-95235-035-0	02	1	1509-

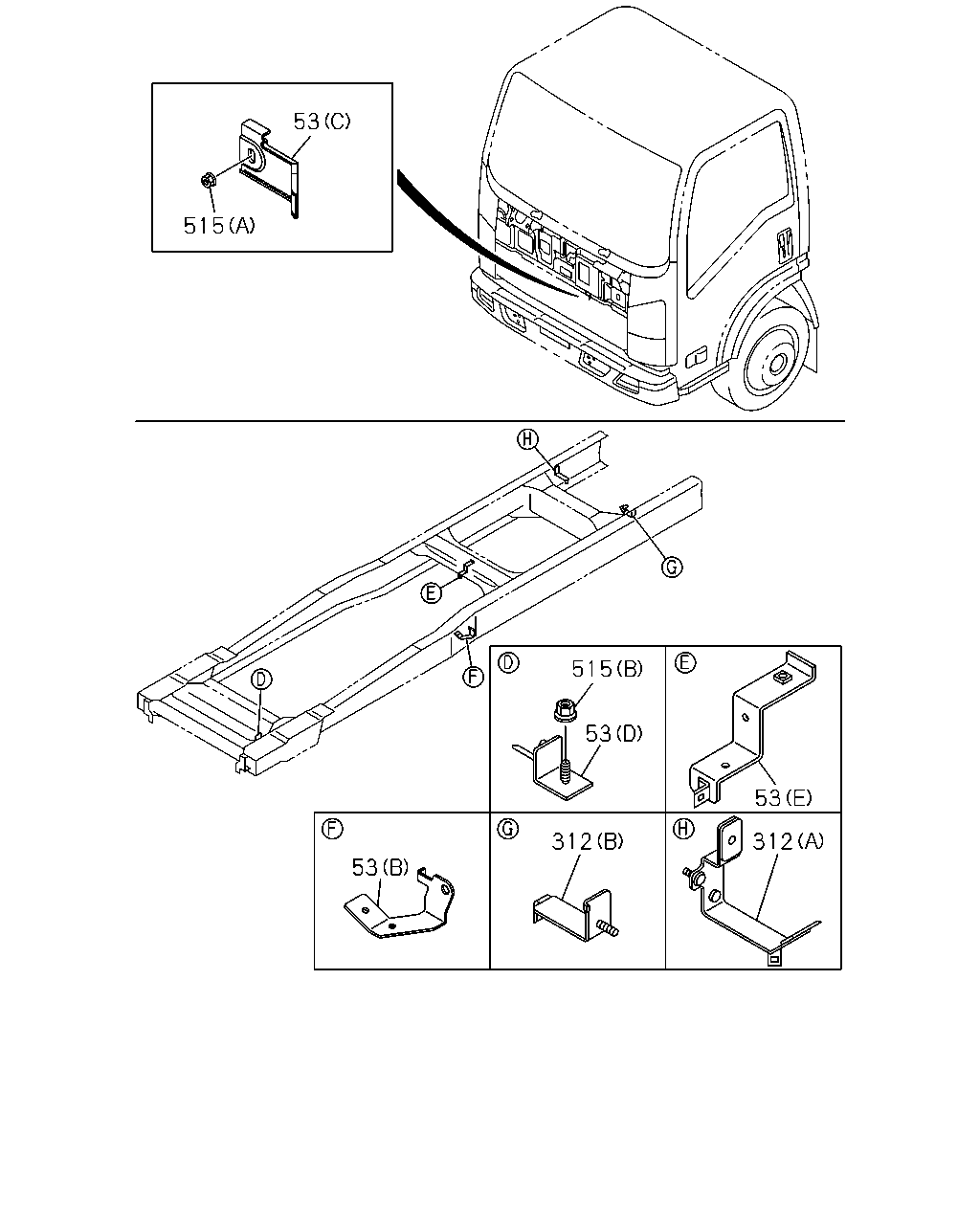

53 515 515 53 53 312 312 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1509-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1509-
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REMOTE CONT DOOR LOCK<6NF> (G)	8-98074-502-0	01	1	1509-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1509-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1509-
53	02.483 BRACKET; HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 02.559 (F)	8-98052-804-0	01	1	1509-
53	02.483 BRACKET; HARNESS CATALYSIS CONTROL(6MZ) 02.559 (F)	8-98052-804-0	01	1	1509-
53	02.483 BRACKET; HARNESS (E)	8-98077-504-0	01	1	1509-
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1509-
312	02.559 BRACKET; CLIP HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98202-865-0	01	1	1509-
312	02.559 BRACKET; CLIP HARNESS (A)	8-98202-866-0	01	1	1509-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1509-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1509-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1509-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1509-

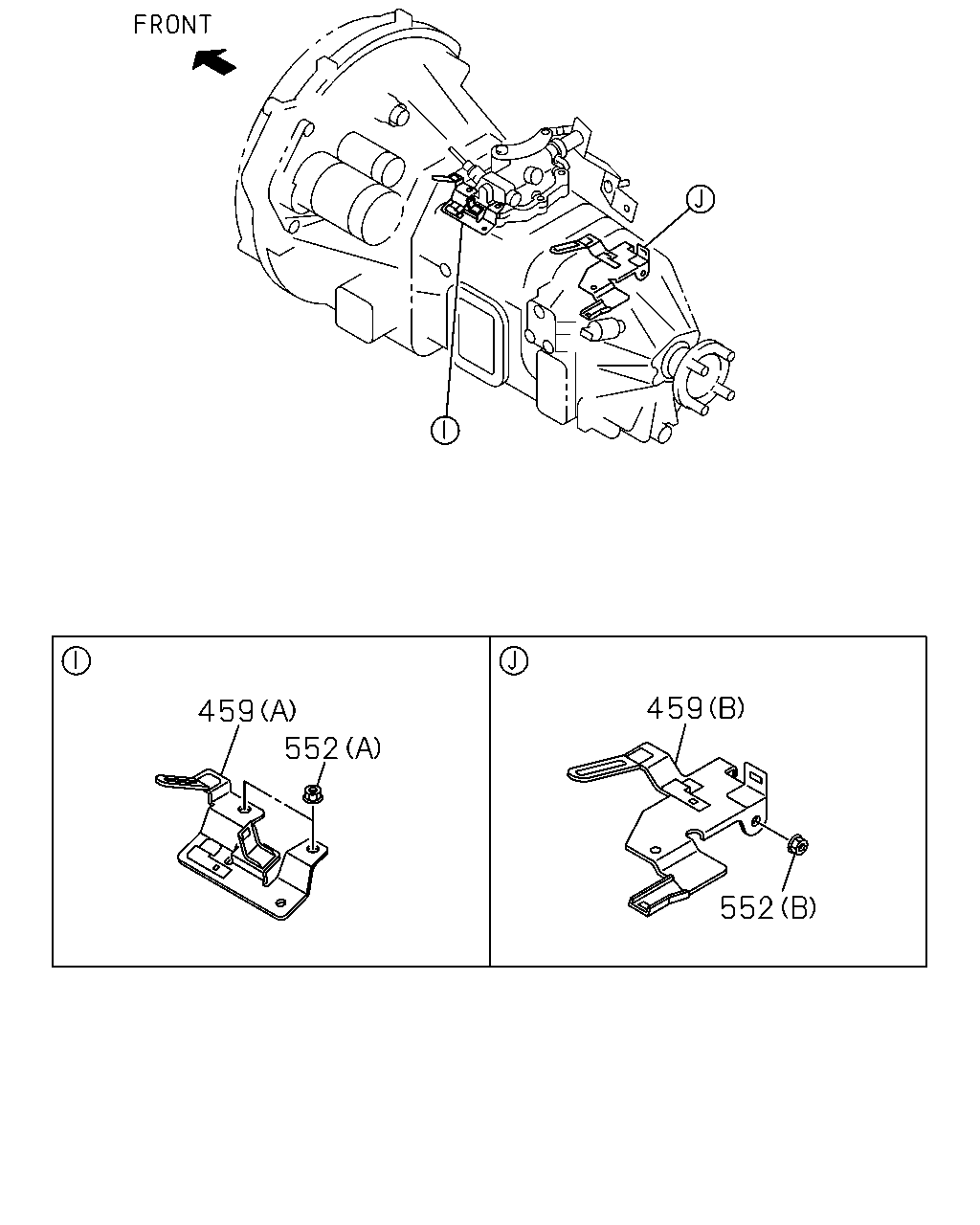

459 552 459 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1509-
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98196-974-0	01	1	1509-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1509-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-
552	02.483 NUT; BRKT,HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1509-

516 139 313 150 481 38 150 139 139 481 150 86 529 480 304 480 377 377 386 386 24 294 515 577 515 552 24 515 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1509-
24	02.559 NUT; HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1509-
38	02.559 BOLT; CLIP,HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-
86	02.559 BOLT; CLIP BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1509-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1509-
150	02.343 BOLT; CLIP CATALYSIS CONTROL(6MZ) 00.413 (B) M6X20	8-97127-607-0	01	1	1509-
150	02.343 BOLT; CLIP FRIGID ZONE(YL3) CATALYSIS CONTROL(6MZ) (C) M8X12 FLANGE	0-28050-812-0	02	1	1509-
150	02.343 BOLT; CLIP CATALYSIS CONTROL(6MZ) (C) M8X12 FLANGE	0-28050-812-0	01	1	1509-
150	02.343 BOLT; CLIP CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (A) M8X16 FLANGE	0-28050-816-0	01	1	1509-
150	02.343 BOLT; CLIP CATALYSIS CONTROL(6MZ) (A) M8X16 FLANGE	0-28050-816-0	01	1	1509-
294	02.559 NUT 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	1509-
304	02.483 BOLT; ENG HARNESS CLIP CATALYSIS CONTROL(6MZ) 00.029 M10X16 FLANGE	0-28151-016-0	01	1	1509-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1509-
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1509-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1509-
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1509-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1509-
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-
480	02.483 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1509-
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1509-
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1509-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1509-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1509-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1509-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1509-
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1509-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1509-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1509-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-
552	02.483 NUT; BRKT,HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1509-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-

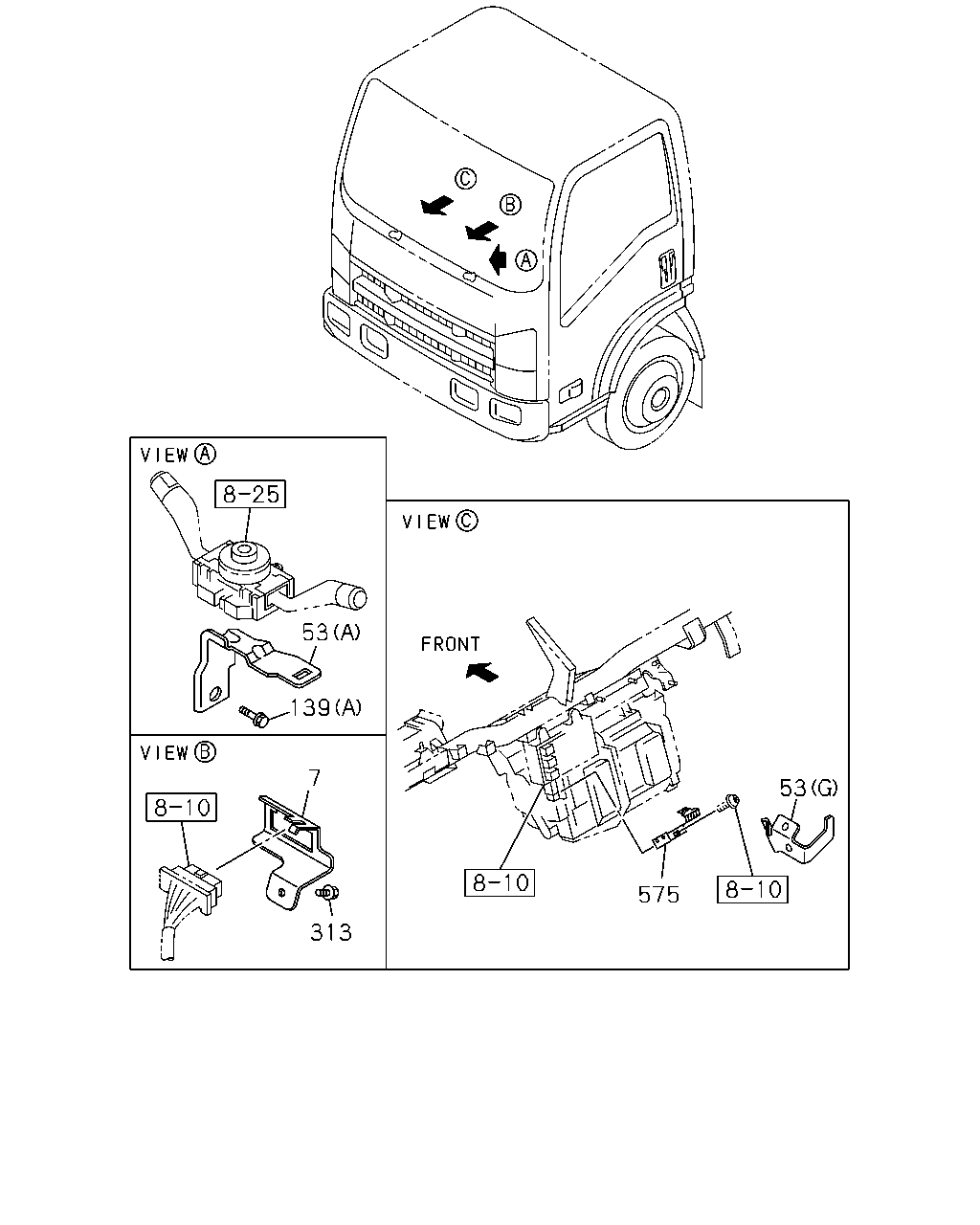

53 139 313 575 53 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR	8-98043-070-1	01	1	1509-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1509-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1509-
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REMOTE CONT DOOR LOCK<6NF> (G)	8-98074-502-0	01	1	1509-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1509-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1509-
53	02.483 BRACKET; HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 02.559 (F)	8-98052-804-0	01	1	1509-
53	02.483 BRACKET; HARNESS CATALYSIS CONTROL(6MZ) 02.559 (F)	8-98052-804-0	01	1	1509-
53	02.483 BRACKET; HARNESS (E)	8-98077-504-0	01	1	1509-
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1509-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1509-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1509-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1509-
575	02.559 BRACKET; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	1509-
575	02.559 BRACKET; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98132-932-1	01	1	1509-

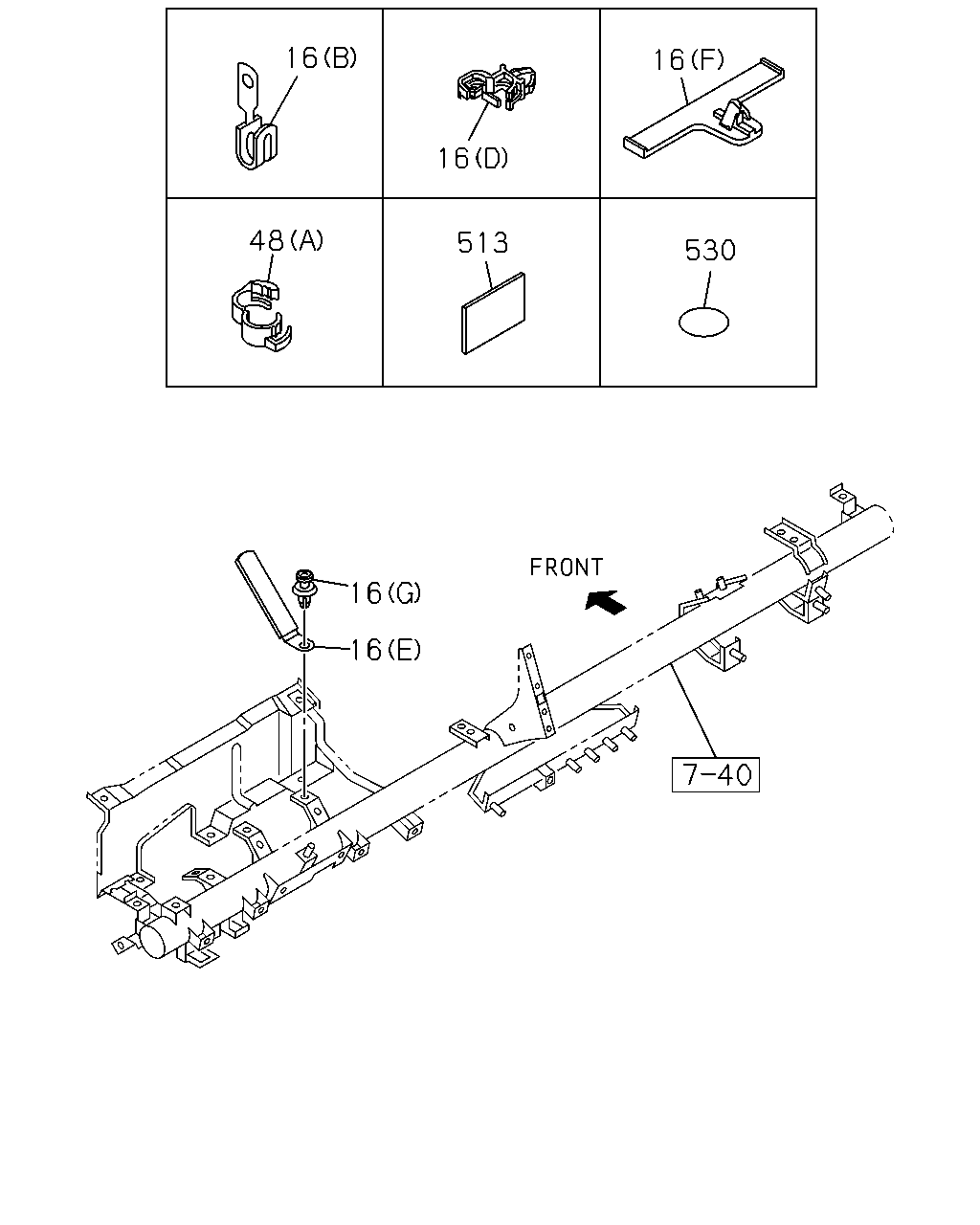

16 16 16 530 513 48 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	1509-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1509-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1509-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1509-
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1509-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1509-
16	02.559 CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	1509-
16	02.559 CLIP; HARNESS 03.483 (B)	8-97101-436-0	01	1	1509-
48	02.559 CLIP; FRAME HARNESS 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1509-
48	02.559 CLIP; FRAME HARNESS CATALYSIS CONTROL WITH DPD(8JM) (A) ID=20	8-94241-972-0	01	1	1509-
48	02.559 CLIP; FRAME HARNESS CATALYSIS CONTROL WITH DPD(8JM) (D) T=4.5 & 9	8-97371-947-0	01	1	1509-
48	02.559 CLIP; FRAME HARNESS CATALYSIS CONTROL WITH DPD(8JM) (E) T=5.5	8-97371-951-0	01	1	1509-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1509-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1509-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (B) ID=14 L=47	5-09700-319-0	05	1	1509-
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	1509-
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1509-
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	1509-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1509-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1509-
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REMOTE CONT DOOR LOCK<6NF> (G)	8-98074-502-0	01	1	1509-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1509-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1509-
53	02.483 BRACKET; HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 02.559 (F)	8-98052-804-0	01	1	1509-
53	02.483 BRACKET; HARNESS CATALYSIS CONTROL(6MZ) 02.559 (F)	8-98052-804-0	01	1	1509-
53	02.483 BRACKET; HARNESS (E)	8-98077-504-0	01	1	1509-
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1509-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
