◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51637 - NQR AIR BRAKE LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#166429) — 141 parça

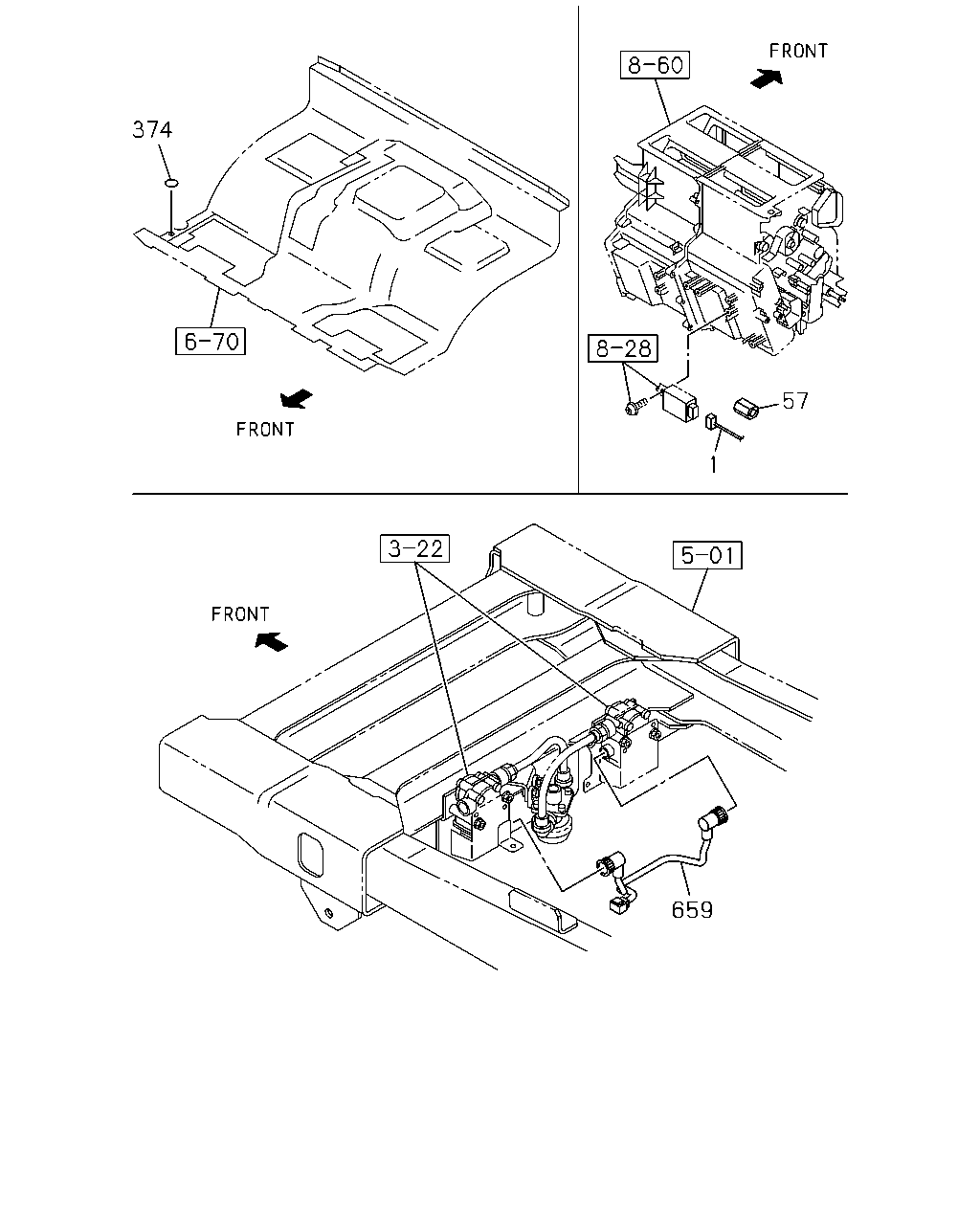

çizim 492628
57 1 374 659
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> REMOTE CONT DOOR LOCK<6NF> 		8-98210-965-0 01 1 1509-
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98210-964-0 01 1 1509-1509
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98315-836-0 01 1 1509-
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98247-966-0 01 1 1509-1509
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98315-837-0 01 1 1509-
57 02.483 FILTER; FUSE BOX 8-98211-338-0 01 1 1509-
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 1509-1509
374 02.530 PLUG; HARNESS CONNECTOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.545 OD=32 BLACK 		8-98031-126-0 01 1 1509-
659 02.480 HARNESS; EXT,BRAKE VALVE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-762-2 01 1 1509-

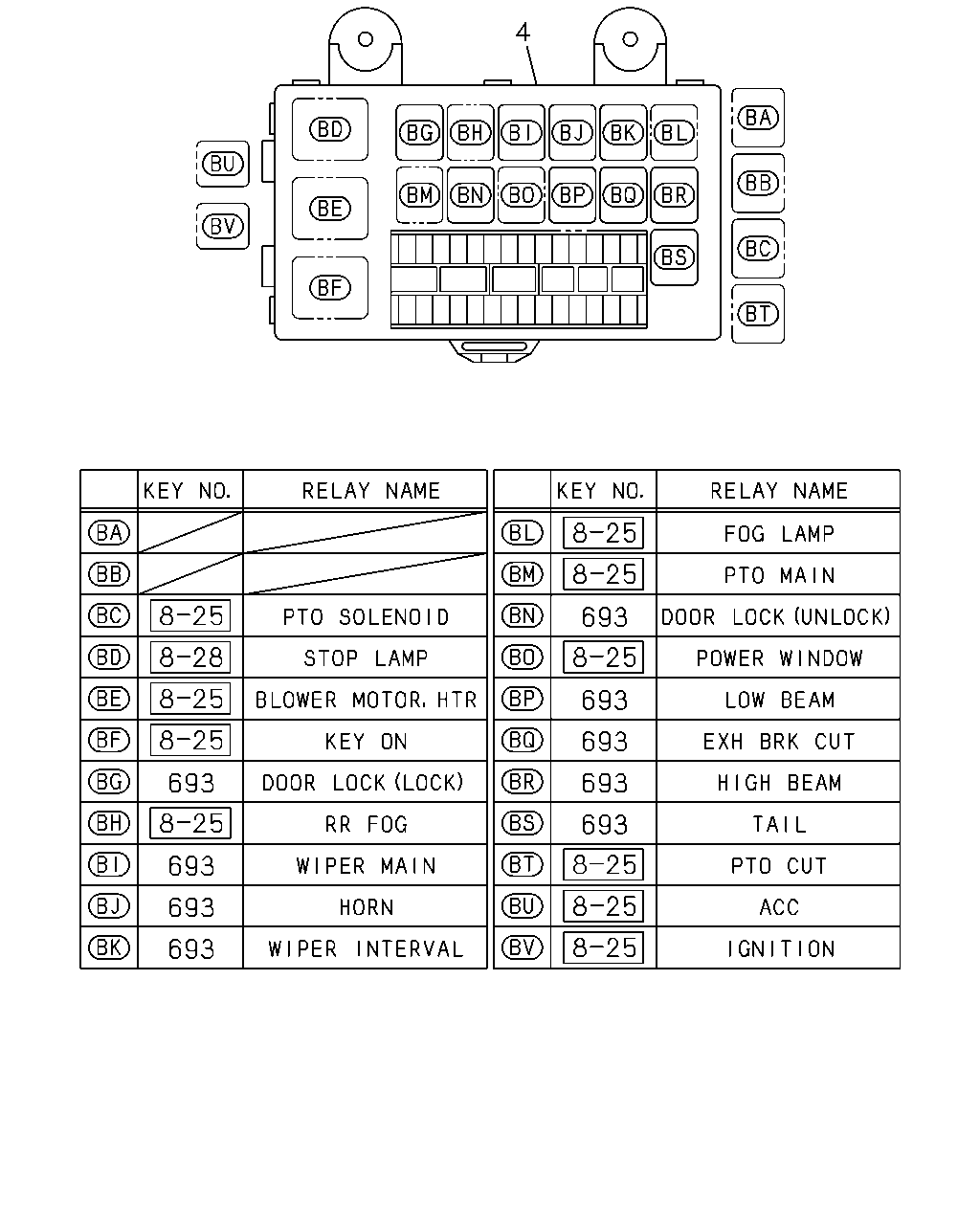

çizim 492635
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1509-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1509-

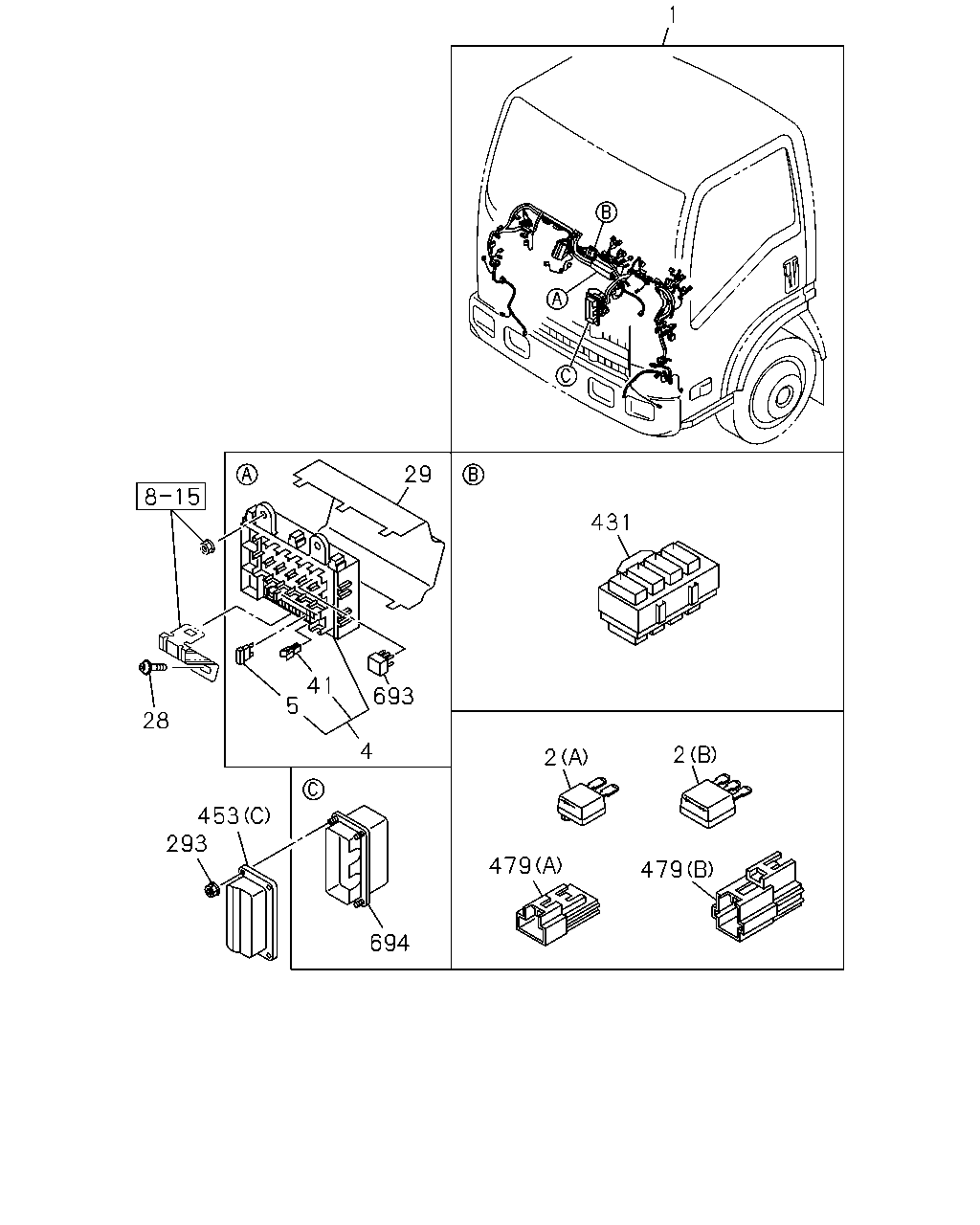

çizim 492647
1 28 453 293 694 4 41 5 29 693 431 2 2 479 479
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> REMOTE CONT DOOR LOCK<6NF> 		8-98210-965-0 01 1 1509-
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98210-964-0 01 1 1509-1509
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98315-836-0 01 1 1509-
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98247-966-0 01 1 1509-1509
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98315-837-0 01 1 1509-
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1509-
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1509-
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1509-
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1509-
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1509-
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1509-
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509-
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 1509-
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1509-
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1509-
431 02.530 CONNECTOR; JOINT 8-98046-206-0 01 1 1509-
453 02.483 PROTECTOR; HARNESS
(C) 		8-98057-647-0 01 1 1509-
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1509-
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 02 1 1509-
479 02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 1509-
479 02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 1509-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1509-
694 02.483 BOX ASM; CONNECTOR 8-98190-772-0 01 1 1509-

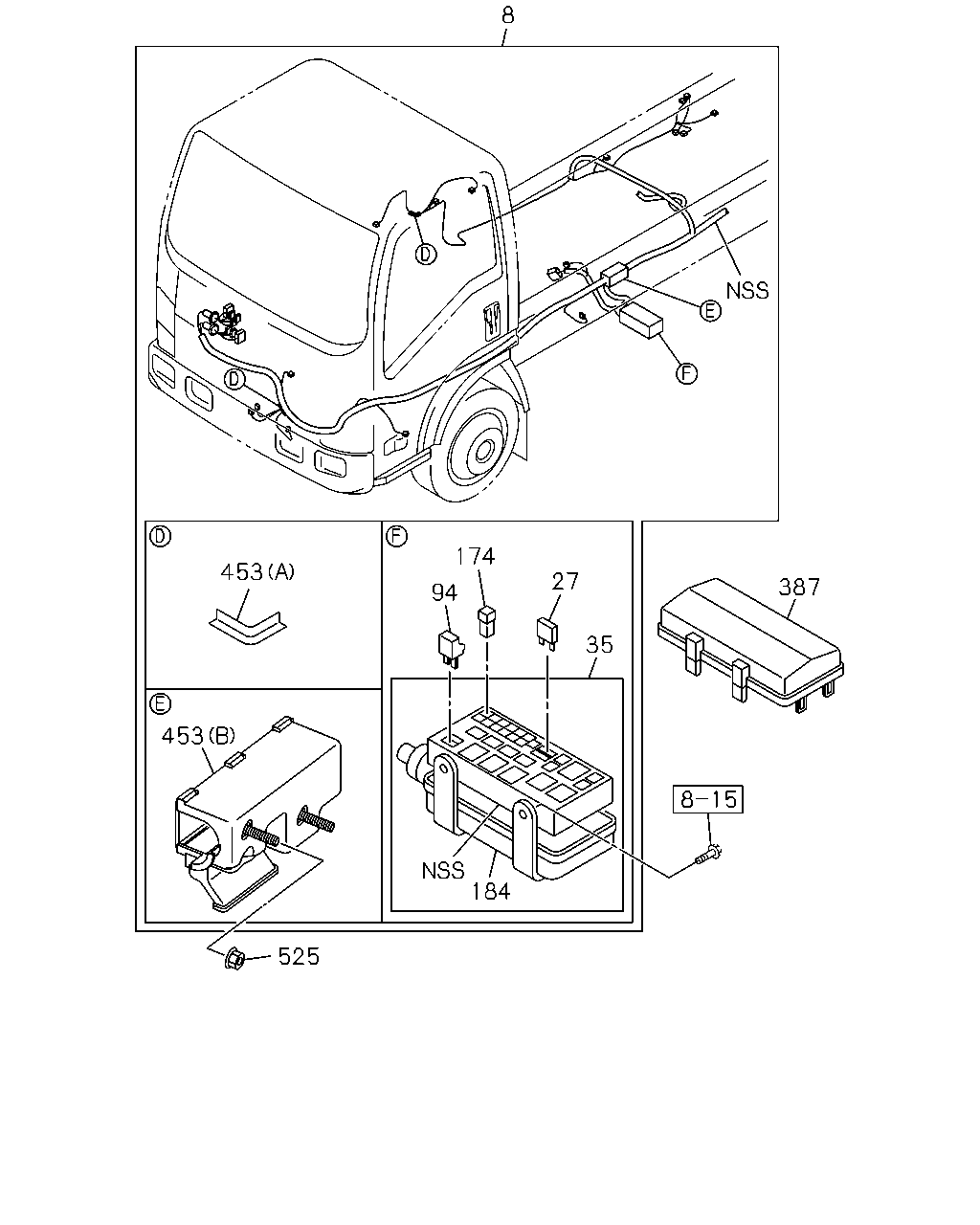

çizim 492662
8 453 453 525 94 184 174 27 35 387
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) 		8-98318-136-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) CATALYSIS CONTROL WITH DPD(8JM) 		8-98318-134-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98318-135-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) 		8-98301-116-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF),M/T MZZ6F(RSR) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98301-117-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98301-118-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98301-119-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) CATALYSIS CONTROL(6MZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98301-120-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98301-121-0 01 1 1509-
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1509-
27 08.965 FUSE UNIT
02.485 15A BLUE 		8-98054-258-0 AR 1 1509-
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1509-
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1509-
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1509-
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1509-
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1509-
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1509-
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1509-
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1509-
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1509-
453 02.483 PROTECTOR; HARNESS
(C) 		8-98057-647-0 01 1 1509-
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1509-
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 02 1 1509-
525 08.919 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1509-

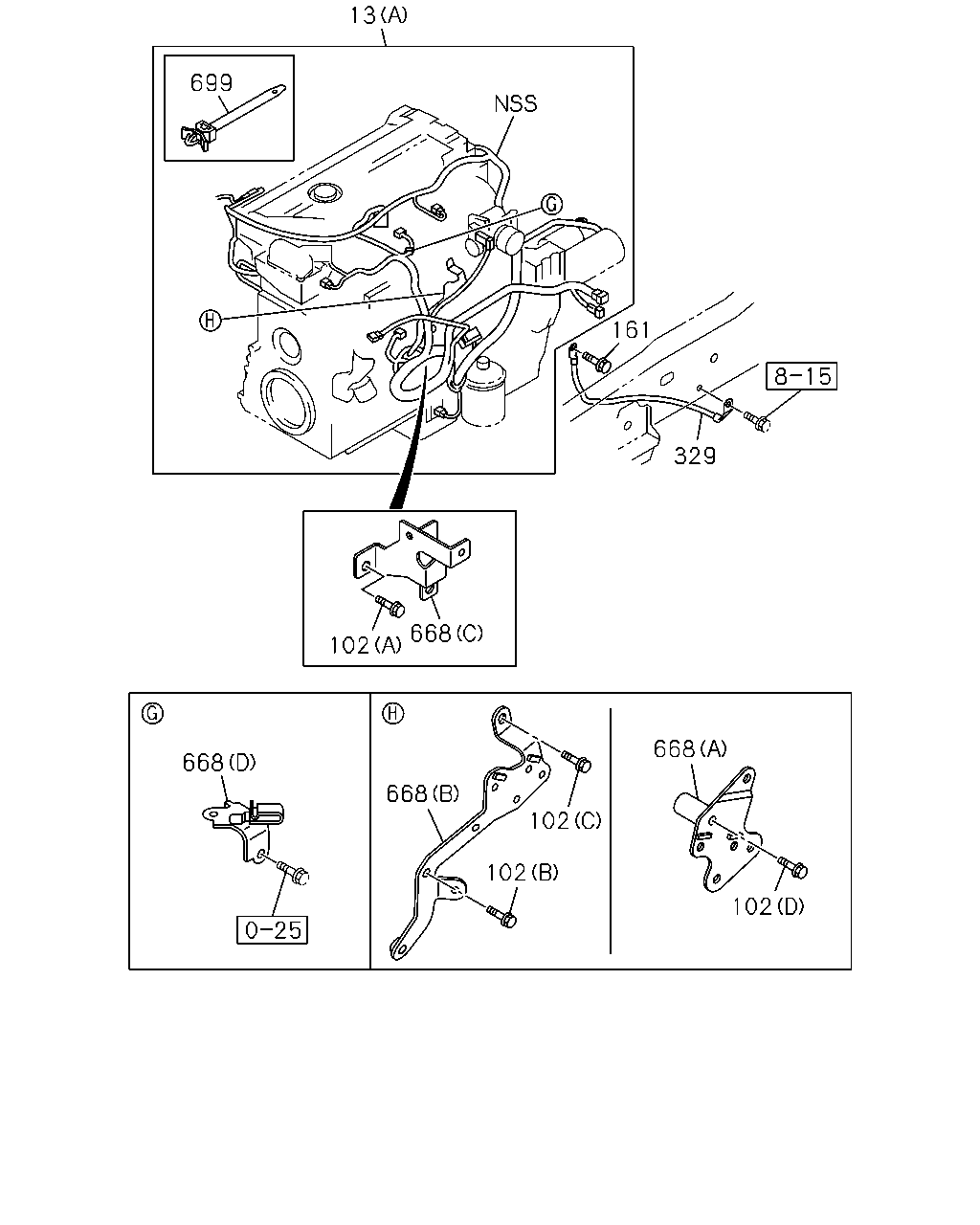

çizim 492676
13 699 161 329 102 668 668 668 102 102 668 102
BalonParca AdiParca NoAdetTipApplied Date
13 02.525 HARNESS; ENG
CATALYSIS CONTROL(6MZ) (A) 		8-98282-908-3 01 1 1509-
13 02.525 HARNESS; ENG
CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (B) 		8-98171-638-0 01 1 1509-
13 02.525 HARNESS; ENG
CATALYSIS CONTROL(6MZ) (B) 		8-98171-638-0 01 1 1509-
13 02.525 HARNESS; ENG
CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (A) 		8-98173-500-8 01 1 1509-
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
CATALYSIS CONTROL(6MZ) 03.415 (C) M8X48 FLANGE 		8-94458-473-1 01 1 1509-
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
CATALYSIS CONTROL(6MZ) 00.029 (A) M10X16 FLANGE 		0-28151-016-0 02 1 1509-
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
CATALYSIS CONTROL(6MZ) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 01 1 1509-
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 00.724 (C) M8X16 FLANGE 		0-28060-816-0 01 1 1509-
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
CATALYSIS CONTROL(6MZ) 00.724 (C) M8X16 FLANGE 		0-28060-816-0 01 1 1509-
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1509-
161 02.559 BOLT; GROUND,HARNESS
FUEL TANK 140 LITTER<N19> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1509-
161 02.559 BOLT; GROUND,HARNESS
FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1509-
161 02.559 BOLT; GROUND,HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1509-
161 02.559 BOLT; GROUND,HARNESS
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1509-
329 02.480 CABLE; ENG TO FRAME
FUEL TANK 140 LITTER<N19> 		8-98102-465-0 01 1 1509-
329 02.480 CABLE; ENG TO FRAME
FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> 		8-98102-465-0 01 1 1509-
329 02.480 CABLE; ENG TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 		8-98102-465-0 01 1 1509-
329 02.480 CABLE; ENG TO FRAME
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 		8-98102-465-0 01 1 1509-
668 02.559 BRACKET; HARNESS
CATALYSIS CONTROL(6MZ) 03.890 (A) 		8-98259-552-0 01 1 1509-
668 02.559 BRACKET; HARNESS
CATALYSIS CONTROL(6MZ) (C) 		8-98288-749-0 01 1 1509-
668 02.559 BRACKET; HARNESS
CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (D) 		8-98061-780-0 01 1 1509-
668 02.559 BRACKET; HARNESS
CATALYSIS CONTROL(6MZ) (D) 		8-98061-780-0 01 1 1509-
668 02.559 BRACKET; HARNESS
CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (B) 		8-98172-873-1 01 1 1509-
699 02.559 CLIP; ENG HARNESS
CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> L=146.2 		8-98052-677-0 01 1 1509-

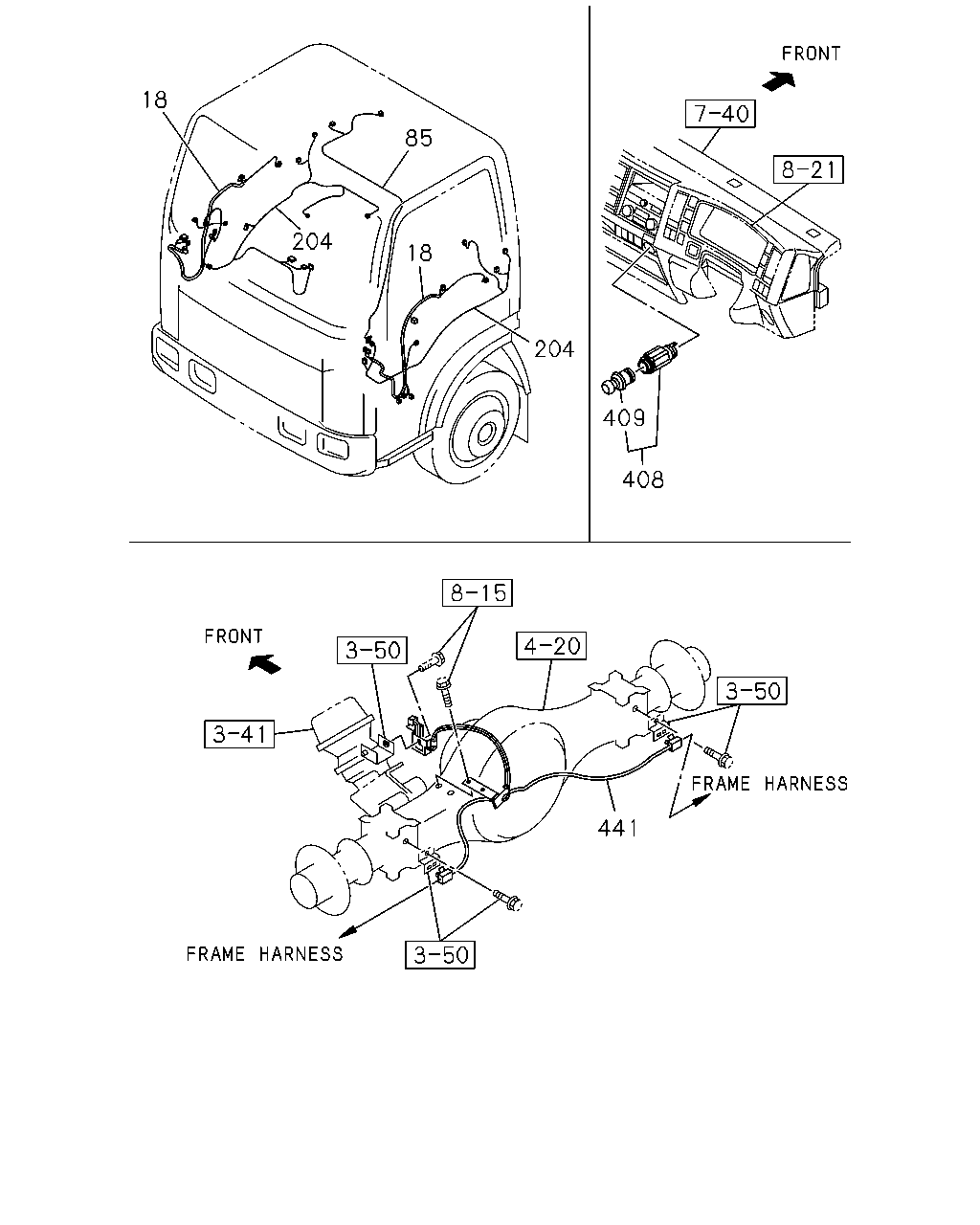

çizim 492691
204 85 18 204 18 441 409 408
BalonParca AdiParca NoAdetTipApplied Date
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> 		8-98077-592-3 01 1 1509-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> 		8-98077-600-3 01 1 1509-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98071-080-3 01 1 1509-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98071-088-3 01 1 1509-
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-591-2 01 1 1509-
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-599-2 01 1 1509-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> 		8-98071-079-2 01 1 1509-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> 		8-98071-087-2 01 1 1509-
85 06.495 HARNESS; ROOM LAMP
LAMPS TWO ROOF MARKER<TEC> 		8-98071-096-2 01 1 1509-
85 06.495 HARNESS; ROOM LAMP
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98050-518-3 01 1 1509-
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-98071-070-2 01 1 1509-
204 02.559 HARNESS; CABLE,FLOOR 8-98070-799-5 01 1 1509-
408 02.575 SOCKET ASM; ACCESSORY
ASH TRAY & CIGAR LIGHTER DELETE<8PC> 		8-98169-757-0 01 1 1509-
409 02.530 CAP; ACCESSORY SOCKET
ASH TRAY & CIGAR LIGHTER DELETE<8PC> 		8-98183-771-0 01 1 1509-
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98182-121-2 01 1 1509-

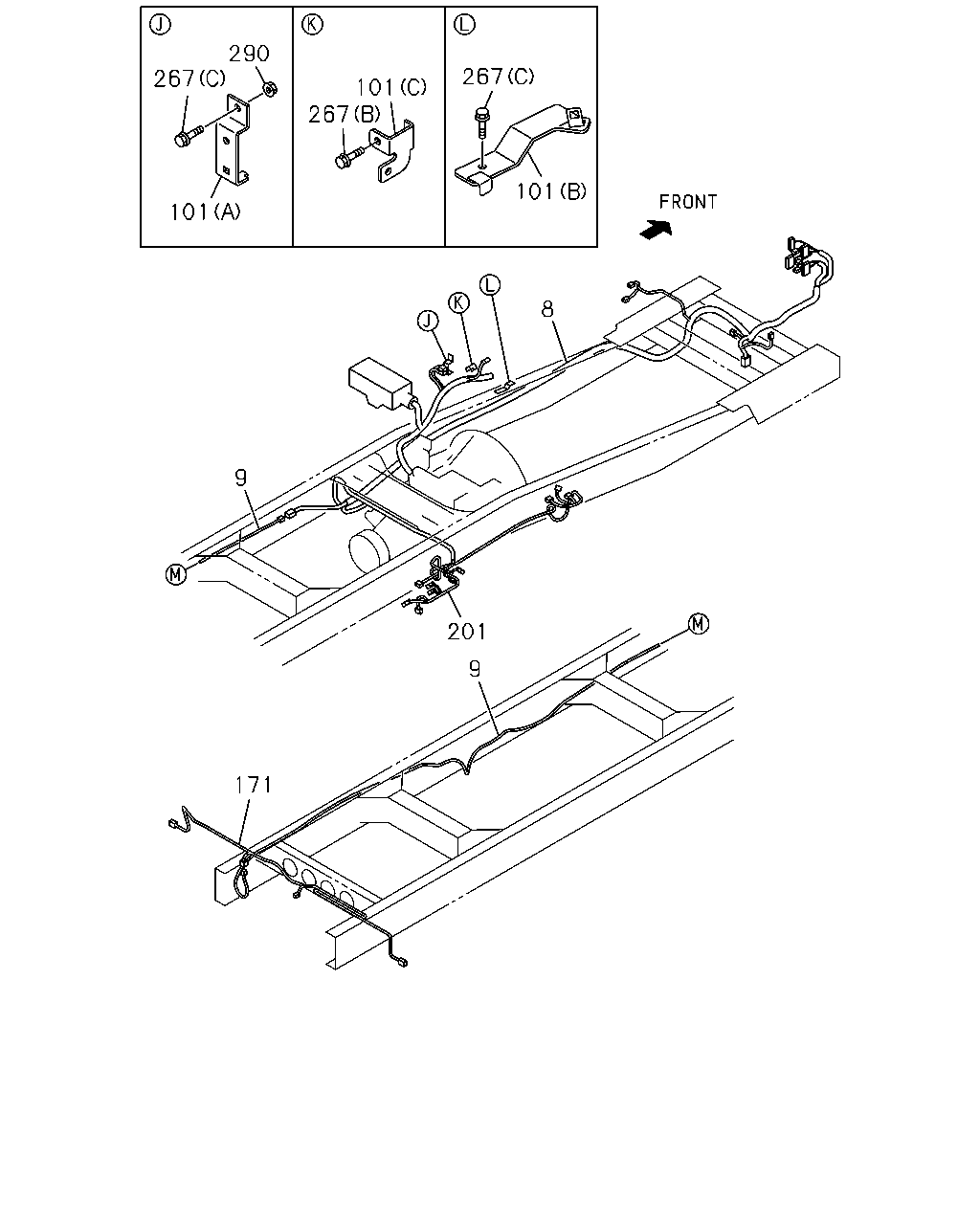

çizim 492695
201 171 9 8 101 267 267 101 267 101 290 9
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) 		8-98318-136-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) CATALYSIS CONTROL WITH DPD(8JM) 		8-98318-134-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98318-135-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) 		8-98301-116-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF),M/T MZZ6F(RSR) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98301-117-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98301-118-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> CATALYSIS CONTROL(6MZ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98301-119-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) CATALYSIS CONTROL(6MZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98301-120-0 01 1 1509-
8 02.480 HARNESS; FRAME,FRT
M/T MYY6S(RST) CATALYSIS CONTROL(6MZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98301-121-0 01 1 1509-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-798-3 01 1 1509-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-797-3 01 1 1509-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-802-3 01 1 1509-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-801-3 01 1 1509-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-800-3 01 1 1509-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-799-3 01 1 1509-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-806-3 01 1 1509-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-805-3 01 1 1509-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-804-3 01 1 1509-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-803-3 01 1 1509-
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98182-052-1 01 1 1509-
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98196-416-0 01 1 1509-
101 02.483 BRACKET; HARNESS CONNECTOR
CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98208-521-0 01 1 1509-
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98052-805-0 01 1 1509-
171 02.596 HARNESS; CABLE,TAIL LAMP
RR FOG LAMP<T79> 		8-98156-025-0 01 1 1509-
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. RR FOG LAMP<T79> 		8-98222-483-0 01 1 1509-
201 02.480 HARNESS; AIR TANK 8-98198-761-2 01 1 1509-
267 02.483 BOLT; BRKT
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1509-
267 02.483 BOLT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1509-
267 02.483 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE 		0-28156-012-0 01 1 1509-
290 02.483 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1509-

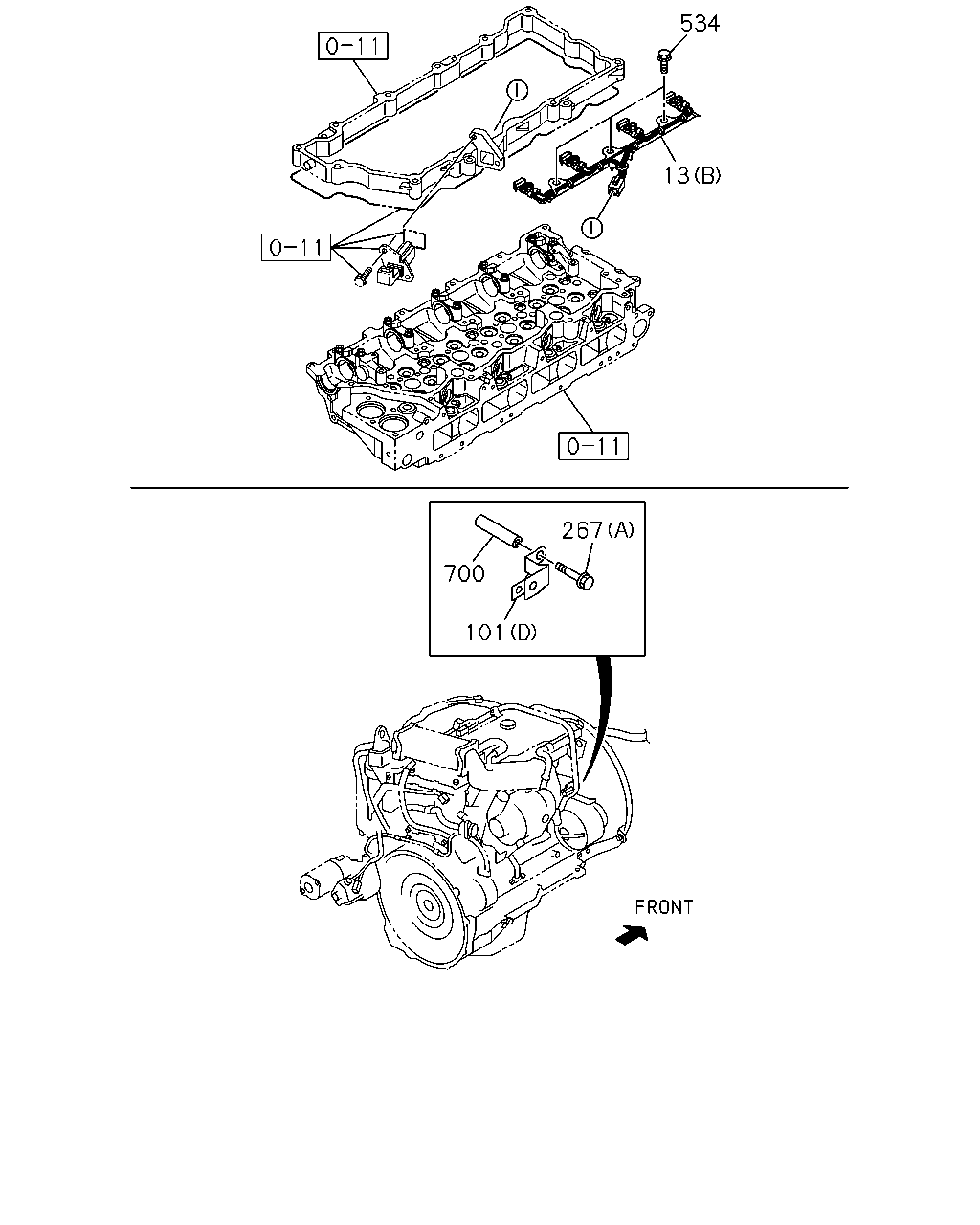

çizim 493174
700 101 267 13 534
BalonParca AdiParca NoAdetTipApplied Date
13 02.525 HARNESS; ENG
CATALYSIS CONTROL(6MZ) (A) 		8-98282-908-3 01 1 1509-
13 02.525 HARNESS; ENG
CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (B) 		8-98171-638-0 01 1 1509-
13 02.525 HARNESS; ENG
CATALYSIS CONTROL(6MZ) (B) 		8-98171-638-0 01 1 1509-
13 02.525 HARNESS; ENG
CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (A) 		8-98173-500-8 01 1 1509-
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98182-052-1 01 1 1509-
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98196-416-0 01 1 1509-
101 02.483 BRACKET; HARNESS CONNECTOR
CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98208-521-0 01 1 1509-
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98052-805-0 01 1 1509-
267 02.483 BOLT; BRKT
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1509-
267 02.483 BOLT; BRKT
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1509-
267 02.483 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE 		0-28156-012-0 01 1 1509-
534 02.483 BOLT
CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 1509-
534 02.483 BOLT
CATALYSIS CONTROL(6MZ) 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 1509-
700 02.483 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 1509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
