Isuzu WW
▶
TRUCKS
▶
NQR
▶
51637 - NQR AIR BRAKE LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶

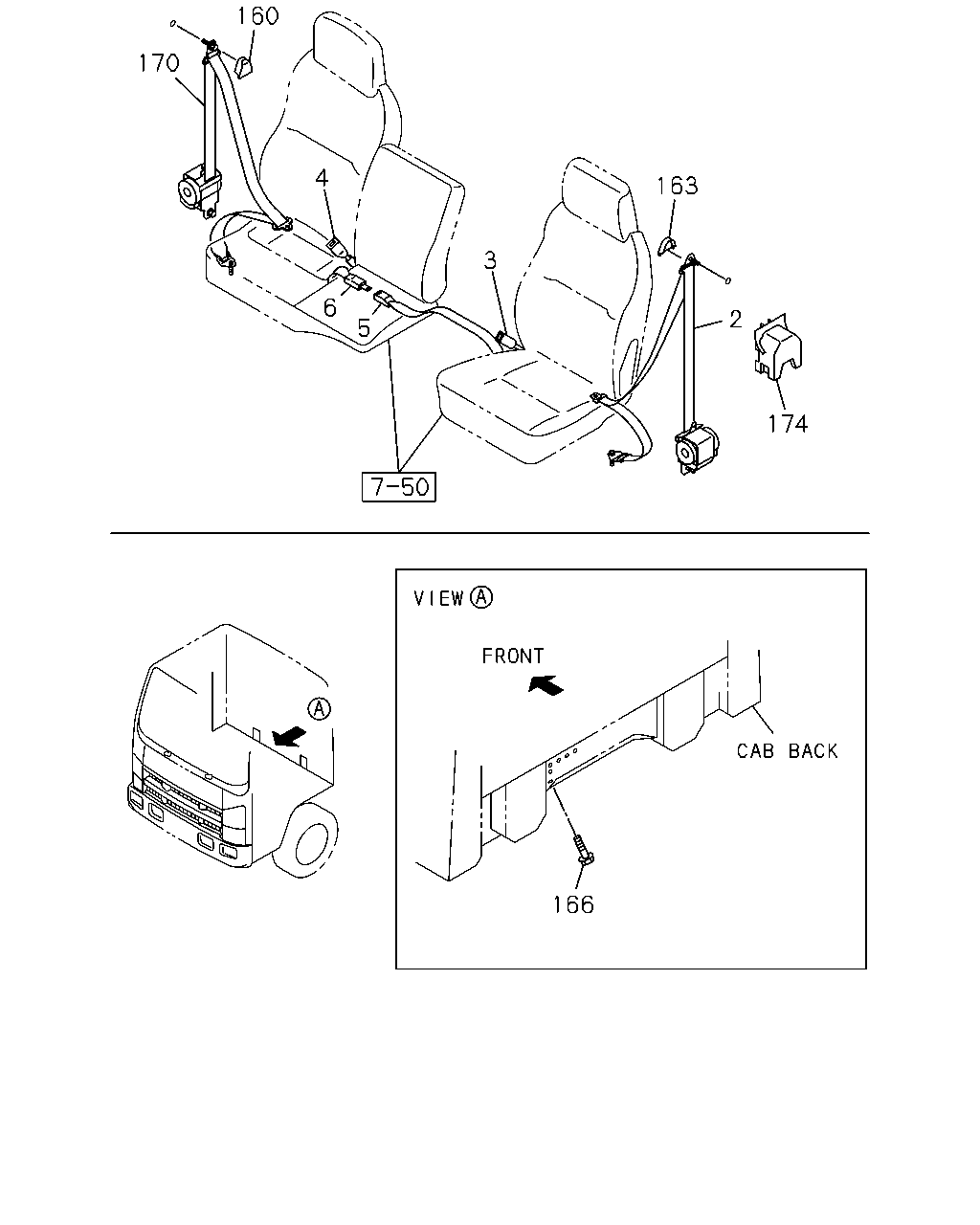

7-60 — SEAT BELT
(#166425) — 13 parça
174
2
163
3
4
160
170
166
6
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
16.714 BELT; SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) GRAY
8-97428-087-0
01
1
1509-
2
16.714 BELT; SEAT,TONGUE SIDE
CHILE EQUIPMENT(KE1) GRAY
8-97428-457-1
01
1
1509-
3
16.714 BELT; SEAT,BUCKLE SIDE
GRAY
8-97405-175-2
01
1
1509-
4
16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY
8-97405-178-0
01
1
1509-
5
16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY
8-97405-182-1
01
1
1509-
6
16.714 BELT; CENTER SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) GRAY
8-97428-088-0
01
1
1509-
6
16.714 BELT; CENTER SEAT,TONGUE SIDE
CHILE EQUIPMENT(KE1) GRAY
8-97411-507-2
01
1
1509-
160
16.714 COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
01
1
1509-
163
16.714 COVER; ADJUSTER
GRAY
8-97405-991-0
01
1
1509-
166
16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 M8X20 FLANGE
0-28050-820-0
02
1
1509-
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) GRAY
8-97428-087-0
01
1
1509-
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
CHILE EQUIPMENT(KE1) GRAY
8-97428-457-1
01
1
1509-
174
16.714 COVER; RETRACTOR,SEAT BELT
8-98039-376-1
01
1
1509-
